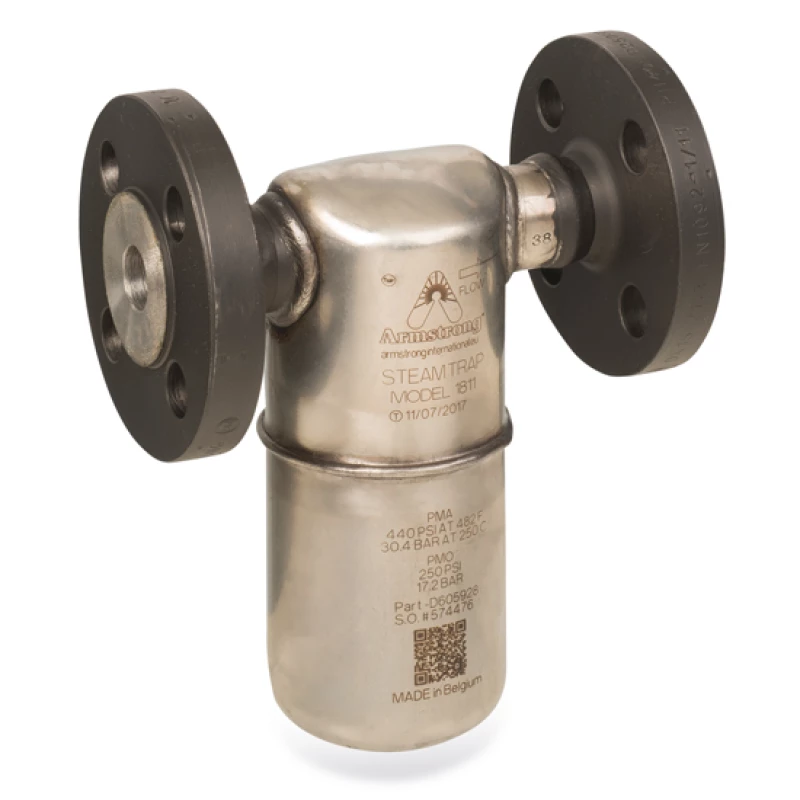

RVS Armstrong omgekeerde emmer condenspot | 1800 Serie
met horizontale aansluiting
Geschikt voor: ontwatering, tracing en procestoepassingen
- Voert condensaat direct af, zonder stuwing.
- Onderhoudsvrij en niet vuilgevoelig.
- Bestand tegen waterslag.
- Vorstbestendig.
Selecteer een uitvoering:
Selecteer een uitvoering

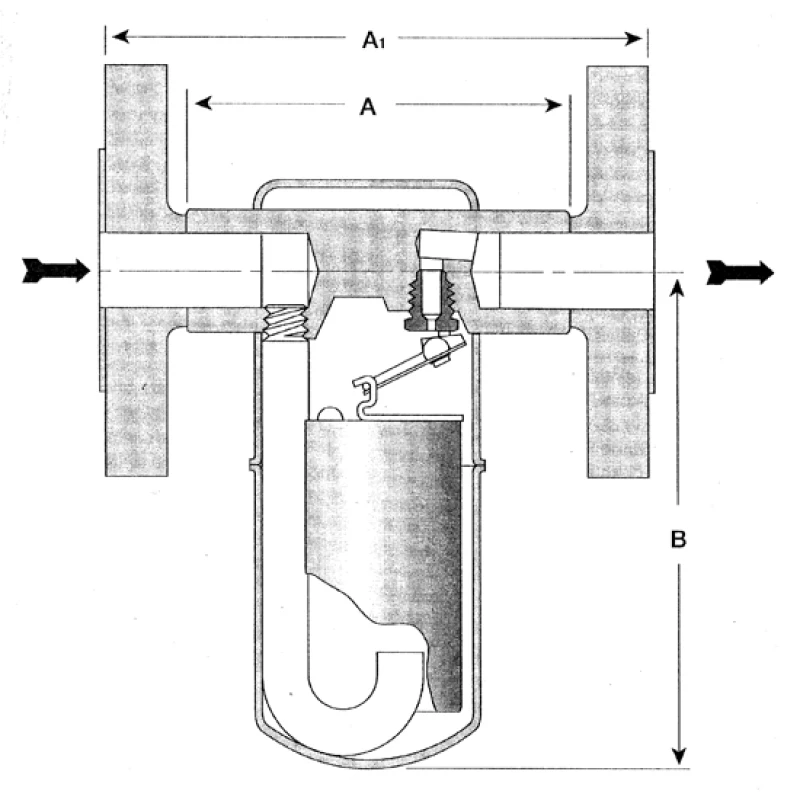

| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A | B | Gewicht (kg) | Bestellen |
| 6003532270015 | 1/2" | #38 | 14,0 | 110 | 113 | 0,8 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A | B | Gewicht (kg) | Bestellen |
| 6003561270015 | 1/2" | #38 | 14,0 | 110 | 113 | 0,8 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003514270015 | DN 15 | #38 | 14,0 | 150 | 113 | 2,3 | |
| 6003514270020 | DN 20 | #38 | 14,0 | 150 | 116 | 2,8 | |
| 6003514270025 | DN 25 | #38 | 14,0 | 160 | 116 | 3,3 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003521270015 | 1/2" | #38 | 14,0 | 150 | 113 | 3,6 | |
| 6003521270020 | 3/4" | #38 | 14,0 | 150 | 113 | 4,2 | |
| 6003521270025 | 1 " | #38 | 14,0 | 160 | 116 | 4,7 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003522270015 | 1/2" | #38 | 14,0 | 150 | 113 | 3,7 | |
| 6003522270020 | 3/4" | #38 | 14,0 | 150 | 116 | 4,3 | |
| 6003522270025 | 1 " | #38 | 14,0 | 160 | 116 | 4,9 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A | B | Gewicht (kg) | Bestellen |
| 6003632260015 | 1/2" | 7/64" | 14,0 | 110 | 138 | 0,9 | |
| 6003632270015 | 1/2" | #38 | 17,0 | 110 | 138 | 0,9 | |
| 6003632280015 | 1/2" | 5/64" | 28,0 | 110 | 138 | 0,9 | |
| 6003632240020 | 3/4" | 5/32" | 5,0 | 110 | 141 | 1,0 | |
| 6003632250020 | 3/4" | 1/8 " | 8,5 | 110 | 141 | 1,0 | |
| 6003632260020 | 3/4" | 7/64" | 14,0 | 110 | 141 | 1,0 | |
| 6003632270020 | 3/4" | #38 | 17,0 | 110 | 141 | 1,0 | |
| 6003632280020 | 3/4" | 5/64" | 28,0 | 110 | 141 | 1,0 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A | B | Gewicht (kg) | Bestellen |
| 6003641260015 | 1/2" | 7/64" | 14,0 | 110 | 138 | 1,0 | |
| 6003641280015 | 1/2" | 5/64" | 28,0 | 110 | 138 | 1,0 | |
| 6003641260020 | 3/4" | 7/64" | 14,0 | 110 | 141 | 1,0 | |
| 6003641280020 | 3/4" | 5/64" | 28,0 | 110 | 141 | 1,0 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A | B | Gewicht (kg) | Bestellen |
| 6003661260015 | 1/2" | 7/64" | 14,0 | 110 | 138 | 0,9 | |
| 6003661270015 | 1/2" | #38 | 17,0 | 110 | 138 | 0,9 | |
| 6003661280015 | 1/2" | 5/64" | 28,0 | 110 | 138 | 0,9 | |
| 6003661260020 | 3/4" | 7/64" | 14,0 | 110 | 141 | 1,0 | |
| 6003661270020 | 3/4" | #38 | 17,0 | 110 | 141 | 1,0 | |
| 6003661280020 | 3/4" | 5/64" | 28,0 | 110 | 141 | 1,0 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003614260015 | DN 15 | 7/64" | 14,0 | 150 | 138 | 2,5 | |
| 6003614270015 | DN 15 | #38 | 17,0 | 150 | 138 | 2,5 | |
| 6003614280015 | DN 15 | 5/64" | 28,0 | 150 | 138 | 2,5 | |
| 6003614240020 | DN 20 | 5/32" | 5,0 | 150 | 141 | 3,2 | |
| 6003614250020 | DN 20 | 1/8 " | 8,5 | 150 | 141 | 3,2 | |
| 6003614260020 | DN 20 | 7/64" | 14,0 | 150 | 141 | 3,2 | |
| 6003614270020 | DN 20 | #38 | 17,0 | 150 | 141 | 3,2 | |
| 6003614280020 | DN 20 | 5/64" | 28,0 | 150 | 141 | 3,2 | |
| 6003614240025 | DN 25 | 5/32" | 5,0 | 160 | 141 | 3,6 | |
| 6003614250025 | DN 25 | 1/8 " | 8,5 | 160 | 141 | 3,6 | |
| 6003614260025 | DN 25 | 7/64" | 14,0 | 160 | 141 | 3,6 | |
| 6003614270025 | DN 25 | #38 | 17,0 | 160 | 141 | 3,6 | |
| 6003614280025 | DN 25 | 5/64" | 28,0 | 160 | 141 | 3,6 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003621260015 | 1/2" | 7/64" | 14,0 | 150 | 138 | 2,4 | |
| 6003621270015 | 1/2" | #38 | 17,0 | 150 | 138 | 2,4 | |
| 6003621280015 | 1/2" | 5/64" | 28,0 | 150 | 138 | 2,4 | |
| 6003621240020 | 3/4" | 5/32" | 5,0 | 150 | 138 | 3,1 | |
| 6003621260020 | 3/4" | 7/64" | 14,0 | 150 | 138 | 3,1 | |
| 6003621270020 | 3/4" | #38 | 17,0 | 150 | 138 | 3,1 | |
| 6003621280020 | 3/4" | 5/64" | 28,0 | 150 | 138 | 3,1 | |
| 6003621260025 | 1 " | 7/64" | 14,0 | 160 | 141 | 3,5 | |
| 6003621270025 | 1 " | #38 | 17,0 | 160 | 141 | 3,5 | |
| 6003621280025 | 1 " | 5/64" | 28,0 | 160 | 141 | 3,5 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003622260015 | 1/2" | 7/64" | 14,0 | 150 | 138 | 2,6 | |
| 6003622270015 | 1/2" | #38 | 17,0 | 150 | 138 | 2,6 | |
| 6003622280015 | 1/2" | 5/64" | 28,0 | 150 | 138 | 2,6 | |
| 6003622240020 | 3/4" | 5/32" | 5,0 | 150 | 150 | 3,3 | |
| 6003622260020 | 3/4" | 7/64" | 14,0 | 150 | 150 | 3,3 | |
| 6003622270020 | 3/4" | #38 | 17,0 | 150 | 150 | 3,3 | |
| 6003622280020 | 3/4" | 5/64" | 28,0 | 150 | 150 | 3,3 | |
| 6003622260025 | 1 " | 7/64" | 14,0 | 160 | 160 | 3,7 | |
| 6003622270025 | 1 " | #38 | 17,0 | 160 | 160 | 3,7 | |
| 6003622280025 | 1 " | 5/64" | 28,0 | 160 | 160 | 3,7 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A | B | Gewicht (kg) | Bestellen |
| 6003732250020 | 3/4" | 1/8 " | 17,0 | 127 | 186 | 3,0 | |
| 6003732260020 | 3/4" | 7/64" | 21,0 | 127 | 186 | 3,0 | |
| 6003732270020 | 3/4" | #38 | 41,5 | 127 | 186 | 3,0 | |
| 6003732250025 | 1 " | 1/8 " | 17,0 | 127 | 181 | 3,0 | |
| 6003732260025 | 1 " | 7/64" | 21,0 | 127 | 181 | 3,0 | |
| 6003732270025 | 1 " | #38 | 41,5 | 127 | 181 | 3,0 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A | B | Gewicht (kg) | Bestellen |
| 6003761250020 | 3/4" | 1/8 " | 17,0 | 127 | 186 | 3,0 | |
| 6003761270020 | 3/4" | #38 | 41,5 | 127 | 186 | 3,0 | |
| 6003761250025 | 1 " | 1/8 " | 17,0 | 127 | 186 | 3,0 | |
| 6003761270025 | 1 " | #38 | 41,5 | 127 | 186 | 3,0 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003714250020 | DN 20 | 1/8 " | 17,0 | 190 | 186 | 5,2 | |
| 6003714260020 | DN 20 | 7/64" | 21,0 | 190 | 186 | 5,2 | |
| 6003714270020 | DN 20 | #38 | 41,5 | 190 | 186 | 5,2 | |
| 6003714250025 | DN 25 | 1/8 " | 17,0 | 200 | 186 | 5,6 | |
| 6003714260025 | DN 25 | 7/64" | 21,0 | 200 | 186 | 5,6 | |
| 6003714270025 | DN 25 | #38 | 41,5 | 200 | 186 | 5,6 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003721250020 | 3/4" | 1/8 " | 17,0 | 210 | 186 | 5,1 | |
| 6003721260020 | 3/4" | 7/64" | 21,0 | 210 | 186 | 5,1 | |
| 6003721270020 | 3/4" | #38 | 41,5 | 210 | 186 | 5,1 | |
| 6003721250025 | 1 " | 1/8 " | 17,0 | 192 | 186 | 5,5 | |
| 6003721260025 | 1 " | 7/64" | 21,0 | 192 | 186 | 5,5 | |
| 6003721270025 | 1 " | #38 | 41,5 | 192 | 186 | 5,5 | |
| Orifice | drukverschil | Afmetingen (mm) | |||||
|---|---|---|---|---|---|---|---|
| Art.nr. | Aansluiting | (klepdoorlaat) | max. (bar) | A1 | B | Gewicht (kg) | Bestellen |
| 6003722250020 | 3/4" | 1/8 " | 17,0 | 220 | 186 | 5,3 | |
| 6003722260020 | 3/4" | 7/64" | 21,0 | 220 | 186 | 5,3 | |
| 6003722270020 | 3/4" | #38 | 41,5 | 220 | 186 | 5,3 | |
| 6003722250025 | 1 " | 1/8 " | 17,0 | 192 | 186 | 5,7 | |
| 6003722260025 | 1 " | 7/64" | 21,0 | 192 | 186 | 5,7 | |
| 6003722270025 | 1 " | #38 | 41,5 | 192 | 186 | 5,7 | |
Ook leverbaar
- in PN100 uitvoering leverbaar
Ook leverbaar
- in ANSI 600# uitvoering leverbaar

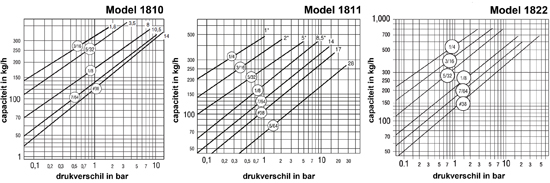

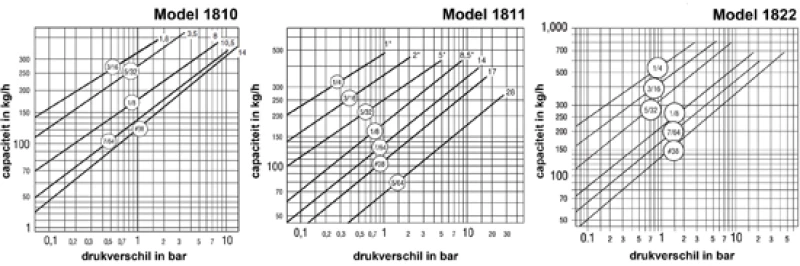

Specificaties
| Type | 1800 Serie |
| Materiaal | RVS 304L |
|
|
|
| Binnenwerk | RVS 304L |
| Klep en zitting | gehard chroomstaal 17-4-PH |
| Flenzen | (indien van toepassing) staal PN40 max. 32 bar @250ºC, optioneel RVS |
| Werkdruk max. | type 1810 14 bar |
| type 1811 28 bar | |
| type 1822 45 bar | |
| Tegendruk | tot 99% van de voordruk |
|
|
|
| Aansluitingen | BSP of NPT draad, lasaansluiting,flenzen DIN of ANSI |
|
|
|
| Temperatuur | max. 427ºC |
|
|
|
| Ook leverbaar | afwijkende klepdoorlaat |
| insupak isolatie voor de 1810 en 1811 | |
| "Pop-drain" automatische aftap voor de 1811 en 1822 | |
| andere aansluitingen | |
