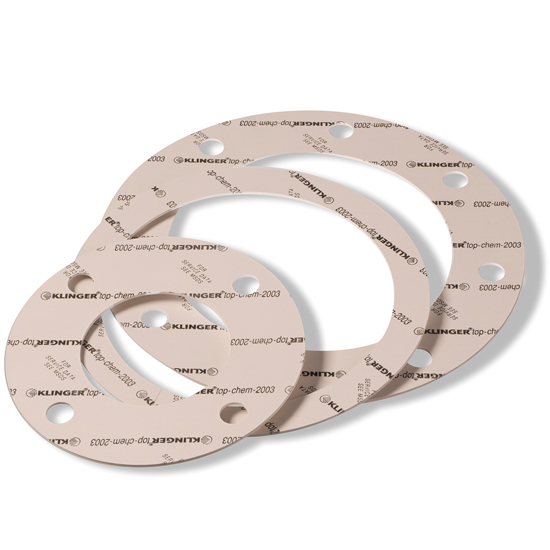

KLINGERtop-chem | KLINGER®top-chem-2003
Hoogwaardig afdichtingsmateriaal op basis van PTFE
Geschikt voor: chemicaliën in kunststof en/of glas/keramische leidingsystemen, lage temperaturen". Ook geschikt voor voedingsmiddelen en farmaceutische industrie. Kijk voor de specificaties & bestellen met certificering onder food pakkingen".
- Deze pakking heeft de chemische bestendigheid van PTFE.
- Relatief zacht met weinig vloeineiging.
- Hecht niet aan de flens.
- Veroudert niet.
- Groot aanpassingsvermogen.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 18315001500415 | 1,5 | 1500 x 1500 | |
| 18315001500420 | 2 | 1500 x 1500 | |
| 18315001500430 | 3 | 1500 x 1500 |
