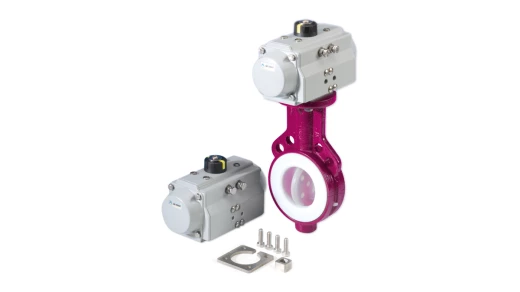

ChemValve - PTFE Lined butterfly valves

ChemValve butterfly valves; essential for hazardous applications

Swiss quality and reliability

KLINGER BRINGS PRODUCTION PROCESSES TO A HIGHER LEVEL

CHEMVALVE BUTTERFLY VALVES

Features

SECURE & LEAKAGE-FREE

LONG LASTING & ECONOMICAL

ADDITIONAL FEATURES

UNIQUE

TECHNICAL DATA

NOMINAL DIAMETERS: DN 25-1200 / 1“-48“
FLANGE CONNECTIONS:

» EN 1092-1, PN 10-16
» ASME B16.5, Class 150
» JIS 10K

MAXIMUM WORKING PRESSURE: » DN 25-450: 10 bar
» DN 500-600: 6 bar
» DN 650-1200: 3 bar
TEMPERATURE RANGE: » -20°C to 200°C
FACE-TO-FACE LENGTH: » EN 558, Series 20
DISK MATERIALS: » PFA
» PFAc, Conductive PFA
» Stainless Steel, 1.4404
» Duplex, 1.4462, 1.4469
» Titanium Grade 2, 3.7035
» Hastelloy C, 2.4602, 2.4819
LINER MATERIALS: » PTFE
» Modified PTFE
» Modified & Conductive PTFE
» UHMPE
BACKUP MATERIALS: » Silicone
» EPDM
» FKM
BODY MATERIALS: » Ductile Iron (EN-JS1049)
» Stainless Steel (1.4404)
» Carbon Steel (S355J2)
» Plastic (VE-CF)
CONFORMITY: » PED 2014/68/EU
» ATEX 2014/34/EU
» Food (EC) Nr. 1935/2004, FDA
» TA-Luft, ISO 15848-1
PRESSURE TEST: » EN 12266-1
