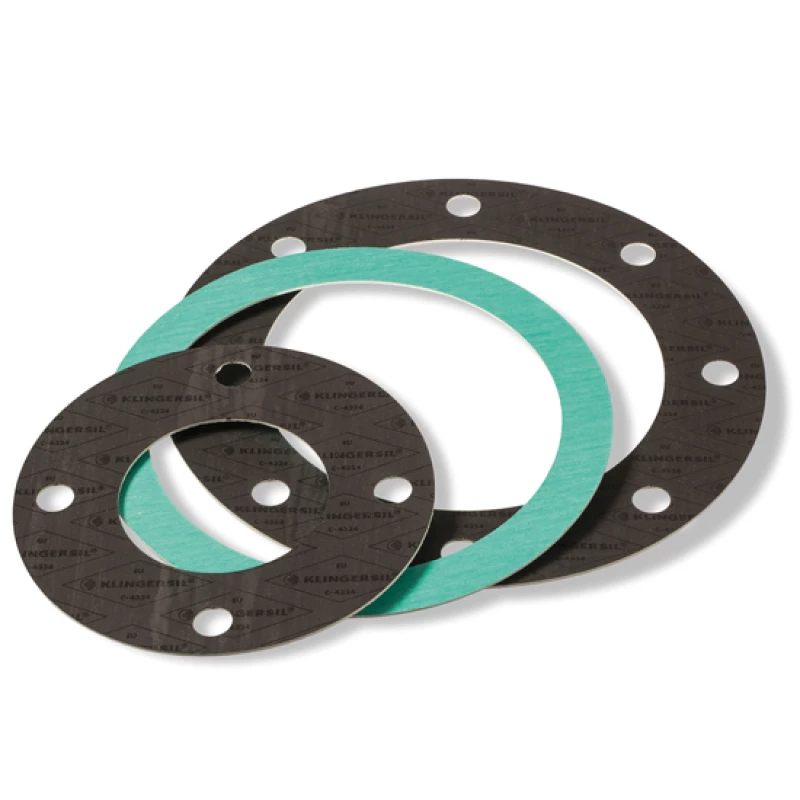

Vezel afdichting | KLINGERSIL®C-4324
Aramide en glasvezels met NBR
Geschikt voor: oliën, water, lucht en vele andere gassen
- Economische afdichting.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 10620001500410 | 1 | 2000 x 1500 | |
| 10620001500415 | 1,5 | 2000 x 1500 | |
| 10620001500420 | 2 | 2000 x 1500 | |
| 10620001500430 | 3 | 2000 x 1500 |
