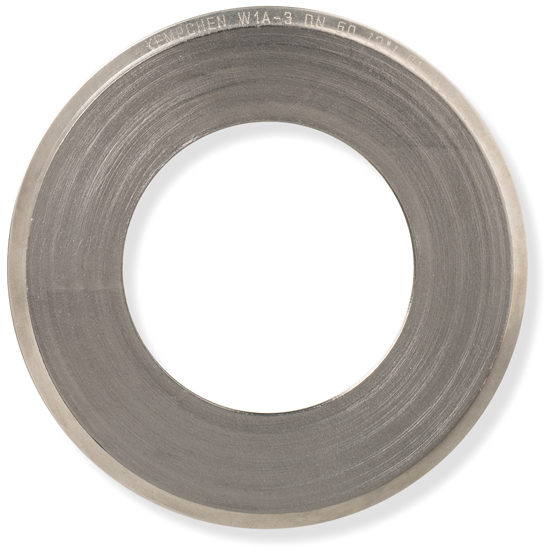

Klinger Flex | W1A-3

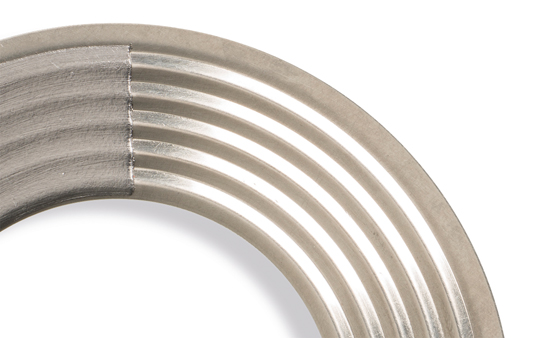

RVS gegolfde pakkingen met grafiet oplage
Geschikt voor: stoom, olie, koolwaterstoffen en vele chemicaliën
- Deze pakking is zowel bij lage als hoge mediumdrukken inzetbaar.
- Aanzienlijk kostengunstiger dan spiraalgewonden of kamprofielpakkingen.
- Voldoet aan de strengste emissie eisen (TA-luft).
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 58600450018029 | DN 10 | PN 10-40 | 45 x 39 x 18 | |
| 58600500022029 | DN 15 | PN 10-40 | 50 x 44 x 22 | |
| 58600600028029 | DN 20 | PN 10-40 | 60 x 54 x 28 | |
| 58600700035029 | DN 25 | PN 10-40 | 70 x 64 x 35 | |
| 58600820043029 | DN 32 | PN 10-40 | 82 x 76 x 43 | |
| 58600920049029 | DN 40 | PN 10-40 | 92 x 86 x 49 | |
| 58601070061029 | DN 50 | PN 10-40 | 107 x 101 x 61 | |
| 58601270077029 | DN 65 | PN 10-40 | 127 x 121 x 77 | |
| 58601420090029 | DN 80 | PN 10-40 | 142 x 136 x 90 | |
| 58601620115029 | DN 100 | PN 10-16 | 162 x 156 x 115 | |
| 58601920141029 | DN 125 | PN 10-16 | 192 x 186 x 141 | |
| 58602180169029 | DN 150 | PN 10-16 | 218 x 212 x 169 | |
| 58602730220029 | DN 200 | PN 10-16 | 273 x 267 x 220 | |
| 58601680115029 | DN 100 | PN 25-40 | 168 x 162 x 115 | |
| 58601950141029 | DN 125 | PN 25-40 | 195 x 189 x 141 | |
| 58602250169029 | DN 150 | PN 25-40 | 225 x 219 x 169 | |
| 58603280274029 | DN 250 | PN 10 | 328 x 322 x 274 | |
| 58603800324029 | DN 300 | PN 10 | 380 x 374 x 324 | |
| 58603300274029 | DN 250 | PN 16 | 330 x 324 x 274 | |
| 58603860324029 | DN 300 | PN 16 | 386 x 380 x 324 | |
| 58602850220029 | DN 200 | PN 25 | 285 x 279 x 220 | |
| 58603420274029 | DN 250 | PN 25 | 342 x 336 x 274 | |
| 58604030324029 | DN 300 | PN 25 | 403 x 397 x 324 | |
| 58602920220029 | DN 200 | PN 40 | 292 x 286 x 220 | |
| 58603530274029 | DN 250 | PN 40 | 353 x 347 x 274 | |
| 58604200324029 | DN 300 | PN 40 | 420 x 414 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 58600470022029 | 1/2" | 47,5 x 40 x 22 | |
| 58600570027029 | 3/4" | 57,0 x 49 x 27 | |
| 58600660034029 | 1 " | 66,5 x 59 x 34 | |
| 58600760043029 | 1 1/4" | 76,0 x 68 x 43 | |
| 58600850049029 | 1 1/2" | 85,5 x 78 x 49 | |
| 58601050061029 | 2 " | 105,0 x 97 x 61 | |
| 58601240073029 | 2 1/2" | 124,0 x 116 x 73 | |
| 58601360089029 | 3 " | 136,5 x 129 x 89 | |
| 58601740115029 | 4 " | 174,5 x 167 x 115 | |
| 58601970141029 | 5 " | 197,0 x 189 x 141 | |
| 58602220169029 | 6 " | 222,5 x 215 x 169 | |
| 58602790220029 | 8 " | 279,5 x 272 x 220 | |
| 58603390273029 | 10 " | 339,5 x 332 x 273 | |
| 58604090324029 | 12 " | 409,5 x 402 x 324 | |
| 58604510356029 | 14 " | 451,0 x 443 x 356 | |
| 58605140407029 | 16 " | 514,5 x 507 x 407 | |
| 58605490458029 | 18 " | 549,5 x 542 x 458 | |
| 58606060508029 | 20 " | 606,5 x 599 x 508 | |
| 58607170610029 | 24 " | 717,5 x 710 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 58600540022029 | 1/2" | 54,0 x 46 x 22 | |
| 58600660027029 | 3/4" | 66,5 x 59 x 27 | |
| 58600730034029 | 1 " | 73,0 x 65 x 34 | |
| 58600820043029 | 1 1/4" | 82,5 x 75 x 43 | |
| 58600950049029 | 1 1/2" | 95,5 x 88 x 49 | |
| 58601110061029 | 2 " | 111,0 x 103 x 61 | |
| 58601300073029 | 2 1/2" | 130,0 x 122 x 73 | |
| 58601490089029 | 3 " | 149,0 x 141 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 58601810115029 | 4" | 181,0 x 173 x 115 | |
| 58602160141029 | 5" | 216,0 x 208 x 141 | |
| 58602510169029 | 6" | 251,0 x 243 x 169 | |
| 58603080220029 | 8" | 308,0 x 300 x 220 | |
| 58603620273029 | 10" | 362,0 x 354 x 273 | |
| 58604220324029 | 12" | 422,5 x 415 x 324 | |
| 58604860356029 | 14" | 486,0 x 478 x 356 | |
| 58605400407029 | 16" | 540,0 x 532 x 407 | |
| 58605970458029 | 18" | 597,0 x 589 x 458 | |
| 58606540508029 | 20" | 654,0 x 646 x 508 | |
| 58607740610029 | 24" | 774,5 x 767 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 58601930115029 | 4" | 193,5 x 186 x 115 | |
| 58602410141029 | 5" | 241,5 x 234 x 141 | |
| 58602660169029 | 6" | 266,5 x 259 x 169 | |
| 58603200220029 | 8" | 320,5 x 313 x 220 | |
| 58604000273029 | 10" | 400,0 x 392 x 273 | |
| 58604570324029 | 12" | 457,0 x 449 x 324 | |
| 58604920356029 | 14" | 492,0 x 484 x 356 | |
| 58606560407029 | 16" | 656,0 x 557 x 407 | |
| 58606130458029 | 18" | 613,0 x 605 x 458 | |
| 58606820508029 | 20" | 682,5 x 675 x 508 | |
| 58607900610029 | 24" | 790,5 x 783 x 610 |
Specificaties
| Type | W1A-3 |
| Materiaal | AISI 316Ti/grafiet |
| Max. temperatuur | 500ºC |
| Max. druk | 160 bar |
| Goedgekeurd door | VDI2440 TA-luft |
| HOBT1 blow out test | |
| "Fire-safe"volgens ISO 10497 en API 607 | |
| Afmetingen | DIN en EN volgens WS188 |
| ASME B16.5 volgens WS189 |
