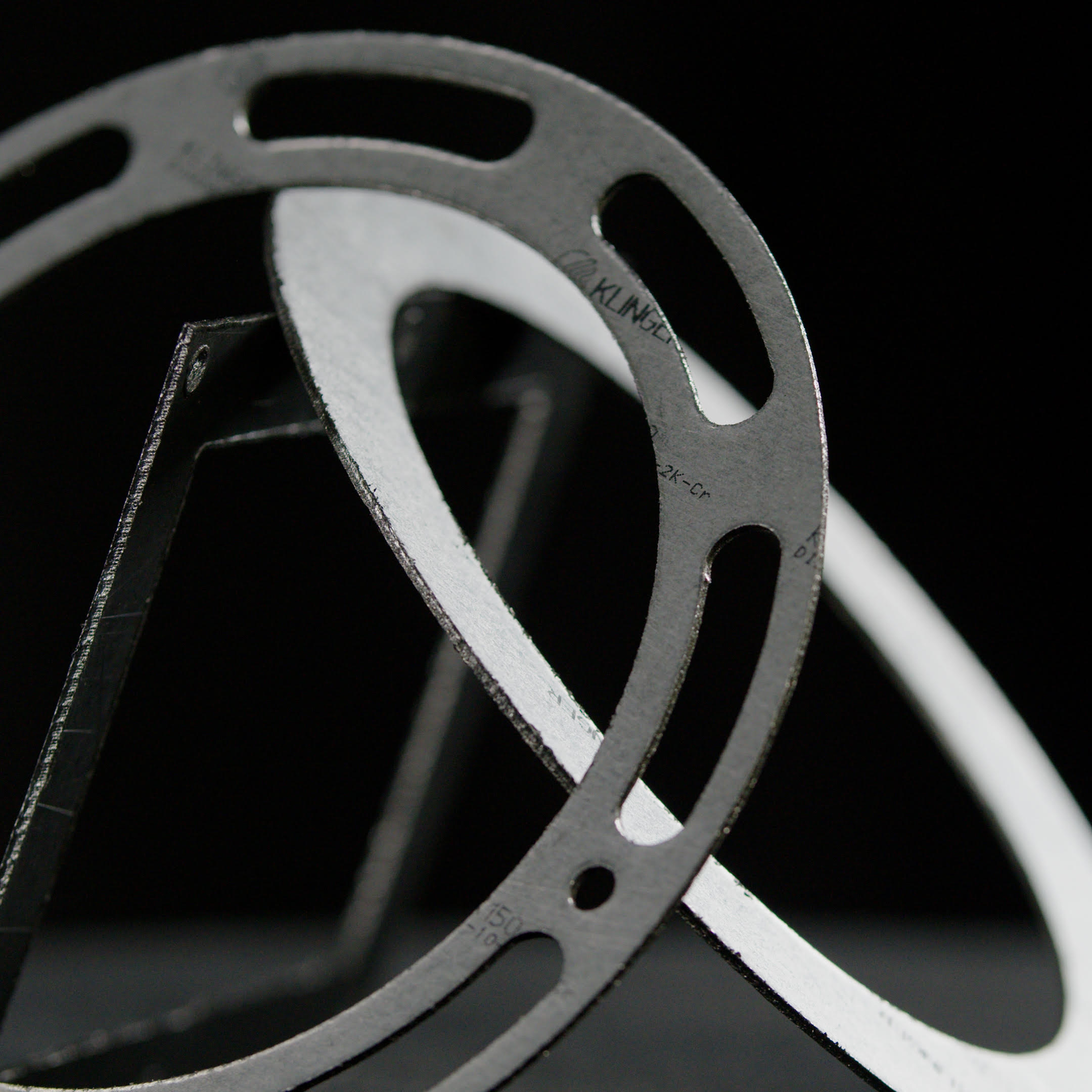

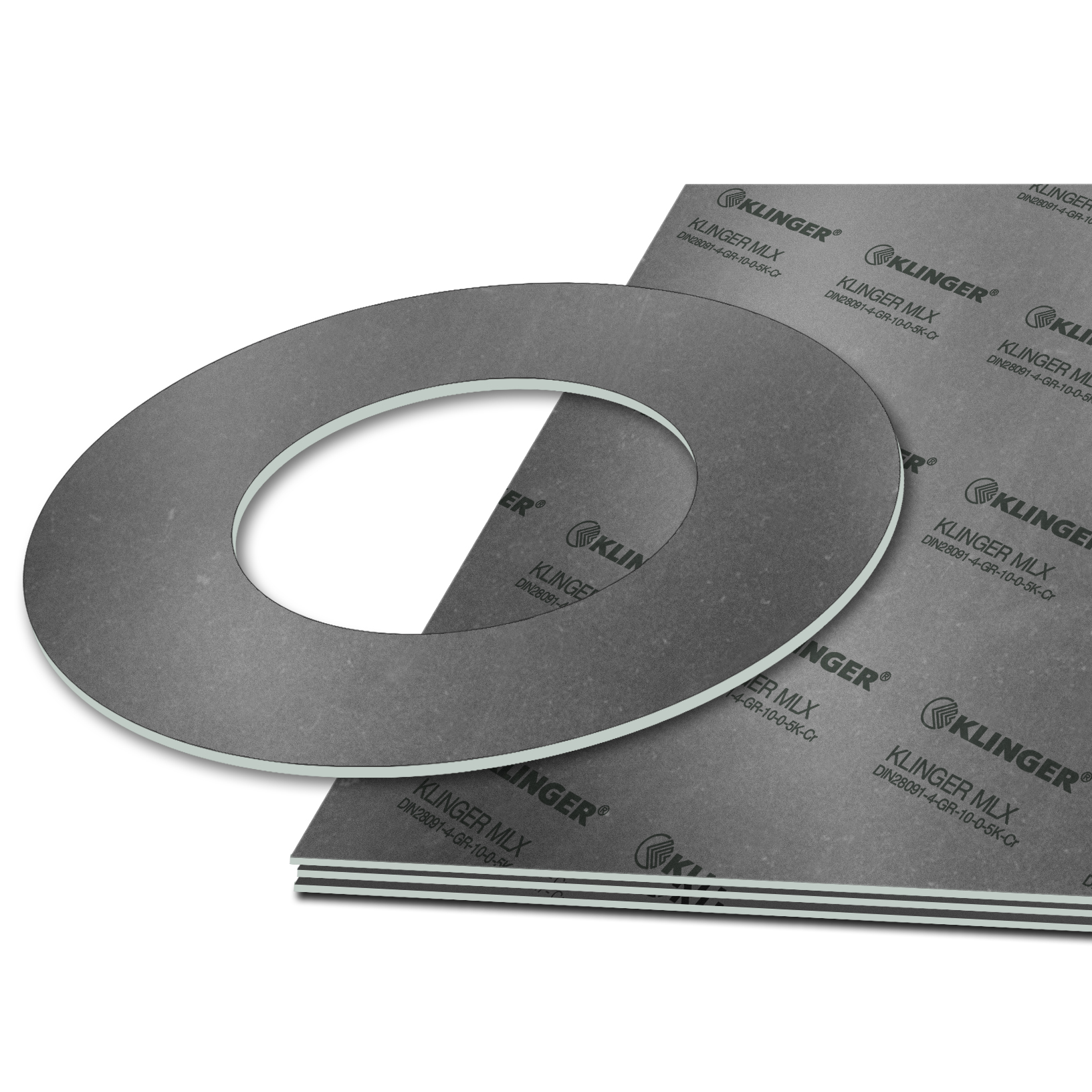

Grafiet afdichting | KLINGER®MLX
Grafiet met meerdere RVS inlagen
Geschikt voor: extreme omstandigheden, met name voor hogedruktoepassingen, hoge temperaturen en hoge drukspanningen.
- Zeer grote compressibiliteit en temperatuurbestendigheid.
- Hoge lekdichtheid bij lagere boutkrachten.
- Voorzien van "Anti-stick" coating.
- Meerdere RVS inlagen.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
- Gemakkelijk zelf te snijden.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 21415001500415 | 1,5 | 1500 x 1500 | |
| 21515001500420 | 2 | 1500 x 1500 | |
| 21415001500430 | 3 | 1500 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 21400460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 21400460018015 | DN 15 | PN 10-40 | 51 x 22 | |
| 21400610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 21400710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 21400820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 21400920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 21401070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 21401270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 21401420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 21401620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 21401680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 21401920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 21401940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 21402180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 21402240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 21402730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 21402840220015 | DN 200 | PN 25 | 285 x 220 | |
| 21402900220015 | DN 200 | PN 40 | 292 x 220 | |
| 21403280273015 | DN 250 | PN 10 | 328 x 273 | |
| 21403290273015 | DN 250 | PN 16 | 329 x 273 | |
| 21403420274015 | DN 250 | PN 25 | 340 x 273 | |
| 21403520273015 | DN 250 | PN 40 | 352 x 273 | |
| 21403780324015 | DN 300 | PN 10 | 378 x 324 | |
| 21403840324015 | DN 300 | PN 16 | 384 x 324 | |
| 21404000324015 | DN 300 | PN 25 | 400 x 324 | |
| 21404170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 21400460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 21400460018020 | DN 15 | PN 10-40 | 51 x 22 | |
| 21400610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 21400710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 21400820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 21400920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 21401070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 21401270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 21401420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 21401620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 21401680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 21401920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 21401940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 21402180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 21402240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 21402730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 21402840220020 | DN 200 | PN 25 | 284 x 220 | |
| 21402900220020 | DN 200 | PN 40 | 290 x 220 | |
| 21403280273020 | DN 250 | PN 10 | 328 x 273 | |
| 21403290273020 | DN 250 | PN 16 | 329 x 273 | |
| 21403400273021 | DN 250 | PN 25 | 340 x 273 | |
| 21403520273020 | DN 250 | PN 40 | 352 x 273 | |
| 21403780324020 | DN 300 | PN 10 | 378 x 324 | |
| 21403840324020 | DN 300 | PN 16 | 384 x 324 | |
| 21404000324020 | DN 300 | PN 25 | 400 x 324 | |
| 21404170324020 | DN 300 | PN 40 | 417 x 324 | |
| 21404380326020 | DN 350 | PN 10 | 438 x 356 | |
| 21404440356020 | DN 350 | PN 16 | 444 x 356 | |
| 21404570356020 | DN 350 | PN 25 | 457 x 356 | |
| 21404740356020 | DN 350 | PN 40 | 474 x 356 | |
| 21404890407020 | DN 400 | PN 10 | 489 x 407 | |
| 21404950407020 | DN 400 | PN 16 | 495 x 407 | |
| 21405140407020 | DN 400 | PN 25 | 514 x 407 | |
| 21405460407020 | DN 400 | PN 40 | 546 x 407 | |
| 21405390458020 | DN 450 | PN 10 | 539 x 458 | |
| 21405550458020 | DN 450 | PN 16 | 555 x 458 | |
| 21405640458020 | DN 450 | PN 25 | 564 x 458 | |
| 21405710458020 | DN 450 | PN 40 | 571 x 458 | |
| 21405940508020 | DN 500 | PN 10 | 594 x 508 | |
| 21406240508020 | DN 500 | PN 16 | 617 x 508 | |
| 21406240508020 | DN 500 | PN 25 | 624 x 508 | |
| 21406280508020 | DN 500 | PN 40 | 628 x 508 | |
| 21406950610020 | DN 600 | PN 10 | 695 x 610 | |
| 21407340610020 | DN 600 | PN 16 | 734 x 610 | |
| 21407310610020 | DN 600 | PN 25 | 731 x 610 | |
| 21407470610020 | DN 600 | PN 40 | 747 x 610 | |
| 21408100712020 | DN 700 | PN 10 | 810 x 712 | |
| 21408040712020 | DN 700 | PN 16 | 804 x 712 | |
| 21408330712020 | DN 700 | PN 25 | 833 x 712 | |
| 21408500720020 | DN 700 | PN 40 | 850 x 720 | |
| 21409170813020 | DN 800 | PN 10 | 917 x 813 | |
| 21409110813020 | DN 800 | PN 16 | 911 x 813 | |
| 21409420813020 | DN 800 | PN 25 | 942 x 813 | |
| 21409700820020 | DN 800 | PN 40 | 970 x 820 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21400480021015 | 1/2" | 48 x 21 | |
| 21400570027015 | 3/4" | 57 x 27 | |
| 21400670033015 | 1 " | 67 x 33 | |
| 21400760042015 | 1.1/4" | 76 x 42 | |
| 21400860048015 | 1.1/2" | 86 x 48 | |
| 21401050060015 | 2 " | 105 x 60 | |
| 21401240073015 | 2.1/2" | 124 x 73 | |
| 21401370089015 | 3 " | 137 x 89 | |
| 21401620102015 | 3.1/2" | 162 x 102 | |
| 21401750114015 | 4 " | 175 x 114 | |
| 21401970141015 | 5 " | 197 x 141 | |
| 21402220168015 | 6 " | 222 x 168 | |
| 21402790219015 | 8 " | 279 x 219 | |
| 21403400273015 | 10 " | 340 x 273 | |
| 21404100324015 | 12 " | 410 x 324 | |
| 21404510356015 | 14 " | 451 x 356 | |
| 21405140406015 | 16 " | 514 x 406 | |
| 21405500457015 | 18 " | 550 x 457 | |
| 21406060508015 | 20 " | 606 x 508 | |
| 21407180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21400480021020 | 1/2" | 48 x 21 | |
| 21400570027020 | 3/4" | 57 x 27 | |
| 21400670033020 | 1 " | 67 x 33 | |
| 21400760042020 | 1.1/4" | 76 x 42 | |
| 21400860048020 | 1.1/2" | 86 x 48 | |
| 21401050060020 | 2 " | 105 x 60 | |
| 21401240073020 | 2.1/2" | 124 x 73 | |
| 21401370089020 | 3 " | 137 x 89 | |
| 21401620102020 | 3.1/2" | 162 x 102 | |
| 21401750114020 | 4 " | 175 x 114 | |
| 21401970141020 | 5 " | 197 x 141 | |
| 21402220168020 | 6 " | 222 x 168 | |
| 21402790219020 | 8 " | 279 x 219 | |
| 21403400273020 | 10 " | 340 x 273 | |
| 21404100324020 | 12 " | 410 x 324 | |
| 21404510356020 | 14 " | 451 x 356 | |
| 21405140406020 | 16 " | 514 x 406 | |
| 21405500457020 | 18 " | 550 x 457 | |
| 21406060508020 | 20 " | 606 x 508 | |
| 21407180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21400540021015 | 1/2" | 54 x 21 | |
| 21400670027015 | 3/4" | 67 x 27 | |
| 21400730033015 | 1 " | 73 x 33 | |
| 21400830042015 | 1.1/4" | 83 x 42 | |
| 21400950048015 | 1.1/2" | 95 x 48 | |
| 21401110060015 | 2 " | 111 x 60 | |
| 21401300073015 | 2.1/2" | 130 x 73 | |
| 21401490089015 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21401650102015 | 3.1/2" | 165 x 102 | |
| 21401810114015 | 4 " | 181 x 114 | |
| 21402160141015 | 5 " | 216 x 141 | |
| 21402510168015 | 6 " | 251 x 168 | |
| 21403080219015 | 8 " | 308 x 219 | |
| 21403620273015 | 10 " | 362 x 273 | |
| 21404220324015 | 12 " | 422 x 324 | |
| 21404860356015 | 14 " | 486 x 356 | |
| 21405400406015 | 16 " | 540 x 406 | |
| 21405970457015 | 18 " | 597 x 457 | |
| 21406540508015 | 20 " | 654 x 508 | |
| 21407750610015 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21400540021020 | 1/2" | 54 x 21 | |
| 21400670027020 | 3/4" | 67 x 27 | |
| 21400730033020 | 1 " | 73 x 33 | |
| 21400830042020 | 1.1/4" | 83 x 42 | |
| 21400950048020 | 1.1/2" | 95 x 48 | |
| 21401110060020 | 2 " | 111 x 60 | |
| 21401300073020 | 2.1/2" | 130 x 73 | |
| 21401490089020 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21401650102020 | 3.1/2" | 165 x 102 | |
| 21401810114020 | 4 " | 181 x 114 | |
| 21402160141020 | 5 " | 216 x 141 | |
| 21402510168020 | 6 " | 251 x 168 | |
| 21403080219020 | 8 " | 308 x 219 | |
| 21403620273020 | 10 " | 362 x 273 | |
| 21404220324020 | 12 " | 422 x 324 | |
| 21404860356020 | 14 " | 486 x 356 | |
| 21405400406020 | 16 " | 540 x 406 | |
| 21405970457020 | 18 " | 597 x 457 | |
| 21406540508020 | 20 " | 654 x 508 | |
| 21407750610020 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGER®MLX |
| Materiaal | D.m.v. speciaal proces worden verschillende lagen (0,5 mm) geëxpandeerd 99,85% zuiver grafiet en 0,05 mm roestvrijstalen inlage samengevoegd, zonder gebruik te maken van lijm. V.z.v. "Anti-stick" coating. Een speciale impregnatie zorgt voor verbeterde afdichtingsprestaties en uitstekende bewerkbaarheid. |
| Kleur | zwart/grijs |
|
|
|
| Dichtheid | 1,1 g/cm3 |
| Samendrukbaarheid volgens ASTM F36A | 30-50% |
| Terugvering volgens ASTM F36A | 10-25% |
| Drukvastheid volgens DIN 52913(2mm) | >=45 MPa |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,10 mg/s.m. |
|
|
|
| Chemische bestendigheid | zie bestendigheidslijst |
|
|
|
| Goedgekeurd door | DVGW |
| "Fire-safe" volgens DIN EN ISO 10497 | |
| ASTM WK26064 Blow-out | |
|
|
|
|

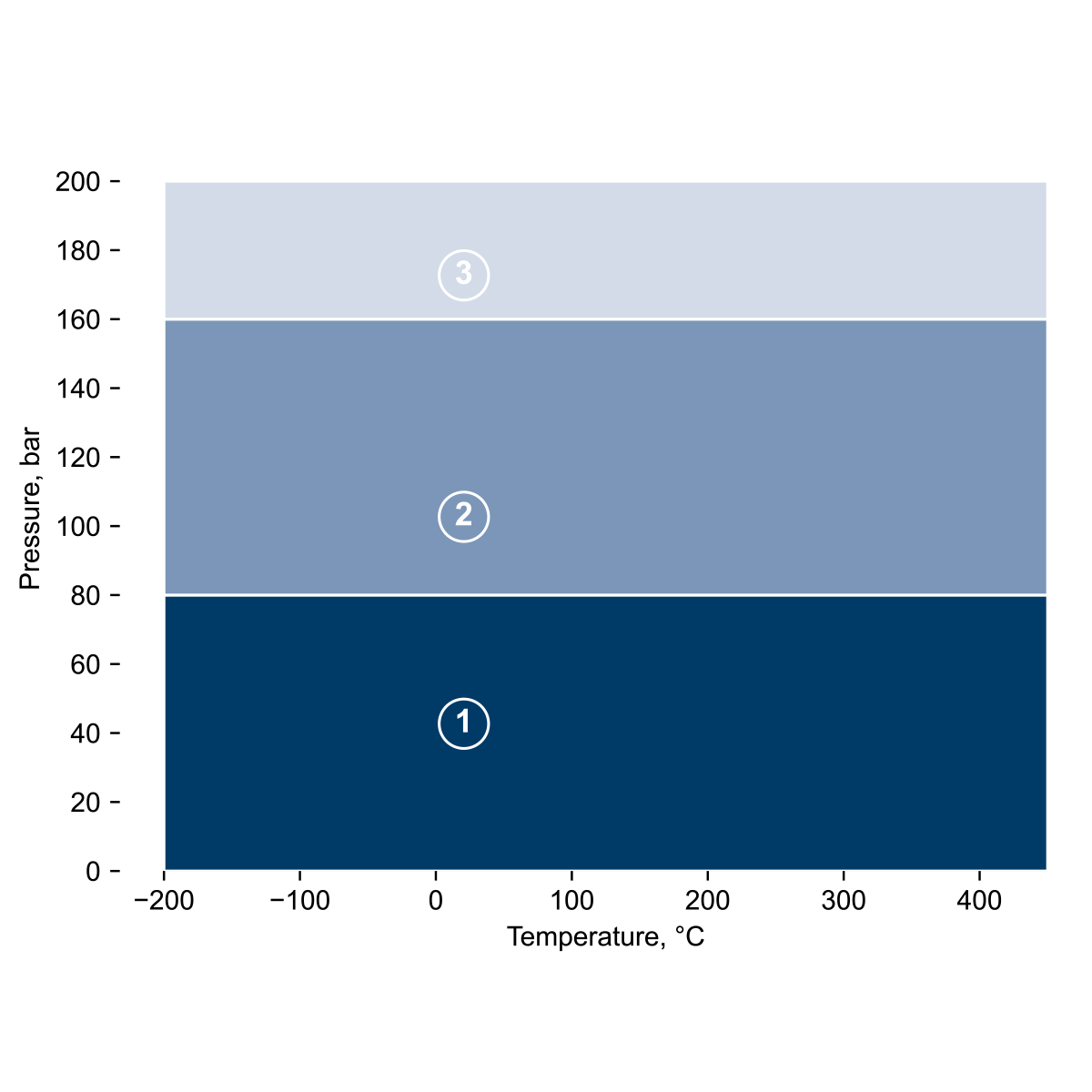

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
