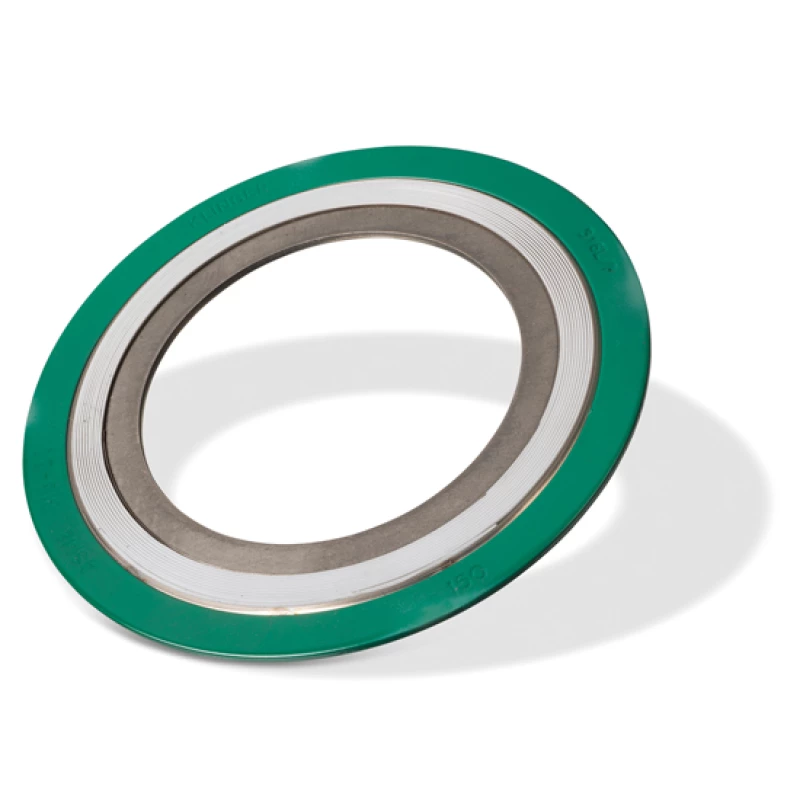

PTFE-gevulde Klinger Maxiflex ANSI | CRIR
Buitenring met element en binnenring CS+316L, ANSI standaard
Geschikt voor: chemicaliën, waarbij grafiet niet kan worden toegepast

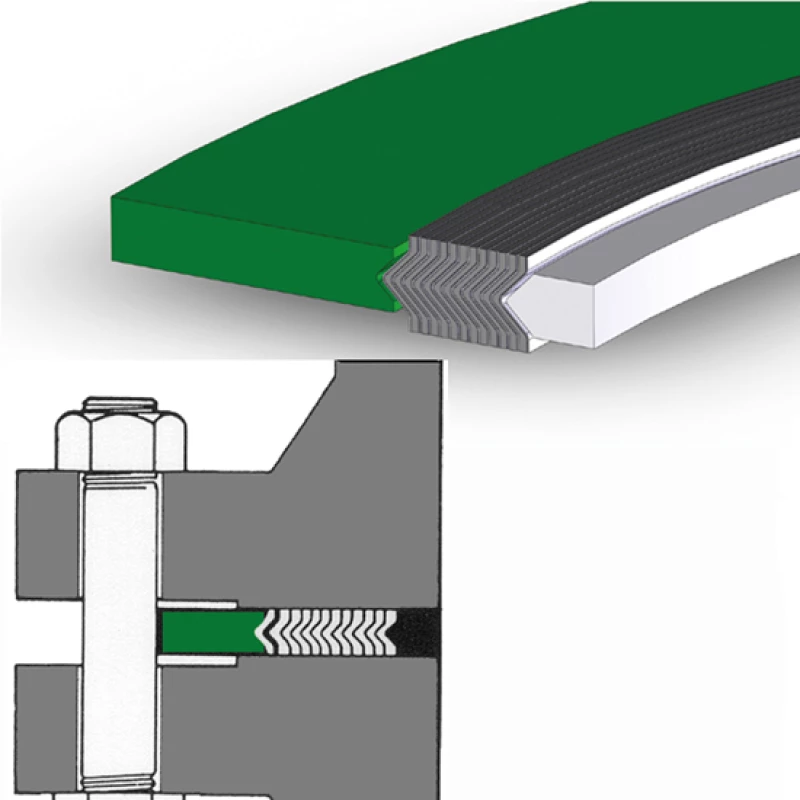

- Deze pakking geeft tussen "raised face" ANSI flenzen een uitblaasveilige hoge druk afdichting.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7001150013 | 1/2" | 47,8 x 31,8 x 19,1 x 14,3 | |
| 7001150019 | 3/4" | 57,2 x 39,6 x 25,4 x 20,7 | |
| 7001150025 | 1 " | 66,8 x 47,8 x 31,8 x 27,0 | |
| 7001150032 | 1.1/4" | 76,2 x 60,5 x 47,8 x 38,1 | |
| 7001150038 | 1.1/2" | 85,9 x 69,9 x 54,1 x 44,5 | |
| 7001150050 | 2 " | 105,0 x 85,9 x 69,9 x 55,6 | |
| 7001150065 | 2.1/2" | 124,0 x 98,6 x 82,6 x 66,7 | |
| 7001150075 | 3 " | 137,0 x 121,0 x 102,0 x 81,0 | |
| 7001150100 | 4 " | 175,0 x 149,0 x 127,0 x 106,0 | |
| 7001150125 | 5 " | 197,0 x 178,0 x 156,0 x 132,0 | |
| 7001150150 | 6 " | 222,0 x 210,0 x 183,0 x 157,0 | |
| 7001150200 | 8 " | 279,0 x 264,0 x 233,0 x 216,0 | |
| 7001150250 | 10 " | 340,0 x 317,0 x 287,0 x 268,0 | |
| 7001150300 | 12 " | 410,0 x 375,0 x 340,0 x 317,0 | |
| 7001150350 | 14 " | 451,0 x 406,0 x 372,0 x 350,0 | |
| 7001150400 | 16 " | 514,0 x 463,0 x 422,0 x 400,0 | |
| 7001150450 | 18 " | 549,0 x 527,0 x 475,0 x 449,0 | |
| 7001150500 | 20 " | 606,0 x 578,0 x 525,0 x 500,0 | |
| 7001150600 | 24 " | 717,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7003150013 | 1/2" | 54,1 x 31,8 x 19,1 x 14,3 | |
| 7003150019 | 3/4" | 66,8 x 39,6 x 25,4 x 20,7 | |
| 7003150025 | 1 " | 73,2 x 47,8 x 31,8 x 27,0 | |
| 7003150032 | 1.1/4" | 82,6 x 60,5 x 47,8 x 38,1 | |
| 7003150038 | 1.1/2" | 95,3 x 69,9 x 54,1 x 44,5 | |
| 7003150050 | 2 " | 111,0 x 85,9 x 69,9 x 55,6 | |
| 7003150065 | 2.1/2" | 130,0 x 98,6 x 82,6 x 66,7 | |
| 7003150075 | 3 " | 149,0 x 121,0 x 102,0 x 81,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| zie 600# | 1/2" t/m 3" | ||
| 7002150100 | 4 " | 181,0 x 149,0 x 127,0 x 106,0 | |
| 7002150125 | 5 " | 216,0 x 178,0 x 156,0 x 132,0 | |
| 7002150150 | 6 " | 251,0 x 210,0 x 183,0 x 157,0 | |
| 7002150200 | 8 " | 308,0 x 264,0 x 233,0 x 216,0 | |
| 7002150250 | 10 " | 362,0 x 317,0 x 287,0 x 268,0 | |
| 7002150300 | 12 " | 422,0 x 375,0 x 340,0 x 317,0 | |
| 7002150350 | 14 " | 486,0 x 406,0 x 372,0 x 350,0 | |
| 7002150400 | 16 " | 540,0 x 463,0 x 422,0 x 400,0 | |
| 7002150450 | 18 " | 597,0 x 527,0 x 475,0 x 449,0 | |
| 7002150500 | 20 " | 654,0 x 578,0 x 525,0 x 500,0 | |
| 7002150600 | 24 " | 774,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7004150100 | 4 " | 194,0 x 149,0 x 121,0 x 106,0 | |
| 7004150125 | 5 " | 241,0 x 178,0 x 147,0 x 132,0 | |
| 7004150150 | 6 " | 266,0 x 210,0 x 175,0 x 157,0 | |
| 7004150200 | 8 " | 321,0 x 264,0 x 226,0 x 210,0 | |
| 7004150250 | 10 " | 400,0 x 317,0 x 274,0 x 260,0 | |
| 7004150300 | 12 " | 457,0 x 375,0 x 327,0 x 317,0 | |
| 7004150350 | 14 " | 492,0 x 406,0 x 362,0 x 350,0 | |
| 7004150400 | 16 " | 565,0 x 463,0 x 413,0 x 400,0 | |
| 7004150450 | 18 " | 613,0 x 527,0 x 470,0 x 449,0 | |
| 7004150500 | 20 " | 683,0 x 578,0 x 521,0 x 500,0 | |
| 7004150600 | 24 " | 790,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7005150013 | 1/2" | 63,5 x 31,8 x 19,1 x 14,3 | |
| 7005150019 | 3/4" | 69,9 x 39,6 x 25,4 x 20,7 | |
| 7005150025 | 1 " | 79,5 x 47,8 x 31,8 x 27,0 | |
| 7005150032 | 1.1/4" | 88,9 x 60,5 x 39,6 x 33,4 | |
| 7005150038 | 1.1/2" | 98,6 x 69,9 x 47,8 x 41,3 | |
| 7005150050 | 2 " | 143,0 x 85,9 x 58,7 x 52,4 | |
| 7005150065 | 2.1/2" | 165,0 x 98,6 x 69,9 x 63,5 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| zie 1500# | 1/2" t/m 2 1/2" | ||
| 7006150075 | 3 " | 168,0 x 121,0 x 95,3 x 81,0 | |
| 7006150100 | 4 " | 206,0 x 149,0 x 121,0 x 106,0 | |
| 7006150125 | 5 " | 247,0 x 178,0 x 147,0 x 132,0 | |
| 7006150150 | 6 " | 289,0 x 210,0 x 175,0 x 157,0 | |
| 7006150200 | 8 " | 359,0 x 257,0 x 222,0 x 196,9 | |
| 7006150250 | 10 " | 435,0 x 311,0 x 276,0 x 246,1 | |
| 7006150300 | 12 " | 498,0 x 368,0 x 324,0 x 292,1 | |
| 7006150350 | 14 " | 520,0 x 400,0 x 356,0 x 320,7 | |
| 7006150400 | 16 " | 575,0 x 457,0 x 413,0 x 374,7 | |
| 7006150500 | 20 " | 698,0 x 571,0 x 521,0 x 482,6 | |
| 7006150600 | 24 " | 833,0 x 680,0 x 629,0 x 590,6 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7007150075 | 3 " | 175,0 x 121,0 x 92,2 x 81,0 | |
| 7007150100 | 4 " | 209,0 x 149,0 x 117,0 x 106,0 | |
| 7007150125 | 5 " | 254,0 x 178,0 x 143,0 x 132,0 | |
| 7007150150 | 6 " | 282,0 x 210,0 x 171,0 x 147,0 | |
| 7007150200 | 8 " | 352,0 x 257,0 x 216,0 x 196,9 | |
| 7007150250 | 10 " | 435,0 x 311,0 x 276,0 x 246,1 | |
| 7007150300 | 12 " | 520,0 x 368,0 x 324,0 x 292,1 | |
| 7007150350 | 14 " | 578,0 x 400,0 x 362,0 x 320,8 | |
| 7007150400 | 16 " | 641,0 x 457,0 x 406,0 x 368,3 | |
| 7007150450 | 18 " | 705,0 x 521,0 x 463,0 x 425,5 | |
| 7007150500 | 20 " | 755,0 x 571,0 x 514,0 x 476,25 | |
| 7007150600 | 24 " | 901,0 x 680,0 x 616,0 x 577,9 |
Ook leverbaar
- andere materialen, niet-standaard afmetingen en/of losse elementen uit eigen fabriek
Specificaties
| Type | CRIR |
| Materiaal |
PTFE /316L : element Carbon steel : buitenring RVS 316L : binnenring |
| Max. temperatuur | 250º |
| Max. druk | 100 bar |
|
|
|
| Uitvoering | voor flenzen B 16.5 |
|
|
|
|
DIN afmetingen geschikt voor flenzen volgens EN1092
|
|
|
ANSI afmetingen geschikt voor flenzen volgens B16.5 (≤ 24") of B16.47A of B (>24")
|
|
