Selecteer een uitvoering
Art.nr. Type Aantal tanden Klembus Max. boring (9mm) Gewicht (kg) Bestellen
800460011013 31-13 13 - - -
800460011015 31-15 15 - - -
800460011016 31-16 16 - - -
800460011017 31-17 17 1008 25 0,10
800460011019 31-19 19 1008 25 0,15
800460011021 31-21 21 1008 25 0,25
800460011022 31-22 22 1108 28 0,28
800460011023 31-23 23 1210 32 0,30
800460011025 31-25 25 1210 32 0,35
800460011030 31-30 30 1210 32 0,50
800460011038 31-38 38 1210 32 0,85
800460011045 31-45 45 1210 32 1,24
800460011057 31-57 57 1210 32 1,90
Art.nr. Type Aantal tanden Klembus Max. boring (9mm) Gewicht (kg) Bestellen
800460011313 41-13 13 - - -
800460011315 41-15 15 - - -
800460011316 41-16 16 1108 28 0,22
800460011317 41-17 17 1210 32 0,25
800460011318 41-18 18 1210 32 0,27
800460011319 41-19 19 1210 32 0,30
800460011321 41-21 21 1610 42 0,35
800460011322 41-22 22 1610 42 0,43
800460011323 41-23 23 1610 42 0,50
800460011324 41-24 24 1610 42 0,55
800460011325 41-25 25 1610 42 0,60
800460011327 41-27 27 1610 42 0,85
800460011328 41-28 28 2012 50 0,93
800460011330 41-30 30 2012 50 1,10
800460011338 41-38 38 2012 50 1,70
800460011345 41-45 45 2012 50 2,30
800460011357 41-57 57 2012 50 2,90
800460011376 41-76 76 2012 50 4,20
Art.nr. Type Aantal tanden Klembus Max. boring (9mm) Gewicht (kg) Bestellen
800460011613 51-13 13 1008 25 0,25
800460011615 51-15 15 1210 32 0,35
800460011616 51-16 16 1610 42 0,37
800460011617 51-17 17 1610 42 0,40
800460011618 51-18 18 1610 42 0,48
800460011619 51-19 19 1610 42 0,55
800460011620 51-20 20 1610 42 0,60
800460011621 51-21 21 1610 42 0,65
800460011622 51-22 22 1610 42 0,62
800460011623 51-23 23 1610 42 0,70
800460011624 51-24 24 2012 50 0,75
800460011625 51-25 25 2012 50 0,80
800460011627 51-27 27 2012 50 0,90
800460011629 51-29 29 2012 50 0,94
800460011630 51-30 30 2012 50 1,10
800460011638 51-38 38 2012 50 2,40
800460011657 51-57 57 2012 50 4,40
Art.nr. Type Aantal tanden Klembus Max. boring (9mm) Gewicht (kg) Bestellen
800460011913 61-13 13 1210 32 0,35
800460011914 61-14 14 1610 42 0,43
800460011915 61-15 15 1610 42 0,50
800460011916 61-16 16 1610 42 0,60
800460011917 61-17 17 1610 42 0,70
800460011918 61-18 18 2012 50 0,83
800460011919 61-19 19 2012 50 0,95
800460011920 61-20 20 2012 50 1,05
800460011921 61-21 21 2517 60 1,20
800460011923 61-23 23 2517 60 1,70
800460011924 61-24 24 2517 60 1,83
800460011925 61-25 25 2517 60 1,95
800460011927 61-27 27 2517 60 1,95
800460011930 61-30 30 2517 60 3,20
800460011938 61-38 38 2517 60 4,80
800460011945 61-45 45 2517 60 5,90
800460011957 61-57 57 2517 60 7,00
800460011976 61-76 76 2517 60 7,00
Art.nr. Type Aantal tanden Klembus Max. boring (9mm) Gewicht (kg) Bestellen
800460012513 81-13 13 1615 42 1,10
800460012514 81-14 14 1615 42 1,43
800460012515 81-15 15 1615 42 1,75
800460012517 81-17 17 2012 50 1,75
800460012519 81-19 19 2517 60 2,55
800460012520 81-20 20 2517 60 2,75
800460012521 81-21 21 2517 60 3,00
800460012523 81-23 23 2517 60 3,55
800460012524 81-24 24 2517 60 3,85
800460012525 81-25 25 2517 60 4,15
800460012526 81-26 26 2517 60 4,45
800460012527 81-27 27 2517 60 4,75
800460012528 81-28 28 2517 60 5,14
800460012529 81-29 29 3020 75 5,54
800460012530 81-30 30 3020 75 5,93
800460012538 81-38 38 3020 75 9,50
800460012545 81-45 45 3020 75 12,00
800460012557 81-57 57 3020 75 14,50
Art.nr. Type Aantal tanden Klembus Max. boring (9mm) Gewicht (kg) Bestellen
800460013213 101-13 13 2012 50 1,71
800460013219 101-19 19 2517 60 6,75
800460013221 101-21 21 2517 60 7,70
800460013225 101-25 25 2517 60 9,50
Art.nr. Type Aantal tanden Klembus Max. boring (9mm) Gewicht (kg) Bestellen
800460013813 121-13 13 2517 60 3,20
800460013821 121-21 21 3535 90 11,30
800460013824 121-24 24 3535 90 14,30
800460013827 121-27 27 3535 90 17,30

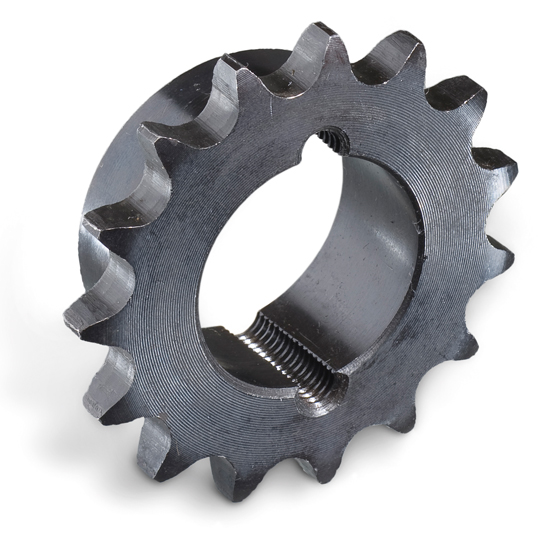

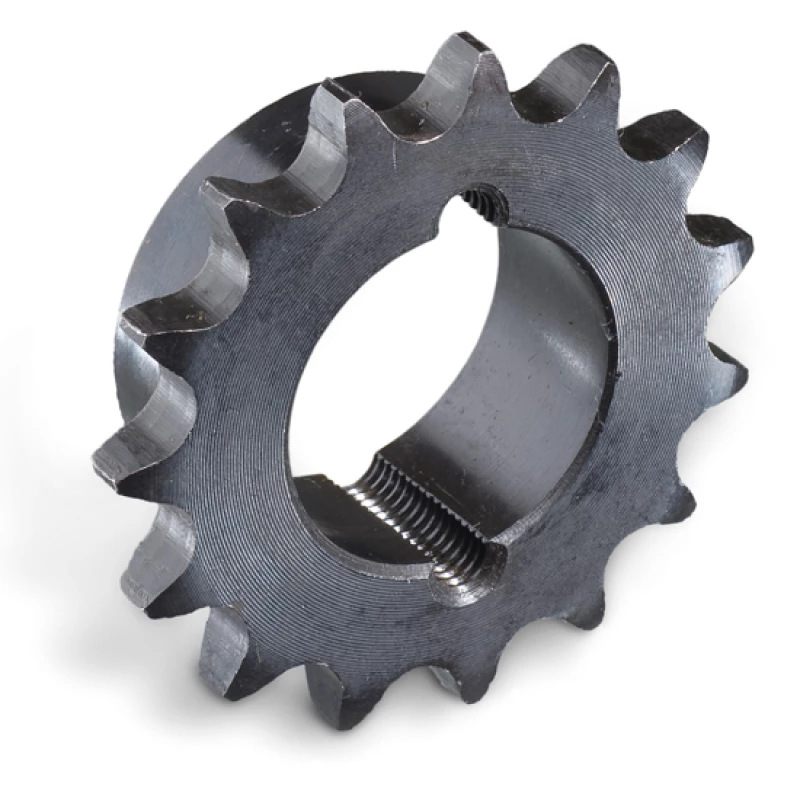

Taperlock kettingwielen zijn geschikt voor rollenketting.
