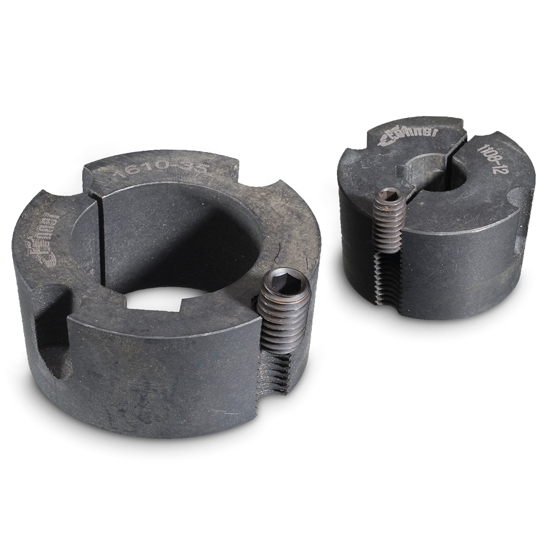

Taper Lock klembus, BS 46 | TL
Boring in inch
- Patent 0045624.
- Uniek 4-gats ontwerp, exclusief van Fenner.
- Beter gebalanceerde aandrijvingen.
| Artikel nummer | Type + boring | Bestellen |
|---|---|---|
| 800561008010 | Taper-lock 1008 - 3/8" | |
| 800561008013 | Taper-lock 1008 - 1/2" | |
| 800561008016 | Taper-lock 1008 - 5/8" | |
| 800561008019 | Taper-lock 1008 - 3/4" | |
| 800561008022 | Taper-lock 1008 - 7/8" | |
| 800561008025 | Taper-lock 1008 - 1" | |
| 800561108010 | Taper-lock 1108 - 3/8" | |
| 800561108013 | Taper-lock 1108 - 1/2" | |
| 800561108016 | Taper-lock 1108 - 5/8" | |
| 800561108019 | Taper-lock 1108 - 3/4" | |
| 800561108022 | Taper-lock 1108 - 7/8" | |
| 800561108025 | Taper-lock 1108 - 1" | |
| 800561108028 | Taper-lock 1108 - 1 1/8" | |
| 800561210013 | Taper-lock 1210 - 1/2" | |
| 800561210016 | Taper-lock 1210 - 5/8" | |
| 800561210019 | Taper-lock 1210 - 3/4" | |
| 800561210022 | Taper-lock 1210 - 7/8" | |
| 800561210025 | Taper-lock 1210 - 1" | |
| 800561210028 | Taper-lock 1210 - 1 1/8" | |
| 800561210031 | Taper-lock 1210 - 1 1/4" | |
| 800561610013 | Taper-lock 1610 - 1/2" | |
| 800561610016 | Taper-lock 1610 - 5/8" | |
| 800561610019 | Taper-lock 1610 - 3/4" | |
| 800561610022 | Taper-lock 1610 - 7/8" | |
| 800561610025 | Taper-lock 1610 - 1" | |
| 800561610028 | Taper-lock 1610 - 1 1/8" | |
| 800561610031 | Taper-lock 1610 - 1 1/4" | |
| 800561610035 | Taper-lock 1610 - 1 3/8" | |
| 800561610038 | Taper-lock 1610 - 1 1/2" | |
| 800561610041 | Taper-lock 1610 - 1 5/8" | |
| 800561615013 | Taper-lock 1615 - 1/2" | |
| 800561615016 | Taper-lock 1615 - 5/8" | |
| 800561615019 | Taper-lock 1615 - 3/4" | |
| 800561615022 | Taper-lock 1615 - 7/8" | |
| 800561615025 | Taper-lock 1615 - 1" | |
| 800561615028 | Taper-lock 1615 - 1 1/8" | |
| 800561615031 | Taper-lock 1615 - 1 1/4" | |
| 800561615035 | Taper-lock 1615 - 1 3/8" | |
| 800561615038 | Taper-lock 1615 - 1 1/2" | |
| 800561615041 | Taper-lock 1615 - 1 5/8" | |
| 800562012019 | Taper-lock 2012 - 3/4" | |
| 800562012022 | Taper-lock 2012 - 7/8" | |
| 800562012025 | Taper-lock 2012 - 1" | |
| 800562012028 | Taper-lock 2012 - 1 1/8" | |
| 800562012031 | Taper-lock 2012 - 1 1/4" | |
| 800562012035 | Taper-lock 2012 - 1 3/8" | |
| 800562012038 | Taper-lock 2012 - 1 1/2" | |
| 800562012041 | Taper-lock 2012 - 1 5/8" | |
| 800562012044 | Taper-lock 2012 - 1 3/4" | |
| 800562012047 | Taper-lock 2012 - 1 7/8" | |
| 800562012050 | Taper-lock 2012 - 2" | |
| 800562517019 | Taper-lock 2517 - 3/4" | |
| 800562517022 | Taper-lock 2517 - 7/8" | |
| 800562517025 | Taper-lock 2517 - 1" | |
| 800562517028 | Taper-lock 2517 - 1 1/8" | |
| 800562517031 | Taper-lock 2517 - 1 1/4" | |
| 800562517035 | Taper-lock 2517 - 1 3/8" | |
| 800562517038 | Taper-lock 2517 - 1 1/2" | |
| 800562517041 | Taper-lock 2517 - 1 5/8" | |
| 800562517044 | Taper-lock 2517 - 1 3/4" | |
| 800562517047 | Taper-lock 2517 - 1 7/8" | |
| 800562517050 | Taper-lock 2517 - 2" | |
| 800562517053 | Taper-lock 2517 - 2 1/8" | |
| 800562517056 | Taper-lock 2517 - 2 1/4" | |
| 800562517060 | Taper-lock 2517 - 2 3/8" | |
| 800562517063 | Taper-lock 2517 - 2 1/2" | |
| 800563020031 | Taper-lock 3020 - 1 1/4" | |
| 800563020035 | Taper-lock 3020 - 1 3/8" | |
| 800563020038 | Taper-lock 3020 - 1 1/2" | |
| 800563020041 | Taper-lock 3020 - 1 5/8" | |
| 800563020044 | Taper-lock 3020 - 1 3/4" | |
| 800563020047 | Taper-lock 3020 - 1 7/8" | |
| 800563020050 | Taper-lock 3020 - 2" | |
| 800563020053 | Taper-lock 3020 - 2 1/8" | |
| 800563020056 | Taper-lock 3020 - 2 1/4" | |
| 800563020060 | Taper-lock 3020 - 2 3/8" | |
| 800563020063 | Taper-lock 3020 - 2 1/2" | |
| 800563020066 | Taper-lock 3020 - 2 5/8" | |
| 800563020069 | Taper-lock 3020 - 2 3/4" | |
| 800563020072 | Taper-lock 3020 - 2 7/8" | |
| 800563020075 | Taper-lock 3020 - 3" | |
| 800563030031 | Taper-lock 3030 - 1 1/4" | |
| 800563030035 | Taper-lock 3030 - 1 3/8" | |
| 800563030038 | Taper-lock 3030 - 1 1/2" | |
| 800563030041 | Taper-lock 3030 - 1 5/8" | |
| 800563030044 | Taper-lock 3030 - 1 3/4" | |
| 800563030047 | Taper-lock 3030 - 1 7/8" | |
| 800563030050 | Taper-lock 3030 - 2" | |
| 800563030053 | Taper-lock 3030 - 2 1/8" | |
| 800563030056 | Taper-lock 3030 - 2 1/4" | |
| 800563030060 | Taper-lock 3030 - 2 3/8" | |
| 800563030063 | Taper-lock 3030 - 2 1/2" | |
| 800563030066 | Taper-lock 3030 - 2 5/8" | |
| 800563030069 | Taper-lock 3030 - 2 3/4" | |
| 800563030072 | Taper-lock 3030 - 2 7/8" | |
| 800563030075 | Taper-lock 3030 - 3" | |
| 800563525038 | Taper-lock 3525 - 1 1/2" | |
| 800563525041 | Taper-lock 3525 - 1 5/8" | |
| 800563525044 | Taper-lock 3525 - 1 3/4" | |
| 800563525047 | Taper-lock 3525 - 1 7/8" | |
| 800563525050 | Taper-lock 3525 - 2" | |
| 800563525053 | Taper-lock 3525 - 2 1/8" | |
| 800563525056 | Taper-lock 3525 - 2 1/4" | |
| 800563525060 | Taper-lock 3525 - 2 3/8" | |
| 800563525063 | Taper-lock 3525 - 2 1/2" | |
| 800563525066 | Taper-lock 3525 - 2 5/8" | |
| 800563525069 | Taper-lock 3525 - 2 3/4" | |
| 800563525072 | Taper-lock 3525 - 2 7/8" | |
| 800563525075 | Taper-lock 3525 - 3" | |
| 800563525078 | Taper-lock 3525 - 3 1/8" | |
| 800563525081 | Taper-lock 3525 - 3 1/4" | |
| 800563525085 | Taper-lock 3525 - 3 3/8" | |
| 800563525088 | Taper-lock 3525 - 3 1/2" | |
| 800563525094 | Taper-lock 3525 - 3 3/4" | |
| 800563525100 | Taper-lock 3525 - 4" | |
| 800563535038 | Taper-lock 3535 - 1 1/2" | |
| 800563535041 | Taper-lock 3535 - 1 5/8" | |
| 800563535044 | Taper-lock 3535 - 1 3/4" | |
| 800563535047 | Taper-lock 3535 - 1 7/8" | |
| 800563535050 | Taper-lock 3535 - 2" | |
| 800563535053 | Taper-lock 3535 - 2 1/8" | |
| 800563535056 | Taper-lock 3535 - 2 1/4" | |
| 800563535060 | Taper-lock 3535 - 2 3/8" | |
| 800563535063 | Taper-lock 3535 - 2 1/2" | |
| 800563535066 | Taper-lock 3535 - 2 5/8" | |
| 800563535069 | Taper-lock 3535 - 2 3/4" | |
| 800563535072 | Taper-lock 3535 - 2 7/8" | |
| 800563535075 | Taper-lock 3535 - 3" | |
| 800563535078 | Taper-lock 3535 - 3 1/8" | |
| 800563535081 | Taper-lock 3535 - 3 1/4" | |
| 800563535088 | Taper-lock 3535 - 3 1/2" | |
| 800564030044 | Taper-lock 4030 - 1 3/4" | |
| 800564030047 | Taper-lock 4030 - 1 7/8" | |
| 800564030050 | Taper-lock 4030 - 2" | |
| 800564030053 | Taper-lock 4030 - 2 1/8" | |
| 800564030056 | Taper-lock 4030 - 2 1/4" | |
| 800564030060 | Taper-lock 4030 - 2 3/8" | |
| 800564030063 | Taper-lock 4030 - 2 1/2" | |
| 800564030066 | Taper-lock 4030 - 2 5/8" | |
| 800564030069 | Taper-lock 4030 - 2 3/4" | |
| 800564030072 | Taper-lock 4030 - 2 7/8" | |
| 800564030075 | Taper-lock 4030 - 3" | |
| 800564030078 | Taper-lock 4030 - 3 1/8" | |
| 800564030081 | Taper-lock 4030 - 3 1/4" | |
| 800564030085 | Taper-lock 4030 - 3 3/8" | |
| 800564030088 | Taper-lock 4030 - 3 1/2" | |
| 800564030094 | Taper-lock 4030 - 3 3/4" | |
| 800564030100 | Taper-lock 4030 - 4" | |
| 800564030106 | Taper-lock 4030 - 4 1/4" | |
| 800564030113 | Taper-lock 4030 - 4 1/2" | |
| 800564040044 | Taper-lock 4040 - 1 3/4" | |
| 800564040047 | Taper-lock 4040 - 1 7/8" | |
| 800564040050 | Taper-lock 4040 - 2" | |
| 800564040053 | Taper-lock 4040 - 2 1/8" | |
| 800564040056 | Taper-lock 4040 - 2 1/4" | |
| 800564040060 | Taper-lock 4040 - 2 3/8" | |
| 800564040063 | Taper-lock 4040 - 2 1/2" | |
| 800564040066 | Taper-lock 4040 - 2 5/8" | |
| 800564040069 | Taper-lock 4040 - 2 3/4" | |
| 800564040072 | Taper-lock 4040 - 2 7/8" | |
| 800564040075 | Taper-lock 4040 - 3" | |
| 800564040078 | Taper-lock 4040 - 3 1/8" | |
| 800564040081 | Taper-lock 4040 - 3 1/4" | |
| 800564040085 | Taper-lock 4040 - 3 3/8" | |
| 800564040088 | Taper-lock 4040 - 3 1/2" | |
| 800564040094 | Taper-lock 4040 - 3 3/4" | |
| 800564040100 | Taper-lock 4040 - 4" | |
| 800564535056 | Taper-lock 4535 - 2 1/4" | |
| 800564535060 | Taper-lock 4535 - 2 3/8" | |
| 800564535063 | Taper-lock 4535 - 2 1/2" | |
| 800564535066 | Taper-lock 4535 - 2 5/8" | |
| 800564535069 | Taper-lock 4535 - 2 3/4" | |
| 800564535072 | Taper-lock 4535 - 2 7/8" | |
| 800564535075 | Taper-lock 4535 - 3" | |
| 800564535078 | Taper-lock 4535 - 3 1/8" | |
| 800564535081 | Taper-lock 4535 - 3 1/4" | |
| 800564535085 | Taper-lock 4535 - 3 3/8" | |
| 800564535088 | Taper-lock 4535 - 3 1/2" | |
| 800564535094 | Taper-lock 4535 - 3 3/4" | |
| 800564535100 | Taper-lock 4535 - 4" | |
| 800564535106 | Taper-lock 4535 - 4 1/4" | |
| 800564535113 | Taper-lock 4535 - 4 1/2" | |
| 800564535119 | Taper-lock 4535 - 4 3/4" | |
| 800564535125 | Taper-lock 4535 - 5" | |
| 800564545056 | Taper-lock 4545 - 2 1/4" | |
| 800564545060 | Taper-lock 4545 - 2 3/8" | |
| 800564545063 | Taper-lock 4545 - 2 1/2" | |
| 800564545066 | Taper-lock 4545 - 2 5/8" | |
| 800564545069 | Taper-lock 4545 - 2 3/4" | |
| 800564545072 | Taper-lock 4545 - 2 7/8" | |
| 800564545075 | Taper-lock 4545 - 3" | |
| 800564545078 | Taper-lock 4545 - 3 1/8"" | |
| 800564545081 | Taper-lock 4545 - 3 1/4" | |
| 800564545085 | Taper-lock 4545 - 3 3/8" | |
| 800564545088 | Taper-lock 4545 - 3 1/2" | |
| 800564545094 | Taper-lock 4545 - 3 3/4" | |
| 800564545100 | Taper-lock 4545 - 4" | |
| 800564545106 | Taper-lock 4545 - 4 1/4" | |
| 800564545113 | Taper-lock 4545 - 4 1/2" | |
| 800565040069 | Taper-lock 5040 - 2 3/4" | |
| 800565040072 | Taper-lock 5040 - 2 7/8" | |
| 800565040075 | Taper-lock 5040 - 3" | |
| 800565040078 | Taper-lock 5040 - 3 1/8" | |
| 800565040081 | Taper-lock 5040 - 3 1/4" | |
| 800565040085 | Taper-lock 5040 - 3 3/8" | |
| 800565040088 | Taper-lock 5040 - 3 1/2" | |
| 800565040094 | Taper-lock 5040 - 3 3/4" | |
| 800565040100 | Taper-lock 5040 - 4" | |
| 800565040106 | Taper-lock 5040 - 4 1/4" | |
| 800565040113 | Taper-lock 5040 - 4 1/2" | |
| 800565040119 | Taper-lock 5040 - 4 3/4" | |
| 800565040125 | Taper-lock 5040 - 5" | |
| 800565050069 | Taper-lock 5050 - 2 3/4" | |
| 800565050072 | Taper-lock 5050 - 2 7/8" | |
| 800565050075 | Taper-lock 5050 - 3" | |
| 800565050078 | Taper-lock 5050 - 3 1/8" | |
| 800565050081 | Taper-lock 5050 - 3 1/4" | |
| 800565050085 | Taper-lock 5050 - 3 3/8" | |
| 800565050088 | Taper-lock 5050 - 3 1/2" | |
| 800565050094 | Taper-lock 5050 - 3 3/4" | |
| 800565050100 | Taper-lock 5050 - 4" | |
| 800565050106 | Taper-lock 5050 - 4 1/4" | |
| 800565050113 | Taper-lock 5050 - 4 1/2" | |
| 800565050119 | Taper-lock 5050 - 4 3/4" | |
| 800565050125 | Taper-lock 5050 - 5" |
* Boring met verlaagde spie.
Ook leverbaar
- Trantorque klembussen.
Specificaties
| Type | TL |
| Materiaal | |
| Uitvoering | 4-gats |
| As-tolerantie | +0,05-0,125 mm |
|
|
|
| Inch boringen en speibaan | volgens BS46 Part 1 1958 |
| Inch boringen en speibaan | volgens USA-norm op aanvraag. |
|
|
|
| Inch-mm | gebaseerd op 1" = 25,4 mm |
