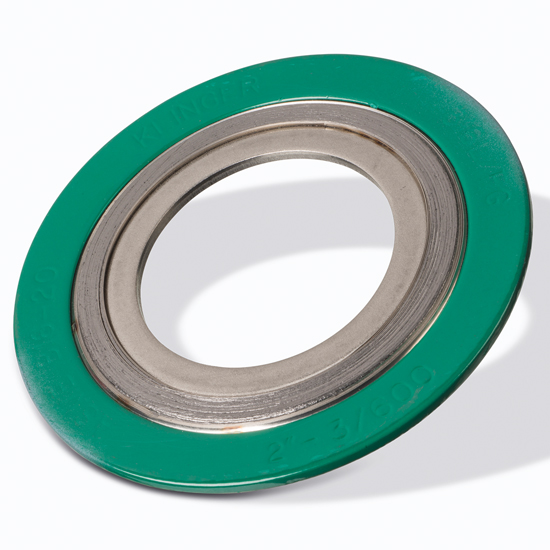

Grafiet gevulde KLINGER Maxiflex ANSI | CRIR
Buitenring met element en binnenring CS+321, ANSI standaard
Geschikt voor: water, stoom, olie en vele chemicaliën

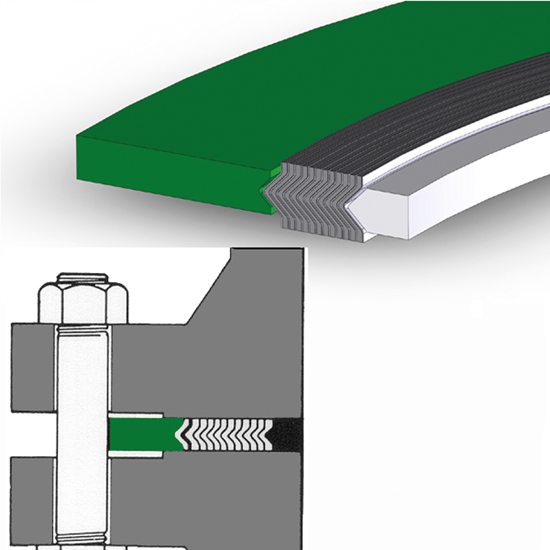

- Deze pakking geeft tussen "raised face" ANSI flenzen een uitblaasveilige hoge druk afdichting.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7001180013 | 1/2" | 47,8 x 31,8 x 19,1 x 14,3 | |
| 7001180019 | 3/4" | 57,2 x 39,6 x 25,4 x 20,7 | |
| 7001180025 | 1 " | 66,8 x 47,8 x 31,8 x 27,0 | |
| 7001180038 | 1.1/2" | 85,9 x 69,9 x 54,1 x 44,5 | |
| 7001180050 | 2 " | 105,0 x 85,9 x 69,9 x 55,6 | |
| 7001180065 | 2.1/2" | 124,0 x 98,6 x 82,6 x 66,7 | |
| 7001180075 | 3 " | 137,0 x 121,0 x 102,0 x 81,0 | |
| 7001180100 | 4 " | 175,0 x 149,0 x 127,0 x 106,0 | |
| 7001180150 | 6 " | 222,0 x 210,0 x 183,0 x 157,0 | |
| 7001180200 | 8 " | 279,0 x 264,0 x 233,0 x 216,0 | |
| 7001180250 | 10 " | 340,0 x 317,0 x 287,0 x 268,0 | |
| 7001180300 | 12 " | 410,0 x 375,0 x 340,0 x 317,0 | |
| 7001180350 | 14 " | 451,0 x 406,0 x 372,0 x 350,0 | |
| 7001180400 | 16 " | 514,0 x 463,0 x 422,0 x 400,0 | |
| 7001180450 | 18 " | 549,0 x 527,0 x 475,0 x 449,0 | |
| 7001180500 | 20 " | 606,0 x 578,0 x 525,0 x 500,0 | |
| 7001180600 | 24 " | 717,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7003180013 | 1/2" | 54,1 x 31,8 x 19,1 x 14,3 | |
| 7003180019 | 3/4" | 66,8 x 39,6 x 25,4 x 20,7 | |
| 7003180025 | 1 " | 73,2 x 47,8 x 31,8 x 27,0 | |
| 7003180038 | 1.1/2" | 95,3 x 69,9 x 54,1 x 44,5 | |
| 7003180050 | 2 " | 111,0 x 85,9 x 69,9 x 55,6 | |
| 7003180065 | 2.1/2" | 130,0 x 98,6 x 82,6 x 66,7 | |
| 7003180075 | 3 " | 149,0 x 121,0 x 102,0 x 81,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7002180100 | 4 " | 181,0 x 149,0 x 127,0 x 106,0 | |
| 7002180150 | 6 " | 251,0 x 210,0 x 183,0 x 157,0 | |
| 7002180200 | 8 " | 308,0 x 264,0 x 233,0 x 216,0 | |
| 7002180250 | 10 " | 362,0 x 317,0 x 287,0 x 268,0 | |
| 7002180300 | 12 " | 422,0 x 375,0 x 340,0 x 317,0 | |
| 7002180350 | 14 " | 486,0 x 406,0 x 372,0 x 350,0 | |
| 7002180400 | 16 " | 540,0 x 463,0 x 422,0 x 400,0 | |
| 7002180450 | 18 " | 597,0 x 527,0 x 475,0 x 449,0 | |
| 7002180500 | 20 " | 654,0 x 578,0 x 525,0 x 500,0 | |
| 7002180600 | 24 " | 774,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7004180100 | 4 " | 194,0 x 149,0 x 121,0 x 106,0 | |
| 7004180150 | 6 " | 266,0 x 210,0 x 175,0 x 157,0 | |
| 7004180200 | 8 " | 321,0 x 264,0 x 226,0 x 210,0 | |
| 7004180250 | 10 " | 400,0 x 317,0 x 274,0 x 260,0 | |
| 7004180300 | 12 " | 457,0 x 375,0 x 327,0 x 317,0 | |
| 7004180350 | 14 " | 492,0 x 406,0 x 362,0 x 350,0 | |
| 7004180400 | 16 " | 565,0 x 463,0 x 413,0 x 400,0 | |
| 7004180450 | 18 " | 613,0 x 527,0 x 470,0 x 449,0 | |
| 7004180500 | 20 " | 683,0 x 578,0 x 521,0 x 500,0 | |
| 7004180600 | 24 " | 790,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7005180013 | 1/2" | 63,5 x 31,8 x 19,1 x 14,3 | |
| 7005180019 | 3/4" | 69,9 x 39,6 x 25,4 x 20,7 | |
| 7005180025 | 1 " | 79,5 x 47,8 x 31,8 x 27,0 | |
| 7005180038 | 1.1/2" | 98,6 x 69,9 x 47,8 x 41,3 | |
| 7005180050 | 2 " | 143,0 x 85,9 x 58,7 x 52,4 | |
| 7005180065 | 2.1/2" | 165,0 x 98,6 x 69,9 x 63,5 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7006180075 | 3 " | 168,0 x 121,0 x 95,3 x 81,0 | |
| 7006180100 | 4 " | 206,0 x 149,0 x 121,0 x 106,0 | |
| 7006180150 | 6 " | 289,0 x 210,0 x 175,0 x 157,0 | |
| 7006180200 | 8 " | 359,0 x 257,0 x 222,0 x 196,9 | |
| 7006180250 | 10 " | 435,0 x 311,0 x 276,0 x 246,1 | |
| 7006180300 | 12 " | 498,0 x 368,0 x 324,0 x 292,1 | |
| 7006180350 | 14 " | 520,0 x 400,0 x 356,0 x 320,7 | |
| 7006180400 | 16 " | 575,0 x 457,0 x 413,0 x 374,7 | |
| 7006180450 | 18 " | 638,0 x 521,0 x 463,0 x 425,5 | |
| 7006180500 | 20 " | 698,0 x 571,0 x 521,0 x 482,6 | |
| 7006180600 | 24 " | 833,0 x 680,0 x 629,0 x 590,6 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7007180075 | 3 " | 175,0 x 121,0 x 92,2 x 81,0 |
Ook leverbaar
- andere materialen, niet-standaard afmetingen en/of losse elementen uit eigen fabriek
Specificaties
| Type | CRIR |
| Materiaal |
Grafiet/321 : element Carbon steel : buitenring RVS 321 : binnenring |
| Max. temperatuur | 450º-600ºC* |
| Max. druk | 250 bar |
|
|
|
| Uitvoering | voor flenzen B 16.5 |
|
|
|
|
*afhankelijk van specifieke toepassing.
|
|
|
|
|
|
DIN afmetingen geschikt voor flenzen volgens EN1092
|
|
|
ANSI afmetingen geschikt voor flenzen volgens B16.5 (≤ 24") of B16.47A of B (>24")
|
|
