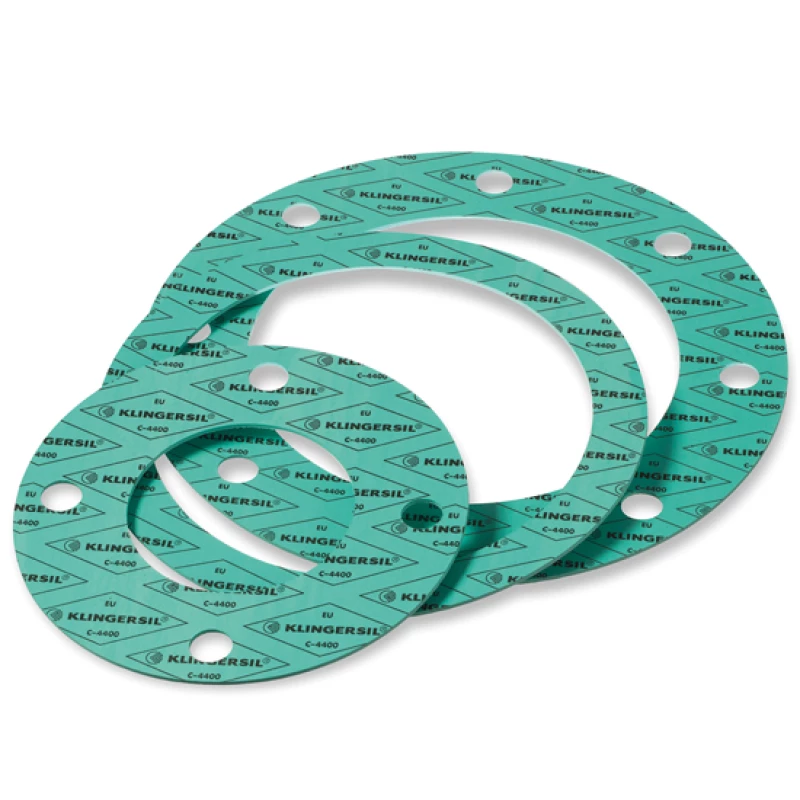

Vezel afdichting | KLINGERSIL®C-4400
Aramidevezel met NBR
Geschikt voor: oliën, koolwaterstoffen en vele gassen
- Hoog aanpassingsvermogen aan het flensoppervlak.
- Uitzonderlijke gasdichtheid.
- Vanuit eigen productie leverbaar in platen, ringen, ramen enz.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 10320001500405 | 0,50 | 2000 x 1500 | |
| 10320001500410 | 1,00 | 2000 x 1500 | |
| 10320001500415 | 1,50 | 2000 x 1500 | |
| 10320001500420 | 2,00 | 2000 x 1500 | |
| 10320001500430 | 3,00 | 2000 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 10300460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 10300510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 10300610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 10300710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 10300820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 10300920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 10301070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 10301270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 10301420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 10301620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 10301680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 10301920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 10301940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 10302180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 10302240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 10302730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 10302840220015 | DN 200 | PN 25 | 284 x 220 | |
| 10302920220015 | DN 200 | PN 40 | 292 x 220 | |
| 10303280273015 | DN 250 | PN 10 | 328 x 273 | |
| 10303290273015 | DN 250 | PN 16 | 329 x 273 | |
| 10303400273014 | DN 250 | PN 25 | 340 x 273 | |
| 10303520273015 | DN 250 | PN 40 | 352 x 273 | |
| 10303780324015 | DN 300 | PN 10 | 378 x 324 | |
| 10303840324015 | DN 300 | PN 16 | 384 x 324 | |
| 10304000324015 | DN 300 | PN 25 | 400 x 324 | |
| 10304170324015 | DN 300 | PN 40 | 417 x 324 | |
| 10304380356015 | DN 350 | PN 10 | 438 x 356 | |
| 10304440356015 | DN 350 | PN 16 | 444 x 356 | |
| 10304570356015 | DN 350 | PN 25 | 457 x 356 | |
| 10304740356015 | DN 350 | PN 40 | 474 x 356 | |
| 10304890407015 | DN 400 | PN 10 | 489 x 407 | |
| 10304950407015 | DN 400 | PN 16 | 495 x 407 | |
| 10305140407015 | DN 400 | PN 25 | 514 x 407 | |
| 10305460407015 | DN 400 | PN 40 | 546 x 407 | |
| 10305390458015 | DN 450 | PN 10 | 539 x 458 | |
| 10305550458015 | DN 450 | PN 16 | 555 x 458 | |
| 10305640458015 | DN 450 | PN 25 | 564 x 458 | |
| 10305710458015 | DN 450 | PN 40 | 571 x 458 | |
| 10305940508015 | DN 500 | PN 10 | 594 x 508 | |
| 10306170508015 | DN 500 | PN 16 | 617 x 508 | |
| 10306240508015 | DN 500 | PN 25 | 624 x 508 | |
| 10306280508015 | DN 500 | PN 40 | 628 x 508 | |
| 10306950610015 | DN 600 | PN 10 | 695 x 610 | |
| 10307340610015 | DN 600 | PN 16 | 734 x 610 | |
| 10307310610015 | DN 600 | PN 25 | 731 x 610 | |
| 10307470610015 | DN 600 | PN 40 | 747 x 610 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 10300460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 10300510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 10300610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 10300710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 10300820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 10300920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 10301070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 10301270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 10301420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 10301620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 10301680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 10301920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 10301940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 10302180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 10302240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 10302730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 10302840220020 | DN 200 | PN 25 | 284 x 220 | |
| 10302900220020 | DN 200 | PN 40 | 290 x 220 | |
| 10303280273020 | DN 250 | PN 10 | 328 x 273 | |
| 10303290273020 | DN 250 | PN 16 | 329 x 273 | |
| 10303400273020 | DN 250 | PN 25 | 340 x 273 | |
| 10303520273020 | DN 250 | PN 40 | 352 x 273 | |
| 10303780324020 | DN 300 | PN 10 | 378 x 324 | |
| 10303840324020 | DN 300 | PN 16 | 384 x 324 | |
| 10304000324020 | DN 300 | PN 25 | 400 x 324 | |
| 10304170324020 | DN 300 | PN 40 | 417 x 324 | |
| 10304380356020 | DN 350 | PN 10 | 438 x 356 | |
| 10304440356020 | DN 350 | PN 16 | 444 x 356 | |
| 10304570356020 | DN 350 | PN 25 | 457 x 356 | |
| 10304740356020 | DN 350 | PN 40 | 474 x 356 | |
| 10304890407020 | DN 400 | PN 10 | 489 x 407 | |
| 10304950407020 | DN 400 | PN 16 | 495 x 407 | |
| 10305140407020 | DN 400 | PN 25 | 514 x 407 | |
| 10305460407020 | DN 400 | PN 40 | 546 x 407 | |
| 10305390458020 | DN 450 | PN 10 | 539 x 458 | |
| 10305550458020 | DN 450 | PN 16 | 555 x 458 | |
| 10305640458020 | DN 450 | PN 25 | 564 x 458 | |
| 10305710458020 | DN 450 | PN 40 | 571 x 458 | |
| 10305940508020 | DN 500 | PN 10 | 594 x 508 | |
| 10306170508020 | DN 500 | PN 16 | 617 x 508 | |
| 10306240508020 | DN 500 | PN 25 | 624 x 508 | |
| 10306280508020 | DN 500 | PN 40 | 628 x 508 | |
| 10306950610020 | DN 600 | PN 10 | 695 x 610 | |
| 10307340610020 | DN 600 | PN 16 | 734 x 610 | |
| 10307310610020 | DN 600 | PN 25 | 731 x 610 | |
| 10307470610020 | DN 600 | PN 40 | 747 x 610 | |
| 10308100712020 | DN 700 | PN 10 | 810 x 712 | |
| 10308040712020 | DN 700 | PN 16 | 804 x 712 | |
| 10308330712020 | DN 700 | PN 25 | 833 x 712 | |
| 10308500720020 | DN 700 | PN 40 | 850 x 720 | |
| 10309170813020 | DN 800 | PN 10 | 917 x 813 | |
| 10309110813020 | DN 800 | PN 16 | 911 x 813 | |
| 10309420813020 | DN 800 | PN 25 | 942 x 813 | |
| 10309700820020 | DN 800 | PN 40 | 970 x 820 | |
| 10310170915020 | DN 900 | PN 10 | 1017 x 915 | |
| 10310110915020 | DN 900 | PN 16 | 1011 x 915 | |
| 10310420915020 | DN 900 | PN 25 | 1042 x 915 | |
| 10310800920020 | DN 900 | PN 40 | 1080 x 920 | |
| 10311241016020 | DN 1000 | PN 10 | 1124 x 1016 | |
| 10311281016020 | DN 1000 | PN 16 | 1128 x 1016 | |
| 10311541016020 | DN 1000 | PN 25 | 1154 x 1016 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 10300460018030 | DN 10 | PN 10-40 | 46 x 18 | |
| 10300510022030 | DN 15 | PN 10-40 | 51 x 22 | |
| 10300610028030 | DN 20 | PN 10-40 | 61 x 28 | |
| 10300710034030 | DN 25 | PN 10-40 | 71 x 34 | |
| 10300820043030 | DN 32 | PN 10-40 | 82 x 43 | |
| 10300920049030 | DN 40 | PN 10-40 | 92 x 49 | |
| 10301070061030 | DN 50 | PN 10-40 | 107 x 61 | |
| 10301270077030 | DN 65 | PN 10-40 | 127 x 77 | |
| 10301420089030 | DN 80 | PN 10-40 | 142 x 89 | |
| 10301620115030 | DN 100 | PN 10-16 | 162 x 115 | |
| 10301680115030 | DN 100 | PN 25-40 | 168 x 115 | |
| 10301920141030 | DN 125 | PN 10-16 | 192 x 141 | |
| 10301940141030 | DN 125 | PN 25-40 | 194 x 141 | |
| 10302180169030 | DN 150 | PN 10-16 | 218 x 169 | |
| 10302240169030 | DN 150 | PN 25-40 | 224 x 169 | |
| 10302730220030 | DN 200 | PN 10-16 | 273 x 220 | |
| 10302840220030 | DN 200 | PN 25 | 284 x 220 | |
| 10302900220030 | DN 200 | PN 40 | 290 x 220 | |
| 10303280273030 | DN 250 | PN 10 | 328 x 273 | |
| 10303290273030 | DN 250 | PN 16 | 329 x 273 | |
| 10303400273031 | DN 250 | PN 25 | 340 x 273 | |
| 10303520273030 | DN 250 | PN 40 | 352 x 273 | |
| 10303780324030 | DN 300 | PN 10 | 378 x 324 | |
| 10303840324030 | DN 300 | PN 16 | 384 x 324 | |
| 10304000324030 | DN 300 | PN 25 | 400 x 324 | |
| 10304170324030 | DN 300 | PN 40 | 417 x 324 | |
| 10304380356030 | DN 350 | PN 10 | 438 x 356 | |
| 10304440356030 | DN 350 | PN 16 | 444 x 356 | |
| 10304570356030 | DN 350 | PN 25 | 457 x 356 | |
| 10304740356030 | DN 350 | PN 40 | 474 x 356 | |
| 10304890407030 | DN 400 | PN 10 | 489 x 407 | |
| 10304950407030 | DN 400 | PN 16 | 495 x 407 | |
| 10305140407030 | DN 400 | PN 25 | 514 x 407 | |
| 10305460407030 | DN 400 | PN 40 | 546 x 407 | |
| 10305390458030 | DN 450 | PN 10 | 539 x 458 | |
| 10305550458030 | DN 450 | PN 16 | 555 x 458 | |
| 10305640458030 | DN 450 | PN 25 | 564 x 458 | |
| 10305710458030 | DN 450 | PN 40 | 571 x 458 | |
| 10305940508030 | DN 500 | PN 10 | 594 x 508 | |
| 10306170508030 | DN 500 | PN 16 | 617 x 508 | |
| 10306240508030 | DN 500 | PN 25 | 624 x 508 | |
| 10306280508030 | DN 500 | PN 40 | 628 x 508 | |
| 10306950610030 | DN 600 | PN 10 | 695 x 610 | |
| 10307340610030 | DN 600 | PN 16 | 734 x 610 | |
| 10307310610030 | DN 600 | PN 25 | 731 x 610 | |
| 10307470610030 | DN 600 | PN 40 | 747 x 610 | |
| 10308100712030 | DN 700 | PN 10 | 810 x 712 | |
| 10308040712030 | DN 700 | PN 16 | 804 x 712 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 10300480021015 | 1/2" | 48 x 21 | |
| 10300570027015 | 3/4" | 57 x 27 | |
| 10300670033015 | 1 " | 67 x 33 | |
| 10300760042015 | 1.1/4" | 76 x 42 | |
| 10300860048015 | 1.1/2" | 86 x 48 | |
| 10301050060015 | 2 " | 105 x 60 | |
| 10301240073015 | 2.1/2" | 124 x 73 | |
| 10301370089015 | 3 " | 137 x 89 | |
| 10301620102015 | 3.1/2" | 162 x 102 | |
| 10301750114015 | 4 " | 175 x 114 | |
| 10301970141015 | 5 " | 197 x 141 | |
| 10302220168015 | 6 " | 222 x 168 | |
| 10302790219015 | 8 " | 279 x 219 | |
| 10303400273015 | 10 " | 340 x 273 | |
| 10304100324015 | 12 " | 410 x 324 | |
| 10304510356015 | 14 " | 451 x 356 | |
| 10305140406015 | 16 " | 514 x 406 | |
| 10305500457015 | 18 " | 550 x 457 | |
| 10306060508015 | 20 " | 606 x 508 | |
| 10307180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 10300480021020 | 1/2" | 48 x 21 | |
| 10300570027020 | 3/4" | 57 x 27 | |
| 10300670033020 | 1 " | 67 x 33 | |
| 10300760042020 | 1.1/4" | 76 x 42 | |
| 10300860048020 | 1.1/2" | 86 x 48 | |
| 10301050060020 | 2 " | 105 x 60 | |
| 10301240073020 | 2.1/2" | 124 x 73 | |
| 10301370089020 | 3 " | 137 x 89 | |
| 10301620102020 | 3.1/2" | 162 x 102 | |
| 10301750114020 | 4 " | 175 x 114 | |
| 10301970141020 | 5 " | 197 x 141 | |
| 10302220168020 | 6 " | 222 x 168 | |
| 10302790219020 | 8 " | 279 x 219 | |
| 10303400273020 | 10 " | 340 x 273 | |
| 10304100324020 | 12 " | 410 x 324 | |
| 10304510356020 | 14 " | 451 x 356 | |
| 10305140406020 | 16 " | 514 x 406 | |
| 10305500457020 | 18 " | 550 x 457 | |
| 10306060508020 | 20 " | 606 x 508 | |
| 10307180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 10300480021030 | 1/2" | 48 x 21 | |
| 10300570027030 | 3/4" | 57 x 27 | |
| 10300670033030 | 1 " | 67 x 33 | |
| 10300760042030 | 1.1/4" | 76 x 42 | |
| 10300860048030 | 1.1/2" | 86 x 48 | |
| 10301050060030 | 2 " | 105 x 60 | |
| 10301240073030 | 2.1/2" | 124 x 73 | |
| 10301370089030 | 3 " | 137 x 89 | |
| 10301620102030 | 3.1/2" | 162 x 102 | |
| 10301750115030 | 4 " | 175 x 114 | |
| 10301970141030 | 5 " | 197 x 141 | |
| 10302220168030 | 6 " | 222 x 168 | |
| 10302790219030 | 8 " | 279 x 219 | |
| 10303400273030 | 10 " | 340 x 273 | |
| 10304100324030 | 12 " | 410 x 324 | |
| 10304510356030 | 14 " | 451 x 356 | |
| 10305140406030 | 16 " | 514 x 406 | |
| 10305500457030 | 18 " | 550 x 457 | |
| 10306060508030 | 20 " | 606 x 508 | |
| 10307180610030 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 10300540021015 | 1/2" | 54 x 21 | |
| 10300670027015 | 3/4" | 67 x 27 | |
| 10300730033015 | 1 " | 73 x 33 | |
| 10300830042015 | 1.1/4" | 83 x 42 | |
| 10300950048015 | 1.1/2" | 95 x 48 | |
| 10301110060015 | 2 " | 111 x 60 | |
| 10301300073015 | 2.1/2" | 130 x 73 | |
| 10301490089015 | 3 " | 149 x 89 | |
| 10301650102015 | 3.1/2" | 165 x 102 | |
| 10301810114015 | 4 " | 181 x 114 | |
| 10302160141015 | 5 " | 216 x 141 | |
| 10302510168015 | 6 " | 251 x 168 | |
| 10303080219015 | 8 " | 308 x 219 | |
| 10303620273015 | 10 " | 362 x 273 | |
| 10304220324015 | 12 " | 422 x 324 | |
| 10304860356015 | 14 " | 486 x 356 | |
| 10305400406015 | 16 " | 540 x 406 | |
| 10305970457015 | 18 " | 597 x 457 | |
| 10306540508015 | 20 " | 654 x 508 | |
| 10307750610015 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 10300540021020 | 1/2" | 54 x 21 | |
| 10300670027020 | 3/4" | 67 x 27 | |
| 10300730033020 | 1 " | 73 x 33 | |
| 10300830042020 | 1.1/4" | 83 x 42 | |
| 10300950048020 | 1.1/2" | 95 x 48 | |
| 10301110060020 | 2 " | 111 x 60 | |
| 10301300073020 | 2.1/2" | 130 x 73 | |
| 10301490089020 | 3 " | 149 x 89 | |
| 10301650102020 | 3.1/2" | 165 x 102 | |
| 10301810114020 | 4 " | 181 x 114 | |
| 10302160141020 | 5 " | 216 x 141 | |
| 10302510168020 | 6 " | 251 x 168 | |
| 10303080219020 | 8 " | 308 x 219 | |
| 10303620273020 | 10 " | 362 x 273 | |
| 10304220324020 | 12 " | 422 x 324 | |
| 10304860356020 | 14 " | 486 x 356 | |
| 10305400406020 | 16 " | 540 x 406 | |
| 10305970457020 | 18 " | 597 x 457 | |
| 10306540508020 | 20 " | 654 x 508 | |
| 10307750610020 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGERSIL®C-4400 |
| Materiaal | Aramide vezels + NBR |
| Kleur | aan beide zijden groen, eenzijdig bedrukt |
|
|
|
| Samendrukbaarheid volgens ASTM F36J | 11% |
| Terugvering volgens ASTM F36J | 55% |
| Drukvastheid volgens DIN 52913(2mm 300ºC) | 25 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,02 mg/s.m. |
| Doorslagspanning | 22,6 Kv/mm. |
| Warmtegeleiding | 0,40-0,42 W/mK. |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | DIN DVGW keur |
| DIN DVGW W270 en 3535-6 | |
| BAM II-1735/2004 | |
| TA-Luft (clean air) acc VDI2440 | |
| KTW certifikaat | |
| WRC/WRAS certifikaat | |
| HTB VP 401cert. | |
| Germanischer Lloyd | |
| ÖVGW cert. | |
| RoHS 2011/65/EG | |
| 2003/11/EG cert. | |
| 76/769/EWG cert. | |
| Biobrandstoffen 2003/30/EG | |
| Reach verklaring | |
| SVHC lijstverklaring | |
|
|
|
|
Afdichtingsfaktoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 20 MPa |
| ASTM m | 3,5 |
| D0701 pgm;min 25ºC | 23 MPa |
| D0701 pgm;max 25ºC | 240 MPa |
| D0701 pgm;max 100ºC | 80 MPa |
| D0701 pgm;max 200ºC | 42 MPa |
| D0701 pgm;max 300ºC | 30 MPa |
| D0701 Cg | 1,3 |
|
|
|
|

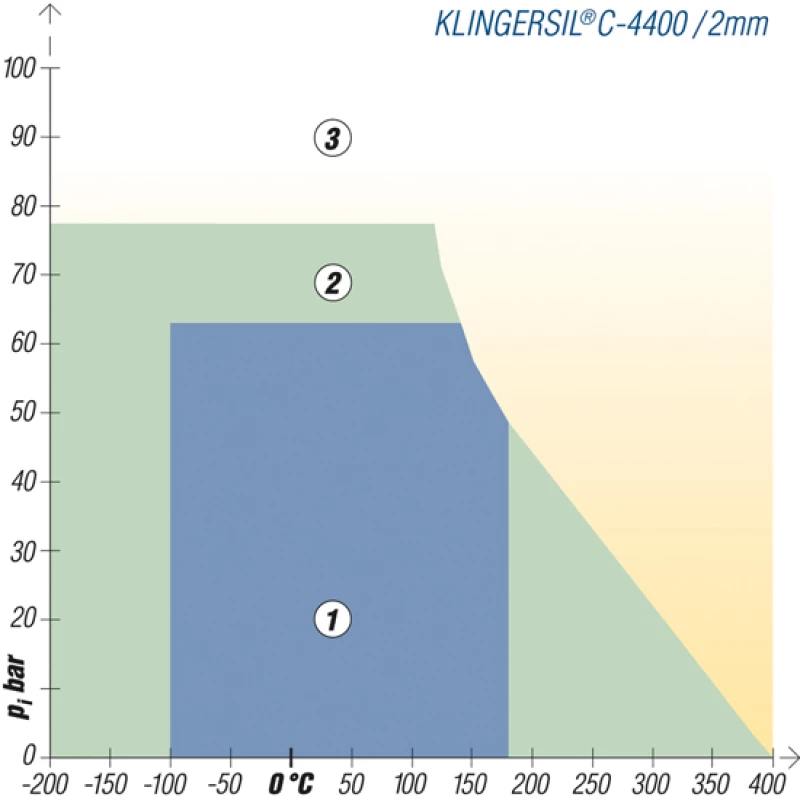

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
Ook leverbaar
|
|
| Met strekmetaalinlage | KlingerSIL C 4409 |
| Met staalgaasinlage | KlingerSIL C 4408 |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
