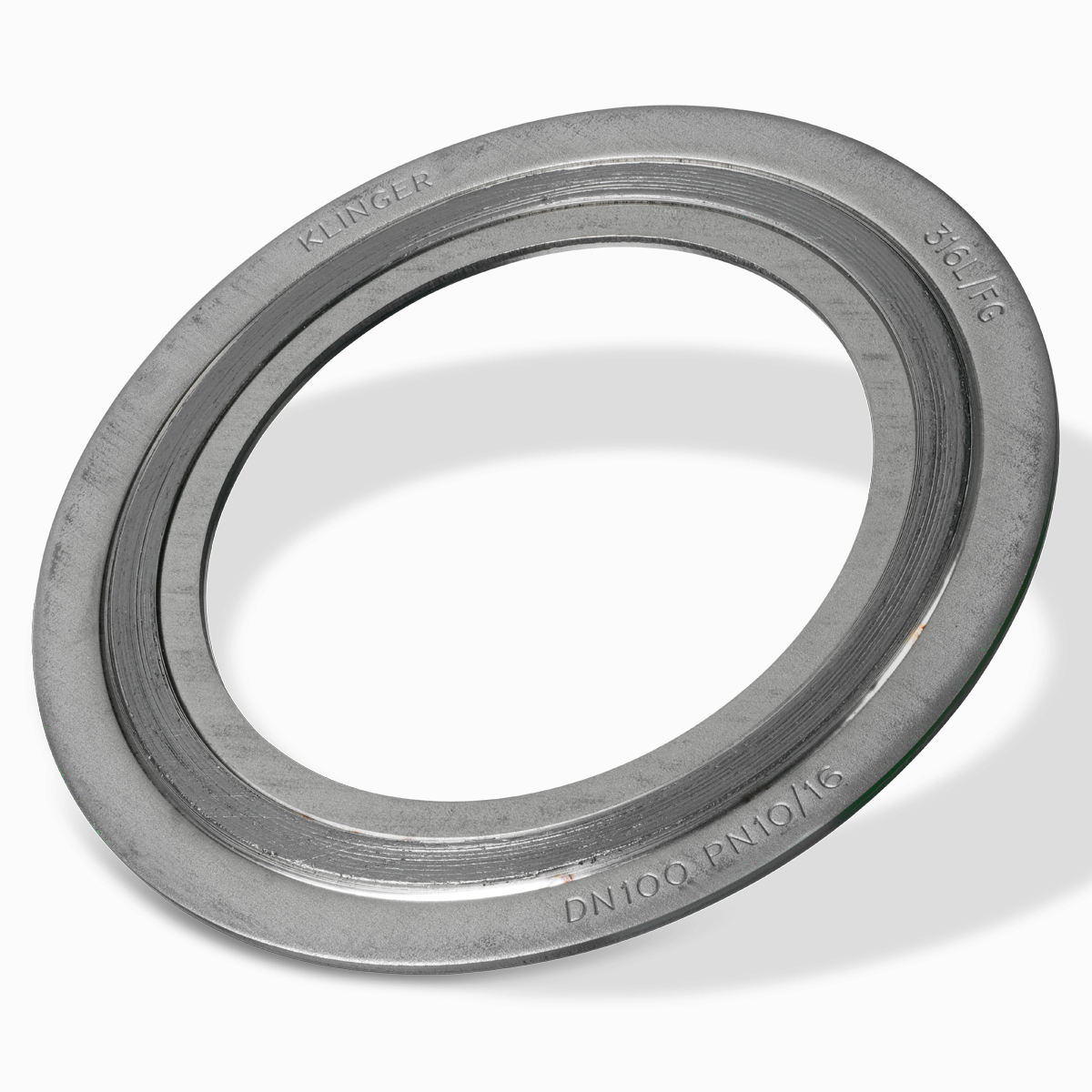

Grafiet gevulde KLINGER Maxiflex ANSI | CRIR
Buitenring met element en binnenring 316L, ANSI standaard
Geschikt voor: water, stoom, olie en vele chemicaliën

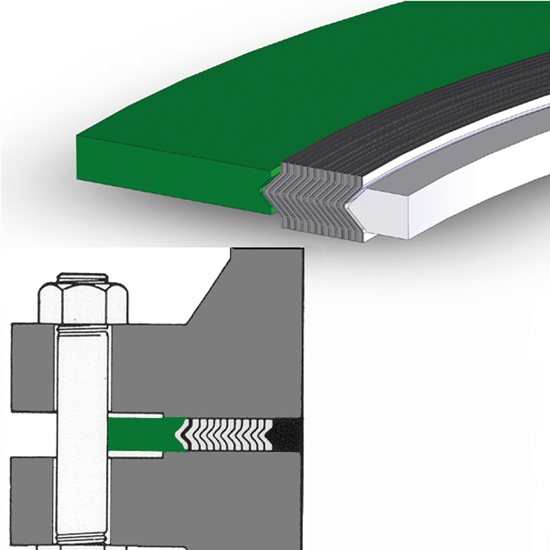

- Deze pakking geeft tussen "raised face" ANSI flenzen een uitblaasveilige hoge druk afdichting.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7001010013 | 1/2" | 47,8 x 31,8 x 19,1 x 14,3 | |
| 7001010019 | 3/4" | 57,2 x 39,6 x 25,4 x 20,7 | |
| 7001010025 | 1 " | 66,8 x 47,8 x 31,8 x 27,0 | |
| 7001010032 | 1.1/4" | 76,2 x 60,5 x 47,8 x 38,1 | |
| 7001010038 | 1.1/2" | 85,9 x 69,9 x 54,1 x 44,5 | |
| 7001010050 | 2 " | 105,0 x 85,9 x 69,9 x 55,6 | |
| 7001010065 | 2.1/2" | 124,0 x 98,6 x 82,6 x 66,7 | |
| 7001010075 | 3 " | 137,0 x 121,0 x 102,0 x 81,0 | |
| 7001010100 | 4 " | 175,0 x 149,0 x 127,0 x 106,0 | |
| 7001010125 | 5 " | 197,0 x 178,0 x 156,0 x 132,0 | |
| 7001010150 | 6 " | 222,0 x 210,0 x 183,0 x 157,0 | |
| 7001010200 | 8 " | 279,0 x 264,0 x 233,0 x 216,0 | |
| 7001010250 | 10 " | 340,0 x 317,0 x 287,0 x 268,0 | |
| 7001010300 | 12 " | 410,0 x 375,0 x 340,0 x 317,0 | |
| 7001010350 | 14 " | 451,0 x 406,0 x 372,0 x 350,0 | |
| 7001010400 | 16 " | 514,0 x 463,0 x 422,0 x 400,0 | |
| 7001010450 | 18 " | 549,0 x 527,0 x 475,0 x 449,0 | |
| 7001010500 | 20 " | 606,0 x 578,0 x 525,0 x 500,0 | |
| 7001010600 | 24 " | 717,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7003010013 | 1/2" | 54,1 x 31,8 x 19,1 x 14,3 | |
| 7003010019 | 3/4" | 66,8 x 39,6 x 25,4 x 20,7 | |
| 7003010025 | 1 " | 73,2 x 47,8 x 31,8 x 27,0 | |
| 7003010032 | 1.1/4" | 82,6 x 60,5 x 47,8 x 38,1 | |
| 7003010038 | 1.1/2" | 95,3 x 69,9 x 54,1 x 44,5 | |
| 7003010050 | 2 " | 111,0 x 85,9 x 69,9 x 55,6 | |
| 7003010065 | 2.1/2" | 130,0 x 98,6 x 82,6 x 66,7 | |
| 7003010075 | 3 " | 149,0 x 121,0 x 102,0 x 81,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7002010100 | 4 " | 181,0 x 149,0 x 127,0 x 106,0 | |
| 7002010125 | 5 " | 216,0 x 178,0 x 156,0 x 132,0 | |
| 7002010150 | 6 " | 251,0 x 210,0 x 183,0 x 157,0 | |
| 7002010200 | 8 " | 308,0 x 264,0 x 233,0 x 216,0 | |
| 7002010250 | 10 " | 362,0 x 317,0 x 287,0 x 268,0 | |
| 7002010300 | 12 " | 422,0 x 375,0 x 340,0 x 317,0 | |
| 7002010350 | 14 " | 486,0 x 406,0 x 372,0 x 350,0 | |
| 7002010400 | 16 " | 540,0 x 463,0 x 422,0 x 400,0 | |
| 7002010450 | 18 " | 597,0 x 527,0 x 475,0 x 449,0 | |
| 7002010500 | 20 " | 654,0 x 578,0 x 525,0 x 500,0 | |
| 7002010600 | 24 " | 774,0 x 686,0 x 628,0 x 603,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7004010100 | 4 " | 194,0 x 149,0 x 121,0 x 106,0 | |
| 7004010150 | 6 " | 266,0 x 210,0 x 175,0 x 157,0 | |
| 7004010200 | 8 " | 321,0 x 264,0 x 226,0 x 210,0 | |
| 7004010250 | 10 " | 400,0 x 317,0 x 274,0 x 260,0 | |
| 7004010300 | 12 " | 457,0 x 375,0 x 327,0 x 317,0 | |
| 7004010350 | 14 " | 492,0 x 406,0 x 362,0 x 350,0 | |
| 7004010400 | 16 " | 565,0 x 463,0 x 413,0 x 400,0 | |
| 7004010450 | 18 " | 613,0 x 527,0 x 470,0 x 449,0 | |
| 7004010500 | 20 " | 683,0 x 578,0 x 521,0 x 500,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7005010013 | 1/2" | 63,5 x 31,8 x 19,1 x 14,3 | |
| 7005010019 | 3/4" | 69,9 x 39,6 x 25,4 x 20,7 | |
| 7005010025 | 1 " | 79,5 x 47,8 x 31,8 x 27,0 | |
| 7005010038 | 1.1/2" | 98,6 x 69,9 x 47,8 x 41,3 | |
| 7005010050 | 2 " | 143,0 x 85,9 x 58,7 x 52,4 | |
| 7005010065 | 2.1/2" | 165,0 x 98,6 x 69,9 x 63,5 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7006010075 | 3 " | 168,0 x 121,0 x 95,3 x 81,0 | |
| 7006010100 | 4 " | 206,0 x 149,0 x 121,0 x 106,0 | |
| 7006010150 | 6 " | 289,0 x 210,0 x 175,0 x 157,0 | |
| 7006010200 | 8 " | 359,0 x 257,0 x 222,0 x 196,9 | |
| 7006010250 | 10 " | 435,0 x 311,0 x 276,0 x 260,0 | |
| 7006010300 | 12 " | 498,0 x 368,0 x 324,0 x 314,0 | |
| 7006010400 | 16 " | 575,0 x 457,0 x 413,0 x 394,0 | |
| 7006010450 | 18 " | 638,0 x 521,0 x 463,0 x 444,0 | |
| 7006010500 | 20 " | 698,0 x 571,0 x 521,0 x 495,0 |
| Art.nr. | Maat | Afmetingen (mm) | Bestellen |
|---|---|---|---|
| 7007010075 | 3 " | 175,0 x 121,0 x 92,2 x 81,0 | |
| 7007010100 | 4 " | 209,0 x 149,0 x 117,0 x 106,0 | |
| 7007010150 | 6 " | 282,0 x 210,0 x 171,0 x 147,0 | |
| 7007010200 | 8 " | 352,0 x 257,0 x 216,0 x 206,0 | |
| 7007010250 | 10 " | 435,0 x 311,0 x 267,0 x 258,0 | |
| 7007010450 | 18 " | 705,0 x 521,0 x 463,0 x 438,0 | |
| 7007010500 | 20 " | 755,0 x 571,0 x 514,0 x 489,0 |
Ook leverbaar
- andere materialen, niet-standaard afmetingen en/of losse elementen uit eigen fabriek
Specificaties
| Type | CRIR |
| Materiaal |
Grafiet/316L : element RVS 316L : buitenring RVS 316L : binnenring |
| Max. temperatuur | 450º-600ºC* |
| Max. druk | 250 bar |
|
|
|
| Uitvoering | voor flenzen B 16.5 |
|
|
|
|
*afhankelijk van specifieke toepassing.
|
|
|
|
|
|
DIN afmetingen geschikt voor flenzen volgens EN1092
|
|
|
ANSI afmetingen geschikt voor flenzen volgens B16.5 (≤ 24") of B16.47A of B (>24")
|
|
