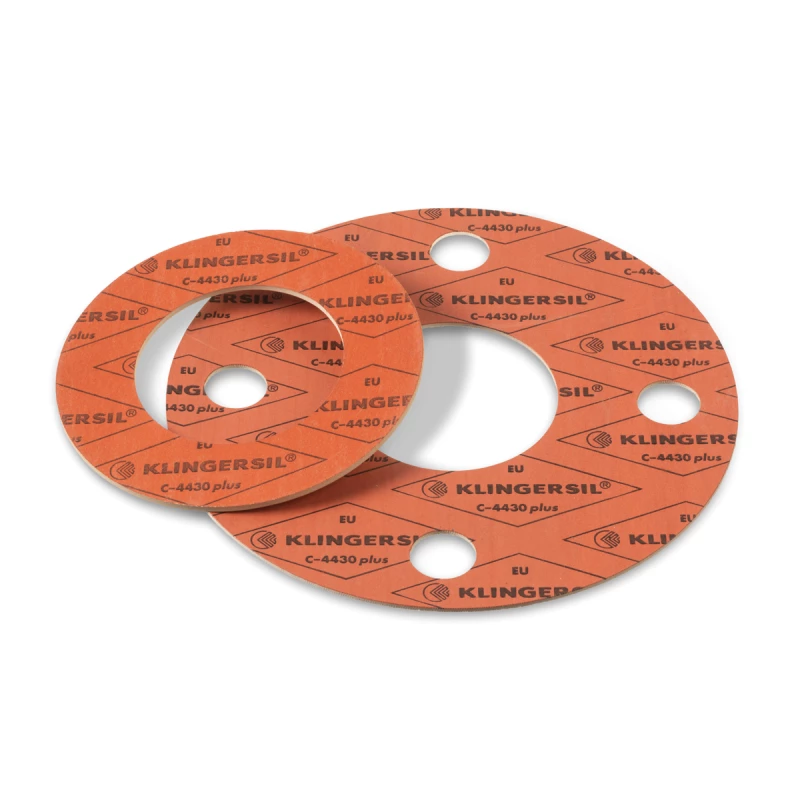

Vezel afdichting | KLINGERSIL®C-4430 plus

Glasvezel met NBR

Geschikt voor: oliën, koolwaterstoffen en vele gassen

Deze pakking heeft een hoog aanpassingsvermogen aan het flensoppervlak, gecombineerd met een zeer hoge drukvastheid.

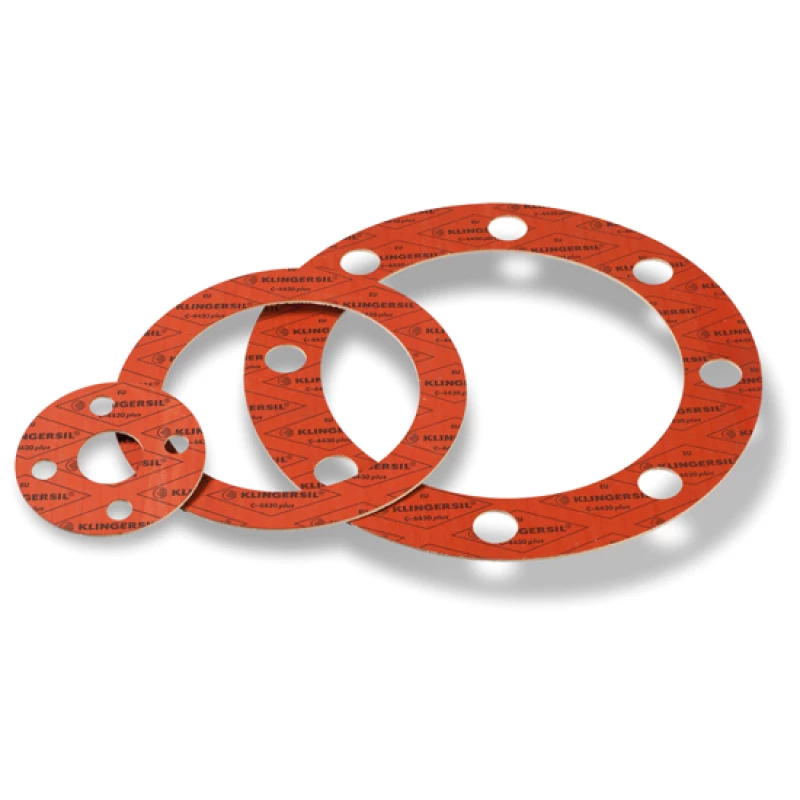

Vanuit eigen productie leverbaar in platen, ringen, ramen enz.

Specificaties

Downloads

Product certificaten (Engels)

Bestendigheid afdichtingen

Video KLINGERSil C-4430plus afdichting

Folder KLINGERSIL C-4430 plus

Selecteer een uitvoering:

Selecteer een uitvoering

Art.nr.	Dikte (mm)	Plaatafmeting (mm)
10920001500403	0,25	2000 x 1500
10920001500404	0,40	2000 x 1500
10920001500405	0,50	2000 x 1500
10920001500408	0,80	2000 x 1500
10920001500410	1,00	2000 x 1500
10920001500415	1,50	2000 x 1500
10920001500420	2,00	2000 x 1500
10920001500430	3,00	2000 x 1500

Art.nr.	Maat	PN	Afmeting (mm)
10900460018015	DN 10	PN 10-40	46 x 18
10900510022015	DN 15	PN 10-40	51 x 22
10900610028015	DN 20	PN 10-40	61 x 28
10900710034015	DN 25	PN 10-40	71 x 34
10900820043015	DN 32	PN 10-40	82 x 43
10900920049015	DN 40	PN 10-40	92 x 49
10901070061015	DN 50	PN 10-40	107 x 61
10901270077015	DN 65	PN 10-40	127 x 77
10901420089015	DN 80	PN 10-40	142 x 89
10901620115015	DN 100	PN 10-16	162 x 115
10901680115015	DN 100	PN 25-40	168 x 115
10901920141015	DN 125	PN 10-16	192 x 141
10901940141015	DN 125	PN 25-40	194 x 141
10902180169015	DN 150	PN 10-16	218 x 169
10902240169015	DN 150	PN 25-40	224 x 169
10902730220015	DN 200	PN 10-16	273 x 220
10902840220015	DN 200	PN 25	284 x 220
10902900220015	DN 200	PN 40	290 x 220
10903280273015	DN 250	PN 10	328 x 273
10903290273015	DN 250	PN 16	329 x 273
10903400273014	DN 250	PN 25	340 x 273
10903520273015	DN 250	PN 40	352 x 273
10903780324015	DN 300	PN 10	378 x 324
10903840324015	DN 300	PN 16	384 x 324
10904000324015	DN 300	PN 25	400 x 324
10904170324015	DN 300	PN 40	417 x 324
10904380356015	DN 350	PN 10	438 x 356
10904440356015	DN 350	PN 16	444 x 356
10904570356015	DN 350	PN 25	457 x 356
10904740356015	DN 350	PN 40	474 x 356
10904890407015	DN 400	PN 10	489 x 407
10904950407015	DN 400	PN 16	495 x 407
10905140407015	DN 400	PN 25	514 x 407
10905460407015	DN 400	PN 40	546 x 407
10905390458015	DN 450	PN 10	539 x 458
10905550458015	DN 450	PN 16	555 x 458
10905640458015	DN 450	PN 25	564 x 458
10905710458015	DN 450	PN 40	571 x 458
10905940508015	DN 500	PN 10	594 x 508
10906170508015	DN 500	PN 16	617 x 508
10906240508015	DN 500	PN 25	624 x 508
10906280508015	DN 500	PN 40	628 x 508
10906950610015	DN 600	PN 10	695 x 610
10907340610015	DN 600	PN 16	734 x 610
10907310610015	DN 600	PN 25	731 x 610
10907470610015	DN 600	PN 40	747 x 610
10908100712015	DN 700	PN 10	810 x 712
10908040712015	DN 700	PN 16	804 x 712

Art.nr.	Maat	PN	Afmeting (mm)
10900460018020	DN 10	PN 10-40	46 x 18
10900510022020	DN 15	PN 10-40	51 x 22
10900610028020	DN 20	PN 10-40	61 x 28
10900710034020	DN 25	PN 10-40	71 x 34
10900820043020	DN 32	PN 10-40	82 x 43
10900920049020	DN 40	PN 10-40	92 x 49
10901070061020	DN 50	PN 10-40	107 x 61
10901270077020	DN 65	PN 10-40	127 x 77
10901420089020	DN 80	PN 10-40	142 x 89
10901620115020	DN 100	PN 10-16	162 x 115
10901680115020	DN 100	PN 25-40	168 x 115
10901920141020	DN 125	PN 10-16	192 x 141
10901940141020	DN 125	PN 25-40	194 x 141
10902180169020	DN 150	PN 10-16	218 x 169
10902240169020	DN 150	PN 25-40	224 x 169
10902730220020	DN 200	PN 10-16	273 x 220
10902840220020	DN 200	PN 25	284 x 220
10902900220020	DN 200	PN 40	290 x 220
10903280273020	DN 250	PN 10	328 x 273
10903290273020	DN 250	PN 16	329 x 273
10903400273021	DN 250	PN 25	340 x 273
10903520273020	DN 250	PN 40	352 x 273
10903780324020	DN 300	PN 10	378 x 324
10903840324020	DN 300	PN 16	384 x 324
10904000324020	DN 300	PN 25	400 x 324
10904170324020	DN 300	PN 40	417 x 324
10904380356020	DN 350	PN 10	438 x 356
10904440356020	DN 350	PN 16	444 x 356
10904570356020	DN 350	PN 25	457 x 356
10904740356020	DN 350	PN 40	474 x 356
10904890407020	DN 400	PN 10	489 x 407
10904950407020	DN 400	PN 16	495 x 407
10905140407020	DN 400	PN 25	514 x 407
10905460407020	DN 400	PN 40	546 x 407
10905390458020	DN 450	PN 10	539 x 458
10905550458020	DN 450	PN 16	555 x 458
10905640458020	DN 450	PN 25	564 x 458
10905710458020	DN 450	PN 40	571 x 458
10905940508020	DN 500	PN 10	594 x 508
10906170508020	DN 500	PN 16	617 x 508
10906240508020	DN 500	PN 25	624 x 508
10906280508020	DN 500	PN 40	628 x 508
10906950610020	DN 600	PN 10	695 x 610
10907340610020	DN 600	PN 16	734 x 610
10907310610020	DN 600	PN 25	731 x 610
10907470610020	DN 600	PN 40	747 x 610
10908100712020	DN 700	PN 10	810 x 712
10908040712020	DN 700	PN 16	804 x 712
10908330712020	DN 700	PN 25	833 x 712
10908500720020	DN 700	PN 40	850 x 720
10909170813020	DN 800	PN 10	917 x 813
10909110813020	DN 800	PN 16	911 x 813
10909420813020	DN 800	PN 25	942 x 813
10909700820020	DN 800	PN 40	970 x 820
10910170915020	DN 900	PN 10	1017 x 915
10910110915020	DN 900	PN 16	1011 x 915
10910420915020	DN 900	PN 25	1042 x 915
10910800920020	DN 900	PN 40	1080 x 920

Art.nr.	Maat	PN	Afmeting (mm)
10900510022030	DN 15	PN 10-40	51 x 22
10900610028030	DN 20	PN 10-40	61 x 28
10900710034030	DN 25	PN 10-40	71 x 34
10900820043030	DN 32	PN 10-40	82 x 43
10900920049030	DN 40	PN 10-40	92 x 49
10901070061030	DN 50	PN 10-40	107 x 61
10901270077030	DN 65	PN 10-40	127 x 77
10901420089030	DN 80	PN 10-40	142 x 89
10901620115030	DN 100	PN 10-16	162 x 115
10901680115030	DN 100	PN 25-40	168 x 115
10901920141030	DN 125	PN 10-16	192 x 141
10901940141030	DN 125	PN 25-40	194 x 141
10902180169030	DN 150	PN 10-16	218 x 169
10902240169030	DN 150	PN 25-40	224 x 169
10902730220030	DN 200	PN 10-16	273 x 220
10902840220030	DN 200	PN 25	284 x 220
10902900220030	DN 200	PN 40	290 x 220
10903280273030	DN 250	PN 10	328 x 273
10903290273030	DN 250	PN 16	329 x 273
10903400273031	DN 250	PN 25	340 x 273
10903520273030	DN 250	PN 40	352 x 273
10903780324030	DN 300	PN 10	378 x 324
10903840324030	DN 300	PN 16	384 x 324
10904000324030	DN 300	PN 25	400 x 324
10904170324030	DN 300	PN 40	417 x 324
10904380356030	DN 350	PN 10	438 x 356
10904440356030	DN 350	PN 16	444 x 356
10904570356030	DN 350	PN 25	457 x 356
10904740356030	DN 350	PN 40	474 x 356
10904890407030	DN 400	PN 10	489 x 407
10904950407030	DN 400	PN 16	495 x 407
10905140407030	DN 400	PN 25	514 x 407
10905460407030	DN 400	PN 40	546 x 407
10905390458030	DN 450	PN 10	539 x 458
10905550458030	DN 450	PN 16	555 x 458
10905640458030	DN 450	PN 25	564 x 458
10905710458030	DN 450	PN 40	571 x 458
10905940508030	DN 500	PN 10	594 x 508
10906170508030	DN 500	PN 16	617 x 508
10906240508030	DN 500	PN 25	624 x 508
10906280508030	DN 500	PN 40	628 x 508
10906950610030	DN 600	PN 10	695 x 610
10907340610030	DN 600	PN 16	734 x 610
10907310610030	DN 600	PN 25	731 x 610
10907470610030	DN 600	PN 40	747 x 610
10908100712030	DN 700	PN 10	810 x 712
10908040712030	DN 700	PN 16	804 x 712
10908330712030	DN 700	PN 25	833 x 712
10908500720030	DN 700	PN 40	850 x 720
10909170813030	DN 800	PN 10	917 x 813
10909110813030	DN 800	PN 16	911 x 813
10909420813030	DN 800	PN 25	942 x 813
10909700820030	DN 800	PN 40	970 x 820
10910170915030	DN 900	PN 10	1017 x 915
10910110915030	DN 900	PN 16	1011 x 915
10910420915030	DN 900	PN 25	1042 x 915
10910800920030	DN 900	PN 40	1080 x 920
10911241016030	DN 1000	PN 10	1124 x 1016
10911281016030	DN 1000	PN 16	1128 x 1016
10911541016030	DN 1000	PN 25	1154 x 1016

Art.nr.	Maat	Afmeting (mm)
10900900018101	DN 10 PN 10-40	90 x 18 x 60 x 4 x 14
10900950022101	DN 15 PN 10-40	95 x 22 x 65 x 4 x 14
10901050027101	DN 20 PN 10-40	105 x 27 x 75 x 4 x 14
10901150034101	DN 25 PN 10-40	115 x 34 x 85 x 4 x 14
10901400043101	DN 32 PN 10-40	140 x 43 x 100 x 4 x 18
10901500049101	DN 40 PN 10-40	150 x 49 x 110 x 4 x 18
10901650061103	DN 50 PN 10-40	165 x 61 x 125 x 4 x 18
10901850077101	DN 65 PN 10-16	185 x 77 x 145 x 4 x 18
10901850077105	DN 65 PN 25-40	185 x 77 x 145 x 8 x 18
10902000089102	DN 80 PN 10-40	200 x 89 x 160 x 8 x 18
10902200115103	DN 100 PN 10-16	220 x 115 x 180 x 8 x 18
10902350115101	DN 100 PN 25-40	235 x 115 x 190 x 8 x 22
10902500141101	DN 125 PN 10-16	250 x 141 x 210 x 8 x 18
10902700141101	DN 125 PN 25-40	270 x 141 x 220 x 8 x 26
10902850169103	DN 150 PN 10-16	285 x 169 x 240 x 8 x 22
10903000169103	DN 150 PN 25-40	300 x 169 x 250 x 8 x 26
10903400220105	DN 200 PN 10	340 x 220 x 295 x 8 x 22
10903400220106	DN 200 PN 16	340 x 220 x 295 x 12 x 22
10903600220101	DN 200 PN 25	360 x 220 x 310 x 12 x 26
10903750220101	DN 200 PN 40	375 x 220 x 320 x 12 x 30
10903950273104	DN 250 PN 10	395 x 273 x 350 x 12 x 22
10904050273101	DN 250 PN 16	405 x 273 x 355 x 12 x 26
10904250273101	DN 250 PN 25	425 x 273 x 370 x 12 x 30
10904500273101	DN 250 PN 40	450 x 273 x 385 x 12 x 33
10904450324102	DN 300 PN 10	445 x 324 x 400 x 12 x 22
10904600324101	DN 300 PN 16	460 x 324 x 410 x 12 x 26
10904850324101	DN 300 PN 25	485 x 324 x 430 x 16 x 30
10905150324101	DN 300 PN 40	515 x 324 x 450 x 16 x 33
10905050356102	DN 350 PN 10	505 x 356 x 460 x 16 x 22
10905200356101	DN 350 PN 16	520 x 356 x 470 x 16 x 26
10905550356101	DN 350 PN 25	555 x 356 x 490 x 16 x 33
10905800356101	DN 350 PN 40	580 x 356 x 510 x 16 x 36
10905650407102	DN 400 PN 10	565 x 407 x 515 x 16 x 26
10905800407101	DN 400 PN 16	580 x 407 x 525 x 16 x 30
10906200407101	DN 400 PN 25	620 x 407 x 550 x 16 x 36
10906600407101	DN 400 PN 40	660 x 407 x 585 x 16 x 39
10906700508102	DN 500 PN 10	670 x 508 x 620 x 20 x 26
10907150508101	DN 500 PN 16	715 x 508 x 650 x 20 x 33
10907300508101	DN 500 PN 25	730 x 508 x 660 x 20 x 36
10907550508101	DN 500 PN 40	755 x 508 x 670 x 20 x 42
10907800610103	DN 600 PN 10	780 x 610 x 725 x 20 x 30
10908400610101	DN 600 PN 16	840 x 610 x 770 x 20 x 36
10908450610101	DN 600 PN 25	845 x 610 x 770 x 20 x 39
10908900610101	DN 600 PN 40	890 x 610 x 795 x 20 x 48
10908950712101	DN 700 PN 10	895 x 712 x 840 x 24 x 30
10909100712101	DN 700 PN 16	910 x 712 x 840 x 24 x 36
10909600712101	DN 700 PN 25	960 x 712 x 875 x 24 x 42

Art.nr.	Maat	Afmeting (mm)
10900900018102	DN 10 PN 10-40	90 x 18 x 60 x 4 x 14
10900950022102	DN 15 PN 10-40	95 x 22 x 65 x 4 x 14
10901050027102	DN 20 PN 10-40	105 x 27 x 75 x 4 x 14
10901150034102	DN 25 PN 10-40	115 x 34 x 85 x 4 x 14
10901400043102	DN 32 PN 10-40	140 x 43 x 100 x 4 x 18
10901500049102	DN 40 PN 10-40	150 x 49 x 110 x 4 x 18
10901650061101	DN 50 PN 10-40	165 x 61 x 125 x 4 x 18
10901850077102	DN 65 PN 10-16	185 x 77 x 145 x 4 x 18
10901850077106	DN 65 PN 25-40	185 x 77 x 145 x 8 x 18
10902000089103	DN 80 PN 10-40	200 x 89 x 160 x 8 x 18
10902200115101	DN 100 PN 10-16	220 x 115 x 180 x 8 x 18
10902350115102	DN 100 PN 25-40	235 x 115 x 190 x 8 x 22
10902500141103	DN 125 PN 10-16	250 x 141 x 210 x 8 x 18
10902700141102	DN 125 PN 25-40	270 x 141 x 220 x 8 x 26
10902850169101	DN 150 PN 10-16	285 x 169 x 240 x 8 x 22
10903000169101	DN 150 PN 25-40	300 x 169 x 250 x 8 x 26
10903400220101	DN 200 PN 10	340 x 220 x 295 x 8 x 22
10903400220103	DN 200 PN 16	340 x 220 x 295 x 12 x 22
10903600220102	DN 200 PN 25	360 x 220 x 310 x 12 x 26
10903750220102	DN 200 PN 40	375 x 220 x 320 x 12 x 30
10903950273103	DN 250 PN 10	395 x 273 x 350 x 12 x 22
10904050273102	DN 250 PN 16	405 x 273 x 355 x 12 x 26
10904250273102	DN 250 PN 25	425 x 273 x 370 x 12 x 30
10904500273102	DN 250 PN 40	450 x 273 x 385 x 12 x 33
10904450324101	DN 300 PN 10	445 x 324 x 400 x 12 x 22
10904600324102	DN 300 PN 16	460 x 324 x 410 x 12 x 26
10904850324102	DN 300 PN 25	485 x 324 x 430 x 16 x 30
10905150324102	DN 300 PN 40	515 x 324 x 450 x 16 x 33
10905050356101	DN 350 PN 10	505 x 356 x 460 x 16 x 22
10905200356102	DN 350 PN 16	520 x 356 x 470 x 16 x 26
10905550356102	DN 350 PN 25	555 x 356 x 490 x 16 x 33
10905800356102	DN 350 PN 40	580 x 356 x 510 x 16 x 36
10905650407103	DN 400 PN 10	565 x 407 x 515 x 16 x 26
10905800407102	DN 400 PN 16	580 x 407 x 525 x 16 x 30
10906200407102	DN 400 PN 25	620 x 407 x 550 x 16 x 36
10906600407102	DN 400 PN 40	660 x 407 x 585 x 16 x 39
10906700508103	DN 500 PN 10	670 x 508 x 620 x 20 x 26
10907150508102	DN 500 PN 16	715 x 508 x 650 x 20 x 33
10907300508102	DN 500 PN 25	730 x 508 x 660 x 20 x 36
10907550508102	DN 500 PN 40	755 x 508 x 670 x 20 x 42
10907800610102	DN 600 PN 10	780 x 610 x 725 x 20 x 30
10908400610102	DN 600 PN 16	840 x 610 x 770 x 20 x 36
10908450610102	DN 600 PN 25	845 x 610 x 770 x 20 x 39
10908900610102	DN 600 PN 40	890 x 610 x 795 x 20 x 48
10908950712102	DN 700 PN 10	895 x 712 x 840 x 24 x 30
10909100712102	DN 700 PN 16	910 x 712 x 840 x 24 x 36
10909600712102	DN 700 PN 25	960 x 712 x 875 x 24 x 42

Art.nr.	Maat	Afmeting (mm)
10900900018103	DN 10 PN 10-40	90 x 18 x 60 x 4 x 14
10900950022103	DN 15 PN 10-40	95 x 22 x 65 x 4 x 14
10901050027103	DN 20 PN 10-40	105 x 27 x 75 x 4 x 14
10901150034103	DN 25 PN 10-40	115 x 34 x 85 x 4 x 14
10901400043103	DN 32 PN 10-40	140 x 43 x 100 x 4 x 18
10901500049103	DN 40 PN 10-40	150 x 49 x 110 x 4 x 18
10901650061104	DN 50 PN 10-40	165 x 61 x 125 x 4 x 18
10901850077104	DN 65 PN 10-16	185 x 77 x 145 x 4 x 18
10901850077107	DN 65 PN 25-40	185 x 77 x 145 x 8 x 18
10902000089101	DN 80 PN 10-40	200 x 89 x 160 x 8 x 18
10902200115102	DN 100 PN 10-16	220 x 115 x 180 x 8 x 18
10902350115103	DN 100 PN 25-40	235 x 115 x 190 x 8 x 22
10902500141102	DN 125 PN 10-16	250 x 141 x 210 x 8 x 18
10902700141103	DN 125 PN 25-40	270 x 141 x 220 x 8 x 26
10902850169102	DN 150 PN 10-16	285 x 169 x 240 x 8 x 22
10903000169102	DN 150 PN 25-40	300 x 169 x 250 x 8 x 26
10903400220104	DN 200 PN 10	340 x 220 x 295 x 8 x 22
10903400220107	DN 200 PN 16	340 x 220 x 295 x 12 x 22
10903600220103	DN 200 PN 25	360 x 220 x 310 x 12 x 26
10903750220103	DN 200 PN 40	375 x 220 x 320 x 12 x 30
10903950273101	DN 250 PN 10	395 x 273 x 350 x 12 x 22
10904050273103	DN 250 PN 16	405 x 273 x 355 x 12 x 26
10904250273103	DN 250 PN 25	425 x 273 x 370 x 12 x 30
10904500273103	DN 250 PN 40	450 x 273 x 385 x 12 x 33
10904450324103	DN 300 PN 10	445 x 324 x 400 x 12 x 22
10904600324103	DN 300 PN 16	460 x 324 x 410 x 12 x 26
10904850324103	DN 300 PN 25	485 x 324 x 430 x 16 x 30
10905150324103	DN 300 PN 40	515 x 324 x 450 x 16 x 33
10905050356103	DN 350 PN 10	505 x 356 x 460 x 16 x 22
10905200356103	DN 350 PN 16	520 x 356 x 470 x 16 x 26
10905550356103	DN 350 PN 25	555 x 356 x 490 x 16 x 33
10905800356103	DN 350 PN 40	580 x 356 x 510 x 16 x 36
10905650407101	DN 400 PN 10	565 x 407 x 515 x 16 x 26
10905800407103	DN 400 PN 16	580 x 407 x 525 x 16 x 30
10906200407103	DN 400 PN 25	620 x 407 x 550 x 16 x 36
10906600407103	DN 400 PN 40	660 x 407 x 585 x 16 x 39
10906700508104	DN 500 PN 10	670 x 508 x 620 x 20 x 26
10907150508103	DN 500 PN 16	715 x 508 x 650 x 20 x 33
10907300508103	DN 500 PN 25	730 x 508 x 660 x 20 x 36
10907550508103	DN 500 PN 40	755 x 508 x 670 x 20 x 42
10907800610101	DN 600 PN 10	780 x 610 x 725 x 20 x 30
10908400610103	DN 600 PN 16	840 x 610 x 770 x 20 x 36
10908450610103	DN 600 PN 25	845 x 610 x 770 x 20 x 39
10908900610103	DN 600 PN 40	890 x 610 x 795 x 20 x 48
10908950712103	DN 700 PN 10	895 x 712 x 840 x 24 x 30
10909100712103	DN 700 PN 16	910 x 712 x 840 x 24 x 36
10909600712103	DN 700 PN 25	960 x 712 x 875 x 24 x 42

Art.nr.	Maat	PN	Afmeting (mm)
10900390029020	DN 15	PN 10-160	39 x 29
10900500036020	DN 20	PN 10-160	50 x 36
10900570043020	DN 25	PN 10-160	57 x 43
10900650051020	DN 32	PN 10-160	65 x 51
10900750061020	DN 40	PN 10-160	75 x 61
10900870073020	DN 50	PN 10-160	87 x 73
10901090095020	DN 65	PN 10-160	109 x 95
10901200106020	DN 80	PN 10-160	120 x 106
10901490129020	DN 100	PN 10-160	149 x 129
10901750155020	DN 125	PN 10-160	175 x 155
10902030183020	DN 150	PN 10-160	203 x 183
10902590239020	DN 200	PN 10-160	259 x 239
10903120292020	DN 250	PN 10-160	312 x 292
10903630343020	DN 300	PN 10-160	363 x 343
10904210395020	DN 350	PN 10-160	421 x 395
10904730447020	DN 400	PN 10-160	473 x 447
10905750549020	DN 500	PN 10-160	575 x 549
10906750649020	DN 600	PN 10-160	675 x 649
10907770751020	DN 700	PN 10-160	777 x 751
10908820856020	DN 800	PN 10-160	882 x 856
10909870961020	DN 900	PN 10-160	987 x 961

Art.nr.	Maat	PN	Afmeting (mm)
10900390022020	DN 15	PN 10-100	39 x 22
10900500027020	DN 20	PN 10-100	50 x 27
10900570034020	DN 25	PN 10-100	57 x 34
10900650043020	DN 32	PN 10-100	65 x 43
10900750049020	DN 40	PN 10-100	75 x 49
10900870061020	DN 50	PN 10-100	87 x 61
10901090077020	DN 65	PN 10-100	109 x 77
10901200089020	DN 80	PN 10-100	120 x 89
10901490115020	DN 100	PN 10-100	149 x 115
10901750141020	DN 125	PN 10-100	175 x 141
10902030169020	DN 150	PN 10-100	203 x 169
10902590220020	DN 200	PN 10-100	259 x 220
10903120274020	DN 250	PN 10-100	312 x 274
10903630324020	DN 300	PN 10-100	363 x 324
10904210356020	DN 350	PN 10-100	421 x 356
10904730407020	DN 400	PN 10-100	473 x 407
10905750508020	DN 500	PN 10-100	575 x 508
10906750610020	DN 600	PN 10-100	675 x 610
10907770712020	DN 700	PN 10-100	777 x 712
10908820813020	DN 800	PN 10-100	882 x 813
10909870915020	DN 900	PN 10-100	987 x 915

Art.nr.	Maat	Afmeting (mm)
10900480021015	1/2"	48 x 21
10900570027015	3/4"	57 x 27
10900670033015	1 "	67 x 33
10900760042015	1.1/4"	76 x 42
10900860048015	1.1/2"	86 x 48
10901050060015	2 "	105 x 60
10901240073015	2.1/2"	124 x 73
10901370089015	3 "	137 x 89
10901750114015	4 "	175 x 114
10901970141015	5 "	197 x 141
10902220168015	6 "	222 x 168
10902790219015	8 "	279 x 219
10903400273015	10 "	340 x 273
10904100324015	12 "	410 x 324
10904510356015	14 "	451 x 356
10905140406015	16 "	514 x 406
10905500457015	18 "	550 x 457
10906060508015	20 "	606 x 508
10907180610015	24 "	718 x 610

Art.nr.	Maat	Afmeting (mm)
10907720666015	26 "	772 x 666
10908300717015	28 "	830 x 717
10908800768015	30 "	880 x 768
10909360820015	32 "	936 x 820
10909880870015	34 "	988 x 870
10910450920015	36 "	1045 x 920
10911090950015	38 "	1109 x 950
10911601010015	40 "	1160 x 1010
10912171060015	42 "	1217 x 1060
10912741110015	44 "	1274 x 1110
10913251160015	46 "	1325 x 1160
10913821210015	48 "	1382 x 1210

Art.nr.	Maat	Afmeting (mm)
10900480021020	1/2"	48 x 21
10900570027020	3/4"	57 x 27
10900670033020	1 "	67 x 33
10900760042020	1.1/4"	76 x 42
10900860048020	1.1/2"	86 x 48
10901050060020	2 "	105 x 60
10901240073020	2.1/2"	124 x 73
10901370089020	3 "	137 x 89
10901620102020	3.1/2"	162 x 102
10901750114020	4 "	175 x 114
10901970141020	5 "	197 x 141
10902220168020	6 "	222 x 168
10902790219020	8 "	279 x 219
10903400273020	10 "	340 x 273
10904100324020	12 "	410 x 324
10904510356020	14 "	451 x 356
10905140406020	16 "	514 x 406
10905500457020	18 "	550 x 457
10906060508020	20 "	606 x 508
10907180610020	24 "	718 x 610

Art.nr.	Maat	Afmeting (mm)
10907720666020	26 "	772 x 666
10908300717020	28 "	830 x 717
10908800768020	30 "	880 x 768
10909360820020	32 "	936 x 820
10909880870020	34 "	988 x 870
10910450920020	36 "	1045 x 920
10911090950020	38 "	1109 x 950
10911601010020	40 "	1160 x 1010
10912171060020	42 "	1217 x 1060
10912741110020	44 "	1274 x 1110
10913251160020	46 "	1325 x 1160
10913821210020	48 "	1382 x 1210

Art.nr.	Maat	Afmeting (mm)
10900480021030	1/2"	48 x 21
10900570027030	3/4"	57 x 27
10900670033030	1 "	67 x 33
10900760042030	1.1/4"	76 x 42
10900860048030	1.1/2"	86 x 48
10901050060030	2 "	105 x 60
10901240073030	2.1/2"	124 x 73
10901370089030	3 "	137 x 89
10901620102030	3.1/2"	162 x 102
10901750114030	4 "	175 x 114
10901970141030	5 "	197 x 141
10902220168030	6 "	222 x 168
10902790219030	8 "	279 x 219
10903400273030	10 "	340 x 273
10904100324030	12 "	410 x 324
10904510356030	14 "	451 x 356
10905140406030	16 "	514 x 406
10905500457030	18 "	550 x 457
10906060508030	20 "	606 x 508
10907180610030	24 "	718 x 610

Art.nr.	Maat	Afmeting (mm)
10900540021015	1/2"	54 x 21
10900670027015	3/4"	67 x 27
10900730033015	1 "	73 x 33
10900830042015	1.1/4"	83 x 42
10900950048015	1.1/2"	95 x 48
10901110060015	2 "	111 x 60
10901300073015	2.1/2"	130 x 73
10901490089015	3 "	149 x 89
10901810114015	4 "	181 x 114
10902160141015	5 "	216 x 141
10902510168015	6 "	251 x 168
10903080219015	8 "	308 x 219
10903620273015	10 "	362 x 273
10904220324015	12 "	422 x 324
10904860356015	14 "	486 x 356
10905400406015	16 "	540 x 406
10905970457015	18 "	597 x 457
10906540508015	20 "	654 x 508
10907750610015	24 "	775 x 610

Art.nr.	Maat	Afmeting (mm)
10908330666015	26 "	833 x 666
10908960717015	28 "	896 x 717
10909500768015	30 "	950 x 768
10910040820015	32 "	1004 x 820
10910550870015	34 "	1055 x 870
10911150920015	36 "	1115 x 920
10910520950015	38 "	1052 x 950
10911121010015	40 "	1112 x 1010
10911631060015	42 "	1163 x 1060
10912171110015	44 "	1217 x 1110
10912711160015	46 "	1271 x 1160
10913221210015	48 "	1322 x 1210

Art.nr.	Maat	Afmeting (mm)
10900540021020	1/2"	54 x 21
10900670027020	3/4"	67 x 27
10900730033020	1 "	73 x 33
10900830042020	1.1/4"	83 x 42
10900950048020	1.1/2"	95 x 48
10901110060020	2 "	111 x 60
10901300073020	2.1/2"	130 x 73
10901490089020	3 "	149 x 89
10901650102020	3.1/2"	165 x 102
10901810114020	4 "	181 x 114
10902160141020	5 "	216 x 141
10902510168020	6 "	251 x 168
10903080219020	8 "	308 x 219
10903620273020	10 "	362 x 273
10904220324020	12 "	422 x 324
10904860356020	14 "	486 x 356
10905400406020	16 "	540 x 406
10905970457020	18 "	597 x 457
10906540508020	20 "	654 x 508
10907750610020	24 "	775 x 610

Art.nr.	Maat	Afmeting (mm)
10908330666020	26 "	833 x 666
10908960717020	28 "	896 x 717
10909500768020	30 "	950 x 768
10910040820020	32 "	1004 x 820
10910550870020	34 "	1055 x 870
10911150920020	36 "	1115 x 920
10910520950020	38 "	1052 x 950
10911121010020	40 "	1112 x 1010
10911631060020	42 "	1163 x 1060
10912171110020	44 "	1217 x 1110
10912711160020	46 "	1271 x 1160
10913221210020	48 "	1322 x 1210

Art.nr.	Maat	Afmeting (mm)
10900890021102	1/2"	89 x 21 x 60 x 4 x 14
10900980027101	3/4"	98 x 27 x 70 x 4 x 14
10901080033102	1"	108 x 33 x 79 x 4 x 14
10901170042101	1 1/4"	117 x 42 x 89 x 4 x 14
10901270048103	1 1/2"	127 x 48 x 98 x 4 x 14
10901520060102	2"	152 x 60 x 120 x 4 x 18
10901780073103	2 1/2"	178 x 73 x 140 x 4 x 18
10901910089103	3"	191 x 89 x 152 x 4 x 18
10902290114103	4"	229 x 114 x 191 x 8 x 18
10902800168102	6"	280 x 168 x 241 x 8 x 22
10903430219103	8"	343 x 219 x 298 x 8 x 22
10904060273103	10"	406 x 273 x 362 x 12 x 22
10904830324101	12"	483 x 324 x 432 x 12 x 24
10905330356102	14"	533 x 356 x 476 x 12 x 27
10905970406101	16"	597 x 406 x 540 x 16 x 30
10906650457102	18"	665 x 457 x 578 x 16 x 30
10906990508103	20"	699 x 508 x 635 x 20 x 33
10908130610101	24"	813 x 610 x 749 x 20 x 33

Art.nr.	Maat	Afmeting (mm)
10900890021103	1/2"	89 x 21 x 60 x 4 x 14
10900980027102	3/4"	98 x 27 x 70 x 4 x 14
10901080033103	1"	108 x 33 x 79 x 4 x 14
10901170042102	1 1/4"	117 x 42 x 89 x 4 x 14
10901270048102	1 1/2"	127 x 48 x 98 x 4 x 14
10901520060103	2"	152 x 60 x 120 x 4 x 18
10901780073102	2 1/2"	178 x 73 x 140 x 4 x 18
10901910089102	3"	191 x 89 x 152 x 4 x 18
10902290114101	4"	229 x 114 x 191 x 8 x 18
10902800168103	6"	280 x 168 x 241 x 8 x 22
10903430219101	8"	343 x 219 x 298 x 8 x 22
10904060273102	10"	406 x 273 x 362 x 12 x 22
10904830324102	12"	483 x 324 x 432 x 12 x 24
10905330356101	14"	533 x 356 x 476 x 12 x 27
10905970406102	16"	597 x 406 x 540 x 16 x 30
10906650457103	18"	665 x 457 x 578 x 16 x 30
10906990508102	20"	699 x 508 x 635 x 20 x 33
10908130610102	24"	813 x 610 x 749 x 20 x 33

Art.nr.	Maat	Afmeting (mm)
10900890021104	1/2"	89 x 21 x 60 x 4 x 14
10900980027103	3/4"	98 x 27 x 70 x 4 x 14
10901080033101	1"	108 x 33 x 79 x 4 x 14
10901170042103	1 1/4"	117 x 42 x 89 x 4 x 14
10901270048101	1 1/2"	127 x 48 x 98 x 4 x 14
10901520060101	2"	152 x 60 x 120 x 4 x 18
10901780073101	2 1/2"	178 x 73 x 140 x 4 x 18
10901910089101	3"	191 x 89 x 152 x 4 x 18
10902290114102	4"	229 x 114 x 191 x 8 x 18
10902800168101	6"	280 x 168 x 241 x 8 x 22
10903430219102	8"	343 x 219 x 298 x 8 x 22
10904060273101	10"	406 x 273 x 362 x 12 x 22
10904830324103	12"	483 x 324 x 432 x 12 x 24
10905330356103	14"	533 x 356 x 476 x 12 x 27
10905970406103	16"	597 x 406 x 540 x 16 x 30
10906650457101	18"	665 x 457 x 578 x 16 x 30
10906990508101	20"	699 x 508 x 635 x 20 x 33
10908130610103	24"	813 x 610 x 749 x 20 x 33

Art.nr.	Maat	Afmeting (mm)
10900950021101	1/2"	95 x 21 x 67 x 4 x 14
10901170027101	3/4"	117 x 27 x 83 x 4 x 18
10901240033101	1"	124 x 33 x 89 x 4 x 18
10901330042101	1 1/4"	133 x 42 x 98 x 4 x 18
10901560048101	1 1/2"	156 x 48 x 114 x 4 x 22
10901650060101	2"	165 x 60 x 127 x 8 x 18
10901910073101	2 1/2"	191 x 73 x 149 x 8 x 22
10902100089101	3"	210 x 89 x 168 x 8 x 22
10902540114101	4"	254 x 114 x 200 x 8 x 22
10903180168101	6"	318 x 168 x 270 x 12 x 22
10903810219101	8"	381 x 219 x 330 x 12 x 24
10904450273101	10"	445 x 273 x 387 x 16 x 27
10905210324101	12"	521 x 324 x 451 x 16 x 30
10905840356101	14"	584 x 356 x 514 x 20 x 30
10906480406101	16"	648 x 406 x 572 x 20 x 33
10907110457101	18"	711 x 457 x 629 x 24 x 33
10907740508101	20"	774 x 508 x 686 x 24 x 33
10909140610101	24"	914 x 610 x 813 x 24 x 40

Art.nr.	Maat	Afmeting (mm)
10900950021102	1/2"	95 x 21 x 67 x 4 x 14
10901170027102	3/4"	117 x 27 x 83 x 4 x 18
10901240033102	1"	124 x 33 x 89 x 4 x 18
10901330042102	1 1/4"	133 x 42 x 98 x 4 x 18
10901560048102	1 1/2"	156 x 48 x 114 x 4 x 22
10901650060102	2"	165 x 60 x 127 x 8 x 18
10901910073102	2 1/2"	191 x 73 x 149 x 8 x 22
10902100089102	3"	210 x 89 x 168 x 8 x 22
10902540114102	4"	254 x 114 x 200 x 8 x 22
10903180168102	6"	318 x 168 x 270 x 12 x 22
10903810219102	8"	381 x 219 x 330 x 12 x 24
10904450273102	10"	445 x 273 x 387 x 16 x 27
10905210324102	12"	521 x 324 x 451 x 16 x 30
10905840356102	14"	584 x 356 x 514 x 20 x 30
10906480406102	16"	648 x 406 x 572 x 20 x 33
10907110457102	18"	711 x 457 x 629 x 24 x 33
10907740508102	20"	774 x 508 x 686 x 24 x 33
10909140610102	24"	914 x 610 x 813 x 24 x 40

Specificaties

Type	KLINGERSIL^®C-4430 plus
Materiaal	Glasvezels + NBR
Kleur	éénzijdig wit, eenzijdig steenrood bedrukt

Samendrukbaarheid volgens ASTM F36J	9%
Terugvering volgens ASTM F36J	50%
Drukvastheid volgens DIN 52913(2mm, 300ºC )	35 N/mm²
Gasdoorlaatbaarheid volgens DIN 28090-2	<0,1 mg/s.m.
Doorslagspanning	21,3 Kv/mm.
Warmtegeleiding	0,42 W/mK.

Chemische bestendigheid	zie bestendigheidlijst

Goedgekeurd door	DIN DVGW 3535-6 en W270
	Fire safe API607 / EN10497
	WRC+WRAS+KTW instituut
	TA -Luft (clean air) acc VDI2440
	RoHS certifikaat 2011/65/EG
	certifikaat 2003/11/EG
	Biobrandstoffen getest 2003/30/EG
	Reach verklaring
	SVHC lijstverklaring

Afdichtingsfaktoren 2 mm dik lekkageklasse 0.1 mg/sxm
ASTM Y	25 MPa
ASTM m	5
D0701 pgm;min 25ºC	25 MPa
D0701 pgm;max 25ºC	240 MPa
D0701 pgm;max 100ºC	120 MPa
D0701 pgm;max 200ºC	73 MPa
D0701 pgm;max 300ºC	56 MPa
D0701 Cg	1,3

Druk/Temperatuur-Grafiek
Gebied 1	Normaliter bij afdoende vlaktedruk probleemloos toe te passen.
Gebied 2	Vraag advies voor kritische toepassingen.
Gebied 3	Vraag advies.

Ook leverbaar
Met strekmetaalinlage	KlingerSIL C 4439
Met staalgaasinlage	KlingerSIL C 4438

DIN afmetingen volgens EN 1514-1
ANSI afmetingen volgens B16.21

Contact

Voor meer informatie over onze rubber vezel versterkte pakkingen kunt u contact opnemen met:

088-5282082

afdichtingen@klinger.nl

Vezel afdichting | KLINGERSIL®C-4430 plus

Glasvezel met NBR

Downloads

Selecteer een uitvoering:

Specificaties

Volg ons op:

Snel naar:

Vezel afdichting | KLINGERSIL®C-4430 plus

Glasvezel met NBR

Downloads

Selecteer een uitvoering:

Specificaties

Login
