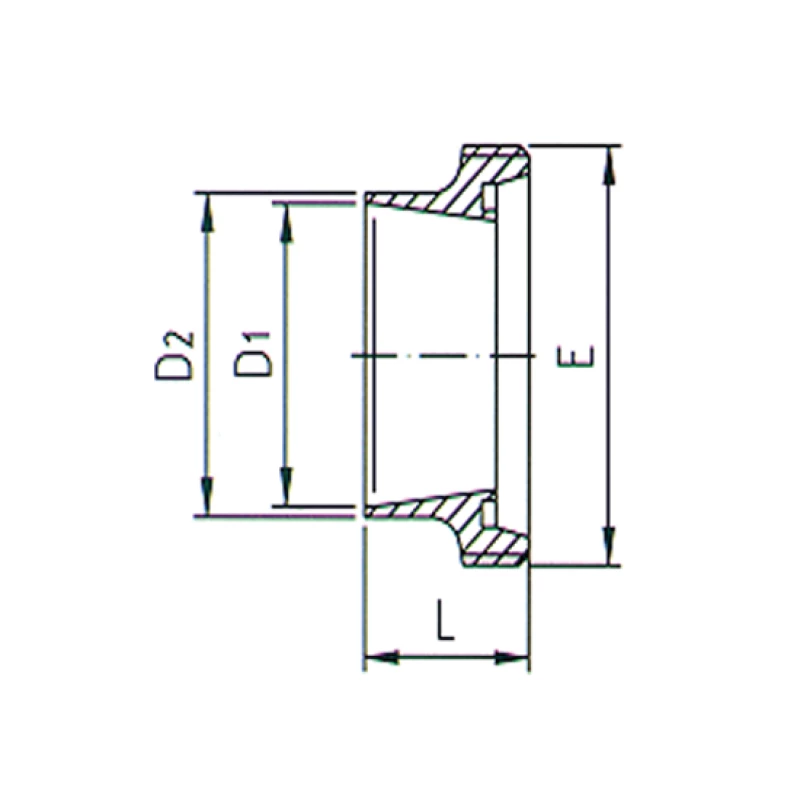

Art.nr. | DN | E | D1 | D2 | L | Bestellen |
---|---|---|---|---|---|---|
64910320015 | 15 | Rd 34x1/8" | 18,1 | 21,3 | 21 | |
64910320020 | 20 | Rd 44x1/6" | 23,7 | 26,9 | 21 | |
64910320025 | 25 | Rd 52x1/6" | 29,7 | 33,7 | 29 | |
64910320032 | 32 | Rd 58x1/6" | 38,4 | 42,4 | 32 | |
64910320040 | 40 | Rd 65x1/6" | 44,3 | 48,3 | 33 | |
64910320050 | 50 | Rd 78x1/6" | 56,3 | 60,3 | 35 | |
64910320065 | 65 | Rd 95x1/6" | 71,5 | 76,1 | 40 | |
64910320075 | 75/3" | Rd 104x1/6" | 72,2 | 74,0 | 40 | |
64910320080 | 80 | Rd 110x1/4" | 84,3 | 88,9 | 45 | |
64910320100 | 100 | Rd 130x1/4" | 109,1 | 114,3 | 54 |
Art.nr. | DN | E | D1 | D2 | L | Bestellen |
---|---|---|---|---|---|---|
64900320015 | 15 | Rd 34x1/8" | 16,0 | 19,0 | 21 | |
64900320020 | 20 | Rd 44x1/6" | 20,0 | 23,0 | 21 | |
64900320025 | 25 | Rd 52x1/6" | 26,0 | 29,0 | 29 | |
64900320032 | 32 | Rd 58x1/6" | 32,0 | 35,0 | 32 | |
64900320040 | 40 | Rd 65x1/6" | 38,0 | 41,0 | 33 | |
64900320050 | 50 | Rd 78x1/6" | 50,0 | 53,0 | 35 | |
64900320065 | 65 | Rd 95x1/6" | 66,0 | 70,0 | 40 | |
64900320080 | 80 | Rd 110x1/4" | 81,0 | 85,0 | 45 | |
64900320100 | 100 | Rd 130x1/4" | 100,0 | 104,0 | 54 |

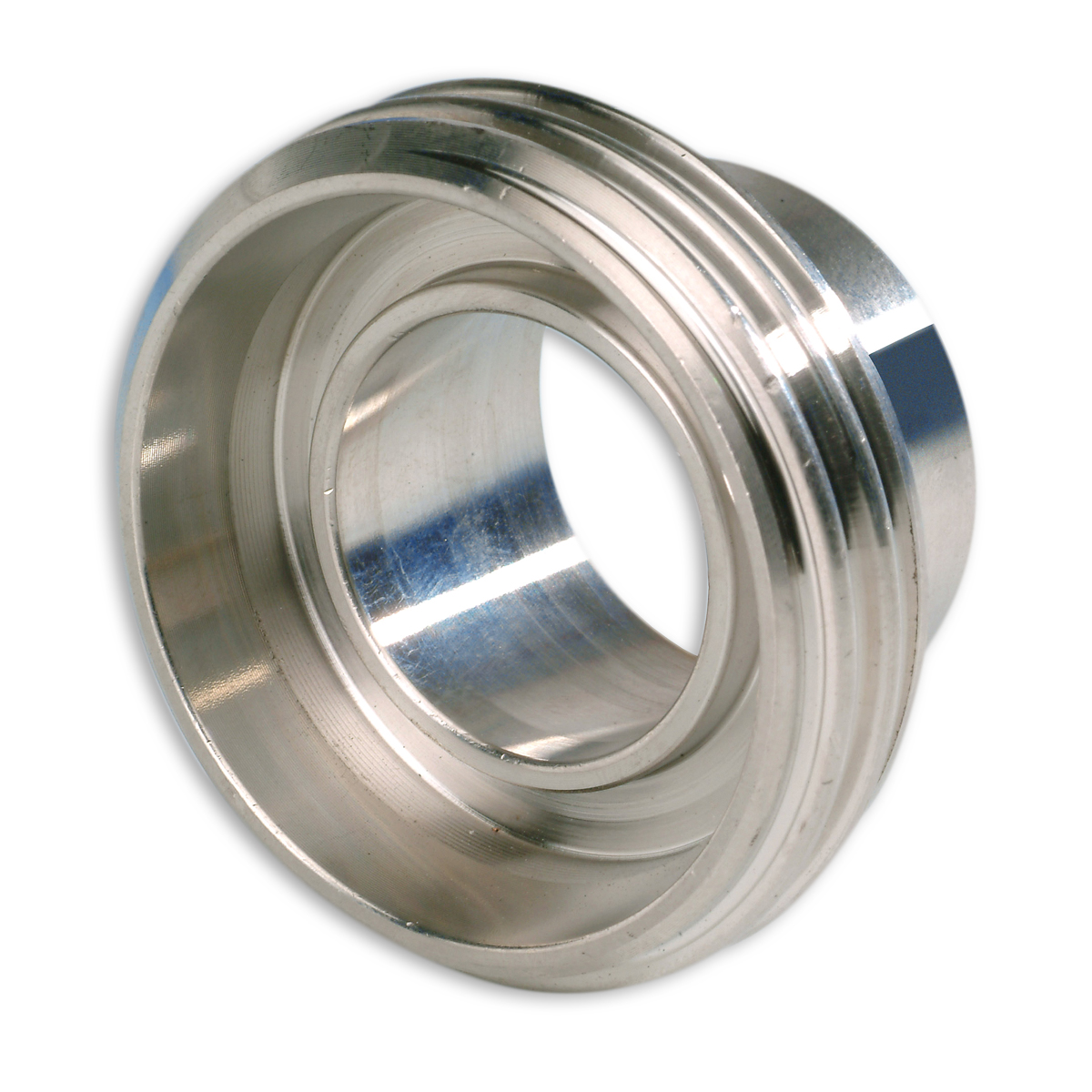

Type | Lasdraadstuk |
Materiaal | RVS 316 |
|
|
Druk | max. 16 bar |
Temperatuur | max. 100ºC |
Uitvoering | volgens ISO en DIN 11851 |
