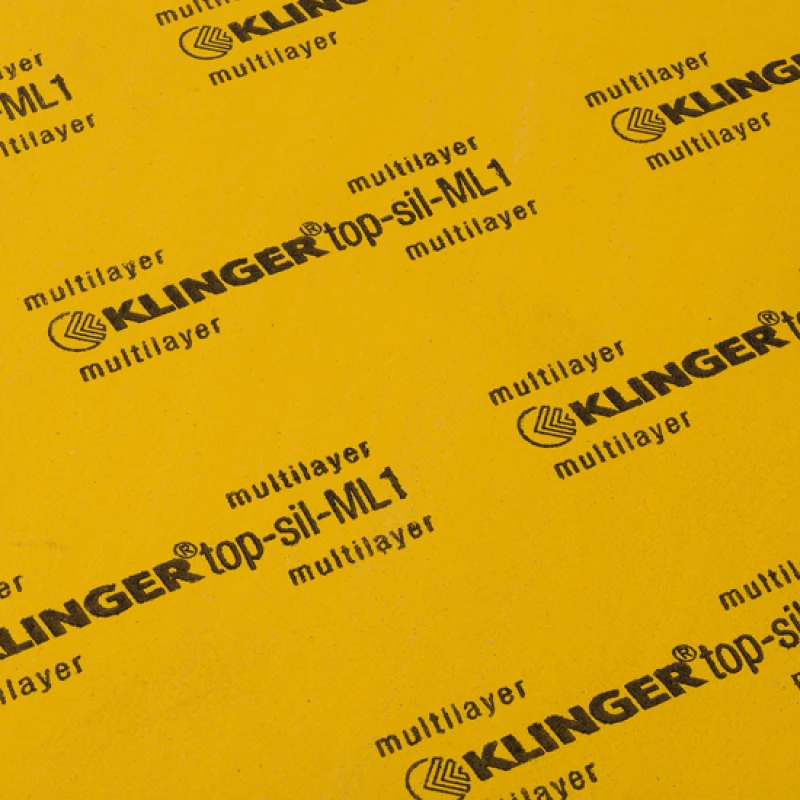

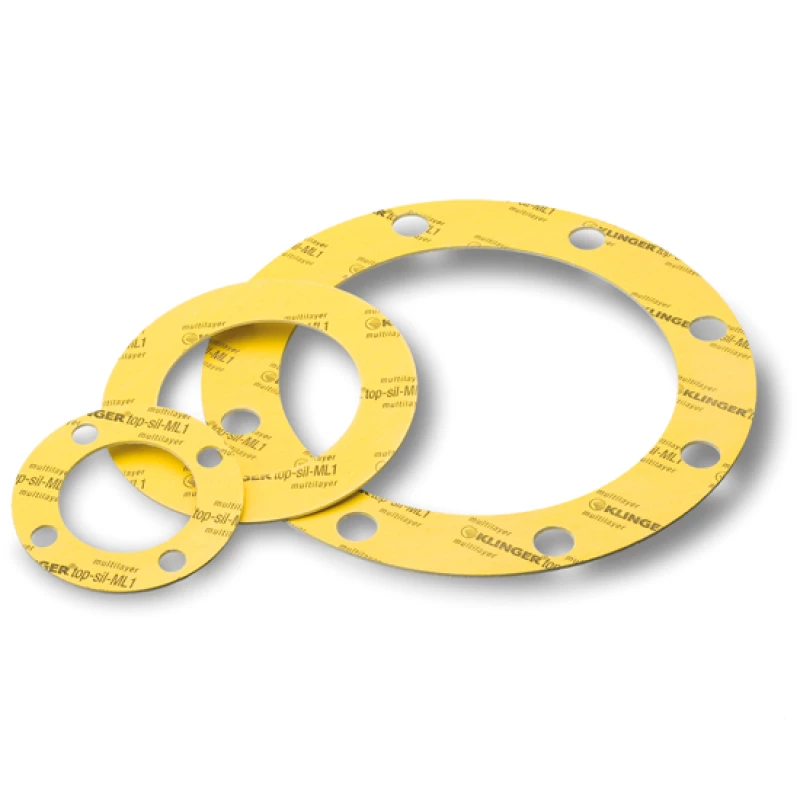

Vezel afdichting | KLINGER®top-sil-ML1
Glas en Aramidevezels met HNBR/NBR
Geschikt voor: oliën, koolwaterstoffen, water, zoutoplossingen, brandstoffen, koelmiddelen, stoom, alcoholen en vele gassen
- Multilayer met NBR/HNBR EEN NIEUW UNIEK ONGEKEND CONCEPT MET VOOR ASBESTVRIJE VEZELPAKKINGEN UNIEKE EIGENSCHAPPEN. Deze pakking heeft een hoog aanpassingsvermogen aan het flensoppervlak, gecombineerd met een zeer hoge drukvastheid.
- Een hoge levensduur met lage gasdoorlaatbaarheden, ondanks hoge temperaturen.
- Hoge rest flexibiliteit door het unieke meerlaags concept.
- Hoge kruipvastheid en hoge vlaktedruk bestendigheid.
- Vanuit eigen productie leverbaar in platen, ringen, ramen enz.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 12520001500410 | 1,00 | 2000 x 1500 | |
| 12520001500415 | 1,50 | 2000 x 1500 | |
| 12520001500420 | 2,00 | 2000 x 1500 | |
| 12520001500430 | 3,00 | 2000 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 12500460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 12500510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 12500610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 12500710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 12500820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 12500920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 12501070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 12501270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 12501420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 12501620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 12501680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 12501920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 12501940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 12502180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 12502240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 12502730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 12502840220015 | DN 200 | PN 25 | 284 x 220 | |
| 12502900220015 | DN 200 | PN 40 | 290 x 220 | |
| 12503280273015 | DN 250 | PN 10 | 328 x 273 | |
| 12503290273015 | DN 250 | PN 16 | 329 x 273 | |
| 12503400273014 | DN 250 | PN 25 | 340 x 273 | |
| 12503520273015 | DN 250 | PN 40 | 352 x 273 | |
| 12503780324015 | DN 300 | PN 10 | 378 x 324 | |
| 12503840324015 | DN 300 | PN 16 | 384 x 324 | |
| 12504000324015 | DN 300 | PN 25 | 400 x 324 | |
| 12504170324015 | DN 300 | PN 40 | 417 x 324 | |
| 12504380356015 | DN 350 | PN 10 | 438 x 356 | |
| 12504440356015 | DN 350 | PN 16 | 444 x 356 | |
| 12504570356015 | DN 350 | PN 25 | 457 x 356 | |
| 12504740356015 | DN 350 | PN 40 | 474 x 356 | |
| 12504890407015 | DN 400 | PN 10 | 489 x 407 | |
| 12504950407015 | DN 400 | PN 16 | 495 x 407 | |
| 12505140407015 | DN 400 | PN 25 | 514 x 407 | |
| 12505460407015 | DN 400 | PN 40 | 546 x 407 | |
| 12505390458015 | DN 450 | PN 10 | 539 x 458 | |
| 12505550458015 | DN 450 | PN 16 | 555 x 458 | |
| 12505640458015 | DN 450 | PN 25 | 564 x 458 | |
| 12505710458015 | DN 450 | PN 40 | 571 x 458 | |
| 12505940508015 | DN 500 | PN 10 | 594 x 508 | |
| 12506170508015 | DN 500 | PN 16 | 617 x 508 | |
| 12506240508015 | DN 500 | PN 25 | 624 x 508 | |
| 12506280508015 | DN 500 | PN 40 | 628 x 508 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 12500460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 12500510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 12500610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 12500710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 12500820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 12500920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 12501070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 12501270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 12501420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 12501620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 12501680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 12501920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 12501940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 12502180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 12502240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 12502730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 12502840220020 | DN 200 | PN 25 | 284 x 220 | |
| 12502900220020 | DN 200 | PN 40 | 290 x 220 | |
| 12503280273020 | DN 250 | PN 10 | 328 x 273 | |
| 12503290273020 | DN 250 | PN 16 | 329 x 273 | |
| 12503400273019 | DN 250 | PN 25 | 340 x 273 | |
| 12503520273020 | DN 250 | PN 40 | 352 x 273 | |
| 12503780324020 | DN 300 | PN 10 | 378 x 324 | |
| 12503840324020 | DN 300 | PN 16 | 384 x 324 | |
| 12504000324020 | DN 300 | PN 25 | 400 x 324 | |
| 12504170324020 | DN 300 | PN 40 | 417 x 324 | |
| 12504380356020 | DN 350 | PN 10 | 438 x 356 | |
| 12504440356020 | DN 350 | PN 16 | 444 x 356 | |
| 12504570356020 | DN 350 | PN 25 | 457 x 356 | |
| 12504740356020 | DN 350 | PN 40 | 474 x 356 | |
| 12504890407020 | DN 400 | PN 10 | 489 x 407 | |
| 12504950407020 | DN 400 | PN 16 | 495 x 407 | |
| 12505140407020 | DN 400 | PN 25 | 514 x 407 | |
| 12505460407020 | DN 400 | PN 40 | 546 x 407 | |
| 12505390458020 | DN 450 | PN 10 | 539 x 458 | |
| 12505550458020 | DN 450 | PN 16 | 555 x 458 | |
| 12505640458020 | DN 450 | PN 25 | 564 x 458 | |
| 12505710458020 | DN 450 | PN 40 | 571 x 458 | |
| 12505940508020 | DN 500 | PN 10 | 594 x 508 | |
| 12506170508020 | DN 500 | PN 16 | 617 x 508 | |
| 12506240508020 | DN 500 | PN 25 | 624 x 508 | |
| 12506280508020 | DN 500 | PN 40 | 628 x 508 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 12500510022030 | DN 15 | PN 10-40 | 51 x 22 | |
| 12500610028030 | DN 20 | PN 10-40 | 61 x 28 | |
| 12500710034030 | DN 25 | PN 10-40 | 71 x 34 | |
| 12500820043030 | DN 32 | PN 10-40 | 82 x 43 | |
| 12500920049030 | DN 40 | PN 10-40 | 92 x 49 | |
| 12501070061030 | DN 50 | PN 10-40 | 107 x 61 | |
| 12501270077030 | DN 65 | PN 10-40 | 127 x 77 | |
| 12501420089030 | DN 80 | PN 10-40 | 142 x 89 | |
| 12501620115030 | DN 100 | PN 10-16 | 162 x 115 | |
| 12501680115030 | DN 100 | PN 25-40 | 168 x 115 | |
| 12501920141030 | DN 125 | PN 10-16 | 192 x 141 | |
| 12501940141030 | DN 125 | PN 25-40 | 194 x 141 | |
| 12502180169030 | DN 150 | PN 10-16 | 218 x 169 | |
| 12502240169030 | DN 150 | PN 25-40 | 224 x 169 | |
| 12502730220030 | DN 200 | PN 10-16 | 273 x 220 | |
| 12502840220030 | DN 200 | PN 25 | 284 x 220 | |
| 12502900220030 | DN 200 | PN 40 | 290 x 220 | |
| 12503280273030 | DN 250 | PN 10 | 328 x 273 | |
| 12503290273030 | DN 250 | PN 16 | 329 x 273 | |
| 12503400273030 | DN 250 | PN 25 | 340 x 273 | |
| 12503520273030 | DN 250 | PN 40 | 352 x 273 | |
| 12503780324030 | DN 300 | PN 10 | 378 x 324 | |
| 12503840324030 | DN 300 | PN 16 | 384 x 324 | |
| 12504000324030 | DN 300 | PN 25 | 400 x 324 | |
| 12504170324030 | DN 300 | PN 40 | 417 x 324 | |
| 12504380356030 | DN 350 | PN 10 | 438 x 356 | |
| 12504440356030 | DN 350 | PN 16 | 444 x 356 | |
| 12504570356030 | DN 350 | PN 25 | 457 x 356 | |
| 12504740356030 | DN 350 | PN 40 | 474 x 356 | |
| 12504890407030 | DN 400 | PN 10 | 489 x 407 | |
| 12504950407030 | DN 400 | PN 16 | 495 x 407 | |
| 12505140407030 | DN 400 | PN 25 | 514 x 407 | |
| 12505460407030 | DN 400 | PN 40 | 546 x 407 | |
| 12505390458030 | DN 450 | PN 10 | 539 x 458 | |
| 12505550458030 | DN 450 | PN 16 | 555 x 458 | |
| 12505640458030 | DN 450 | PN 25 | 564 x 458 | |
| 12505710458030 | DN 450 | PN 40 | 571 x 458 | |
| 12505940508030 | DN 500 | PN 10 | 594 x 508 | |
| 12506170508030 | DN 500 | PN 16 | 617 x 508 | |
| 12506240508030 | DN 500 | PN 25 | 624 x 508 | |
| 12506280508030 | DN 500 | PN 40 | 628 x 508 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 12500480021015 | 1/2" | 48 x 21 | |
| 12500570027015 | 3/4" | 57 x 27 | |
| 12500670033015 | 1 " | 67 x 33 | |
| 12500760042015 | 1.1/4" | 76 x 42 | |
| 12500860048015 | 1.1/2" | 86 x 48 | |
| 12501050060015 | 2 " | 105 x 60 | |
| 12501240073015 | 2.1/2" | 124 x 73 | |
| 12501370089015 | 3 " | 137 x 89 | |
| 12501750114015 | 4 " | 175 x 114 | |
| 12501970141015 | 5 " | 197 x 141 | |
| 12502220168015 | 6 " | 222 x 168 | |
| 12502790219015 | 8 " | 279 x 219 | |
| 12503400273015 | 10 " | 340 x 273 | |
| 12504100324015 | 12 " | 410 x 324 | |
| 12504510356015 | 14 " | 451 x 356 | |
| 12505140406015 | 16 " | 514 x 406 | |
| 12505500457015 | 18 " | 550 x 457 | |
| 12506060508015 | 20 " | 606 x 508 | |
| 12507180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 12500480021020 | 1/2" | 48 x 21 | |
| 12500570027020 | 3/4" | 57 x 27 | |
| 12500670033020 | 1 " | 67 x 33 | |
| 12500760042020 | 1.1/4" | 76 x 42 | |
| 12500860048020 | 1.1/2" | 86 x 48 | |
| 12501050060020 | 2 " | 105 x 60 | |
| 12501240073020 | 2.1/2" | 124 x 73 | |
| 12501370089020 | 3 " | 137 x 89 | |
| 12501620102020 | 3.1/2" | 162 x 102 | |
| 12501750114020 | 4 " | 175 x 114 | |
| 12501970141020 | 5 " | 197 x 141 | |
| 12502220168020 | 6 " | 222 x 168 | |
| 12502790219020 | 8 " | 279 x 219 | |
| 12503400273020 | 10 " | 340 x 273 | |
| 12504100324020 | 12 " | 410 x 324 | |
| 12504510356020 | 14 " | 451 x 356 | |
| 12505140406020 | 16 " | 514 x 406 | |
| 12505500457020 | 18 " | 550 x 457 | |
| 12506060508020 | 20 " | 606 x 508 | |
| 12507180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 12500540021015 | 1/2" | 54 x 21 | |
| 12500670027015 | 3/4" | 67 x 27 | |
| 12500730033015 | 1 " | 73 x 33 | |
| 12500830042015 | 1.1/4" | 83 x 42 | |
| 12500950048015 | 1.1/2" | 95 x 48 | |
| 12501110060015 | 2 " | 111 x 60 | |
| 12501300073015 | 2.1/2" | 130 x 73 | |
| 12501490089015 | 3 " | 149 x 89 | |
| 12501810114015 | 4 " | 181 x 114 | |
| 12502160141015 | 5 " | 216 x 141 | |
| 12502510168015 | 6 " | 251 x 168 | |
| 12503080219015 | 8 " | 308 x 219 | |
| 12503620273015 | 10 " | 362 x 273 | |
| 12504220325015 | 12 " | 422 x 325 | |
| 12504860356015 | 14 " | 486 x 356 | |
| 12505400406015 | 16 " | 540 x 406 | |
| 12505970457015 | 18 " | 597 x 457 | |
| 12506540508015 | 20 " | 654 x 508 | |
| 12507750610015 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGER®top-sil-ML1 |
| Materiaal | Multilayer + NBR/HNBR |
| Kleur | aan beide zijden donkergeel, eenzijdig bedrukt |
|
|
|
| Samendrukbaarheid volgens ASTM F36J | 9% |
| Terugvering volgens ASTM F36J | >50% |
| Drukvastheid volgens DIN 52913(2mm, 300ºC) | 28 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,01 mg/s.m. |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | DIN DVGW W270 en 3535-6 |
| BAM II-562/2004 | |
| TA luft (clean air) acc VDI2440 | |
| WRC+KTW+WRAS Drinkwater | |
| RoHS certifikaat 2011/65/EG | |
| EG, EWG Cert. | |
| Biobrandstoffen getest 2003/30/EG | |
| Germanischer Lloyd cert. | |
| Reach verklaring | |
| SVHC lijstverklaring | |
|
|
|
|
Afdichtingsfaktoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 15 MPa |
| ASTM m | 3.5 |
| D0701 pgm;min 25ºC | 25 MPa |
| D0701 pgm;max 25ºC | 240 MPa |
| D0701 pgm;max 100ºC | 100 MPa |
| D0701 pgm;max 200ºC | 55 MPa |
| D0701 pgm;max 300ºC | 40 MPa |
| D0701 Cg | 1,3 |
|
|
|
|

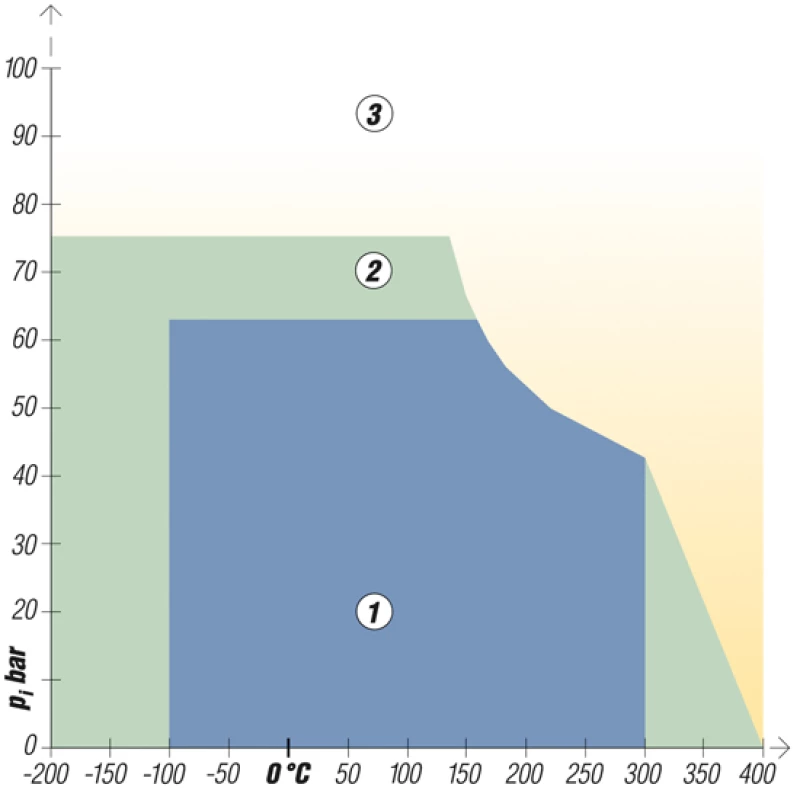

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
