Art.nr. | Ø Inwendig (mm) | Wanddikte (mm) | Werkdruk (bar) | Max Vacuüm (bar) | Buigradius (mm) | Rollengte (m) | Gewicht (kg/m) | Bestellen |
---|---|---|---|---|---|---|---|---|
30245020032 | 32 | 1,4 | 2,80 | 0,90 | 48 | 10 of 15 | 0,42 | |
30245020035 | 35 | 1,4 | 2,50 | 0,80 | 53 | 10 of 15 | 0,45 | |
30245020040 | 40 | 1,4 | 2,30 | 0,70 | 60 | 10 of 15 | 0,54 | |
30245020050 | 50 | 1,4 | 1,90 | 0,60 | 75 | 10 of 15 | 0,67 | |
30245020060 | 60 | 1,4 | 1,80 | 0,55 | 90 | 10 of 15 | 0,80 | |
30245020075 | 75 | 1,4 | 1,40 | 0,50 | 113 | 10 of 15 | 0,99 | |
30245020080 | 80 | 1,4 | 1,20 | 0,45 | 120 | 10 of 15 | 1,05 | |
30245020090 | 90 | 1,4 | 1,10 | 0,40 | 135 | 10 of 15 | 1,18 | |
30245020100 | 100 | 1,4 | 1,10 | 0,40 | 150 | 10 of 15 | 1,52 | |
30245020110 | 110 | 1,4 | 1,00 | 0,35 | 165 | 10 of 15 | 1,67 | |
30245020120 | 120 | 1,4 | 0,90 | 0,30 | 180 | 10 of 15 | 1,82 | |
30245020125 | 125 | 1,4 | 0,80 | 0,25 | 188 | 10 of 15 | 1,89 | |
30245020140 | 140 | 1,4 | 0,70 | 0,20 | 210 | 10 of 15 | 2,11 | |
30245020150 | 150 | 1,4 | 0,70 | 0,20 | 225 | 10 of 15 | 2,43 | |
30245020160 | 160 | 1,4 | 0,60 | 0,20 | 240 | 10 of 15 | 2,59 | |
30245020175 | 175 | 1,4 | 0,55 | 0,15 | 263 | 10 of 15 | 2,82 | |
30245020180 | 180 | 1,4 | 0,50 | 0,15 | 270 | 10 of 15 | 2,90 | |
30245020200 | 200 | 1,4 | 0,50 | 0,15 | 300 | 10 of 15 | 3,37 | |
30245020225 | 225 | 1,4 | 0,40 | 0,10 | 338 | 10 of 15 | 3,78 | |
30245020250 | 250 | 1,4 | 0,30 | 0,10 | 375 | 10 of 15 | 4,19 | |
30245020300 | 300 | 1,4 | 0,30 | 0,10 | 450 | 10 of 15 | 5,01 | |
30245020350 | 350 | 1,4 | 0,25 | 0,09 | 525 | 10 of 15 | 5,33 |

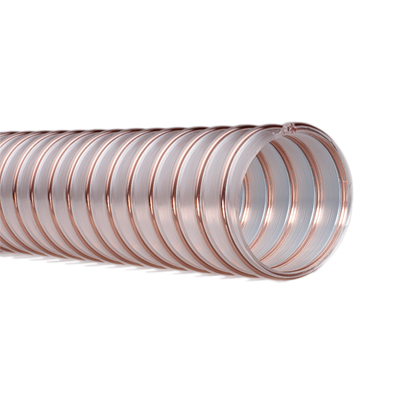

Type | P-EXTRA SUPER | P7 M PU AE |
Materiaal | Polyurethaan, transparant |
Binnenwand | Polyurethaan, glad |
Buitenwand | Polyurethaan |
Spiraal/versterking | Veerstalen spiraal |
Temperatuurbereik | -40°C / +100°C |
Werkdruk | Zie tabel |
