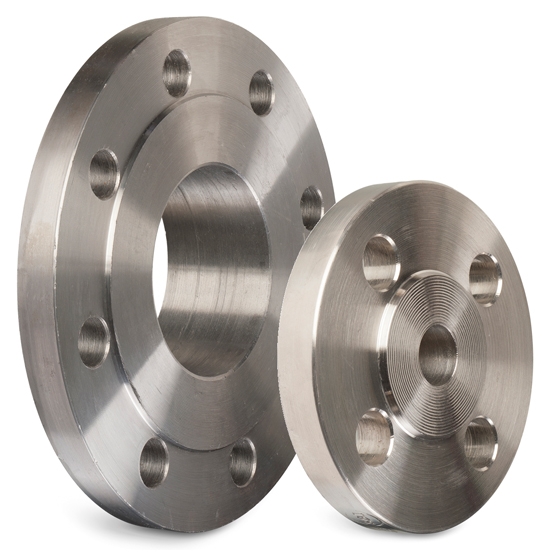

Selecteer een uitvoering

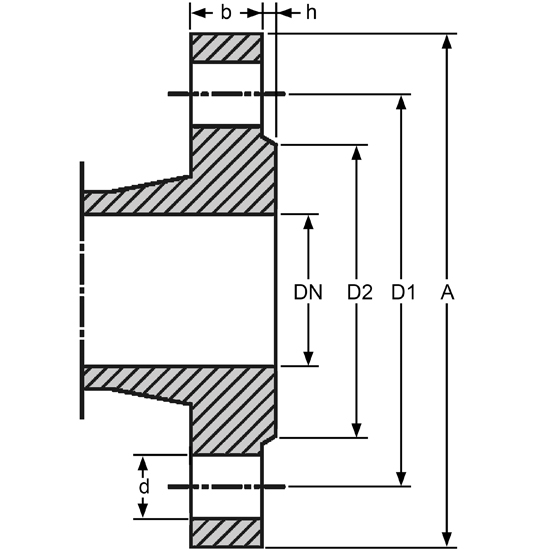

Afmetingen (mm) Aansluitmaten (mm)
Art.nr. DN d1 PN Ø D Ø K Boutmaat Pakkingmaat Bestellen
9041111400015 15 21,3 16 / 40 95 65 x 4 x 14 M12 x 55 50 x  22
9041111400020 20 26,9 16 / 40 105 75 x 4 x 14 M12 x 55 60 x  28
9041111400025 25 33,7 16 / 40 115 85 x 4 x 14 M12 x 55 70 x  35
9041111400032 32 42,4 16 / 40 140 100 x 4 x 18 M16 x 55 82 x  43
9041111400040 40 48,3 16 / 40 150 110 x 4 x 18 M16 x 55 92 x  49
9041111400050 50 60,3 16 / 40 165 125 x 4 x 18 M16 x 55 107 x  61
9041111200065 65 76,1 16 185 145 x 4 x 18 M16 x 55 127 x  77
9041111200080 80 88,9 16 200 160 x 8 x 18 M16 x 55 142 x  90
9041111200100 100 114,3 16 220 180 x 8 x 18 M16 x 55 162 x 115
9041111200125 125 139,7 16 250 210 x 8 x 18 M16 x 55 192 x 141
9041111200150 150 168,3 16 285 240 x 8 x 22 M20 x 70 218 x 169
9041111200200 200 219,1 16 340 295 x 12 x 22 M20 x 70 273 x 220
9041111400065 65 76,1 40 185 145 x 8 x 18 M16 x 55 127 x  77
9041111400080 80 88,9 40 200 160 x 8 x 18 M16 x 55 142 x  90
9041111400100 100 114,3 40 235 190 x 8 x 22 M20 x 70 168 x 115
9041111400125 125 139,7 40 270 220 x 8 x 26 M24 x 80 195 x 141
9041111400150 150 168,3 40 300 250 x 8 x 26 M24 x 80 225 x 169
9041111400200 200 219,1 40 375 320 x 12 x 30 M27 x 80 285 x 220
Art.nr. DN PN Bestellen
9041111401015 15 16 / 40
9041111401020 20 16 / 40
9041111401025 25 16 / 40
9041111401032 32 16 / 40
9041111401040 40 16 / 40
9041111401050 50 16 / 40
9041111201065 65 16
9041111401065 65 40
9041111201080 80 16
9041111401080 80 40
9041111201100 100 16
9041111401100 100 40
9041111201125 125 16
9041111401125 125 40
9041111201150 150 16
9041111401150 150 40
9041111201200 200 16
9041111401200 200 40
Voor pakkingringen zie hoofdstuk afdichtingen.

Ook leverbaar

  • in materiaal RVS AISI 304 of AISI 316
  • ANSI uitvoering
  • grotere afmetingen
