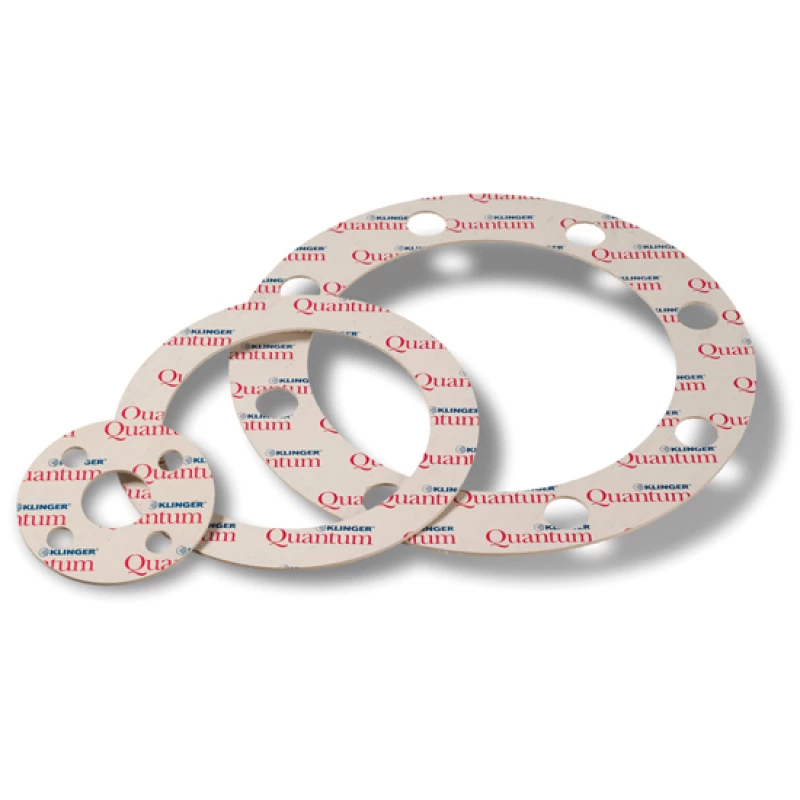

Vezel afdichting | KLINGER®Quantum
Vezel versterkte HNBR pakking
Geschikt voor: oliën, koolwaterstoffen, water, zoutoplossingen, brandstoffen, koelmiddelen, stoom en vele gassen en chemicaliën. Ook geschikt voor voedingsmiddelen en farmaceutische industrie. Kijk voor de specificaties & bestellen met certificering onder food pakkingen".
- KLINGER®Quantum is de eerste vezel versterkte pakking met uitsluitend HNBR rubber. Door een uniek productieproces speciaal voor dit doel ontwikkeld, kan dit materiaal tot hogere temperaturen toegepast worden dan ieder ander vezelversterkte pakking op de markt.
- Een hoge levensduur met lage gasdoorlaatbaarheden, ondanks hoge temperaturen.
- Hoogste rest flexibiliteit na temperatuurblootstelling, zie afbeelding buigproef na 240 uur op 200 ºC.
- Hoge kruipvastheid en hoge vlaktedruk bestendigheid.
- Zeer universele mediumbestendigheid.
- Vanuit eigen productie leverbaar in platen, ringen, ramen enz.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 10220001500410 | 1,00 | 2000 x 1500 | |
| 10220001500415 | 1,50 | 2000 x 1500 | |
| 10220001500420 | 2,00 | 2000 x 1500 | |
| 10220001500430 | 3,00 | 2000 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 10200460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 10200510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 10200610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 10200710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 10200820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 10200920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 10201070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 10201270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 10201420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 10201620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 10201680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 10201920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 10201940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 10202180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 10202240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 10202730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 10202840220015 | DN 200 | PN 25 | 284 x 220 | |
| 10202900220015 | DN 200 | PN 40 | 290 x 220 | |
| 10203280273015 | DN 250 | PN 10 | 328 x 273 | |
| 10203290273015 | DN 250 | PN 16 | 329 x 273 | |
| 10203400273015 | DN 250 | PN 25 | 340 x 273 | |
| 10203520273015 | DN 250 | PN 40 | 352 x 273 | |
| 10203780324015 | DN 300 | PN 10 | 378 x 324 | |
| 10203840324015 | DN 300 | PN 16 | 384 x 324 | |
| 10204000324015 | DN 300 | PN 25 | 400 x 324 | |
| 10204170324015 | DN 300 | PN 40 | 417 x 324 | |
| 10204380356015 | DN 350 | PN 10 | 438 x 356 | |
| 10204440356015 | DN 350 | PN 16 | 444 x 356 | |
| 10204570356015 | DN 350 | PN 25 | 457 x 356 | |
| 10204740356015 | DN 350 | PN 40 | 474 x 356 | |
| 10204890407015 | DN 400 | PN 10 | 489 x 407 | |
| 10204950407015 | DN 400 | PN 16 | 495 x 407 | |
| 10205140407015 | DN 400 | PN 25 | 514 x 407 | |
| 10205460407015 | DN 400 | PN 40 | 546 x 407 | |
| 10205390458015 | DN 450 | PN 10 | 539 x 458 | |
| 10205550458015 | DN 450 | PN 16 | 555 x 458 | |
| 10205640458015 | DN 450 | PN 25 | 564 x 458 | |
| 10205710458015 | DN 450 | PN 40 | 571 x 458 | |
| 10205940508015 | DN 500 | PN 10 | 594 x 508 | |
| 10206170508015 | DN 500 | PN 16 | 617 x 508 | |
| 10206240508015 | DN 500 | PN 25 | 624 x 508 | |
| 10206280508015 | DN 500 | PN 40 | 628 x 508 | |
| 10206950610015 | DN 600 | PN 10 | 695 x 610 | |
| 10207340610015 | DN 600 | PN 16 | 734 x 610 | |
| 10207310610015 | DN 600 | PN 25 | 731 x 610 | |
| 10207470610015 | DN 600 | PN 40 | 747 x 610 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 10200460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 10200510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 10200610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 10200710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 10200820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 10200920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 10201070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 10201270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 10201420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 10201620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 10201680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 10201920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 10201940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 10202180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 10202240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 10202730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 10202840220020 | DN 200 | PN 25 | 284 x 220 | |
| 10202900220020 | DN 200 | PN 40 | 290 x 220 | |
| 10203280273020 | DN 250 | PN 10 | 328 x 273 | |
| 10203290273020 | DN 250 | PN 16 | 329 x 273 | |
| 10203400273020 | DN 250 | PN 25 | 340 x 273 | |
| 10203520273020 | DN 250 | PN 40 | 352 x 273 | |
| 10203780324020 | DN 300 | PN 10 | 378 x 324 | |
| 10203840324020 | DN 300 | PN 16 | 384 x 324 | |
| 10204000324020 | DN 300 | PN 25 | 400 x 324 | |
| 10204170324020 | DN 300 | PN 40 | 417 x 324 | |
| 10204380356020 | DN 350 | PN 10 | 438 x 356 | |
| 10204440356020 | DN 350 | PN 16 | 444 x 356 | |
| 10204570356020 | DN 350 | PN 25 | 457 x 356 | |
| 10204740356020 | DN 350 | PN 40 | 474 x 356 | |
| 10204890407020 | DN 400 | PN 10 | 489 x 407 | |
| 10204950407020 | DN 400 | PN 16 | 495 x 407 | |
| 10205140407020 | DN 400 | PN 25 | 514 x 407 | |
| 10205460407020 | DN 400 | PN 40 | 546 x 407 | |
| 10205390458020 | DN 450 | PN 10 | 539 x 458 | |
| 10205550458020 | DN 450 | PN 16 | 555 x 458 | |
| 10205640458020 | DN 450 | PN 25 | 564 x 458 | |
| 10205710458020 | DN 450 | PN 40 | 571 x 458 | |
| 10205940508020 | DN 500 | PN 10 | 594 x 508 | |
| 10206170508020 | DN 500 | PN 16 | 617 x 508 | |
| 10206240508020 | DN 500 | PN 25 | 624 x 508 | |
| 10206280508020 | DN 500 | PN 40 | 628 x 508 | |
| 10206950610020 | DN 600 | PN 10 | 695 x 610 | |
| 10207340610020 | DN 600 | PN 16 | 734 x 610 | |
| 10207310610020 | DN 600 | PN 25 | 731 x 610 | |
| 10207470610020 | DN 600 | PN 40 | 747 x 610 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 10200510022030 | DN 15 | PN 10-40 | 51 x 22 | |
| 10200610028030 | DN 20 | PN 10-40 | 61 x 28 | |
| 10200710034030 | DN 25 | PN 10-40 | 71 x 34 | |
| 10200820043030 | DN 32 | PN 10-40 | 82 x 43 | |
| 10200920049030 | DN 40 | PN 10-40 | 92 x 49 | |
| 10201070061030 | DN 50 | PN 10-40 | 107 x 61 | |
| 10201270077030 | DN 65 | PN 10-40 | 127 x 77 | |
| 10201420089030 | DN 80 | PN 10-40 | 142 x 89 | |
| 10201620115030 | DN 100 | PN 10-16 | 162 x 115 | |
| 10201680115030 | DN 100 | PN 25-40 | 168 x 115 | |
| 10201920141030 | DN 125 | PN 10-16 | 192 x 141 | |
| 10201940141030 | DN 125 | PN 25-40 | 194 x 141 | |
| 10202180169030 | DN 150 | PN 10-16 | 218 x 169 | |
| 10202240169030 | DN 150 | PN 25-40 | 224 x 169 | |
| 10202730220030 | DN 200 | PN 10-16 | 273 x 220 | |
| 10202840220030 | DN 200 | PN 25 | 284 x 220 | |
| 10202900220030 | DN 200 | PN 40 | 290 x 220 | |
| 10203280273030 | DN 250 | PN 10 | 328 x 273 | |
| 10203290273030 | DN 250 | PN 16 | 329 x 273 | |
| 10203400273030 | DN 250 | PN 25 | 340 x 273 | |
| 10203520273030 | DN 250 | PN 40 | 352 x 273 | |
| 10203780324030 | DN 300 | PN 10 | 378 x 324 | |
| 10203840324030 | DN 300 | PN 16 | 384 x 324 | |
| 10204000324030 | DN 300 | PN 25 | 400 x 324 | |
| 10204170304030 | DN 300 | PN 40 | 417 x 324 | |
| 10204380356030 | DN 350 | PN 10 | 438 x 356 | |
| 10204440356030 | DN 350 | PN 16 | 444 x 356 | |
| 10204570356030 | DN 350 | PN 25 | 457 x 356 | |
| 10204740356030 | DN 350 | PN 40 | 474 x 356 | |
| 10204890407030 | DN 400 | PN 10 | 489 x 407 | |
| 10204950407030 | DN 400 | PN 16 | 495 x 407 | |
| 10205140407030 | DN 400 | PN 25 | 514 x 407 | |
| 10205460407030 | DN 400 | PN 40 | 546 x 407 | |
| 10205390458030 | DN 450 | PN 10 | 539 x 458 | |
| 10205550458030 | DN 450 | PN 16 | 555 x 458 | |
| 10205640458030 | DN 450 | PN 25 | 564 x 458 | |
| 10205710458030 | DN 450 | PN 40 | 571 x 458 | |
| 10205940508030 | DN 500 | PN 10 | 594 x 508 | |
| 10206170508030 | DN 500 | PN 16 | 617 x 508 | |
| 10206240508030 | DN 500 | PN 25 | 624 x 508 | |
| 10206280508030 | DN 500 | PN 40 | 628 x 508 | |
| 10206950610030 | DN 600 | PN 10 | 695 x 610 | |
| 10207340610030 | DN 600 | PN 16 | 734 x 610 | |
| 10207310610030 | DN 600 | PN 25 | 731 x 610 | |
| 10207470610030 | DN 600 | PN 40 | 747 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 10200480021015 | 1/2" | 48 x 21 | |
| 10200570027015 | 3/4" | 57 x 27 | |
| 10200670033015 | 1 " | 67 x 33 | |
| 10200760042015 | 1.1/4" | 76 x 42 | |
| 10200860048015 | 1.1/2" | 86 x 48 | |
| 10201050060015 | 2 " | 105 x 60 | |
| 10201240073015 | 2.1/2" | 124 x 73 | |
| 10201370089015 | 3 " | 137 x 89 | |
| 10201750114015 | 4 " | 175 x 114 | |
| 10202220168015 | 6 " | 222 x 168 | |
| 10202790219015 | 8 " | 279 x 219 | |
| 10203400273015 | 10 " | 340 x 273 | |
| 10204100324015 | 12 " | 410 x 324 | |
| 10204510356015 | 14 " | 451 x 356 | |
| 10205140406015 | 16 " | 514 x 406 | |
| 10205500457015 | 18 " | 550 x 457 | |
| 10206060508015 | 20 " | 606 x 508 | |
| 10207180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 10200540021015 | 1/2" | 54 x 21 | |
| 10200670027015 | 3/4" | 67 x 27 | |
| 10200730033015 | 1 " | 73 x 33 | |
| 10200830042015 | 1.1/4" | 83 x 42 | |
| 10200950048015 | 1.1/2" | 95 x 48 | |
| 10201110060015 | 2 " | 111 x 60 | |
| 10201300073015 | 2.1/2" | 130 x 73 | |
| 10201490089015 | 3 " | 149 x 89 | |
| 10201810114015 | 4 " | 181 x 114 | |
| 10202510168015 | 6 " | 251 x 168 | |
| 10203080219015 | 8 " | 308 x 219 | |
| 10203620273016 | 10 " | 362 x 273 | |
| 10204220324015 | 12 " | 422 x 324 | |
| 10204860356015 | 14 " | 486 x 356 | |
| 10205400406015 | 16 " | 540 x 406 | |
| 10205970457015 | 18 " | 597 x 457 | |
| 10206540508015 | 20 " | 654 x 508 | |
| 10207750610015 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGER®Quantum |
| Materiaal | HNBR rubbermatrix, vezelversterkt. |
| Kleur | aan beide zijden gebroken wit, eenzijdig bedrukt |
|
|
|
| Samendrukbaarheid volgens ASTM F36J | 10% |
| Terugvering volgens ASTM F36J | >60% |
| Drukvastheid volgens DIN 52913(2mm, 300ºC) | 28 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,02 mg/s.m. |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | conformiteit FDA eisen |
| DIN DVGW | |
| BAM getest II-611/2009 | |
| BS 7531 2006 Grade AX | |
| TA luft (clean air) acc VDI2440 | |
| Fire safe DIN/EN/ISO 10497 _ API 607 | |
| RoHS 2011/65/EG | |
| 2003/11/EG | |
| 76/769/EWG | |
| 2003/30/EG | |
| KTW koud/heet drinkwater | |
| Reach verklaring | |
| SVHC lijstverklaring | |
| KTW (heet/koud drinkwater) | |
| Fire-Safe API607/EN 10497 | |
| SVHC Candidate List | |
|
|
|
|
Afdichtingsfaktoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 15 MPa |
| ASTM m | 5 |
| D0701 pgm;min 25ºC | 22 MPa |
| D0701 pgm;max 25ºC | 158 MPa |
| D0701 pgm;max 100ºC | 68 MPa |
| D0701 pgm;max 200ºC | 39 MPa |
| D0701 pgm;max 300ºC | 32 MPa |
| D0701 Cg | 1,3 |
|
|
|
|

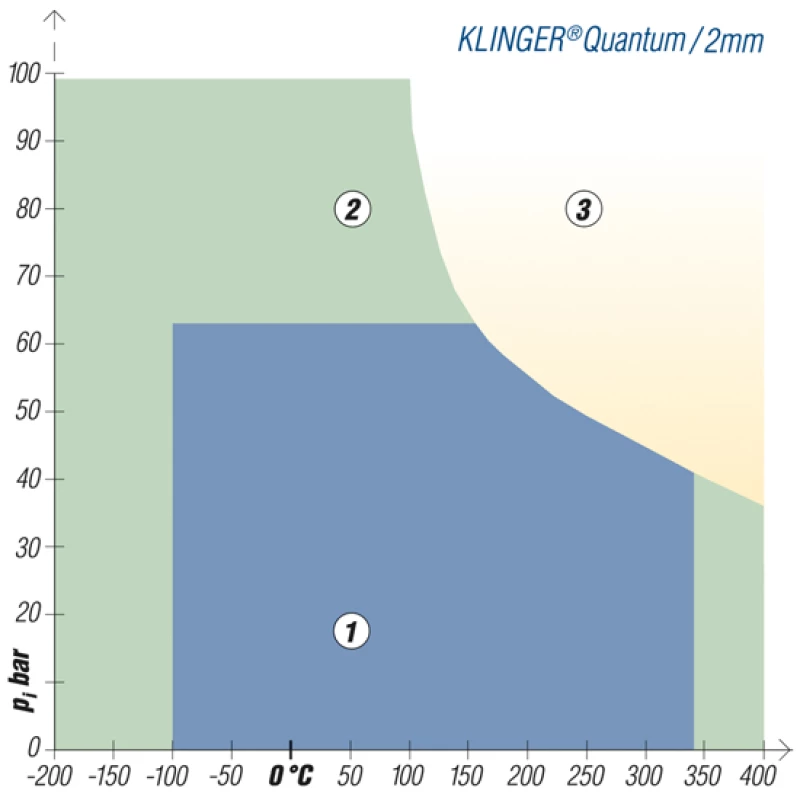

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
