Afmetingen (mm) | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|
Art.nr. | DN | Lengte | Hoogte | Flensdiameter | Steekcirkel | Gewicht (kg) | Bestellen |
2001140200015 | 15 | 130 | 203 | 95 | 65 x 4 x 14 | 8,0 | |
2001140200020 | 20 | 150 | 210 | 105 | 75 x 4 x 14 | 8,6 | |
2001140200025 | 25 | 160 | 213 | 115 | 85 x 4 x 14 | 9,0 | |
2001140200030 | 32 | 180 | 245 | 140 | 100 x 4 x 18 | 13,6 | |
2001140200040 | 40 | 200 | 251 | 150 | 110 x 4 x 18 | 16,3 | |
2001140200050 | 50 | 230 | 260 | 165 | 125 x 4 x 18 | 20,8 |
Afmetingen (mm) | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|
Art.nr. | DN | Lengte | Hoogte | Flensdiameter | Steekcirkel | Gewicht (kg) | Bestellen |
2001140201015 | 15 | 130 | 203 | 95 | 65 x 4 x 14 | 8,0 | |
2001140201020 | 20 | 150 | 210 | 105 | 75 x 4 x 14 | 8,6 | |
2001140201025 | 25 | 160 | 213 | 115 | 85 x 4 x 14 | 9,0 | |
2001140201030 | 32 | 180 | 245 | 140 | 100 x 4 x 18 | 13,6 | |
2001140201040 | 40 | 200 | 251 | 150 | 110 x 4 x 18 | 16,3 | |
2001140201050 | 50 | 230 | 260 | 165 | 125 x 4 x 18 | 20,8 |

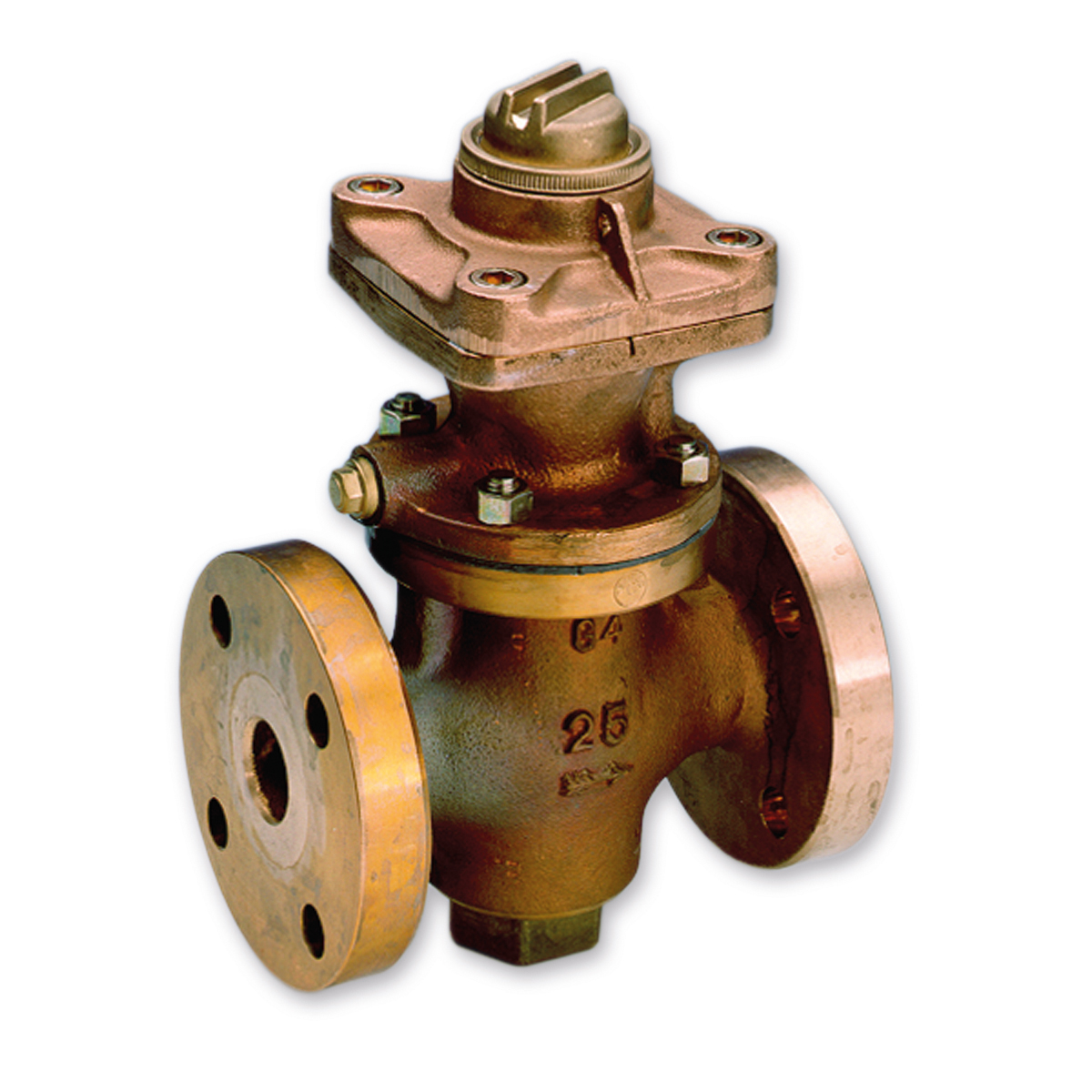

Type | KP-2043 |
Materiaal | Brons |
Drukklasse | PN 40 |
Klep + Zitting | RVS * |
Zuiger | Messing |
Zuigerveren | Fosforbrons |
Afdichting | Asbestvrij |
|
|
Inbouwlengte | EN558-1 serie 1 |
Aansluiting | EN1092-3 |
|
|
Temperatuur | maximaal 260ºC bij 17 bar (stoom) |
maximaal 120ºC bij 35 bar (lucht) | |
|
|
* Voor lucht- en gas kleppen voorzien van PTFE afdichting.
|
