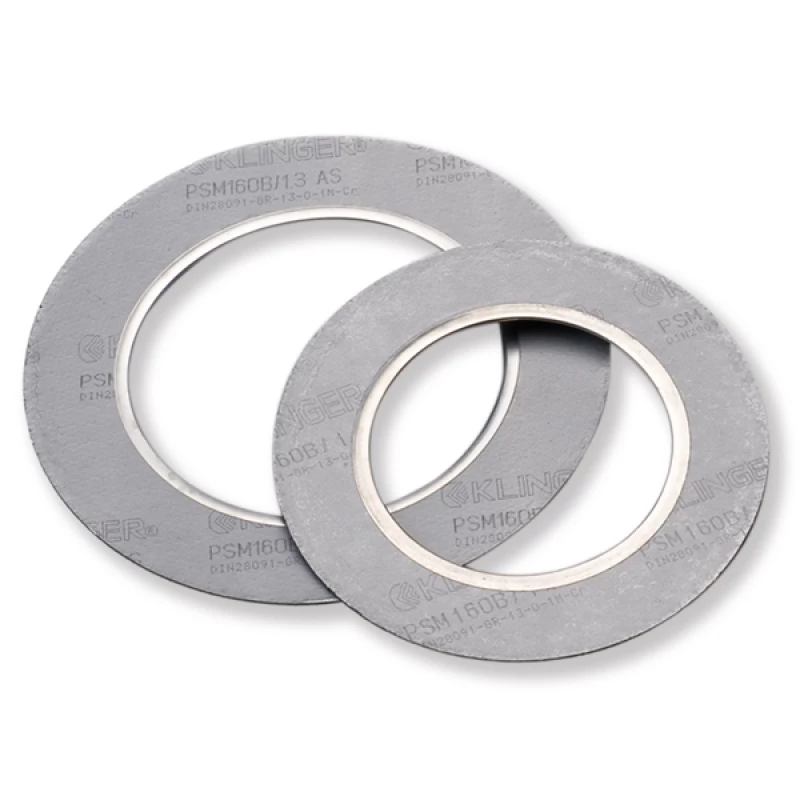

Grafiet afdichting | KLINGER PSM B/AS met bördel

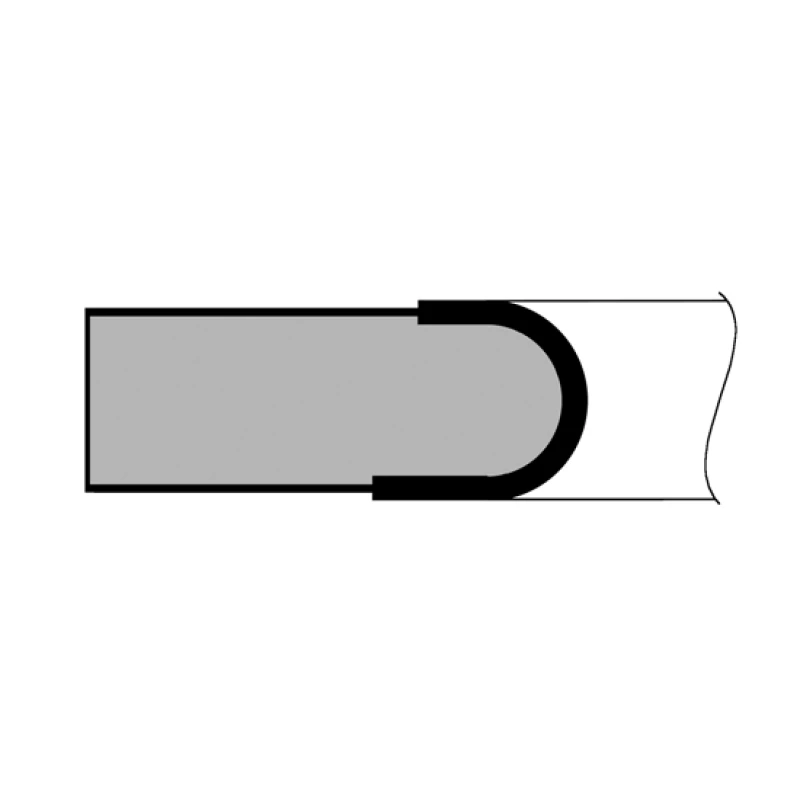

Grafiet met RVS inlage v.z.v. "Anti-Stick" coating en bördel
Geschikt voor: stoom, heet water en vloeibare plastics
- Deze pakking heeft door het grafiet een zeer hoge temperatuurbestendigheid.
- Voorzien van een "Anti-Stick" coating.
- Het grafiet is afgescheiden van het medium door de binnenmantel.
- Leverbaar als DIN/ANSI en niet-standaard ringafmetingen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22100510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 22100610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 22100710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 22100820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 22100920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 22101070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 22101270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 22101420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 22101620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 22101680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 22101920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 22101940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 22102180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 22102240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 22102730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 22102840220015 | DN 200 | PN 25 | 284 x 220 | |
| 22102920220015 | DN 200 | PN 40 | 292 x 220 | |
| 22103280273015 | DN 250 | PN 10 | 328 x 273 | |
| 22103300274015 | DN 250 | PN 16 | 328 x 274 | |
| 22103400273015 | DN 250 | PN 25 | 340 x 273 | |
| 22103530274015 | DN 250 | PN 40 | 353 x 274 | |
| 22103780324015 | DN 300 | PN 10 | 378 x 324 | |
| 22103840324015 | DN 300 | PN 16 | 384 x 324 | |
| 22104000324015 | DN 300 | PN 25 | 400 x 324 | |
| 22104180325015 | DN 300 | PN 40 | 418 x 325 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22100510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 22100610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 22100710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 22100820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 22100920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 22101070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 22101270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 22101420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 22101620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 22101680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 22101920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 22101940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 22102180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 22102240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 22102730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 22102840220020 | DN 200 | PN 25 | 284 x 220 | |
| 22102900220020 | DN 200 | PN 40 | 290 x 220 | |
| 22103280273020 | DN 250 | PN 10 | 328 x 273 | |
| 22103290273020 | DN 250 | PN 16 | 329 x 273 | |
| 22103400273020 | DN 250 | PN 25 | 340 x 273 | |
| 22103520273020 | DN 250 | PN 40 | 352 x 273 | |
| 22103780324020 | DN 300 | PN 10 | 378 x 324 | |
| 22103840324020 | DN 300 | PN 16 | 384 x 324 | |
| 22104000324020 | DN 300 | PN 25 | 400 x 324 | |
| 22104170324020 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22200500022020 | DN 15 | PN 10-40 | 50 x 22 | |
| 22200600028020 | DN 20 | PN 10-40 | 60 x 28 | |
| 22200700035020 | DN 25 | PN 10-40 | 70 x 35 | |
| 22200820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 22200920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 22201070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 22201270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 22201420090020 | DN 80 | PN 10-40 | 142 x 90 | |
| 22201620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 22201680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 22201920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 22201950141020 | DN 125 | PN 25-40 | 195 x 141 | |
| 22202180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 22202250169020 | DN 150 | PN 25-40 | 225 x 169 | |
| 22202730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 22202850220020 | DN 200 | PN 25 | 285 x 220 | |
| 22202920220020 | DN 200 | PN 40 | 292 x 220 | |
| 22203280274020 | DN 250 | PN 10 | 328 x 274 | |
| 22203300274020 | DN 250 | PN 16 | 330 x 274 | |
| 22203400273020 | DN 250 | PN 25 | 340 x 273 | |
| 22203530274020 | DN 250 | PN 40 | 353 x 274 | |
| 22203780325020 | DN 300 | PN 10 | 378 x 325 | |
| 22203850325020 | DN 300 | PN 16 | 385 x 325 | |
| 22204020325020 | DN 300 | PN 25 | 402 x 325 | |
| 22204180325020 | DN 300 | PN 40 | 418 x 325 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22100480021015 | 1/2" | 48 x 21 | |
| 22100570027015 | 3/4" | 57 x 27 | |
| 22100670033015 | 1 " | 67 x 33 | |
| 22100760042015 | 1.1/4" | 76 x 42 | |
| 22100860048015 | 1.1/2" | 86 x 48 | |
| 22101050060015 | 2 " | 105 x 60 | |
| 22101240073015 | 2.1/2" | 124 x 73 | |
| 22101370089015 | 3 " | 137 x 89 | |
| 22101750114015 | 4 " | 175 x 114 | |
| 22101970141015 | 5 " | 197 x 141 | |
| 22102220168015 | 6 " | 222 x 168 | |
| 22102790219015 | 8 " | 279 x 219 | |
| 22103400273015 | 10 " | 340 x 273 | |
| 22104100324015 | 12 " | 410 x 324 | |
| 22104510356015 | 14 " | 451 x 356 | |
| 22105140406015 | 16 " | 514 x 406 | |
| 22105500457015 | 18 " | 550 x 457 | |
| 22106060508015 | 20 " | 606 x 508 | |
| 22107180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22200480021020 | 1/2" | 48 x 21 | |
| 22200570027020 | 3/4" | 57 x 27 | |
| 22200670033020 | 1 " | 67 x 33 | |
| 22200760042020 | 1.1/4" | 76 x 42 | |
| 22200860048020 | 1.1/2" | 86 x 48 | |
| 22201050060020 | 2 " | 105 x 60 | |
| 22201240073020 | 2.1/2" | 124 x 73 | |
| 22201370089020 | 3 " | 137 x 89 | |
| 22201620102020 | 3.1/2" | 162 x 102 | |
| 22201750114020 | 4 " | 175 x 114 | |
| 22201970141020 | 5 " | 197 x 141 | |
| 22202220168020 | 6 " | 222 x 168 | |
| 22202790219020 | 8 " | 279 x 219 | |
| 22203400273020 | 10 " | 340 x 273 | |
| 22204100324020 | 12 " | 410 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22100540021015 | 1/2" | 54 x 21 | |
| 22100670027015 | 3/4" | 67 x 27 | |
| 22100730033015 | 1 " | 73 x 33 | |
| 22100830042015 | 1.1/4" | 83 x 42 | |
| 22100950048015 | 1.1/2" | 95 x 48 | |
| 22101110060015 | 2 " | 111 x 60 | |
| 22101300073015 | 2.1/2" | 130 x 73 | |
| 22101490089015 | 3 " | 149 x 89 | |
| 22101810114015 | 4 " | 181 x 114 | |
| 22102160141015 | 5 " | 216 x 141 | |
| 22102510168015 | 6 " | 251 x 168 | |
| 22103080219015 | 8 " | 308 x 219 | |
| 22103620273015 | 10 " | 362 x 273 | |
| 22104220324015 | 12 " | 422 x 324 | |
| 22105400406015 | 16 " | 540 x 406 | |
| 22105970457015 | 18 " | 597 x 457 | |
| 22106540508015 | 20 " | 654 x 508 | |
| 22107750610015 | 24 " | 775 x 610 | |
| 22104860356015 | 14 " | 486 x 356 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22200540021020 | 1/2" | 54 x 21 | |
| 22200670027020 | 3/4" | 67 x 27 | |
| 22200730033020 | 1 " | 73 x 33 | |
| 22200830042020 | 1.1/4" | 83 x 42 | |
| 22200950048020 | 1.1/2" | 95 x 48 | |
| 22201110060020 | 2 " | 111 x 60 | |
| 22201300073020 | 2.1/2" | 130 x 73 | |
| 22201490089020 | 3 " | 149 x 89 | |
| 22201650102020 | 3.1/2" | 165 x 102 | |
| 22201810114020 | 4 " | 181 x 114 | |
| 22202160141020 | 5 " | 216 x 141 | |
| 22202510168020 | 6 " | 251 x 168 | |
| 22203080219020 | 8 " | 308 x 219 | |
| 22203620273020 | 10 " | 362 x 273 | |
| 22204220324020 | 12 " | 422 x 324 |

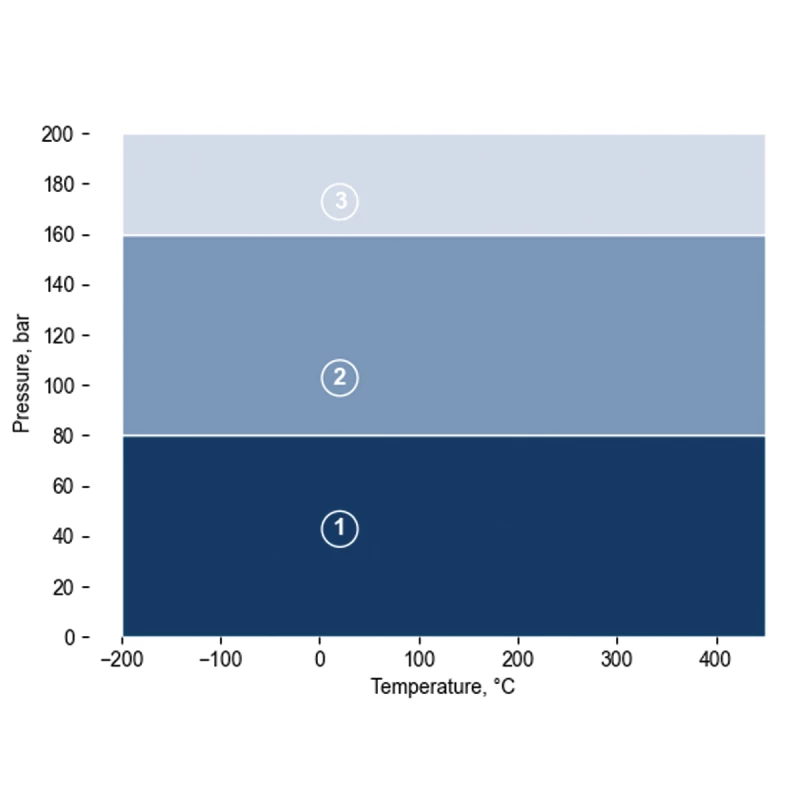

Specificaties
| Type | KLINGER PSM B/AS met bördel |
| Materiaal | grafiet met geperforeerde AISI 316 inlage, anti-stick coating en AISI 316 Ti of Monel bördel |
| Kleur | zwart/grijs |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 35% |
| Terugvering volgens ASTM F36A | 20% |
| Drukvastheid volgens DIN 52913(2mm) | 48 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,05 mg/s.m. |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
