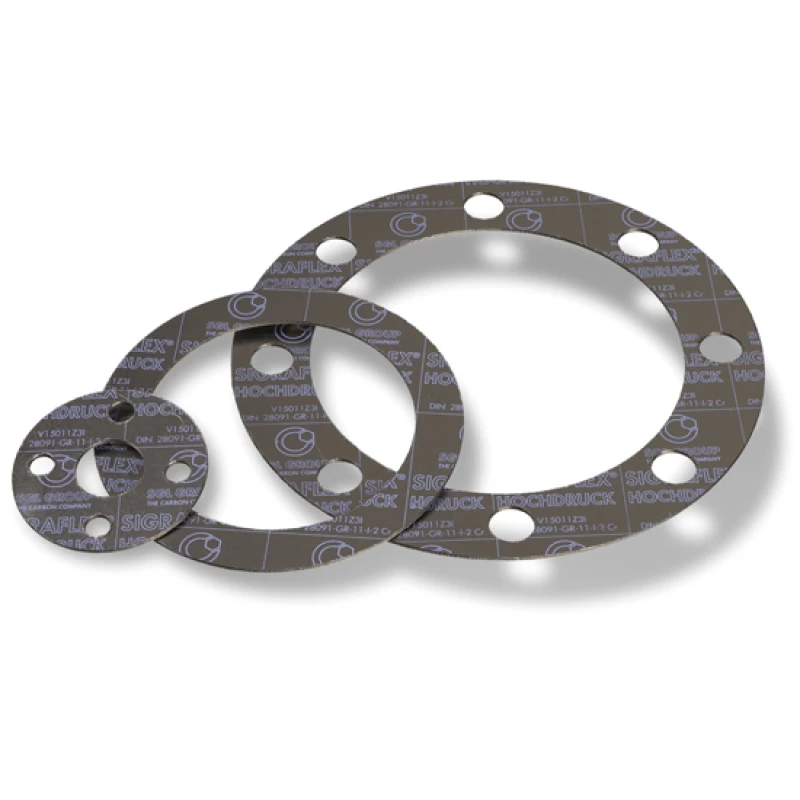

Grafiet afdichting | Sigraflex HD
Grafiet met meerdere vlakke RVS inlagen.
Geschikt voor: stoom, heet water en thermische olie
- DE IDEALE GRAFIETPLAAT OM ZELF PAKKINGEN UIT TE SNIJDEN.
- Zeer grote compressibiliteit en temperatuurbestendigheid.
- Voorzien van oppervlak verstevigende "Anti-Stick" coating.
- Lijmloze hechting van de meerdere vlakke RVS inlage foliën.
- Gemakkelijk zelf te snijden.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 21710001000410 | 1 | 1000 x 1000 | |
| 21710001000415 | 1,5 | 1000 x 1000 | |
| 21710001000420 | 2 | 1000 x 1000 | |
| 21710001000430 | 3 | 1000 x 1000 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 21700460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 21700510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 21700610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 21700710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 21700820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 21700920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 21701070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 21701270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 21701420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 21701620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 21701680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 21701920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 21701940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 21702180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 21702240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 21702730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 21702840220015 | DN 200 | PN 25 | 284 x 220 | |
| 21702900220015 | DN 200 | PN 40 | 290 x 220 | |
| 21703280273015 | DN 250 | PN 10 | 328 x 273 | |
| 21703290273015 | DN 250 | PN 16 | 329 x 273 | |
| 21703420274015 | DN 250 | PN 25 | 340 x 273 | |
| 21703520273015 | DN 250 | PN 40 | 352 x 273 | |
| 21703780324015 | DN 300 | PN 10 | 378 x 324 | |
| 21703840324015 | DN 300 | PN 16 | 384 x 324 | |
| 21704000324015 | DN 300 | PN 25 | 400 x 324 | |
| 21704170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 21700460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 21700510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 21700610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 21700710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 21700820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 21700920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 21701070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 21701270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 21701420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 21701620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 21701680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 21701920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 21701940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 21702180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 21702240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 21702730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 21702840220020 | DN 200 | PN 25 | 284 x 220 | |
| 21702900220020 | DN 200 | PN 40 | 290 x 220 | |
| 21703280273020 | DN 250 | PN 10 | 328 x 273 | |
| 21703290273020 | DN 250 | PN 16 | 329 x 273 | |
| 21703400273021 | DN 250 | PN 25 | 340 x 273 | |
| 21703520273020 | DN 250 | PN 40 | 352 x 273 | |
| 21703780324020 | DN 300 | PN 10 | 378 x 324 | |
| 21703840324020 | DN 300 | PN 16 | 384 x 324 | |
| 21704000324020 | DN 300 | PN 25 | 400 x 324 | |
| 21704170324020 | DN 300 | PN 40 | 417 x 324 | |
| 21704380326020 | DN 350 | PN 10 | 438 x 356 | |
| 21704440356020 | DN 350 | PN 16 | 444 x 356 | |
| 21704570356020 | DN 350 | PN 25 | 457 x 356 | |
| 21704740356020 | DN 350 | PN 40 | 474 x 356 | |
| 21704890407020 | DN 400 | PN 10 | 489 x 407 | |
| 21704950407020 | DN 400 | PN 16 | 495 x 407 | |
| 21705140407020 | DN 400 | PN 25 | 514 x 407 | |
| 21705460407020 | DN 400 | PN 40 | 546 x 407 | |
| 21705390458020 | DN 450 | PN 10 | 539 x 458 | |
| 21705550458020 | DN 450 | PN 16 | 555 x 458 | |
| 21705640458020 | DN 450 | PN 25 | 564 x 458 | |
| 21705710458020 | DN 450 | PN 40 | 571 x 458 | |
| 21705940508020 | DN 500 | PN 10 | 594 x 508 | |
| 21706170508020 | DN 500 | PN 16 | 617 x 508 | |
| 21706240508020 | DN 500 | PN 25 | 624 x 508 | |
| 21706280508020 | DN 500 | PN 40 | 628 x 508 | |
| 21706950610020 | DN 600 | PN 10 | 695 x 610 | |
| 21707340610020 | DN 600 | PN 16 | 734 x 610 | |
| 21707310610020 | DN 600 | PN 25 | 731 x 610 | |
| 21707470610020 | DN 600 | PN 40 | 747 x 610 | |
| 21708100712020 | DN 700 | PN 10 | 810 x 712 | |
| 21708040712020 | DN 700 | PN 16 | 804 x 712 | |
| 21708330712020 | DN 700 | PN 25 | 833 x 712 | |
| 21708500720020 | DN 700 | PN 40 | 850 x 720 | |
| 21709170813020 | DN 800 | PN 10 | 917 x 813 | |
| 21709110813020 | DN 800 | PN 16 | 911 x 813 | |
| 21709420813020 | DN 800 | PN 25 | 942 x 813 | |
| 21709700820020 | DN 800 | PN 40 | 970 x 820 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21700480021015 | 1/2" | 48 x 21 | |
| 21700570027015 | 3/4" | 57 x 27 | |
| 21700670033015 | 1 " | 67 x 33 | |
| 21700760042015 | 1.1/4" | 76 x 42 | |
| 21700860048015 | 1.1/2" | 86 x 48 | |
| 21701050060015 | 2 " | 105 x 60 | |
| 21701240073015 | 2.1/2" | 124 x 73 | |
| 21701370089015 | 3 " | 137 x 89 | |
| 21701620102015 | 3.1/2" | 162 x 102 | |
| 21701750114015 | 4 " | 175 x 114 | |
| 21701970141015 | 5 " | 197 x 141 | |
| 21702220168015 | 6 " | 222 x 168 | |
| 21702790219015 | 8 " | 279 x 219 | |
| 21703400273015 | 10 " | 340 x 273 | |
| 21704100324015 | 12 " | 410 x 324 | |
| 21704510356015 | 14 " | 451 x 356 | |
| 21705140406015 | 16 " | 514 x 406 | |
| 21705500457015 | 18 " | 550 x 457 | |
| 21706060508015 | 20 " | 606 x 508 | |
| 21707180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21700480021020 | 1/2" | 48 x 21 | |
| 21700570027020 | 3/4" | 57 x 27 | |
| 21700670033020 | 1 " | 67 x 33 | |
| 21700760042020 | 1.1/4" | 76 x 42 | |
| 21700860048020 | 1.1/2" | 86 x 48 | |
| 21701050060020 | 2 " | 105 x 60 | |
| 21701240073020 | 2.1/2" | 124 x 73 | |
| 21701370089020 | 3 " | 137 x 89 | |
| 21701620102020 | 3.1/2" | 162 x 102 | |
| 21701750114020 | 4 " | 175 x 114 | |
| 21701970141020 | 5 " | 197 x 141 | |
| 21702220168020 | 6 " | 222 x 168 | |
| 21702790219020 | 8 " | 279 x 219 | |
| 21703400273020 | 10 " | 340 x 273 | |
| 21704100324020 | 12 " | 410 x 324 | |
| 21704510356020 | 14 " | 451 x 356 | |
| 21705140406020 | 16 " | 514 x 406 | |
| 21705500457020 | 18 " | 550 x 457 | |
| 21706060508020 | 20 " | 606 x 508 | |
| 21707180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21700540021015 | 1/2" | 54 x 21 | |
| 21700670027015 | 3/4" | 67 x 27 | |
| 21700730033015 | 1 " | 73 x 33 | |
| 21700830042015 | 1.1/4" | 83 x 42 | |
| 21700950048015 | 1.1/2" | 95 x 48 | |
| 21701110060015 | 2 " | 111 x 60 | |
| 21701300073015 | 2.1/2" | 130 x 73 | |
| 21701490089015 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21701650102015 | 3.1/2" | 165 x 102 | |
| 21701810114015 | 4 " | 181 x 114 | |
| 21702160141015 | 5 " | 216 x 141 | |
| 21702510168015 | 6 " | 251 x 168 | |
| 21703080219015 | 8 " | 308 x 219 | |
| 21703620273015 | 10 " | 362 x 273 | |
| 21704220324015 | 12 " | 422 x 324 | |
| 21704860356015 | 14 " | 486 x 356 | |
| 21705400406015 | 16 " | 540 x 406 | |
| 21705970457015 | 18 " | 597 x 457 | |
| 21706540508015 | 20 " | 654 x 508 | |
| 21707750610015 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21700540021020 | 1/2" | 54 x 21 | |
| 21700670027020 | 3/4" | 67 x 27 | |
| 21700730033020 | 1 " | 73 x 33 | |
| 21700830042020 | 1.1/4" | 83 x 42 | |
| 21700950048020 | 1.1/2" | 95 x 48 | |
| 21701110060020 | 2 " | 111 x 60 | |
| 21701300073020 | 2.1/2" | 130 x 73 | |
| 21701490089020 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 21701650102020 | 3.1/2" | 165 x 102 | |
| 21701810114020 | 4 " | 181 x 114 | |
| 21702160141020 | 5 " | 216 x 141 | |
| 21702510168020 | 6 " | 251 x 168 | |
| 21703080219020 | 8 " | 308 x 219 | |
| 21703620273020 | 10 " | 362 x 273 | |
| 21704220324020 | 12 " | 422 x 324 | |
| 21704860356020 | 14 " | 486 x 356 | |
| 21705400406020 | 16 " | 540 x 406 | |
| 21705970457020 | 18 " | 597 x 457 | |
| 21706540508020 | 20 " | 654 x 508 | |
| 21707750610020 | 24 " | 775 x 610 |
Specificaties
| Type | Sigraflex HD |
| Materiaal | grafiet 99,85% zuiver met vlakke AISI 316 inlagen, v.z.v. "Anti-Stick" coating |
| Kleur | Zwart/grijs, paars bedrukt. |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 35% |
| Terugvering volgens ASTM F36A | 15% |
| Drukvastheid volgens DIN 52913(2mm) | 48 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 3535/4 | <0,5 ml/min. |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | DIN DVGW |
| BAM O2 | |
| "Fire-safe" volgens BS 7655 | |
| MPA Stuttgart | |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
