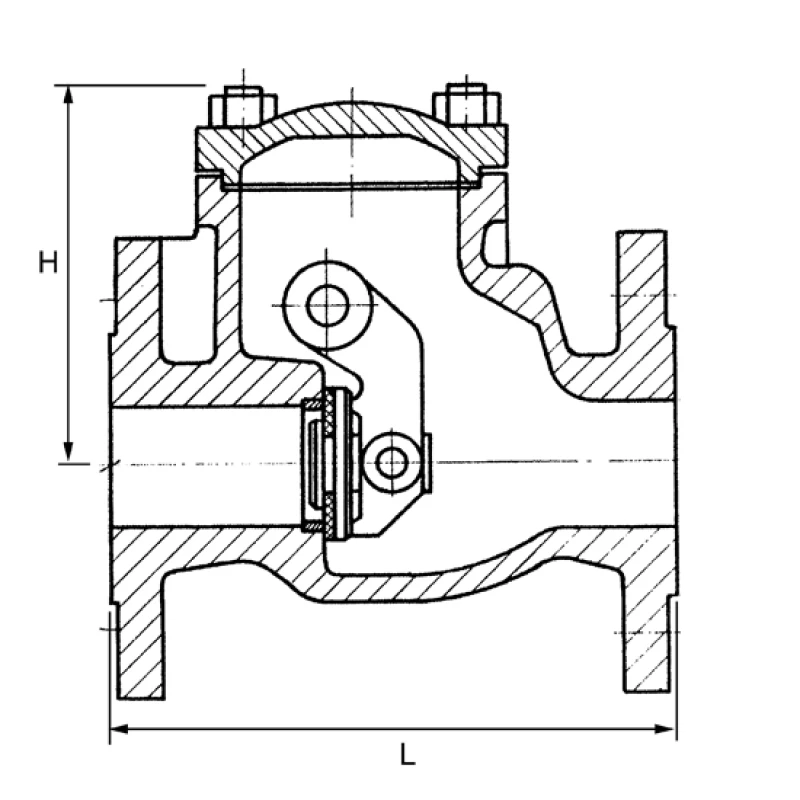

Afmetingen (mm) Aansluitmaten (mm)
Art.nr. DN L H Flensdiam. Steekcirkel Gewicht (kg) Bestellen
5512121000040 40 180 119 150 110 x  4 x 18 9,0
5512121000050 50 200 120 165 125 x  4 x 18 11,0
5512121000065 65 240 141 185 145 x  4 x 18 15,2
5512121000080 80 260 168 200 160 x  8 x 18 20,8
5512121000100 100 300 175 220 180 x  8 x 18 31,5
5512121000125 125 350 199 250 210 x  8 x 18 46,0
5512121000150 150 400 217 285 240 x  8 x 22 60,0
5512121000200 200 500 277 340 295 x 12 x 22 129,0
Contact

Voor meer informatie over onze terugslagkleppen kunt u contact opnemen met:
