Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
---|---|---|---|
23210001000415 | 1,5 | 1000 x 1000 | |
23210001000420 | 2 | 1000 x 1000 |
Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
---|---|---|---|---|
23200460018015 | DN 10 | PN 10-40 | 46 x 18 | |
23200510022015 | DN 15 | PN 10-40 | 51 x 22 | |
23200610028015 | DN 20 | PN 10-40 | 61 x 28 | |
23200710034015 | DN 25 | PN 10-40 | 71 x 34 | |
23200820043015 | DN 32 | PN 10-40 | 82 x 43 | |
23200920049015 | DN 40 | PN 10-40 | 92 x 49 | |
23201070061015 | DN 50 | PN 10-40 | 107 x 61 | |
23201270077015 | DN 65 | PN 10-40 | 127 x 77 | |
23201420089015 | DN 80 | PN 10-40 | 142 x 89 | |
23201620115015 | DN 100 | PN 10-16 | 162 x 115 | |
23201680115015 | DN 100 | PN 25-40 | 168 x 115 | |
23201920141015 | DN 125 | PN 10-16 | 192 x 141 | |
23201940141015 | DN 125 | PN 25-40 | 194 x 141 | |
23202180169015 | DN 150 | PN 10-16 | 218 x 169 | |
23202240169015 | DN 150 | PN 25-40 | 224 x 169 | |
23202730220015 | DN 200 | PN 10-16 | 273 x 220 | |
23202840220015 | DN 200 | PN 25 | 284 x 220 | |
23202900220015 | DN 200 | PN 40 | 290 x 220 | |
23203280273015 | DN 250 | PN 10 | 328 x 273 | |
23203290273015 | DN 250 | PN 16 | 329 x 273 | |
23203400273016 | DN 250 | PN 25 | 340 x 273 | |
23203520273015 | DN 250 | PN 40 | 352 x 273 | |
23203780324015 | DN 300 | PN 10 | 378 x 324 | |
23203840324015 | DN 300 | PN 16 | 384 x 324 | |
23204000324015 | DN 300 | PN 25 | 400 x 324 | |
23204170324015 | DN 300 | PN 40 | 417 x 324 |
Art.nr. | Maat | Afmeting (mm) | Bestellen |
---|---|---|---|
23200480021015 | 1/2" | 48 x 21 | |
23200570027015 | 3/4" | 57 x 27 | |
23200670033015 | 1 " | 67 x 33 | |
23200760042015 | 1.1/4" | 76 x 42 | |
23200860048015 | 1.1/2" | 86 x 48 | |
23201050060015 | 2 " | 105 x 60 | |
23201240073015 | 2.1/2" | 124 x 73 | |
23201370089015 | 3 " | 137 x 89 | |
23201620102015 | 3.1/2" | 162 x 102 | |
23201750114015 | 4 " | 175 x 114 | |
23201970141015 | 5 " | 197 x 141 | |
23202220168015 | 6 " | 222 x 168 | |
23202790219015 | 8 " | 279 x 219 | |
23203400273015 | 10 " | 340 x 273 | |
23204100324015 | 12 " | 410 x 324 | |
23204510356015 | 14 " | 451 x 356 | |
23205140406015 | 16 " | 514 x 406 | |
23205500457015 | 18 " | 550 x 457 | |
23206060508015 | 20 " | 606 x 508 | |
23207180610015 | 24 " | 718 x 610 |
Art.nr. | Maat | Afmeting (mm) | Bestellen |
---|---|---|---|
23200540021015 | 1/2" | 54 x 21 | |
23200670027015 | 3/4" | 67 x 27 | |
23200730033015 | 1 " | 73 x 33 | |
23200830042015 | 1.1/4" | 83 x 42 | |
23200950048015 | 1.1/2" | 95 x 48 | |
23201110060015 | 2 " | 111 x 60 | |
23201300073015 | 2.1/2" | 130 x 73 | |
23201490089015 | 3 " | 149 x 89 | |
23201650102015 | 3.1/2" | 165 x 102 | |
23201810114015 | 4 " | 181 x 114 | |
23202160141015 | 5 " | 216 x 141 | |
23202510168015 | 6 " | 251 x 168 | |
23203080219015 | 8 " | 308 x 219 | |
23203620273015 | 10 " | 362 x 273 | |
23204220324015 | 12 " | 422 x 324 | |
23204860356015 | 14 " | 486 x 356 | |
23205400406015 | 16 " | 540 x 406 | |
23205970457015 | 18 " | 597 x 457 | |
23206540508015 | 20 " | 654 x 508 | |
23207750610015 | 24 " | 775 x 610 |
Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
---|---|---|---|---|
23200510022020 | DN 15 | PN 10-40 | 51 x 22 | |
23200610028020 | DN 20 | PN 10-40 | 61 x 28 | |
23200710034020 | DN 25 | PN 10-40 | 71 x 34 | |
23200820043020 | DN 32 | PN 10-40 | 82 x 43 | |
23200920049020 | DN 40 | PN 10-40 | 92 x 49 | |
23201070061020 | DN 50 | PN 10-40 | 107 x 61 | |
23201270077020 | DN 65 | PN 10-40 | 127 x 77 | |
23201420089020 | DN 80 | PN 10-40 | 142 x 89 | |
23201620115020 | DN 100 | PN 10-16 | 162 x 115 | |
23201680115020 | DN 100 | PN 25-40 | 168 x 115 | |
23201920141020 | DN 125 | PN 10-16 | 192 x 141 | |
23201940141020 | DN 125 | PN 25-40 | 194 x 141 | |
23202180169020 | DN 150 | PN 10-16 | 218 x 169 | |
23202240169020 | DN 150 | PN 25-40 | 224 x 169 | |
23202730220020 | DN 200 | PN 10-16 | 273 x 220 | |
23202840220020 | DN 200 | PN 25 | 284 x 220 | |
23202900220020 | DN 200 | PN 40 | 290 x 220 |

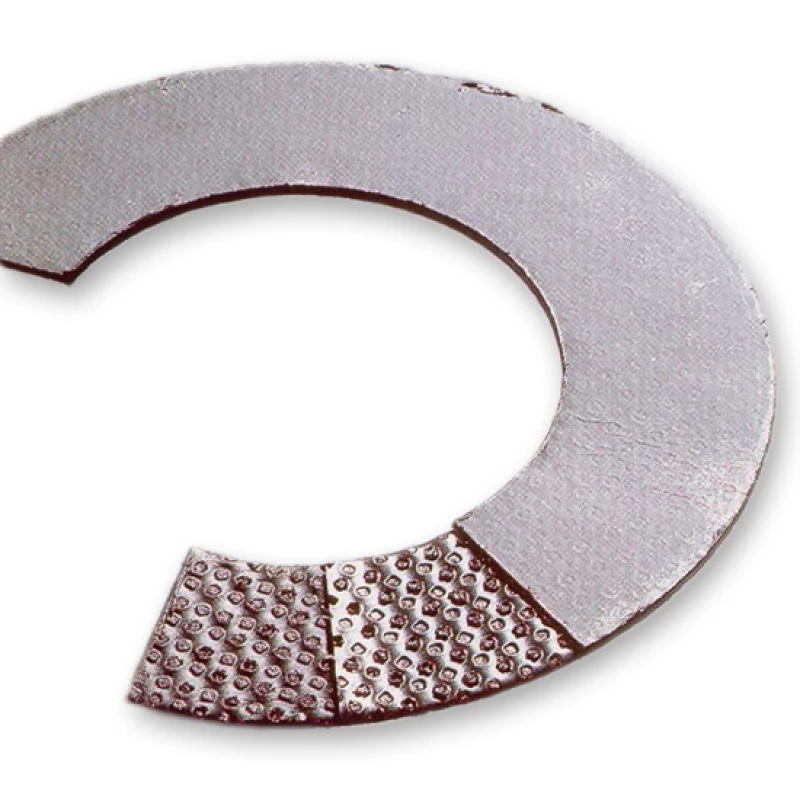

Type | KLINGER PDM B/AS |
Materiaal | grafiet 99% zuiver met 2 geperforeerde AISI 316 inlagen, v.z.v. anti-stick coating |
Kleur | zwart/grijs |
|
|
Dichtheid | 1,3 g/cm³ |
Samendrukbaarheid volgens ASTM F36A | 20% |
Terugvering volgens ASTM F36A | 30% |
Drukvastheid volgens DIN 52913(2mm) | 48 N/mm² |
Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,05 mg/s.m. |
|
|
Chemische bestendigheid | zie bestendigheidlijst |
|
|
Goedgekeurd door | DIN DVGW 88.03e 052 |
BAM | |
"Fire-safe" volgens BS 5146 | |
BL Wien (voedingsmiddelenindustrie) | |
|
|

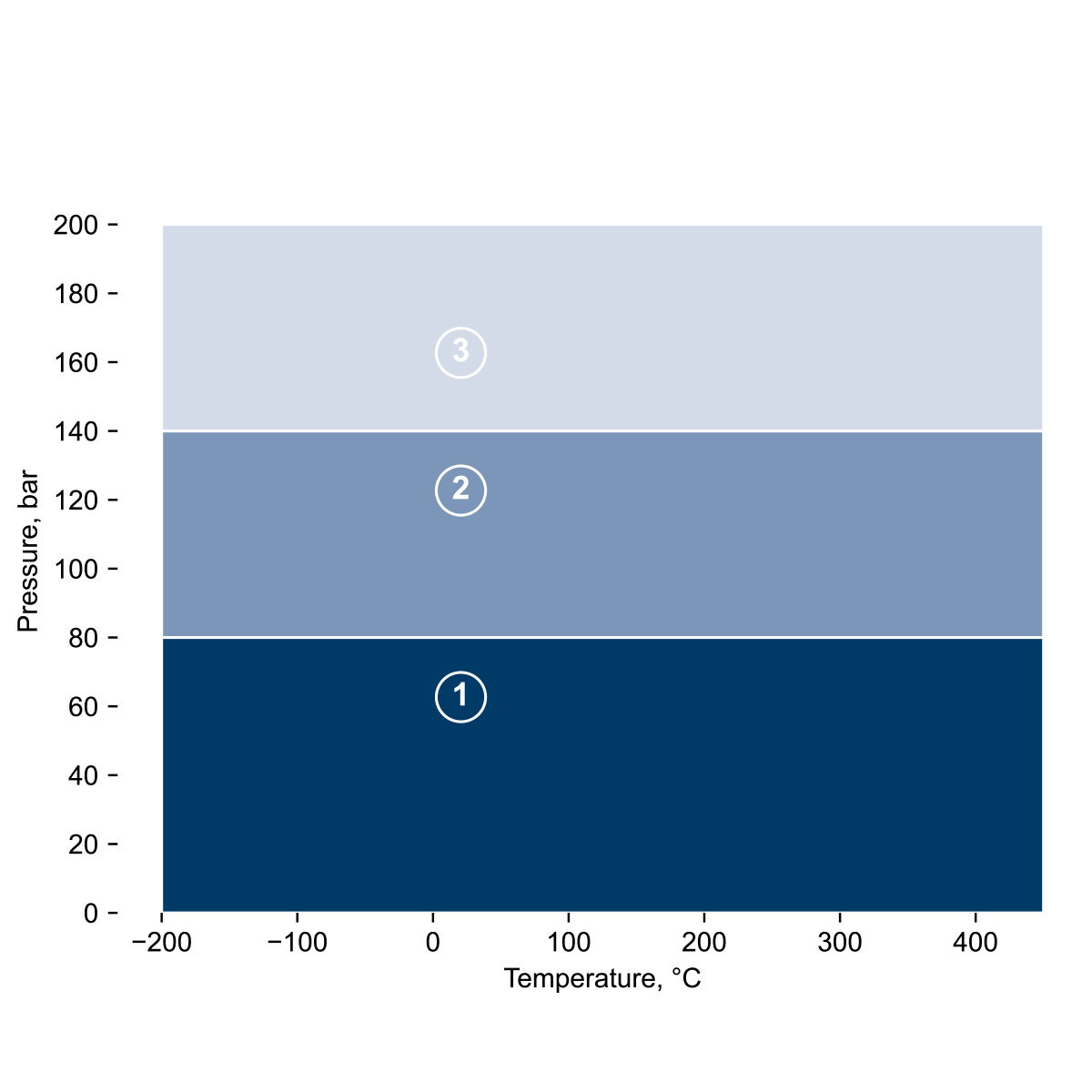

Druk/Temperatuur-Grafiek
|
|
Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
Gebied 2 | Vraag advies voor kritische toepassingen. |
Gebied 3 | Vraag advies. |
|
|
DIN afmetingen volgens EN 1514-1
|
|
ANSI afmetingen volgens B16.21
|
