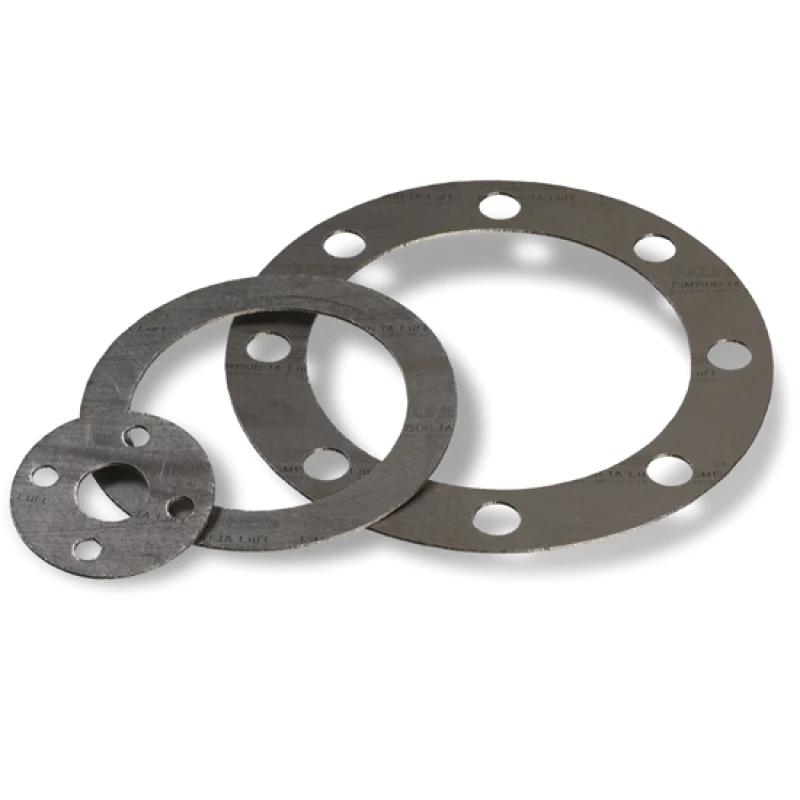

Grafiet afdichting | KLINGER TSM
Grafiet met geperforeerde RVS inlage, met speciaal homogeen extreem gasdicht grafiet oplagen
Geschikt voor: hete millieu gevaarlijke media, stoom, heet water en thermische olie
- Zeer grote compressibiliteit en temperatuurbestendigheid.
- Extreem hoge gasdichtheid door speciale grafietbehandeling.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 22910001000410 | 1 | 1000 x 1000 | |
| 22910001000415 | 1,5 | 1000 x 1000 | |
| 22910001000420 | 2 | 1000 x 1000 | |
| 22910001000430 | 3 | 1000 x 1000 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22900460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 22900510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 22900610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 22900710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 22900820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 22900920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 22901070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 22901270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 22901420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 22901620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 22901680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 22901920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 22901940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 22902180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 22902240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 22902730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 22902840220015 | DN 200 | PN 25 | 284 x 220 | |
| 22902900220015 | DN 200 | PN 40 | 290 x 220 | |
| 22903280273015 | DN 250 | PN 10 | 328 x 273 | |
| 22903290273015 | DN 250 | PN 16 | 329 x 273 | |
| 22903400273015 | DN 250 | PN 25 | 340 x 273 | |
| 22903520273015 | DN 250 | PN 40 | 352 x 273 | |
| 22903780324015 | DN 300 | PN 10 | 378 x 324 | |
| 22903840324015 | DN 300 | PN 16 | 384 x 324 | |
| 22904000324015 | DN 300 | PN 25 | 400 x 324 | |
| 22904170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22900460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 22900510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 22900610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 22900710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 22900820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 22900920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 22901070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 22901270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 22901420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 22901620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 22901680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 22901920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 22901940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 22902180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 22902240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 22902730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 22902840220020 | DN 200 | PN 25 | 284 x 220 | |
| 22902900220020 | DN 200 | PN 40 | 290 x 220 | |
| 22903280273020 | DN 250 | PN 10 | 328 x 273 | |
| 22903290273020 | DN 250 | PN 16 | 329 x 273 | |
| 22903400273021 | DN 250 | PN 25 | 340 x 273 | |
| 22903520273020 | DN 250 | PN 40 | 352 x 273 | |
| 22903780324020 | DN 300 | PN 10 | 378 x 324 | |
| 22903840324020 | DN 300 | PN 16 | 384 x 324 | |
| 22904000324020 | DN 300 | PN 25 | 400 x 324 | |
| 22904170324020 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22900480021015 | 1/2" | 48 x 21 | |
| 22900570027015 | 3/4" | 57 x 27 | |
| 22900670033015 | 1 " | 67 x 33 | |
| 22900760042015 | 1.1/4" | 76 x 42 | |
| 22900860048015 | 1.1/2" | 86 x 48 | |
| 22901050060015 | 2 " | 105 x 60 | |
| 22901240073015 | 2.1/2" | 124 x 73 | |
| 22901370089015 | 3 " | 137 x 89 | |
| 22901750114015 | 4 " | 175 x 114 | |
| 22901970141015 | 5 " | 197 x 141 | |
| 22902220168015 | 6 " | 222 x 168 | |
| 22902790219015 | 8 " | 279 x 219 | |
| 22903400273016 | 10 " | 340 x 273 | |
| 22904100324015 | 12 " | 410 x 324 | |
| 22904510356015 | 14 " | 451 x 356 | |
| 22905140406015 | 16 " | 514 x 406 | |
| 22905500457015 | 18 " | 550 x 457 | |
| 22906060508015 | 20 " | 606 x 508 | |
| 22907180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22900480021020 | 1/2" | 48 x 21 | |
| 22900570027020 | 3/4" | 57 x 27 | |
| 22900670033020 | 1 " | 67 x 33 | |
| 22900760042020 | 1.1/4" | 76 x 42 | |
| 22900860048020 | 1.1/2" | 86 x 48 | |
| 22901050060020 | 2 " | 105 x 60 | |
| 22901240073020 | 2.1/2" | 124 x 73 | |
| 22901370089020 | 3 " | 137 x 89 | |
| 22901750114020 | 4 " | 175 x 114 | |
| 22901970141020 | 5 " | 197 x 141 | |
| 22902220168020 | 6 " | 222 x 168 | |
| 22902790219020 | 8 " | 279 x 219 | |
| 22903400273020 | 10 " | 340 x 273 | |
| 22904100324020 | 12 " | 410 x 324 | |
| 22904510356020 | 14 " | 451 x 356 | |
| 22905140406020 | 16 " | 514 x 406 | |
| 22905500457020 | 18 " | 550 x 457 | |
| 22906060508020 | 20 " | 606 x 508 | |
| 22907180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22900540021015 | 1/2" | 54 x 21 | |
| 22900670027015 | 3/4" | 67 x 27 | |
| 22900730033015 | 1 " | 73 x 33 | |
| 22900830042015 | 1.1/4" | 83 x 42 | |
| 22900950048015 | 1.1/2" | 95 x 48 | |
| 22901110060015 | 2 " | 111 x 60 | |
| 22901300073015 | 2.1/2" | 130 x 73 | |
| 22901490089015 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22901810114015 | 4 " | 181 x 114 | |
| 22902160141015 | 5 " | 216 x 141 | |
| 22902510168015 | 6 " | 251 x 168 | |
| 22903080219015 | 8 " | 308 x 219 | |
| 22903620273015 | 10 " | 362 x 273 | |
| 22904220324015 | 12 " | 422 x 324 | |
| 22904860356015 | 14 " | 486 x 356 | |
| 22905400406015 | 16 " | 540 x 406 | |
| 22905970457015 | 18 " | 597 x 457 | |
| 22906540508015 | 20 " | 654 x 508 | |
| 22907750610015 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22900540021020 | 1/2" | 54 x 21 | |
| 22900670027020 | 3/4" | 67 x 27 | |
| 22900730033020 | 1 " | 73 x 33 | |
| 22900830042020 | 1.1/4" | 83 x 42 | |
| 22900950048020 | 1.1/2" | 95 x 48 | |
| 22901110060020 | 2 " | 111 x 60 | |
| 22901300073020 | 2.1/2" | 130 x 73 | |
| 22901490089020 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22902160141020 | 5 " | 216 x 141 | |
| 22902510168020 | 6 " | 251 x 168 | |
| 22903080219020 | 8 " | 308 x 219 | |
| 22903620273020 | 10 " | 362 x 273 | |
| 22904220324020 | 12 " | 422 x 324 | |
| 22904860356020 | 14 " | 486 x 356 | |
| 22905400406020 | 16 " | 540 x 406 | |
| 22905970457020 | 18 " | 597 x 457 | |
| 22906540508020 | 20 " | 654 x 508 | |
| 22907750610020 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGER TSM |
| Materiaal | grafiet 98% zuiver met geperforeerde AISI 316 inlage, v.z.v. extreem gasdichte grafietoplagen. |
| Kleur | Zwart |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 35% |
| Terugvering volgens ASTM F36A | 20% |
| Drukvastheid volgens DIN 52913(2mm) | >45 N/mm² |
|
|
|
| Gasdoorlaatbaarheid volgens VDI2200 (TA-luft 40 bar Helium) | 4,3.10-4 mbar.l/(m.s). |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | TA-Luft VDI2200 en VDI2440 |
|
|
|
|

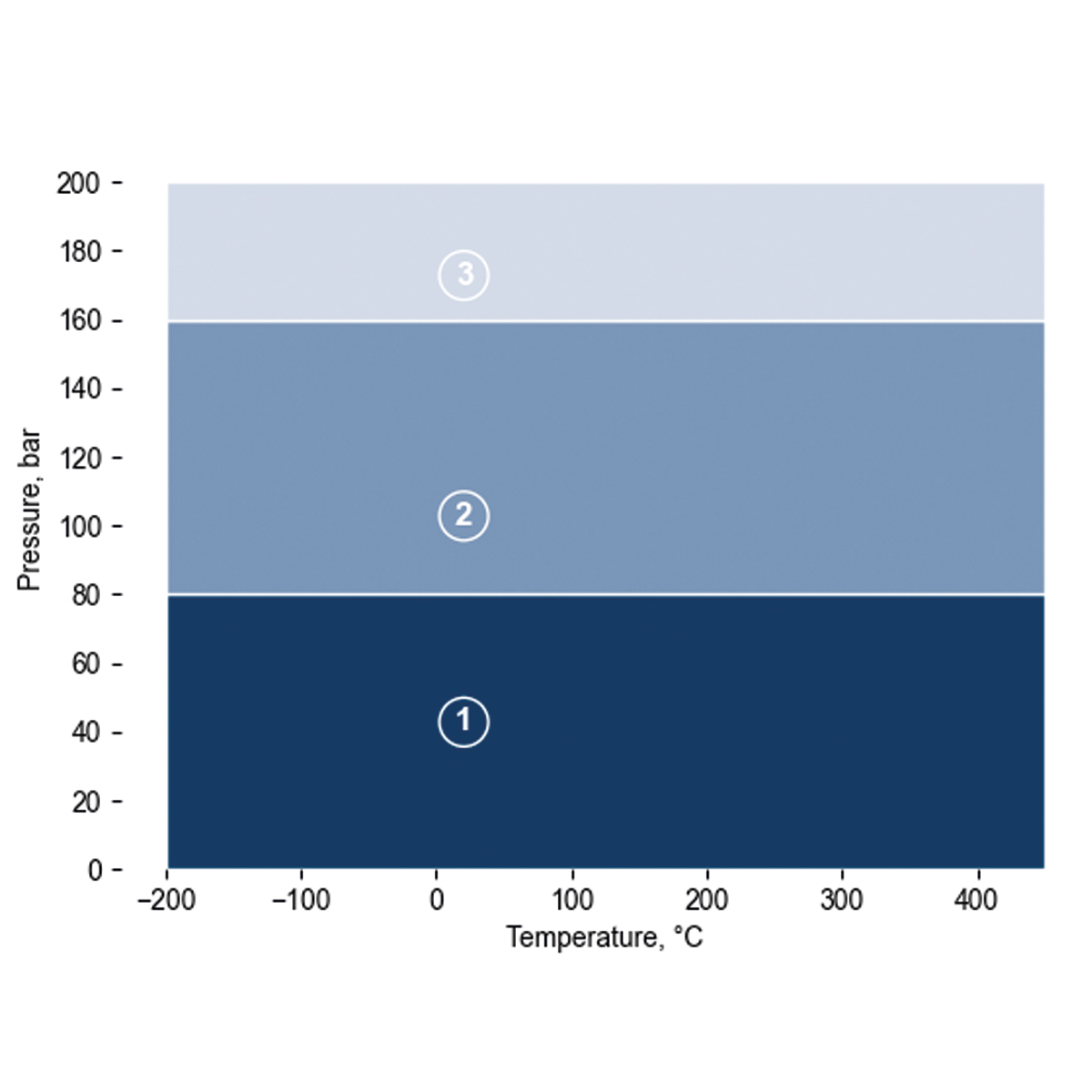

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
