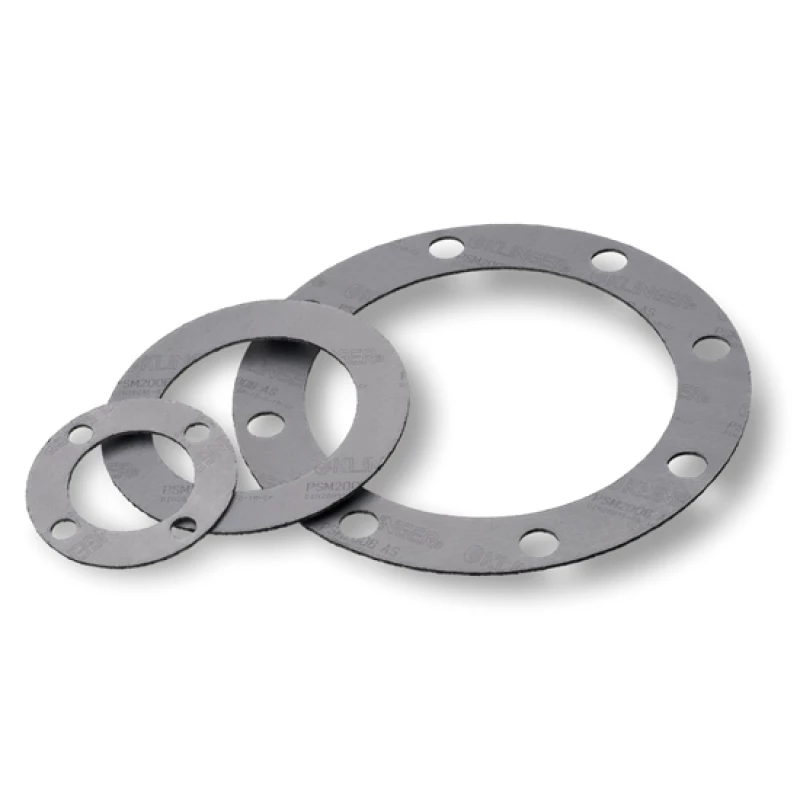

Grafiet afdichting | KLINGER PSM B/AS

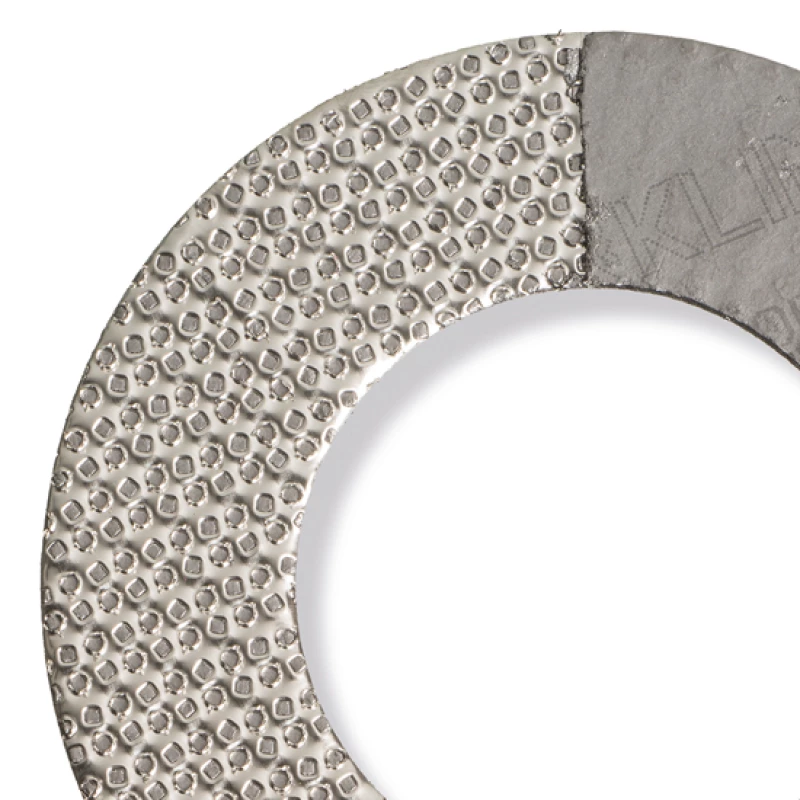

Grafiet met geperforeerde RVS inlage v.z.v. "Anti-Stick" coating
Geschikt voor: stoom, heet water en thermische olie
- Zeer grote compressibiliteit en temperatuurbestendigheid.
- Voorzien van "Anti-Stick" coating.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 22010001000410 | 1 | 1000 x 1000 | |
| 22010001000415 | 1,5 | 1000 x 1000 | |
| 22010001000420 | 2 | 1000 x 1000 | |
| 22010001000430 | 3 | 1000 x 1000 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22000460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 22000510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 22000610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 22000710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 22000820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 22000920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 22001070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 22001270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 22001420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 22001620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 22001680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 22001920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 22001940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 22002180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 22002240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 22002730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 22002840220015 | DN 200 | PN 25 | 284 x 220 | |
| 22002900220015 | DN 200 | PN 40 | 290 x 220 | |
| 22003280273015 | DN 250 | PN 10 | 328 x 273 | |
| 22003290273015 | DN 250 | PN 16 | 329 x 273 | |
| 22003420274015 | DN 250 | PN 25 | 340 x 273 | |
| 22003520273015 | DN 250 | PN 40 | 352 x 273 | |
| 22003780324015 | DN 300 | PN 10 | 378 x 324 | |
| 22003840324015 | DN 300 | PN 16 | 384 x 324 | |
| 22004000324015 | DN 300 | PN 25 | 400 x 324 | |
| 22004170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22000460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 22000510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 22000610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 22000710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 22000820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 22000920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 22001070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 22001270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 22001420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 22001620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 22001680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 22001920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 22001940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 22002180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 22002240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 22002730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 22002840220020 | DN 200 | PN 25 | 284 x 220 | |
| 22002900220020 | DN 200 | PN 40 | 290 x 220 | |
| 22003280273020 | DN 250 | PN 10 | 328 x 273 | |
| 22003290273020 | DN 250 | PN 16 | 329 x 273 | |
| 22003400273021 | DN 250 | PN 25 | 340 x 273 | |
| 22003520273020 | DN 250 | PN 40 | 352 x 273 | |
| 22003780324020 | DN 300 | PN 10 | 378 x 324 | |
| 22003840324020 | DN 300 | PN 16 | 384 x 324 | |
| 22004000324020 | DN 300 | PN 25 | 400 x 324 | |
| 22004170324020 | DN 300 | PN 40 | 417 x 324 | |
| 22004380326020 | DN 350 | PN 10 | 438 x 356 | |
| 22004440356020 | DN 350 | PN 16 | 444 x 356 | |
| 22004570356020 | DN 350 | PN 25 | 457 x 356 | |
| 22004740356020 | DN 350 | PN 40 | 474 x 356 | |
| 22004890407020 | DN 400 | PN 10 | 489 x 407 | |
| 22004950407020 | DN 400 | PN 16 | 495 x 407 | |
| 22005140407020 | DN 400 | PN 25 | 514 x 407 | |
| 22005460407020 | DN 400 | PN 40 | 546 x 407 | |
| 22005390458020 | DN 450 | PN 10 | 539 x 458 | |
| 22005550458020 | DN 450 | PN 16 | 555 x 458 | |
| 22005640458020 | DN 450 | PN 25 | 564 x 458 | |
| 22005710458020 | DN 450 | PN 40 | 571 x 458 | |
| 22005940508020 | DN 500 | PN 10 | 594 x 508 | |
| 22006170508020 | DN 500 | PN 16 | 617 x 508 | |
| 22006240508020 | DN 500 | PN 25 | 624 x 508 | |
| 22006280508020 | DN 500 | PN 40 | 628 x 508 | |
| 22006950610020 | DN 600 | PN 10 | 695 x 610 | |
| 22007340610020 | DN 600 | PN 16 | 734 x 610 | |
| 22007310610020 | DN 600 | PN 25 | 731 x 610 | |
| 22007470610020 | DN 600 | PN 40 | 747 x 610 | |
| 22008100712020 | DN 700 | PN 10 | 810 x 712 | |
| 22008040712020 | DN 700 | PN 16 | 804 x 712 | |
| 22008330712020 | DN 700 | PN 25 | 833 x 712 | |
| 22008500720020 | DN 700 | PN 40 | 850 x 720 | |
| 22009170813020 | DN 800 | PN 10 | 917 x 813 | |
| 22009110813020 | DN 800 | PN 16 | 911 x 813 | |
| 22009420813020 | DN 800 | PN 25 | 942 x 813 | |
| 22009700820020 | DN 800 | PN 40 | 970 x 820 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22000390029015 | DN 15 | PN 10-160 | 39 x 29 | |
| 22000500036015 | DN 20 | PN 10-160 | 50 x 36 | |
| 22000570043015 | DN 25 | PN 10-160 | 57 x 43 | |
| 22000650051015 | DN 32 | PN 10-160 | 65 x 51 | |
| 22000750061015 | DN 40 | PN 10-160 | 75 x 61 | |
| 22000870073015 | DN 50 | PN 10-160 | 87 x 73 | |
| 22001090095015 | DN 65 | PN 10-160 | 109 x 95 | |
| 22001200106015 | DN 80 | PN 10-160 | 120 x 106 | |
| 22001490129015 | DN 100 | PN 10-160 | 149 x 129 | |
| 22001750155015 | DN 125 | PN 10-160 | 175 x 155 | |
| 22002030183015 | DN 150 | PN 10-160 | 203 x 183 | |
| 22002590239015 | DN 200 | PN 10-160 | 259 x 239 | |
| 22003120292015 | DN 250 | PN 10-160 | 312 x 292 | |
| 22003630343015 | DN 300 | PN 10-160 | 363 x 343 | |
| 22004730447015 | DN 400 | PN 10-160 | 473 x 447 | |
| 22005750549015 | DN 500 | PN 10-160 | 575 x 549 | |
| 22006750649015 | DN 600 | PN 10-160 | 675 x 649 | |
| 22008820856015 | DN 800 | PN 10-160 | 882 x 856 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22000390029020 | DN 15 | PN 10-160 | 39 x 29 | |
| 22000500036020 | DN 20 | PN 10-160 | 50 x 36 | |
| 22000570043020 | DN 25 | PN 10-160 | 57 x 43 | |
| 22000650051020 | DN 32 | PN 10-160 | 65 x 51 | |
| 22000750061020 | DN 40 | PN 10-160 | 75 x 61 | |
| 22000870073020 | DN 50 | PN 10-160 | 87 x 73 | |
| 22001090095020 | DN 65 | PN 10-160 | 109 x 95 | |
| 22001200106020 | DN 80 | PN 10-160 | 120 x 106 | |
| 22001490129020 | DN 100 | PN 10-160 | 149 x 129 | |
| 22001750155020 | DN 125 | PN 10-160 | 175 x 155 | |
| 22002030183020 | DN 150 | PN 10-160 | 203 x 183 | |
| 22002590239020 | DN 200 | PN 10-160 | 259 x 239 | |
| 22003120292020 | DN 250 | PN 10-160 | 312 x 292 | |
| 22003630343020 | DN 300 | PN 10-160 | 363 x 343 | |
| 22004210395020 | DN 350 | PN 10-160 | 421 x 395 | |
| 22004730447020 | DN 400 | PN 10-160 | 473 x 447 | |
| 22005750549020 | DN 500 | PN 10-160 | 575 x 549 | |
| 22006750649020 | DN 600 | PN 10-160 | 675 x 649 | |
| 22007770751020 | DN 700 | PN 10-160 | 777 x 751 | |
| 22008820856020 | DN 800 | PN 10-160 | 882 x 856 | |
| 22009870961020 | DN 900 | PN 10-160 | 987 x 961 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22000390022020 | DN 15 | PN 10-100 | 39 x 22 | |
| 22000500027020 | DN 20 | PN 10-100 | 50 x 27 | |
| 22000570034020 | DN 25 | PN 10-100 | 57 x 34 | |
| 22000650043020 | DN 32 | PN 10-100 | 65 x 43 | |
| 22000750049020 | DN 40 | PN 10-100 | 75 x 49 | |
| 22000870061020 | DN 50 | PN 10-100 | 87 x 61 | |
| 22001090077020 | DN 65 | PN 10-100 | 109 x 77 | |
| 22001200089020 | DN 80 | PN 10-100 | 120 x 89 | |
| 22001490115020 | DN 100 | PN 10-100 | 149 x 115 | |
| 22001750141020 | DN 125 | PN 10-100 | 175 x 141 | |
| 22002030169020 | DN 150 | PN 10-100 | 203 x 169 | |
| 22002590220020 | DN 200 | PN 10-100 | 259 x 220 | |
| 22003120274020 | DN 250 | PN 10-100 | 312 x 274 | |
| 22003630324020 | DN 300 | PN 10-100 | 363 x 324 | |
| 22004210356020 | DN 350 | PN 10-100 | 421 x 356 | |
| 22004730407020 | DN 400 | PN 10-100 | 473 x 407 | |
| 22005750508020 | DN 500 | PN 10-100 | 575 x 508 | |
| 22006750610020 | DN 600 | PN 10-100 | 675 x 610 | |
| 22007770712020 | DN 700 | PN 10-100 | 777 x 712 | |
| 22008820813020 | DN 800 | PN 10-100 | 882 x 813 | |
| 22009870915020 | DN 900 | PN 10-100 | 987 x 915 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22000480021015 | 1/2" | 48 x 21 | |
| 22000570027015 | 3/4" | 57 x 27 | |
| 22000670033015 | 1 " | 67 x 33 | |
| 22000760042015 | 1.1/4" | 76 x 42 | |
| 22000860048015 | 1.1/2" | 86 x 48 | |
| 22001050060015 | 2 " | 105 x 60 | |
| 22001240073015 | 2.1/2" | 124 x 73 | |
| 22001370089015 | 3 " | 137 x 89 | |
| 22001620102015 | 3.1/2" | 162 x 102 | |
| 22001750114015 | 4 " | 175 x 114 | |
| 22001970141015 | 5 " | 197 x 141 | |
| 22002220168015 | 6 " | 222 x 168 | |
| 22002790219015 | 8 " | 279 x 219 | |
| 22003400273015 | 10 " | 340 x 273 | |
| 22004100324015 | 12 " | 410 x 324 | |
| 22004510356015 | 14 " | 451 x 356 | |
| 22005140406015 | 16 " | 514 x 406 | |
| 22005500457015 | 18 " | 550 x 457 | |
| 22006060508015 | 20 " | 606 x 508 | |
| 22007180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22000480021020 | 1/2" | 48 x 21 | |
| 22000570027020 | 3/4" | 57 x 27 | |
| 22000670033020 | 1 " | 67 x 33 | |
| 22000760042020 | 1.1/4" | 76 x 42 | |
| 22000860048020 | 1.1/2" | 86 x 48 | |
| 22001050060020 | 2 " | 105 x 60 | |
| 22001240073020 | 2.1/2" | 124 x 73 | |
| 22001370089020 | 3 " | 137 x 89 | |
| 22001620102020 | 3.1/2" | 162 x 102 | |
| 22001750114020 | 4 " | 175 x 114 | |
| 22001970141020 | 5 " | 197 x 141 | |
| 22002220168020 | 6 " | 222 x 168 | |
| 22002790219020 | 8 " | 279 x 219 | |
| 22003400273020 | 10 " | 340 x 273 | |
| 22004100324020 | 12 " | 410 x 324 | |
| 22004510356020 | 14 " | 451 x 356 | |
| 22005140406020 | 16 " | 514 x 406 | |
| 22005500457020 | 18 " | 550 x 457 | |
| 22006060508020 | 20 " | 606 x 508 | |
| 22007180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22000540021015 | 1/2" | 54 x 21 | |
| 22000670027015 | 3/4" | 67 x 27 | |
| 22000730033015 | 1 " | 73 x 33 | |
| 22000830042015 | 1.1/4" | 83 x 42 | |
| 22000950048015 | 1.1/2" | 95 x 48 | |
| 22001110060015 | 2 " | 111 x 60 | |
| 22001300073015 | 2.1/2" | 130 x 73 | |
| 22001490089015 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22001650102015 | 3.1/2" | 165 x 102 | |
| 22001810114015 | 4 " | 181 x 114 | |
| 22002160141015 | 5 " | 216 x 141 | |
| 22002510168015 | 6 " | 251 x 168 | |
| 22003080219015 | 8 " | 308 x 219 | |
| 22003620273015 | 10 " | 362 x 273 | |
| 22004220324015 | 12 " | 422 x 324 | |
| 22004860356015 | 14 " | 486 x 356 | |
| 22005400406015 | 16 " | 540 x 406 | |
| 22005970457015 | 18 " | 597 x 457 | |
| 22006540508015 | 20 " | 654 x 508 | |
| 22007750610015 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22000540021020 | 1/2" | 54 x 21 | |
| 22000670027020 | 3/4" | 67 x 27 | |
| 22000730033020 | 1 " | 73 x 33 | |
| 22000830042020 | 1.1/4" | 83 x 42 | |
| 22000950048020 | 1.1/2" | 95 x 48 | |
| 22001110060020 | 2 " | 111 x 60 | |
| 22001300073020 | 2.1/2" | 130 x 73 | |
| 22001490089020 | 3 " | 149 x 89 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22001650102020 | 3.1/2" | 165 x 102 | |
| 22001810114020 | 4 " | 181 x 114 | |
| 22002160141020 | 5 " | 216 x 141 | |
| 22002510168020 | 6 " | 251 x 168 | |
| 22003080219020 | 8 " | 308 x 219 | |
| 22003620273020 | 10 " | 362 x 273 | |
| 22004220324020 | 12 " | 422 x 324 | |
| 22004860356020 | 14 " | 486 x 356 | |
| 22005400406020 | 16 " | 540 x 406 | |
| 22005970457020 | 18 " | 597 x 457 | |
| 22006540508020 | 20 " | 654 x 508 | |
| 22007750610020 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 22000350021020 | 1/2" | 35 x 21 | |
| 22000430027020 | 3/4" | 43 x 27 | |
| 22000510033020 | 1 " | 51 x 33 | |
| 22000640042020 | 1.1/4" | 64 x 42 | |
| 22000730048020 | 1.1/2" | 73 x 48 | |
| 22000920060020 | 2 " | 92 x 60 | |
| 22001050085020 | 2.1/2" | 105 x 85 | |
| 22001270089020 | 3 " | 127 x 89 | |
| 22001390120020 | 3.1/2" | 139 x 120 | |
| 22001570131020 | 4 " | 157 x 131 | |
| 22001850160020 | 5 " | 185 x 160 | |
| 22002160168020 | 6 " | 216 x 168 | |
| 22002700219020 | 8 " | 270 x 219 | |
| 22003240273020 | 10 " | 324 x 273 | |
| 22003810324020 | 12 " | 381 x 324 | |
| 22004120374020 | 14 " | 412 x 374 | |
| 22004700425020 | 16 " | 470 x 425 | |
| 22005330489020 | 18 " | 533 x 489 | |
| 22005850510020 | 20 " | 585 x 510 | |
| 22006900610020 | 24 " | 690 x 610 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 22500460018016 | DN 10 | PN 10-40 | 46 x 18 | |
| 22500510022016 | DN 15 | PN 10-40 | 51 x 22 | |
| 22500610028016 | DN 20 | PN 10-40 | 61 x 28 | |
| 22500710034016 | DN 25 | PN 10-40 | 71 x 34 | |
| 22500820043016 | DN 32 | PN 10-40 | 82 x 43 | |
| 22500920049016 | DN 40 | PN 10-40 | 92 x 49 | |
| 22501070061016 | DN 50 | PN 10-40 | 107 x 61 | |
| 22501270077016 | DN 65 | PN 10-40 | 127 x 77 | |
| 22501420089016 | DN 80 | PN 10-40 | 142 x 89 | |
| 22501620115016 | DN 100 | PN 10-16 | 162 x 115 | |
| 22501680115016 | DN 100 | PN 25-40 | 168 x 115 | |
| 22501920141016 | DN 125 | PN 10-16 | 192 x 141 | |
| 22501940141016 | DN 125 | PN 25-40 | 194 x 141 | |
| 22502180169016 | DN 150 | PN 10-16 | 218 x 169 | |
| 22502240169016 | DN 150 | PN 25-40 | 224 x 169 | |
| 22502730220016 | DN 200 | PN 10-16 | 273 x 220 | |
| 22502840220016 | DN 200 | PN 25 | 284 x 220 | |
| 22502900220016 | DN 200 | PN 40 | 290 x 220 | |
| 22503280273016 | DN 250 | PN 10 | 328 x 273 | |
| 22503290273016 | DN 250 | PN 16 | 329 x 273 | |
| 22503400273016 | DN 250 | PN 25 | 340 x 273 | |
| 22503520273016 | DN 250 | PN 40 | 352 x 273 | |
| 22503780324016 | DN 300 | PN 10 | 378 x 324 | |
| 22503840324016 | DN 300 | PN 16 | 384 x 324 | |
| 22504000324016 | DN 300 | PN 25 | 400 x 324 | |
| 22504170324016 | DN 300 | PN 40 | 417 x 324 | |
| 22504380326016 | DN 350 | PN 10 | 438 x 356 | |
| 22504440356016 | DN 350 | PN 16 | 444 x 356 | |
| 22504570356016 | DN 350 | PN 25 | 457 x 356 | |
| 22504740356016 | DN 350 | PN 40 | 474 x 356 | |
| 22504890407016 | DN 400 | PN 10 | 489 x 407 | |
| 22504950407016 | DN 400 | PN 16 | 495 x 407 | |
| 22505140407016 | DN 400 | PN 25 | 514 x 407 | |
| 22505460407016 | DN 400 | PN 40 | 546 x 407 | |
| 22505390458016 | DN 450 | PN 10 | 539 x 458 | |
| 22505550458016 | DN 450 | PN 16 | 555 x 458 | |
| 22505640458016 | DN 450 | PN 25 | 564 x 458 | |
| 22505710458016 | DN 450 | PN 40 | 571 x 458 | |
| 22505940508016 | DN 500 | PN 10 | 594 x 508 | |
| 22506170508016 | DN 500 | PN 16 | 617 x 508 | |
| 22506240508016 | DN 500 | PN 25 | 624 x 508 | |
| 22506280508016 | DN 500 | PN 40 | 628 x 508 | |
| 22506950610016 | DN 600 | PN 10 | 695 x 610 | |
| 22507340610016 | DN 600 | PN 16 | 734 x 610 | |
| 22507310610016 | DN 600 | PN 25 | 731 x 610 | |
| 22507470610016 | DN 600 | PN 40 | 747 x 610 | |
| 22508100712016 | DN 700 | PN 10 | 810 x 712 | |
| 22508040712016 | DN 700 | PN 16 | 804 x 712 | |
| 22508330712016 | DN 700 | PN 25 | 833 x 712 | |
| 22508500720016 |
