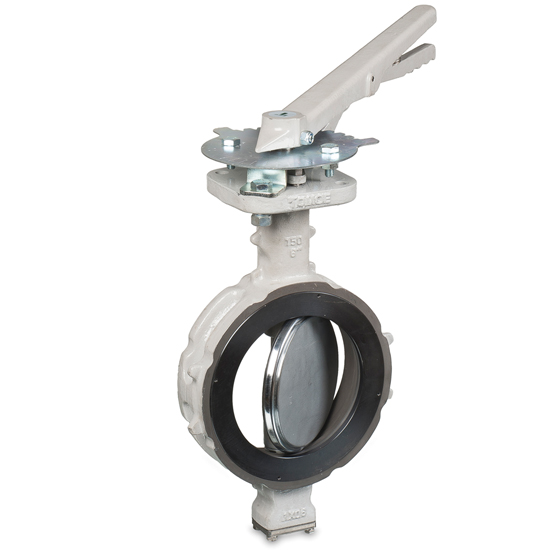

Selecteer een uitvoering

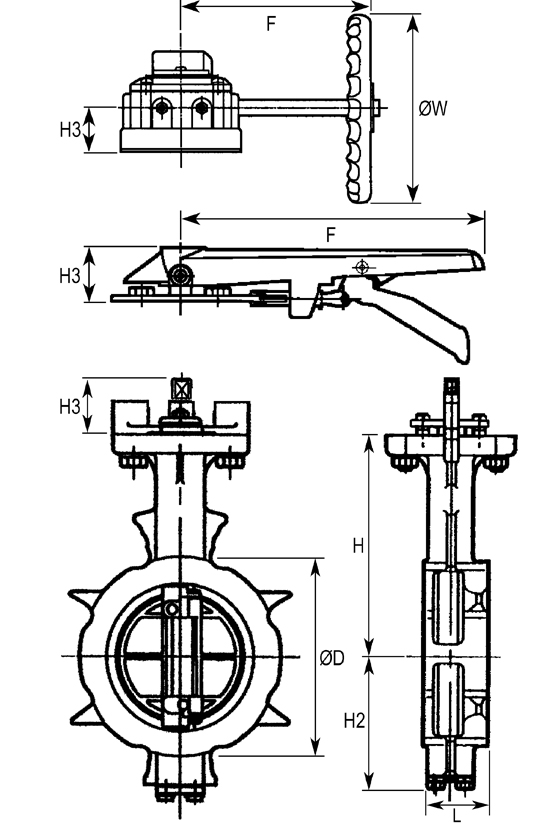

Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 F Gewicht (kg) Bestellen
1063323210050 50 43 125 97 74 91 220 3,7
1063323210065 65 46 138 117 85 91 220 4,8
1063323210080 80 46 147 127 95 106 319 7,1
1063323210100 100 52 170 152 110 106 319 8,1
1063323210125 125 56 185 183 139 106 319 12,0
1063323210150 150 57 205 213 164 137 471 15,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 / ØW F Gewicht (kg) Bestellen
1063323220050 50 43 125 97 74 64 / 100 160 5,9
1063323220065 65 46 138 117 85 64 / 100 160 7,0
1063323220080 80 46 147 127 95 64 / 100 160 8,7
1063323220100 100 52 170 152 110 64 / 100 160 9,7
1063323220125 125 56 185 183 139 74 / 200 183 18,0
1063323220150 150 57 205 213 164 77 / 200 183 22,0
1063323220200 200 62 235 263 190 72 / 280 246 38,0
1063323220250 250 70 283 325 236 97 / 355 335 69,0
1063323220300 300 80 310 368 246 97 / 355 335 76,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 Gewicht (kg) Bestellen
1063323230050 50 43 125 97 74 48 2,6
1063323230065 65 46 138 117 85 48 3,0
1063323230080 80 46 147 127 95 53 4,1
1063323230100 100 52 170 152 110 53 6,2
1063323230125 125 56 185 183 139 53 7,0
1063323230150 150 57 205 213 164 56 11,0
1063323230200 200 62 235 263 190 63 13,8
1063323230250 250 70 283 325 236 108 45,0
1063323230300 300 80 310 368 246 111 50,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 F Gewicht (kg) Bestellen
1063323110050 50 43 125 97 74 91 220 3,7
1063323110065 65 46 138 117 85 91 220 4,8
1063323110080 80 46 147 127 95 106 319 7,1
1063323110100 100 52 170 152 110 106 319 8,1
1063323110125 125 56 185 183 139 106 319 12,0
1063323110150 150 57 205 213 164 137 471 15,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 / ØW F Gewicht (kg) Bestellen
1063323120050 50 43 125 97 74 64 / 100 160 5,9
1063323120065 65 46 138 117 85 64 / 100 160 7,0
1063323120080 80 46 147 127 95 64 / 100 160 8,7
1063323120100 100 52 170 152 110 64 / 100 160 9,7
1063323120125 125 56 185 183 139 74 / 200 183 18,0
1063323120150 150 57 205 213 164 77 / 200 183 22,0
1063323120200 200 62 235 263 190 72 / 280 246 38,0
1063323120250 250 70 283 325 236 97 / 355 335 69,0
1063323120300 300 80 310 368 246 97 / 355 335 76,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 Gewicht (kg) Bestellen
1063323130050 50 43 125 97 74 48 2,6
1063323130065 65 46 138 117 85 48 3,0
1063323130080 80 46 147 127 95 53 4,1
1063323130100 100 52 170 152 110 53 6,2
1063323130125 125 56 185 183 139 53 7,0
1063323130150 150 57 205 213 164 56 11,0
1063323130200 200 62 235 263 190 63 13,8
1063323130250 250 70 283 325 236 108 45,0
1063323130300 300 80 310 368 246 111 50,0
Opmerking: Voor pneumatisch bediende vlinderklep, zie: Automatiseringsset Tomoe vlinderkleppen met Air Torque aandrijvingen.

Opties

  • uitvoering voor ANSI 150#

Ook leverbaar

  • fire Safe
  • uitvoering voor hogere temperaturen
  • compleet met pneumatische of elektrische aandrijving
