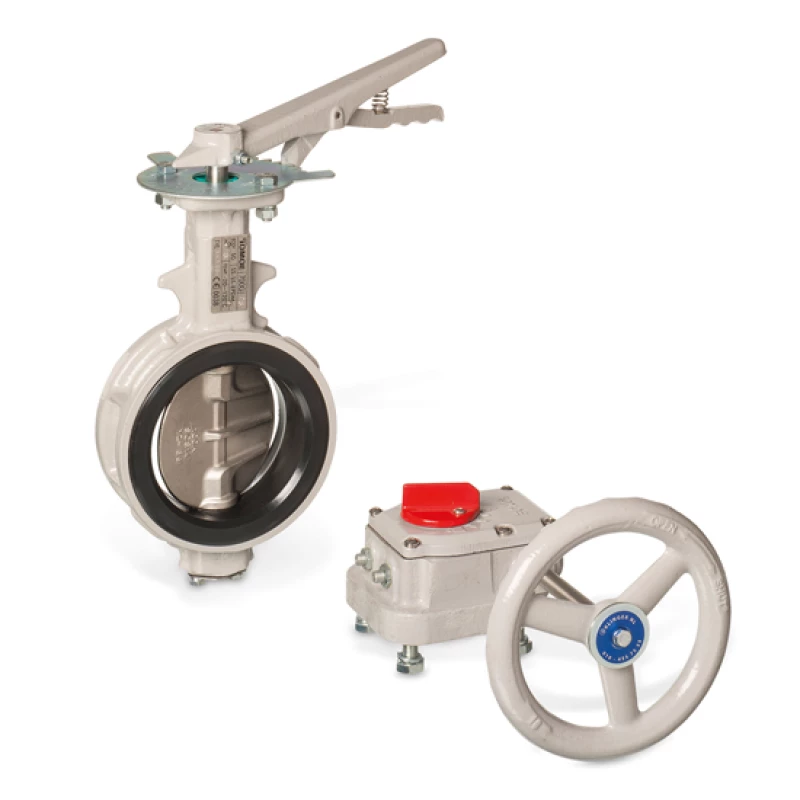

Selecteer een uitvoering

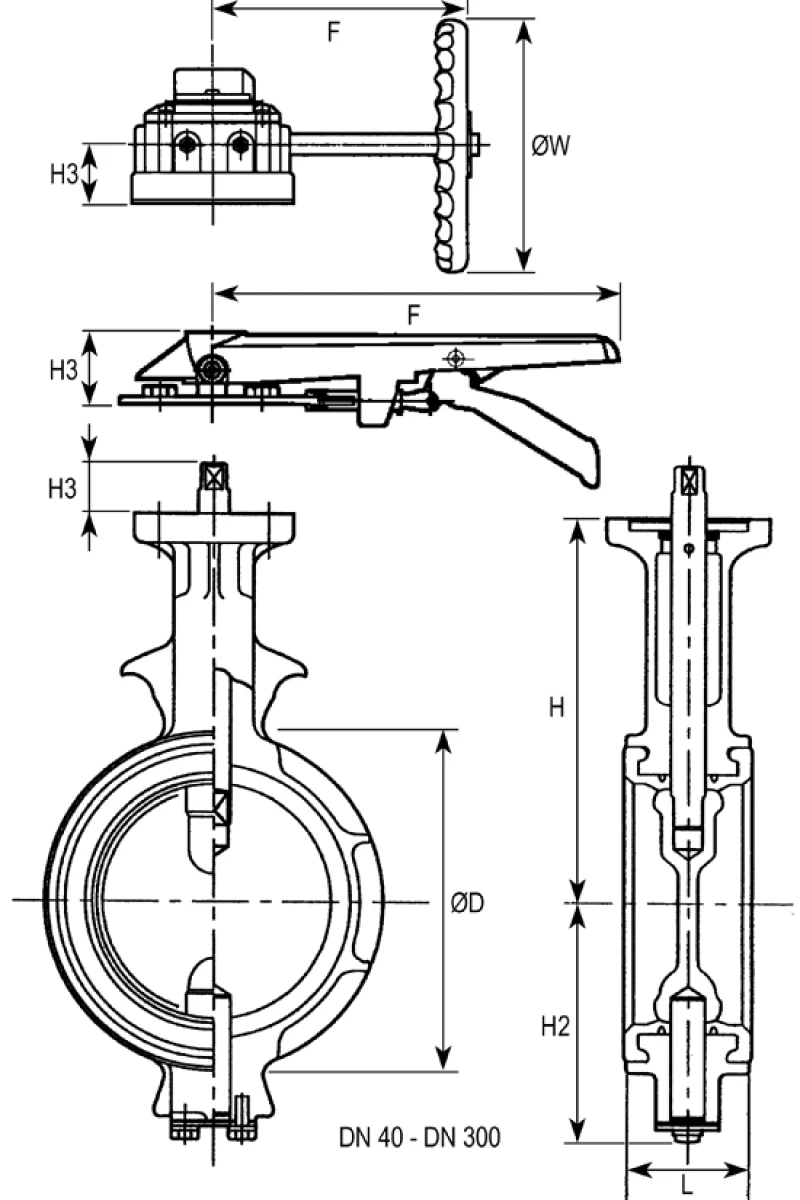

Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 F Gewicht (kg) Bestellen
1066324111050 50 43 138 102 68 39 220 2,9
1066324111065 65 46 151 122 79 39 220 3,6
1066324111080 80 46 156 138 86 39 220 3,7
1066324111100 100 52 167 163 103 39 220 4,5
1066324111125 125 56 191 192 118 43 300 7,1
1066324111150 150 56 202 218 135 43 300 8,7
1066324111200 200 60 227 273 177 42 350 12,6
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 / ØW F Gewicht (kg) Bestellen
1066324121050 50 43 138 102 68 30 / 100 160 4,1
1066324121065 65 46 151 122 79 30 / 100 160 4,8
1066324121080 80 46 156 138 86 30 / 100 160 4,9
1066324121100 100 52 167 163 103 30 / 100 160 5,7
1066324121125 125 56 191 192 118 35 / 160 174 9,6
1066324121150 150 56 202 218 135 35 / 160 174 11,2
1066324121200 200 60 227 273 177 42 / 200 198 18,0
1066324121250 250 68 280 328 215 42 / 200 198 25,6
1066324121300 300 78 312 383 253 48 / 200 223 38,4
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 Gewicht (kg) Bestellen
1066324131050 50 43 138 102 68 22 1,8
1066324131065 65 46 151 122 79 22 2,5
1066324131080 80 46 156 138 86 23 2,6
1066324131100 100 52 167 163 103 23 3,4
1066324131125 125 56 191 192 118 28 5,4
1066324131150 150 56 202 218 135 28 7,0
1066324131200 200 60 227 273 177 29 10,4
1066324131250 250 68 280 328 215 34 18,0
1066324131300 300 78 312 383 253 34 25,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 F Gewicht (kg) Bestellen
1066324211050 50 43 138 102 68 39 220 2,9
1066324211065 65 46 151 122 79 39 220 3,6
1066324211080 80 46 156 138 86 39 220 3,7
1066324211100 100 52 167 163 103 39 220 4,5
1066324211125 125 56 191 192 118 43 300 7,1
1066324211150 150 56 202 218 135 43 300 8,7
1066324211200 200 60 227 273 177 42 350 12,6
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 / ØW F Gewicht (kg) Bestellen
1066324221050 50 43 138 102 68 30 / 100 160 4,1
1066324221065 65 46 151 122 79 30 / 100 160 4,8
1066324221080 80 46 156 138 86 30 / 100 160 4,9
1066324221100 100 52 167 163 103 30 / 100 160 5,7
1066324221125 125 56 191 192 118 35 / 160 174 9,6
1066324221150 150 56 202 218 135 35 / 160 174 11,2
1066324221200 200 60 227 273 177 42 / 200 198 18,0
1066324221250 250 68 280 328 215 42 / 200 198 25,6
1066324221300 300 78 312 383 253 48 / 200 223 38,4
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 Gewicht (kg) Bestellen
1066324231050 50 43 138 102 68 22 1,8
1066324231065 65 46 151 122 79 22 2,5
1066324231080 80 46 156 138 86 23 2,6
1066324231100 100 52 167 163 103 28 3,4
1066324231125 125 56 191 192 118 28 5,4
1066324231150 150 56 202 218 135 28 7,0
1066324231200 200 60 227 273 177 29 10,4
1066324231250 250 68 280 328 215 34 18,0
1066324231300 300 78 312 383 253 34 25,0
Opmerking: Voor pneumatisch bediende vlinderklep, zie: Automatiseringsset Tomoe vlinderkleppen met Air Torque aandrijvingen.

Opties

  • uitvoering voor ANSI 150#
