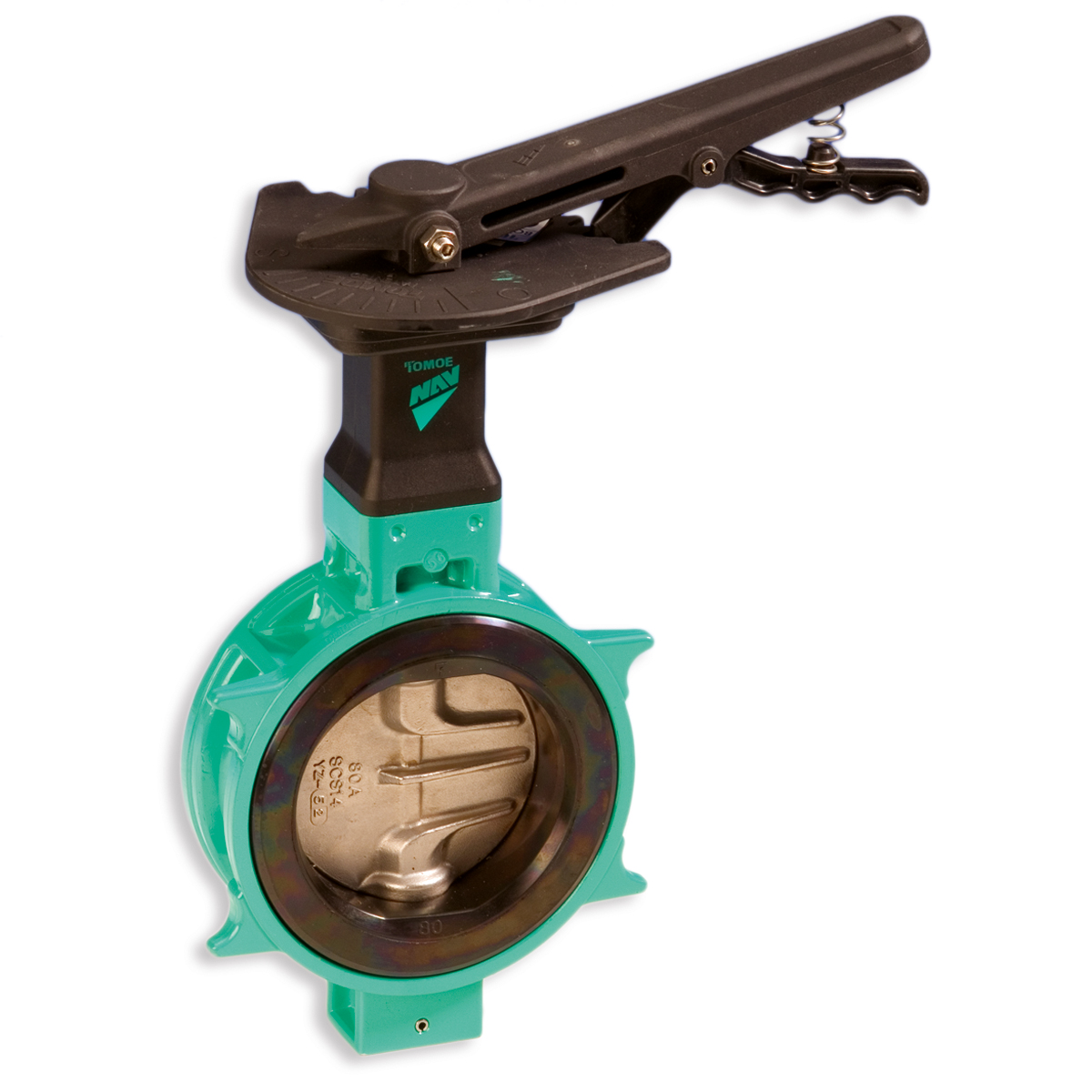

Selecteer een uitvoering

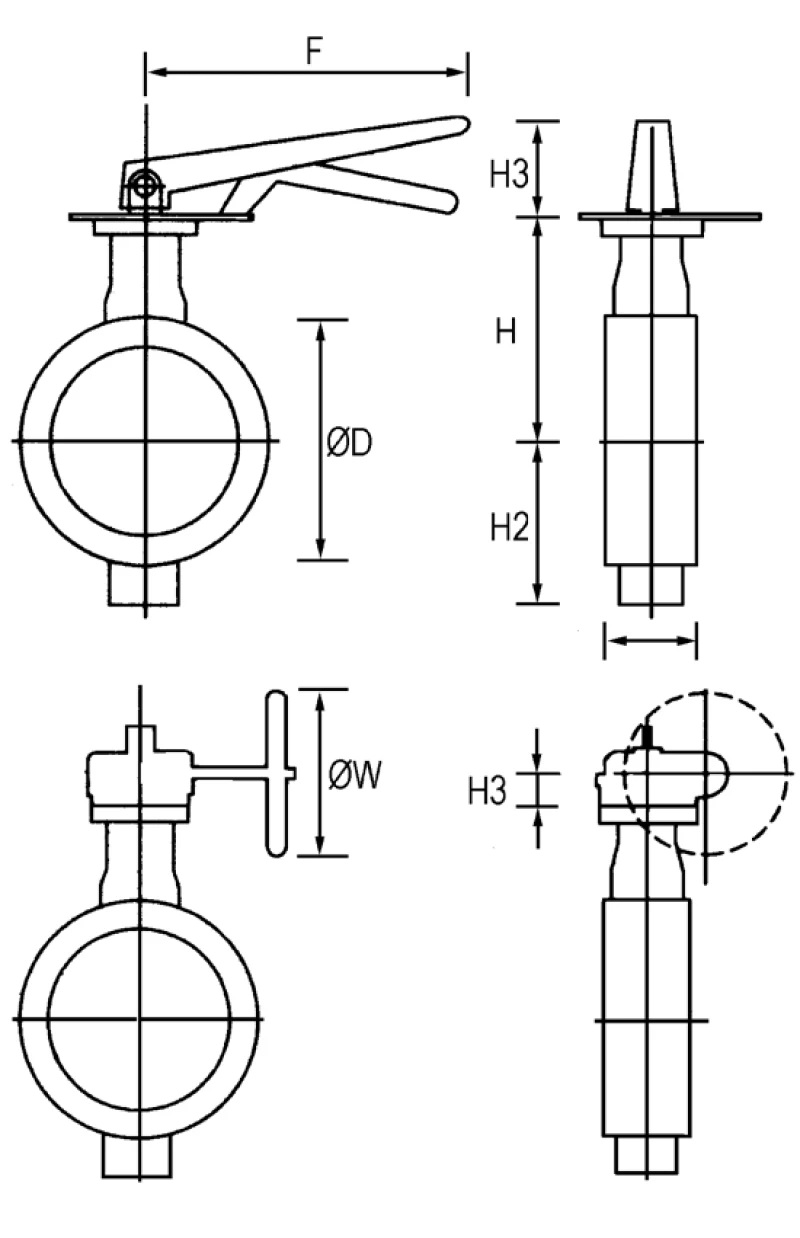

Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 F Gewicht (kg) Bestellen
1010234110040 40 35 132 80 61 49 160 0,8
1010234110050 50 43 138 91 66 49 160 0,9
1010234110065 65 46 151 111 72 49 160 1,1
1010234110080 80 46 156 127 85 60 190 1,4
1010234110100 100 52 167 147 98 60 190 1,9
1010234110125 125 56 191 178 115 60 190 3,0
1010234110150 150 56 202 207 131 71 270 5,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 / ØW F Gewicht (kg) Bestellen
1010234120040 40 35 132 80 61 25 /  70 90 0,8
1010234120050 50 43 138 91 66 25 /  70 90 1,0
1010234120065 65 46 151 111 72 25 /  70 90 1,2
1010234120080 80 46 156 127 85 25 /  70 90 1,7
1010234120100 100 52 167 147 98 30 /  70 90 2,2
1010234120125 125 56 191 178 115 30 /  70 90 3,8
1010234120150 150 56 202 207 131 49 / 125 159 4,7
1010234120200 200 60 227 253 163 49 / 125 159 7,2
1010234120250 250 68 280 322 215 71 / 200 193 13,0
1010234120300 300 78 312 367 253 71 / 200 193 18,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 Gewicht (kg) Bestellen
1010234130040 40 35 132 80 61 21,5 0,5
1010234130050 50 43 138 90 68 21,5 0,5
1010234130065 65 46 151 115 79 21,5 1,0
1010234130080 80 46 156 126 86 22,5 1,0
1010234130100 100 52 167 146 103 22,5 1,5
1010234130125 125 56 191 181 118 27,5 3,0
1010234130150 150 56 202 211 135 27,5 4,0
1010234130200 200 60 227 256 177 30  6,0
1010234130250 250 68 280 322 215 35  11,0
1010234130300 300 78 312 367 253 35  17,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 F Gewicht (kg) Bestellen
1010234210040 40 35 132 80 61 49 160 0,8
1010234210050 50 43 138 91 66 49 160 0,9
1010234210065 65 46 151 111 72 49 160 1,1
1010234210080 80 46 156 127 85 60 190 1,4
1010234210100 100 52 167 147 98 60 190 1,9
1010234210125 125 56 191 178 115 60 190 3,0
1010234210150 150 56 202 207 131 71 270 5,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 / ØW F Gewicht (kg) Bestellen
1010234220040 40 35 132 80 61 25 /  70 90 0,8
1010234220050 50 43 138 91 66 25 /  70 90 1,0
1010234220065 65 46 151 111 72 25 /  70 90 1,2
1010234220080 80 46 156 127 85 25 /  70 90 1,7
1010234220100 100 52 167 147 98 30 /  70 90 2,2
1010234220125 125 56 191 178 115 30 /  70 90 3,8
1010234220150 150 56 202 207 131 49 / 125 159 4,7
1010234220200 200 60 227 253 163 49 / 125 159 7,2
1010234220250 250 68 280 322 215 71 / 200 193 13,0
1010234220300 300 78 312 367 253 71 / 200 193 18,0
Afmetingen (mm)
Art.nr. DN L H ØD H2 H3 Gewicht (kg) Bestellen
1010234230040 40 35 132 80 61 21,5 0,5
1010234230050 50 43 138 90 68 21,5 0,5
1010234230065 65 46 151 115 79 21,5 1,0
1010234230080 80 46 156 126 86 22,5 1,0
1010234230100 100 52 167 146 103 22,5 1,5
1010234230125 125 56 191 181 118 27,5 3,0
1010234230150 150 56 202 211 135 27,5 4,0
1010234230200 200 60 227 256 177 30  6,0
1010234230250 250 68 280 322 215 35  11,0
1010234230300 300 78 312 367 253 35  17,0
Opmerking: Voor pneumatisch bediende vlinderklep, zie: Automatiseringssets Vlinderkleppen met Air Torque aandrijvingen.

Opties

  • PPS klepblad (rvs kern met coating)
  • siliconen zitting (DN50 t/m DN200)
Contact

Voor meer informatie over onze Tomoe vlinderkleppen voor regeltoepassing kunt u contact opnemen met:
