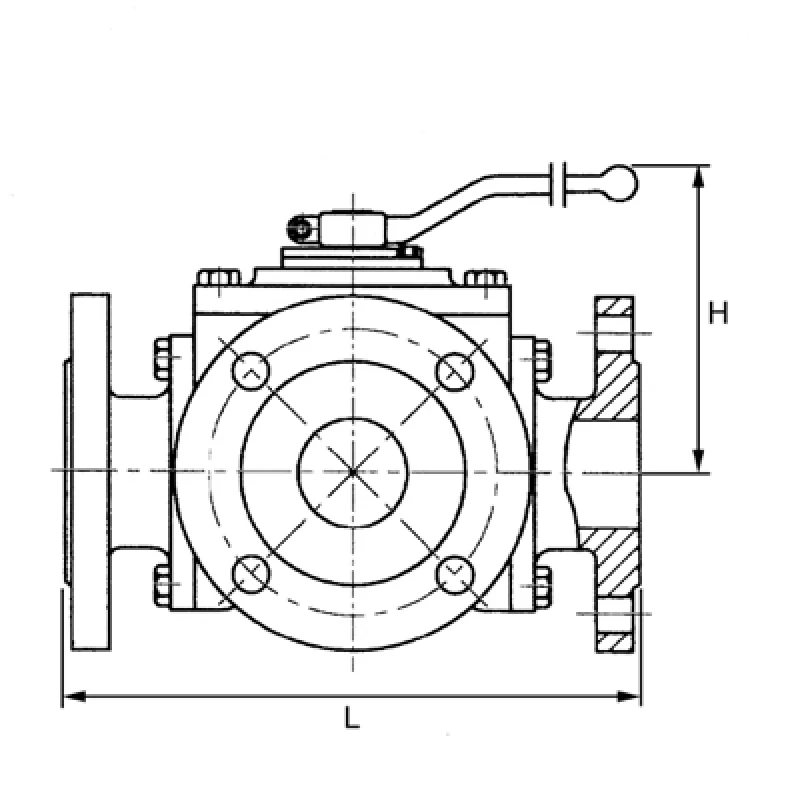

Afmetingen (mm) | Topflens | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | Lengte | Hoogte | ISO 5211 | Flensdiam. | Steekcirkel | Gewicht (kg) | Bestellen |
2512220100025 | 25 | 230 | 117 | F05 | 115 | 85 x 4 x 14 | 14,0 | |
2512220100040 | 40 | 260 | 136 | F07 | 150 | 110 x 4 x 18 | 22,0 | |
2512220100050 | 50 | 290 | 144 | F07 | 165 | 125 x 4 x 18 | 30,0 | |
2512220100065 | 65 | 340 | 182 | F10 | 185 | 145 x 4 x 18 | 47,0 | |
2512220100080 | 80 | 380 | 205 | F10 | 200 | 160 x 8 x 18 | 64,8 | |
2512220100100 | 100 | 430 | 220 | F12 | 235 | 180 x 8 x 18 | 95,0 | |
2512220100150 | 150 | 480 | *216 | F14 | 285 | 240 x 8 x 22 | 180,0 | |
2512220100200 | 200 | 600 | *258 | F14 | 340 | 295 x12 x 22 | 301,0 |
Afmetingen (mm) | Topflens | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | Lengte | Hoogte | ISO 5211 | Flensdiam. | Steekcirkel | Gewicht (kg) | Bestellen |
2512120100025 | 25 | 230 | 117 | F05 | 115 | 85 x 4 x 14 | 14,0 | |
2512120100040 | 40 | 260 | 136 | F07 | 150 | 110 x 4 x 18 | 22,0 | |
2512120100050 | 50 | 290 | 144 | F07 | 165 | 125 x 4 x 18 | 30,0 | |
2512120100065 | 65 | 340 | 182 | F10 | 185 | 145 x 4 x 18 | 47,0 | |
2512120100080 | 80 | 380 | 205 | F10 | 200 | 160 x 8 x 18 | 64,8 | |
2512120100100 | 100 | 430 | 220 | F12 | 235 | 180 x 8 x 18 | 95,0 | |
2512120100150 | 150 | 480 | *216 | F14 | 285 | 240 x 8 x 22 | 180,0 | |
2512120100200 | 200 | 600 | *258 | F14 | 340 | 295 x12 x 22 | 301,0 |

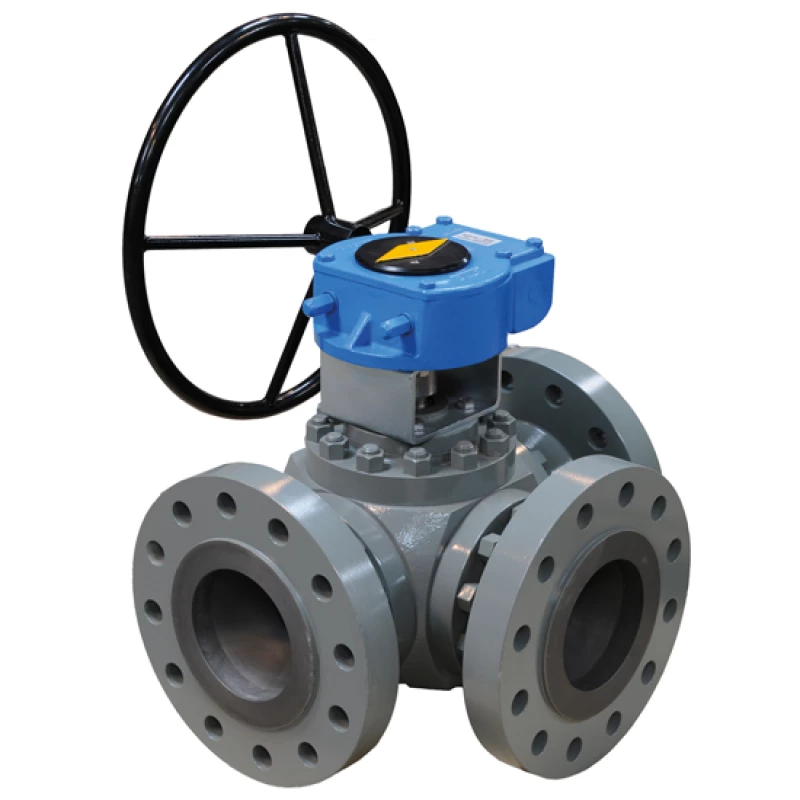

Type | KP-2512 |
Materiaal | Gietstaal EN-GP240GH |
Drukklasse | Zie tabel |
Kogel | RVS GX5CrNiMo19-11-2 |
Spindel | RVS X5CrNiMo17-12-2 |
Handgreep | WCB |
Afd.elementen | PTFE |
Spindelafdichting | PTFE |
|
|
Aansluiting | EN 1092-01 |
|
|
Temperatuur | -10°C tot +210°C (druk en temperatuur afhankelijk) |
Voor meer informatie over onze kogelkranen kunt u contact opnemen met:
