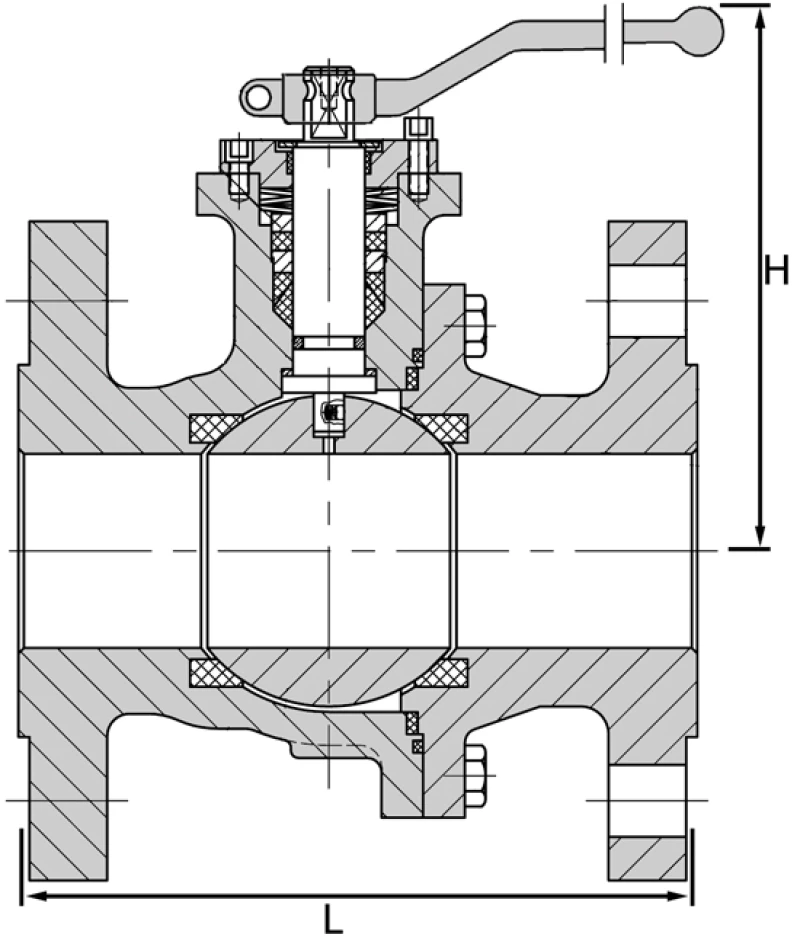

Afmetingen (mm) | Topflens | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | L | H | ISO 5211 | Flensdiam. | Steekcirkel | Gewicht (kg) | Bestellen |
2535210201015 | 1/2" | 108 | 105 | F05 | 89 | 60,3 x 4 x 15,9 | 2,5 | |
2535210201020 | 3/4" | 117 | 107 | F05 | 99 | 69,8 x 4 x 15,9 | 3,2 | |
2535210201025 | 1 " | 127 | 113 | F05 | 108 | 79,4 x 4 x 15,9 | 4,2 | |
2535210201040 | 1.1/2" | 165 | 145 | F07 | 127 | 98,4 x 4 x 15,9 | 7,4 | |
2535210201050 | 2 " | 178 | 153 | F07 | 152 | 120,6 x 4 x 19,0 | 10,4 | |
2535210201080 | 3 " | 203 | 205 | F07 | 191 | 152,4 x 4 x 19,0 | 22,5 | |
2535210201100 | 4 " | 229 | 220 | F10 | 229 | 190,5 x 8 x 19,0 | 31,6 | |
2535210201150 | 6 " | 394 | 284 | F12 | 279 | 241,3 x 8 x 22,2 | 81,1 | |
2535210201200 | 8 " | 457 | 362 | F14 | 343 | 298,4 x 8 x 22,2 | 115,0 |
Afmetingen (mm) | Topflens | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | L | H | ISO 5211 | Flensdiam. | Steekcirkel | Gewicht (kg) | Bestellen |
2535220201015 | 1/2" | 140 | 103 | F05 | 95 | 66,7 x 4x 15,9 | 3,1 | |
2535220201020 | 3/4" | 152 | 105 | F05 | 118 | 82,5 x 4x 19,0 | 4,5 | |
2535220201025 | 1 " | 165 | 111 | F05 | 124 | 88,9 x 4x 19,0 | 5,0 | |
2535220201040 | 1.1/2" | 191 | 129 | F07 | 156 | 114,3 x 4x 22,2 | 10,1 | |
2535220201050 | 2 " | 216 | 138 | F07 | 165 | 127,0 x 8x 19,0 | 12,8 | |
2535220201080 | 3 " | 283 | 187 | F07 | 210 | 168,3 x 8 x 22,2 | 27,0 | |
2535220201100 | 4 " | 305 | 201 | F10 | 254 | 200,0 x 8x 22,2 | 44,0 | |
2535220201150 | 6 " | 403 | 268 | F12 | 318 | 269,9 x12x 22,2 | 100,0 | |
2535220201200 | 8 " | 502 | 338 | F14 | 381 | 330,2 x12x 25,4 | 172,0 |

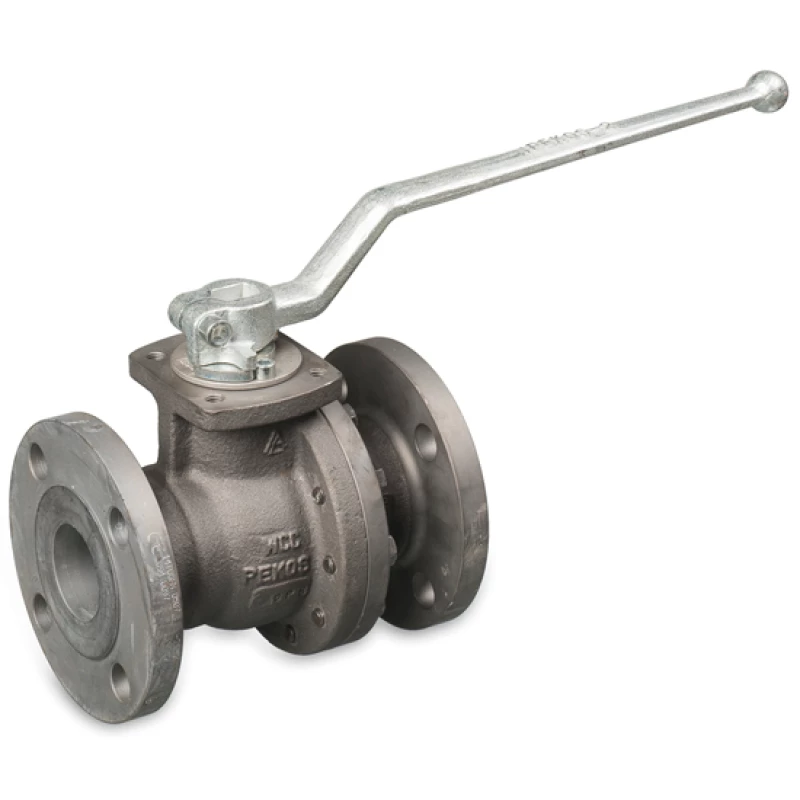

Type | KP-2535 |
Materiaal | Staal A 216 WCC |
Drukklasse | ANSI 150lbs / 300lbs |
Kogel | RVS A 351CF8M |
Spindel | RVS AISI 316 |
Handgreep | WCB |
Afd.elementen | Gemodificeerd PTFE |
Spindelafdichting | PTFE / Grafiet / FPM O-ring |
Huisafdichting | Grafiet |
|
|
Inbouwlengte | ANSI B 16.10 |
Aansluiting | Flensaansluiting ANSI B 16.5 |
|
|
Temperatuur | -29°C tot +240°C (druk en temperatuur afhankelijk) |
|
|
Opmerking | Afhankelijk van de toepassing wordt vanaf doorlaat 8" een mechanische aandrijving geadviseerd. |
