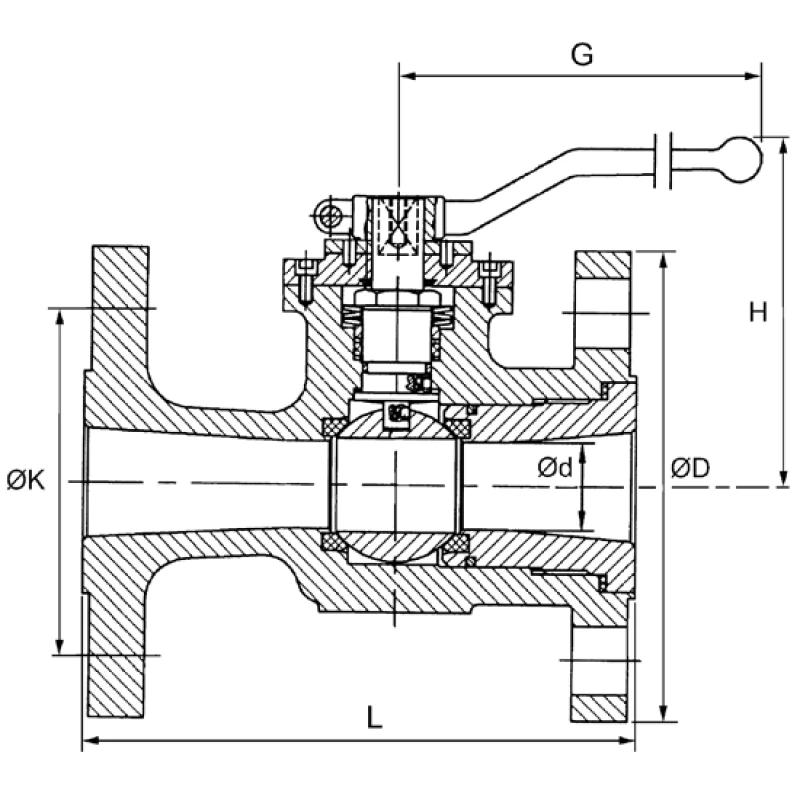

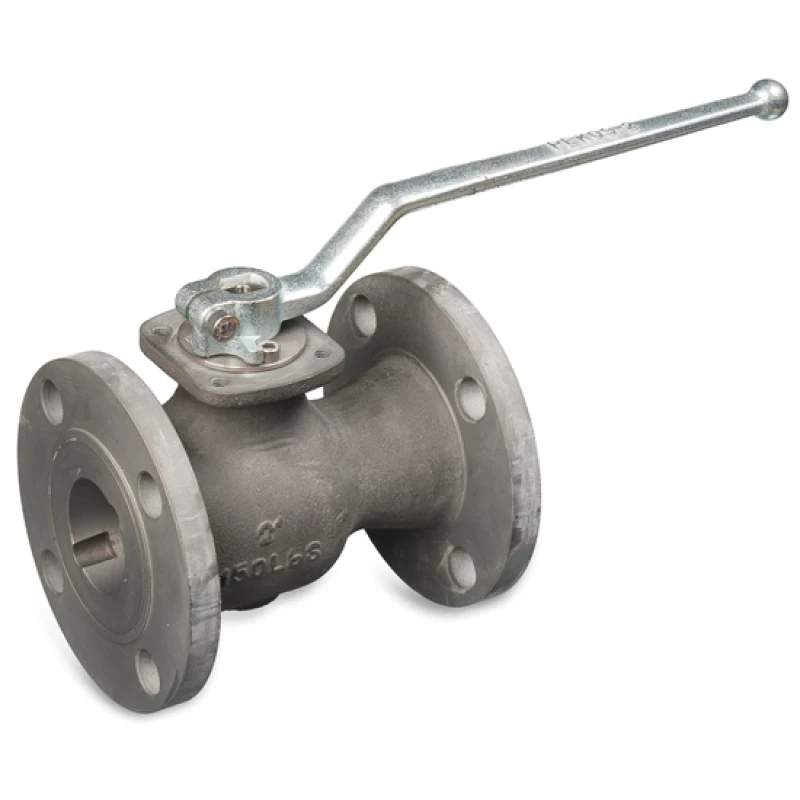

Afmetingen (mm) | Topflens | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | L | H | ISO 5211 | Flensdiam. | Steekcirkel | Gewicht (kg) | Bestellen |
2525210201014 | 1/2" | 108 | 91 | F05 | 89 | 60,3 x 4 x 15,9 | 1,9 | |
2525210201019 | 3/4" | 117 | 94 | F05 | 99 | 69,8 x 4 x 15,9 | 2,4 | |
2525210201024 | 1 " | 127 | 102 | F05 | 108 | 79,4 x 4 x 15,9 | 3,4 | |
2525210201039 | 1.1/2" | 165 | 115 | F05 | 127 | 98,4 x 4 x 15,9 | 5,5 | |
2525210201049 | 2 " | 178 | 129 | F07 | 152 | 120,6 x 4 x 19,0 | 9,0 | |
2525210201079 | 3 " | 203 | 150 | F07 | 191 | 152,4 x 4 x 19,0 | 17,5 | |
2525210201099 | 4 " | 229 | 187 | F10 | 229 | 190,5 x 8 x 19,0 | 25,8 | |
2525210201149 | 6 " | 267 | 244 | F10 | 279 | 241,3 x 8 x 22,2 | 46,3 | |
2525210201199 | 8 " | 292 | 268 | F12 | 343 | 298,4 x 8 x 22,2 | 78,0 | |
2525210201249 | 10 " | 330 | 333 | F14 | 406 | 361,9 x 12 x 25,4 | 12,0 |
Afmetingen (mm) | Topflens | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | L | H | ISO 5211 | Flensdiam. | Steekcirkel | Gewicht (kg) | Bestellen |
2525220201024 | 1 " | 165 | 102 | F05 | 124 | 88,9 x 4x 15,9 | 4,8 | |
2525220201039 | 1.1/2" | 190 | 115 | F05 | 156 | 114,3 x 4x 22,2 | 9,0 | |
2525220201049 | 2 " | 216 | 129 | F07 | 165 | 127,0 x 8x 19,0 | 12,0 | |
2525220201079 | 3 " | 283 | 150 | F07 | 210 | 168,3 x 8x 22,2 | 25,0 | |
2525220201099 | 4 " | 305 | 187 | F10 | 254 | 200,0 x 8x 22,2 | 39,0 | |
2525220201149 | 6 " | 403 | 244 | F12 | 318 | 269,9 x12x 22,2 | 75,0 |
Type | KP-2525 |
Materiaal | Staal A 216 WCC |
Drukklasse | ANSI 150lbs / 300 lbs |
Kogel | RVS A 351CF8M |
Spindel | RVS AISI 316 |
Handgreep | WCB |
Afd.elementen | Gemodificeerd PTFE |
Spindelafdichting | PTFE / Grafiet / FPM O-ring |
Huisafdichting | Grafiet |
Inbouwlengte | ANSI B 16.10 |
Aansluiting | Flensaansluiting ANSI B 16.5 |
Temperatuur | -29°C tot +240°C (druk en temperatuur afhankelijk) |
|
|
Opmerking | Afhankelijk van de toepassing wordt vanaf doorlaat 8" een mechanische aandrijving geadviseerd. |
