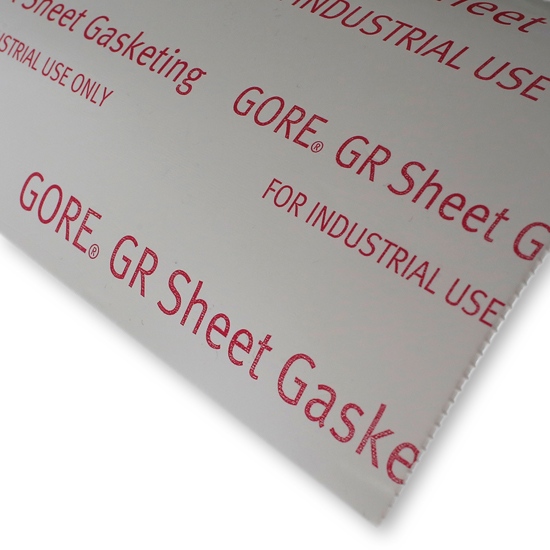

GORE®GR Sheet | GR Sheet Gasketing
PTFE multidirectioneel geëxpandeerd
Geschikt voor: nagenoeg alle media in alle flensverbindingen van (zwak) kunststof tot en met staal PN 6 t/m PN 40, van -240 t/m + 230 ºC
- Groot aanpassingsvermogen.
- Hoge uitblaasveiligheid.
- Chemische bestendigheid van PTFE.
- Groot druk/temperatuurbereik.
- Extreem lage vloeineiging, natrekken nagenoeg nooit nodig.
- Zowel voor stalen, kunststof, geëmailleerde, en ptfe of rubber beklede flenzen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 19115001500405 | 0,5 | 1524 x 1524 | |
| 19115001500410 | 1 | 1524 x 1524 | |
| 19115001500416 | 1,6 | 1524 x 1524 | |
| 19115001500420 | 2 | 1524 x 1524 | |
| 19115001500430 | 3,2 | 1524 x 1524 | |
| 19115001500450 | 5 | 1524 x 1524 | |
| 19115001500460 | 6,4 | 1524 x 1524 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 19100460018017 | DN 10 | PN 10-40 | 46 x 18 | |
| 19100510022017 | DN 15 | PN 10-40 | 51 x 22 | |
| 19100610028017 | DN 20 | PN 10-40 | 61 x 28 | |
| 19100710034017 | DN 25 | PN 10-40 | 71 x 34 | |
| 19100820043017 | DN 32 | PN 10-40 | 82 x 43 | |
| 19100920049017 | DN 40 | PN 10-40 | 92 x 49 | |
| 19101070061017 | DN 50 | PN 10-40 | 107 x 61 | |
| 19101270077017 | DN 65 | PN 10-40 | 127 x 77 | |
| 19101420089017 | DN 80 | PN 10-40 | 142 x 89 | |
| 19101620115017 | DN 100 | PN 10-16 | 162 x 115 | |
| 19101680115017 | DN 100 | PN 25-40 | 168 x 115 | |
| 19101920141017 | DN 125 | PN 10-16 | 192 x 141 | |
| 19101940141017 | DN 125 | PN 25-40 | 194 x 141 | |
| 19102180169017 | DN 150 | PN 10-16 | 218 x 169 | |
| 19102240169017 | DN 150 | PN 25-40 | 224 x 169 | |
| 19102730220017 | DN 200 | PN 10-16 | 273 x 220 | |
| 19102840220017 | DN 200 | PN 25 | 284 x 220 | |
| 19102900220017 | DN 200 | PN 40 | 290 x 220 | |
| 19103280273017 | DN 250 | PN 10 | 328 x 273 | |
| 19103290273017 | DN 250 | PN 16 | 329 x 273 | |
| 19103400273018 | DN 250 | PN 25 | 340 x 273 | |
| 19103520273017 | DN 250 | PN 40 | 352 x 273 | |
| 19103780324017 | DN 300 | PN 10 | 378 x 324 | |
| 19103840324017 | DN 300 | PN 16 | 384 x 324 | |
| 19104000324017 | DN 300 | PN 25 | 400 x 324 | |
| 19104170324017 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 19100460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 19100510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 19100610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 19100710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 19100820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 19100920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 19101070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 19101270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 19101420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 19101620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 19101860115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 19101920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 19101940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 19102180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 19102240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 19102730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 19102840220020 | DN 200 | PN 25 | 284 x 220 | |
| 19102900220020 | DN 200 | PN 40 | 290 x 220 | |
| 19103280273020 | DN 250 | PN 10 | 328 x 273 | |
| 19103290273020 | DN 250 | PN 16 | 329 x 273 | |
| 19103400273020 | DN 250 | PN 25 | 340 x 273 | |
| 19103520273020 | DN 250 | PN 40 | 352 x 273 | |
| 19103780324020 | DN 300 | PN 10 | 378 x 324 | |
| 19103840324020 | DN 300 | PN 16 | 384 x 324 | |
| 19104000324020 | DN 300 | PN 25 | 400 x 324 | |
| 19104170324020 | DN 300 | PN 40 | 417 x 324 | |
| 19104380356020 | DN 350 | PN 10 | 438 x 356 | |
| 19104440356020 | DN 350 | PN 16 | 444 x 356 | |
| 19104570356020 | DN 350 | PN 25 | 457 x 356 | |
| 19104740356020 | DN 350 | PN 40 | 474 x 356 | |
| 19104890407020 | DN 400 | PN 10 | 489 x 407 | |
| 19104950407020 | DN 400 | PN 16 | 495 x 407 | |
| 19105140407020 | DN 400 | PN 25 | 514 x 407 | |
| 19105460407020 | DN 400 | PN 40 | 546 x 407 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 19100460018032 | DN 10 | PN 10-40 | 46 x 18 | |
| 19100510022032 | DN 15 | PN 10-40 | 51 x 22 | |
| 19100610028032 | DN 20 | PN 10-40 | 61 x 28 | |
| 19100710034032 | DN 25 | PN 10-40 | 71 x 34 | |
| 19100820043030 | DN 32 | PN 10-40 | 82 x 43 | |
| 19100920049032 | DN 40 | PN 10-40 | 92 x 49 | |
| 19101070061031 | DN 50 | PN 10-40 | 107 x 61 | |
| 19101270077032 | DN 65 | PN 10-40 | 127 x 77 | |
| 19101420089032 | DN 80 | PN 10-40 | 142 x 89 | |
| 19101620115030 | DN 100 | PN 10-16 | 162 x 115 | |
| 19101680115032 | DN 100 | PN 25-40 | 168 x 115 | |
| 19101920141032 | DN 125 | PN 10-16 | 192 x 141 | |
| 19101940141032 | DN 125 | PN 25-40 | 194 x 141 | |
| 19102180169030 | DN 150 | PN 10-16 | 218 x 169 | |
| 19102240169032 | DN 150 | PN 25-40 | 224 x 169 | |
| 19102730220031 | DN 200 | PN 10-16 | 273 x 220 | |
| 19102840220032 | DN 200 | PN 25 | 284 x 220 | |
| 19102900220032 | DN 200 | PN 40 | 290 x 220 | |
| 19103280273032 | DN 250 | PN 10 | 328 x 273 | |
| 19103290273032 | DN 250 | PN 16 | 329 x 273 | |
| 19103400273033 | DN 250 | PN 25 | 340 x 273 | |
| 19103520273032 | DN 250 | PN 40 | 352 x 273 | |
| 19103780324032 | DN 300 | PN 10 | 378 x 324 | |
| 19103840324032 | DN 300 | PN 16 | 384 x 324 | |
| 19104000324032 | DN 300 | PN 25 | 400 x 324 | |
| 19104170304032 | DN 300 | PN 40 | 417 x 324 | |
| 19104380356032 | DN 350 | PN 10 | 438 x 356 | |
| 19104440356032 | DN 350 | PN 16 | 444 x 356 | |
| 19104570356032 | DN 350 | PN 25 | 457 x 356 | |
| 19104740356032 | DN 350 | PN 40 | 474 x 356 | |
| 19104890407032 | DN 400 | PN 10 | 489 x 407 | |
| 19104950407032 | DN 400 | PN 16 | 495 x 407 | |
| 19105140407032 | DN 400 | PN 25 | 514 x 407 | |
| 19105460407032 | DN 400 | PN 40 | 546 x 407 | |
| 19105390458032 | DN 450 | PN 10 | 539 x 458 | |
| 19105550458032 | DN 450 | PN 16 | 555 x 458 | |
| 19105640458032 | DN 450 | PN 25 | 564 x 458 | |
| 19105710458032 | DN 450 | PN 40 | 571 x 458 | |
| 19105940508032 | DN 500 | PN 10 | 594 x 508 | |
| 19106170508032 | DN 500 | PN 16 | 617 x 508 | |
| 19106240508032 | DN 500 | PN 25 | 624 x 508 | |
| 19106280508032 | DN 500 | PN 40 | 628 x 508 | |
| 19106950610031 | DN 600 | PN 10 | 695 x 610 | |
| 19107340610032 | DN 600 | PN 16 | 734 x 610 | |
| 19107310610032 | DN 600 | PN 25 | 731 x 610 | |
| 19107470610032 | DN 600 | PN 40 | 747 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 19100480021017 | 1/2" | 48 x 21 | |
| 19100570027017 | 3/4" | 57 x 27 | |
| 19100670033017 | 1 " | 67 x 33 | |
| 19100760042017 | 1.1/4" | 76 x 42 | |
| 19100860048017 | 1.1/2" | 86 x 48 | |
| 19101050060016 | 2 " | 105 x 60 | |
| 19101240073017 | 2.1/2" | 124 x 73 | |
| 19101370089017 | 3 " | 137 x 89 | |
| 19101750114017 | 4 " | 175 x 114 | |
| 19102220158017 | 6 " | 222 x 168 | |
| 19102790219017 | 8 " | 279 x 219 | |
| 19103400273015 | 10 " | 340 x 273 | |
| 19104100324017 | 12 " | 410 x 324 | |
| 19104510356017 | 14 " | 451 x 356 | |
| 19105140406017 | 16 " | 514 x 406 | |
| 19105500457017 | 18 " | 550 x 457 | |
| 19106060508017 | 20 " | 606 x 508 | |
| 19107180610017 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 19100540021017 | 1/2" | 54 x 21 | |
| 19100670027017 | 3/4" | 67 x 27 | |
| 19100730033017 | 1 " | 73 x 33 | |
| 19100830042017 | 1.1/4" | 83 x 42 | |
| 19100950048017 | 1.1/2" | 95 x 48 | |
| 19101110060017 | 2 " | 111 x 60 | |
| 19101300073017 | 2.1/2" | 130 x 73 | |
| 19101490089017 | 3 " | 149 x 89 | |
| 19101810114017 | 4 " | 181 x 114 | |
| 19102510168017 | 6 " | 251 x 168 | |
| 19103080219017 | 8 " | 308 x 219 | |
| 19103620273017 | 10 " | 362 x 273 | |
| 19104220324017 | 12 " | 422 x 324 | |
| 19104860356017 | 14 " | 486 x 356 | |
| 19105400406017 | 16 " | 540 x 406 | |
| 19105970457017 | 18 " | 597 x 457 | |
| 19106540508017 | 20 " | 654 x 508 | |
| 19107750610017 | 24 " | 775 x 610 |
Specificaties
| Type | GR Sheet Gasketing |
| Materiaal | 100% PTFE (geexpandeerd) |
| Kleur | aan beide zijden wit, éénzijdig bedrukt. |
|
|
|
| Maximale temperatuur | 270 ºC,kortstondige piek 315 ºC* |
| Samendrukbaarheid volgens ASTM F36A | 55% |
| Terugvering volgens ASTM F36A | 15% |
| Gasdoorlaatbaarheid | "TA LUFT" eis VDI 2440. |
| Uitblaasveiligheid (TÜV) | VDI 2200. |
| Chemische bestendigheid | nagenoeg onbeperkt** |
|
|
|
|

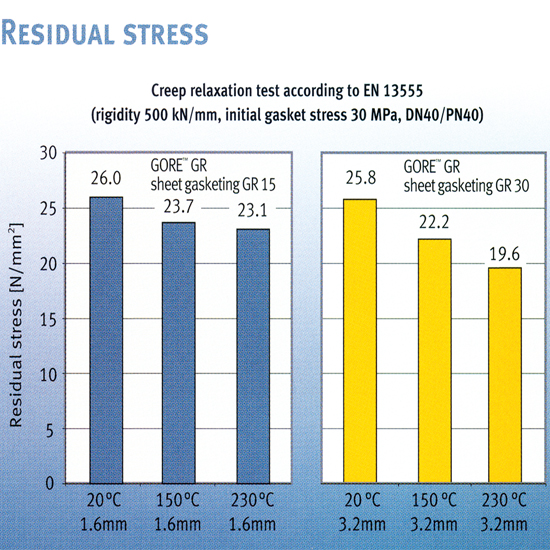

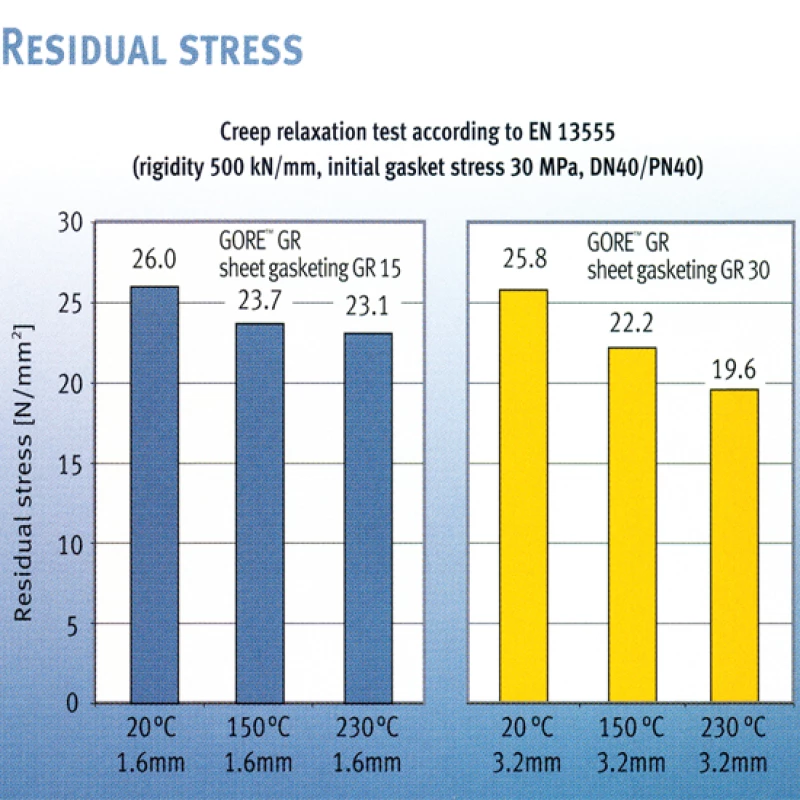

Min. vlaktedruk EN13555
|
|
| Qmin(L0,1 / 3 mm) | 21 MPa |
|
|
|
|
* Vraag advies bij temperaturen > 230 ºC en drukken > 40 bar.
|
|
|
** m.u.v. gesmolten of opgeloste alkalimetalen, en elementaire fluor (verbindingen) bij hogere temperaturen en drukken.
|
|
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
|
|
|
|
UITSLUITEND VOOR INDUSTRIEEL GEBRUIK.
|
|
|
