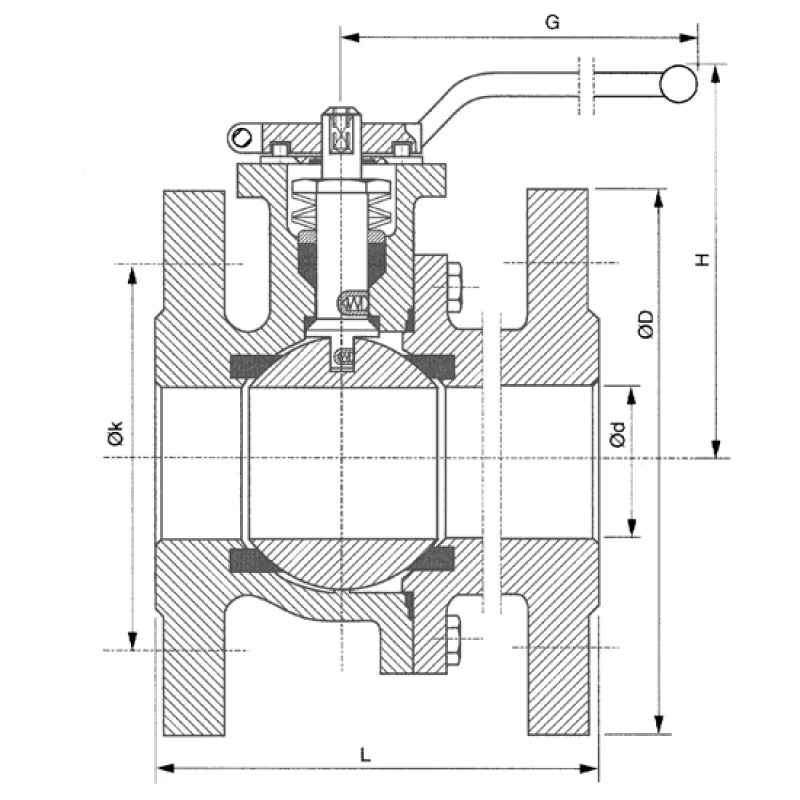

Afmetingen (mm) | Topflens | Aansluitmaten (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | L | H | ISO 5211 | Flensdiam. | Steekcirkel | Gewicht (kg) | Bestellen |
2508120100015 | 15 | 115 | 100 | F05 | 95 | 65 x 4 x 14 | 3,0 | |
2508120100020 | 20 | 120 | 102 | F05 | 105 | 75 x 4 x 14 | 3,8 | |
2508120100025 | 25 | 125 | 110 | F05 | 115 | 85 x 4 x 14 | 4,7 | |
2508120100030 | 32 | 130 | 115 | F05 | 140 | 100 x 4 x 18 | 6,5 | |
2508120100040 | 40 | 140 | 129 | F07 | 150 | 110 x 4 x 18 | 8,2 | |
2508120100050 | 50 | 150 | 137 | F07 | 165 | 125 x 4 x 18 | 11,2 | |
2508120100065 | 65 | 170 | 150 | F07 | 185 | 145 x 4 x 18 | 16,2 | |
2508120100080 | 80 | 180 | 187 | F10 | 200 | 160 x 8 x 18 | 22,2 | |
2508120100100 | 100 | 190 | 201 | F10 | 220 | 180 x 8 x 18 | 27,0 | |
2508120100125 | 125 | 325 | 247 | F12 | 250 | 210 x 8 x 18 | 56,0 | |
2508120100150 | 150 | 350 | 264 | F12 | 285 | 240 x 8 x 22 | 77,0 | |
2508120100200 | 200 | 400 | 334 | F14 | 340 | 295 x 12 x 22 | 134,0 |

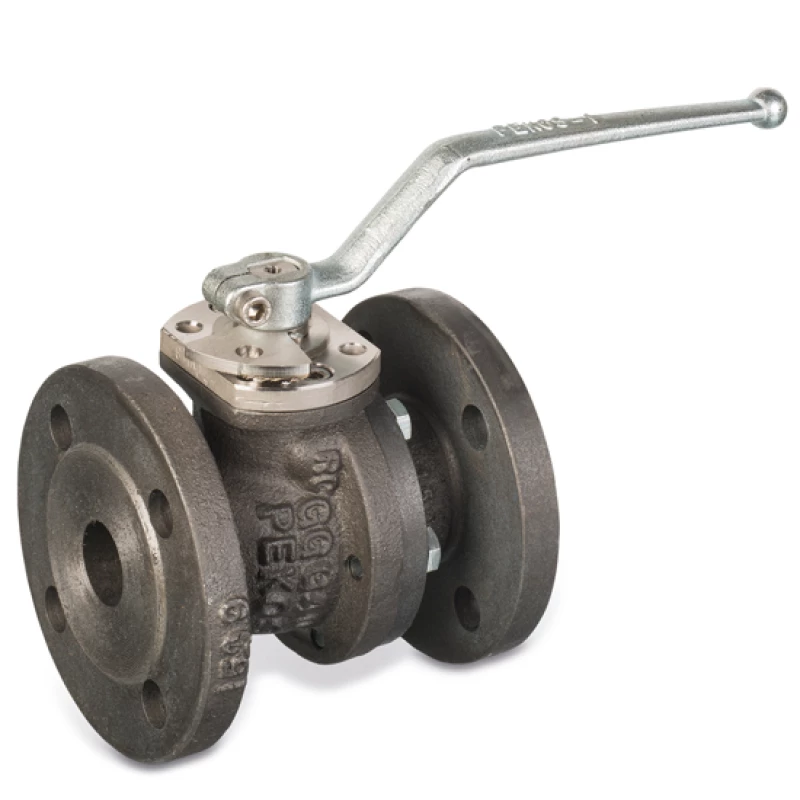

Type | KP-2508 |
Materiaal | Nodulair gietijzer EN-GJL-400-15 |
Drukklasse | PN 16 |
Kogel | RVS G-X 20 Cr 14 |
Spindel | RVS X20Cr13 |
Handgreep | WCB |
Afd.elementen | Gemodificeerd PTFE |
Spindelafdichting | PTFE+FG |
|
|
Inbouwlengte | EN 558-1 serie 14 (DIN 15 t/m DN 100) |
EN 558-1 serie 15 (DN 125 t/m DN 250) | |
Aansluiting | EN 1092-02 |
|
|
Temperatuur | -10°C tot +240°C (druk en temperatuur afhankelijk) |
|
|
Opmerking | Afhankelijk van de toepassing wordt vanaf DN 150 een mechanische aandrijving geadviseerd. |
