Selecteer een uitvoering

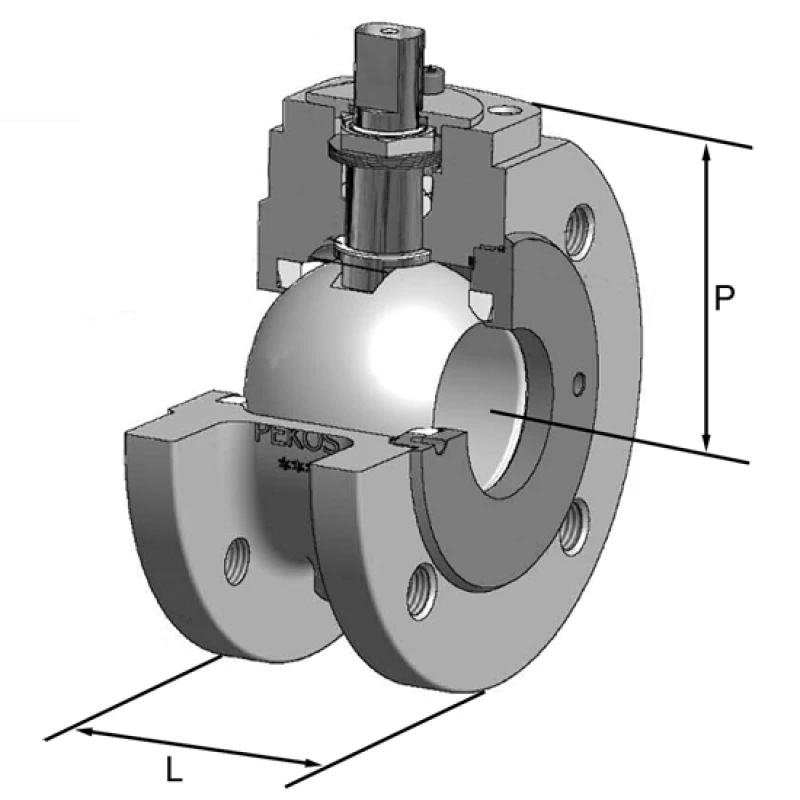

Afmetingen (mm) Topflens Aansluitmaten (mm)
Art.nr. DN Doorlaat L H ISO 5211 P Steekcirkel Gewicht (kg) Bestellen
2531140100015 15 15 35 102 F05/1 37 65 x 4 x M12 1,6
2531140100020 20 20 35 102 F05/1 37, 75 x 4 x M12 1,9
2531140100025 25 25 43 106 F05/1 41 85 x 4 x M12 2,7
2531140100030 32 30 51 117 F05/2 63 100 x 4 x M16 5,3
2531140100040 40 38 64 129 F07 75 110 x 4 x M16 5,0
2531140100050 50 50 85 137 F07 83 125 x 4 x M16 7,4
2531140100080 80 76 120 185 F10 110 160 x 8 x M16 14,4
Afmetingen (mm) Topflens Aansluitmaten (mm)
Art.nr. DN Doorlaat L H ISO 5211 P Steekcirkel Gewicht (kg) Bestellen
2531140100065 65 64 103 152 F07 97 145 x 4 x M16 10,3
2531140100080 80 75 120 185 F10 110 160 x 8 x M16 14,4
2531140100100 100 98 155 199 F10 126 180 x 8 x M16 21,8

Ook leverbaar

  • stalen uitvoering type KP-2530
  • compleet met pneumatische of elektrische bediening, zie hoofdstuk Automatisering
  • met wormwielkast
  • ANSI uitvoering
  • fire safe uitvoering
