GORE® Universal Pipe Gasket | Style 800
PTFE multidirectioneel geëxpandeerd, met diffusiedichte laag

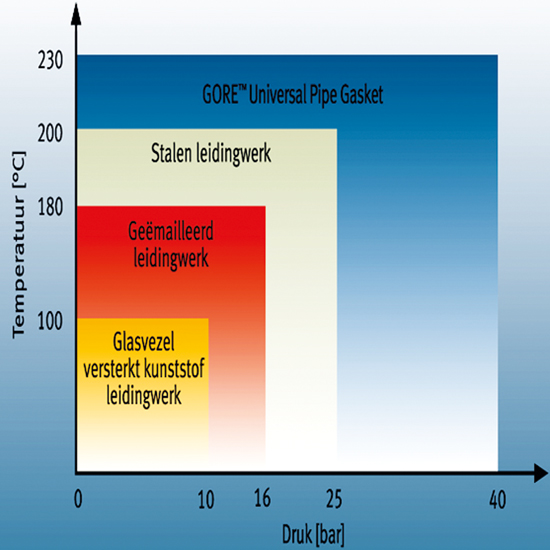

Geschikt voor: nagenoeg alle media in alle flensverbindingen van (zwak) kunstof tot en met staal PN 6 t/m PN 40, van -240 t/m + 230 ºC
- Groot aanpassingsvermogen.
- Hoge uitblaasveiligheid.
- Chemische bestendigheid van PTFE.
- Groot druk/temperatuurbereik.
- Extreem lage vloeineiging, natrekken nagenoeg nooit nodig.

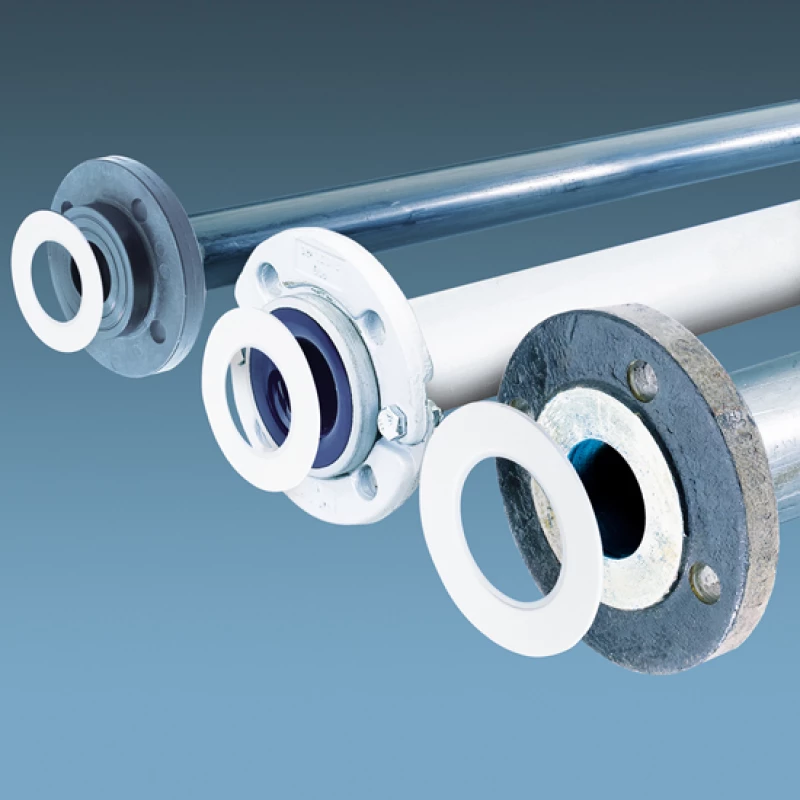

- Zowel voor stalen, kunststof, geëmailleerde, en ptfe of rubber beklede flenzen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 19100460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 19100510022016 | DN 15 | PN 10-40 | 51 x 22 | |
| 19100610028016 | DN 20 | PN 10-40 | 61 x 28 | |
| 19100710034016 | DN 25 | PN 10-40 | 71 x 34 | |
| 19100820043016 | DN 32 | PN 10-40 | 82 x 43 | |
| 19100920049016 | DN 40 | PN 10-40 | 92 x 49 | |
| 19101070061016 | DN 50 | PN 10-40 | 107 x 61 | |
| 19101270077016 | DN 65 | PN 10-40 | 127 x 77 | |
| 19101420089016 | DN 80 | PN 10-40 | 142 x 89 | |
| 19101620115016 | DN 100 | PN 10-16 | 162 x 115 | |
| 19101680115016 | DN 100 | PN 25-40 | 168 x 115 | |
| 19101920141016 | DN 125 | PN 10-16 | 192 x 141 | |
| 19101940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 19102180169016 | DN 150 | PN 10-16 | 218 x 169 | |
| 19102240169016 | DN 150 | PN 25-40 | 224 x 169 | |
| 19102730220016 | DN 200 | PN 10-16 | 273 x 220 | |
| 19102840220016 | DN 200 | PN 25 | 284 x 220 | |
| 19102900220016 | DN 200 | PN 40 | 290 x 220 | |
| 19103280273016 | DN 250 | PN 10 | 328 x 273 | |
| 19103290273015 | DN 250 | PN 16 | 329 x 273 | |
| 19103400273017 | DN 250 | PN 25 | 340 x 273 | |
| 19103520273016 | DN 250 | PN 40 | 352 x 273 | |
| 19103780324016 | DN 300 | PN 10 | 378 x 324 | |
| 19103840324015 | DN 300 | PN 16 | 384 x 324 | |
| 19104000324016 | DN 300 | PN 25 | 400 x 324 | |
| 19104170324016 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 19100460018030 | DN 10 | PN 10-40 | 46 x 18 | |
| 19100510022031 | DN 15 | PN 10-40 | 51 x 22 | |
| 19100610028031 | DN 20 | PN 10-40 | 61 x 28 | |
| 19100710034031 | DN 25 | PN 10-40 | 71 x 34 | |
| 19100820043032 | DN 32 | PN 10-40 | 82 x 43 | |
| 19100920049031 | DN 40 | PN 10-40 | 92 x 49 | |
| 19101070061032 | DN 50 | PN 10-40 | 107 x 61 | |
| 19101270077031 | DN 65 | PN 10-40 | 127 x 77 | |
| 19101420089031 | DN 80 | PN 10-40 | 142 x 89 | |
| 19101620115032 | DN 100 | PN 10-16 | 162 x 115 | |
| 19101680115032 | DN 100 | PN 25-40 | 168 x 115 | |
| 19101920141031 | DN 125 | PN 10-16 | 192 x 141 | |
| 19101940141031 | DN 125 | PN 25-40 | 194 x 141 | |
| 19102180169032 | DN 150 | PN 10-16 | 218 x 169 | |
| 19102240169031 | DN 150 | PN 25-40 | 224 x 169 | |
| 19102730220032 | DN 200 | PN 10-16 | 273 x 220 | |
| 19102840220031 | DN 200 | PN 25 | 284 x 220 | |
| 19102900220031 | DN 200 | PN 40 | 290 x 220 | |
| 19103280273030 | DN 250 | PN 10 | 328 x 273 | |
| 19103290273030 | DN 250 | PN 16 | 329 x 273 | |
| 19103400273032 | DN 250 | PN 25 | 340 x 273 | |
| 19103520273030 | DN 250 | PN 40 | 352 x 273 | |
| 19103780324031 | DN 300 | PN 10 | 378 x 324 | |
| 19103840324030 | DN 300 | PN 16 | 384 x 324 | |
| 19104000324030 | DN 300 | PN 25 | 400 x 324 | |
| 19104170324030 | DN 300 | PN 40 | 417 x 324 | |
| 19104380356030 | DN 350 | PN 10 | 438 x 356 | |
| 19104440356030 | DN 350 | PN 16 | 444 x 356 | |
| 19104570356030 | DN 350 | PN 25 | 457 x 356 | |
| 19104740356030 | DN 350 | PN 40 | 474 x 356 | |
| 19104890407031 | DN 400 | PN 10 | 489 x 407 | |
| 19104950407030 | DN 400 | PN 16 | 495 x 407 | |
| 19105140407031 | DN 400 | PN 25 | 514 x 407 | |
| 19105460407030 | DN 400 | PN 40 | 546 x 407 | |
| 19105390458030 | DN 450 | PN 10 | 539 x 458 | |
| 19105550458030 | DN 450 | PN 16 | 555 x 458 | |
| 19105640458030 | DN 450 | PN 25 | 564 x 458 | |
| 19105710458030 | DN 450 | PN 40 | 571 x 458 | |
| 19105940508030 | DN 500 | PN 10 | 594 x 508 | |
| 19106170508030 | DN 500 | PN 16 | 617 x 508 | |
| 19106240508030 | DN 500 | PN 25 | 624 x 508 | |
| 19106280508030 | DN 500 | PN 40 | 628 x 508 | |
| 19106950610032 | DN 600 | PN 10 | 695 x 610 | |
| 19107340610030 | DN 600 | PN 16 | 734 x 610 | |
| 19107310610030 | DN 600 | PN 25 | 731 x 610 | |
| 19107470610030 | DN 600 | PN 40 | 747 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 19100480021016 | 1/2" | 48 x 21 | |
| 19100570027016 | 3/4" | 57 x 27 | |
| 19100670033016 | 1 " | 67 x 33 | |
| 19100760042016 | 1.1/4" | 76 x 42 | |
| 19100860048016 | 1.1/2" | 86 x 48 | |
| 19101050060017 | 2 " | 105 x 60 | |
| 19101240073016 | 2.1/2" | 124 x 73 | |
| 19101370089016 | 3 " | 137 x 89 | |
| 19101750114016 | 4 " | 175 x 114 | |
| 19102220168016 | 6 " | 222 x 168 | |
| 19102790219016 | 8 " | 279 x 219 | |
| 19103400273016 | 10 " | 340 x 273 | |
| 19104100324016 | 12 " | 410 x 324 | |
| 19104510356015 | 14 " | 451 x 356 | |
| 19105140406016 | 16 " | 514 x 406 | |
| 19105500457016 | 18 " | 550 x 457 | |
| 19106060508016 | 20 " | 606 x 508 | |
| 19107180610016 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 19100480021030 | 1/2" | 48 x 21 | |
| 19100570027030 | 3/4" | 57 x 27 | |
| 19100670033031 | 1 " | 67 x 33 | |
| 19100760042030 | 1.1/4" | 76 x 42 | |
| 19100860048030 | 1.1/2" | 86 x 48 | |
| 19101050060031 | 2 " | 105 x 60 | |
| 19101240073030 | 2.1/2" | 124 x 73 | |
| 19101370089030 | 3 " | 137 x 89 | |
| 19101750114030 | 4 " | 175 x 114 | |
| 19102220168031 | 6 " | 222 x 168 | |
| 19102790219030 | 8 " | 279 x 219 | |
| 19103400273031 | 10 " | 340 x 273 | |
| 19104100324030 | 12 " | 410 x 324 | |
| 19104510356030 | 14 " | 451 x 356 | |
| 19105140406030 | 16 " | 514 x 406 | |
| 19105500457030 | 18 " | 550 x 457 | |
| 19106060508030 | 20 " | 606 x 508 | |
| 19107180610031 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 19100540021016 | 1/2" | 54 x 21 | |
| 19100670027015 | 3/4" | 67 x 27 | |
| 19100730033016 | 1 " | 73 x 33 | |
| 19100830042015 | 1.1/4" | 83 x 42 | |
| 19100950048016 | 1.1/2" | 95 x 48 | |
| 19101110060016 | 2 " | 111 x 60 | |
| 19101300073015 | 2.1/2" | 130 x 73 | |
| 19101490089017 | 3 " | 149 x 89 | |
| 19101810114016 | 4 " | 181 x 114 | |
| 19102510168016 | 6 " | 251 x 168 | |
| 19103080219016 | 8 " | 308 x 219 | |
| 19103620273016 | 10 " | 362 x 273 | |
| 19104220324016 | 12 " | 422 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 19100540021031 | 1/2" | 54 x 21 | |
| 19100670027031 | 3/4" | 67 x 27 | |
| 19100730033031 | 1 " | 73 x 33 | |
| 19100830042031 | 1.1/4" | 83 x 42 | |
| 19100950048031 | 1.1/2" | 95 x 48 | |
| 19101110060031 | 2 " | 111 x 60 | |
| 19101300073031 | 2.1/2" | 130 x 73 | |
| 19101480089031 | 3 " | 149 x 89 | |
| 19101810114031 | 4 " | 181 x 114 | |
| 19102510168031 | 6 " | 251 x 168 | |
| 19103080219031 | 8 " | 308 x 219 | |
| 19103620273031 | 10 " | 362 x 273 | |
| 19104220324031 | 12 " | 422 x 324 | |
| 19104860356031 | 14 " | 486 x 356 | |
| 19105400406031 | 16 " | 540 x 406 | |
| 19105970457031 | 18 " | 597 x 457 | |
| 19106540508031 | 20 " | 654 x 508 | |
| 19107750610031 | 24 " | 775 x 610 |
Specificaties
| Type | Style 800 |
| Materiaal | 100% PTFE (geexpandeerd) |
| Kleur | aan beide zijden wit, |
|
|
|
| Maximale temperatuur | 270 ºC,kortstondige piek 315 ºC* |
| Samendrukbaarheid volgens ASTM F36A | 55% |
| Terugvering volgens ASTM F36A | 15% |
| Gasdoorlaatbaarheid | conform "TA LUFT" eisen. |
| Uitblaasveiligheid (TÜV) | Klasse A/B/C 60 bar. |
|
|
|
| Chemische bestendigheid | nagenoeg onbeperkt** |
|
|
|
|
Afdichtingsfaktoren ASTM
|
|
| ASTM Y | 10 MPa |
| ASTM m | 2,4 |
|
|
|
|
Min. vlaktedruk EN13555
|
|
| Qmin(0,1) | 6 MPa |
|
|
|
|
* Vraag advies bij temperaturen > 230 ºC en drukken > 40 bar.
|
|
|
** m.u.v. gesmolten of opgeloste alkalimetalen, en elementaire fluor (verbindingen) bij hogere temperaturen en drukken.
|
|
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
|
|
|
|
UITSLUITEND VOOR INDUSTRIEEL GEBRUIK.
|
|
|
Niet geschikt voor gebruik bij de vervaardiging, verwerking of verpakking van
|
|
|
voedingsmiddelen, geneesmiddelen, cosmetica of medische producten.
|
|
