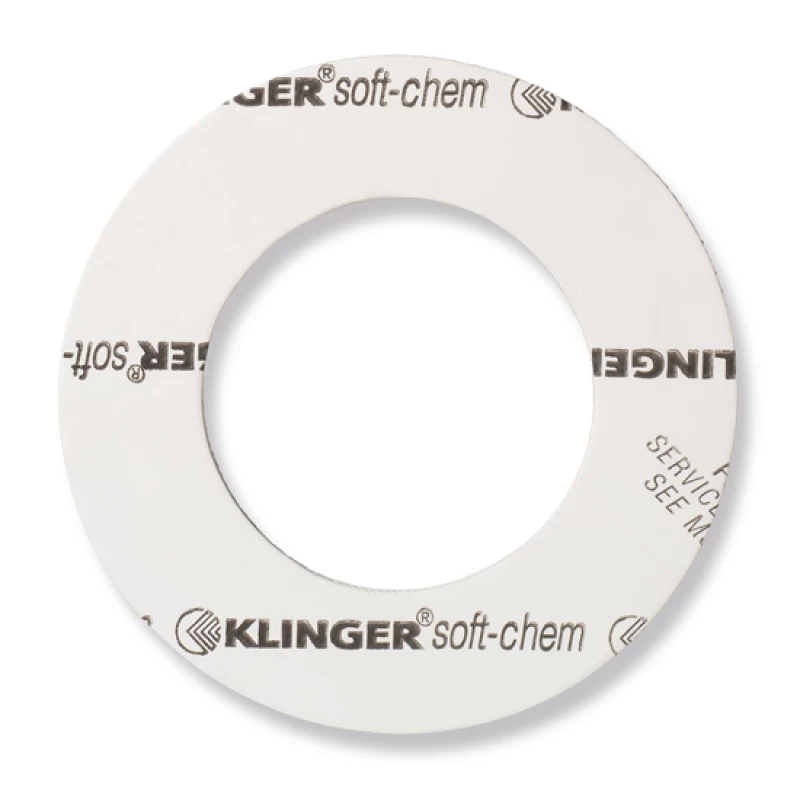

KLINGERsoft-chem | KLINGER®soft-chem
PTFE geëxpandeerd
Geschikt voor: nagenoeg alle media in flensverbindingen, waar slechts lage boutkrachten beschikbaar zijn. Ook geschikt voor voedingsmiddelen en farmaceutische industrie. Kijk voor de specificaties & bestellen met certificering onder food pakkingen".
- Hoge compressibiliteit.
- Chemische bestendigheid van PTFE.
- Beperkte vloeineiging.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
- Als band leverbaar, zie Klinger Sealex.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 19215001500410 | 1 | 1500 x 1500 | |
| 19215001500415 | 1,5 | 1500 x 1500 | |
| 19215001500420 | 2 | 1500 x 1500 | |
| 19215001500430 | 3 | 1500 x 1500 |
| Art.nr. | Maat | PN | Afmeting | Bestellen |
|---|---|---|---|---|
| 19200460018015 | DN 10 | PN 10-40 | 46 x 18 mm | |
| 19200510022015 | DN 15 | PN 10-40 | 51 x 22 mm | |
| 19200610028015 | DN 20 | PN 10-40 | 61 x 28 mm | |
| 19200710034015 | DN 25 | PN 10-40 | 71 x 34 mm | |
| 19200820043015 | DN 32 | PN 10-40 | 82 x 43 mm | |
| 19200920049015 | DN 40 | PN 10-40 | 92 x 49 mm | |
| 19201070061015 | DN 50 | PN 10-40 | 107 x 61 mm | |
| 19201270077015 | DN 65 | PN 10-40 | 127 x 77 mm | |
| 19201420089015 | DN 80 | PN 10-40 | 142 x 89 mm | |
| 19201620115015 | DN 100 | PN 10-16 | 162 x 115 mm | |
| 19201680115015 | DN 100 | PN 25-40 | 168 x 115 mm | |
| 19201920141015 | DN 125 | PN 10-16 | 192 x 141 mm | |
| 19201940141015 | DN 125 | PN 25-40 | 194 x 141 mm | |
| 19202180169015 | DN 150 | PN 10-16 | 218 x 169 mm | |
| 19202240169015 | DN 150 | PN 25-40 | 224 x 169 mm | |
| 19202730220015 | DN 200 | PN 10-16 | 273 x 220 mm | |
| 19202840220015 | DN 200 | PN 25 | 284 x 220 mm | |
| 19202900220015 | DN 200 | PN 40 | 290 x 220 mm | |
| 19203280273015 | DN 250 | PN 10 | 328 x 273 mm | |
| 19203290273015 | DN 250 | PN 16 | 329 x 273 mm | |
| 19203400273015 | DN 250 | PN 25 | 340 x 273 mm | |
| 19203520273015 | DN 250 | PN 40 | 352 x 273 mm | |
| 19203780324015 | DN 300 | PN 10 | 378 x 324 mm | |
| 19203840324015 | DN 300 | PN 16 | 384 x 324 mm | |
| 19204000324015 | DN 300 | PN 25 | 400 x 324 mm | |
| 19204170324015 | DN 300 | PN 40 | 417 x 324 mm |
| Art.nr. | Maat | PN | Afmeting | Bestellen |
|---|---|---|---|---|
| 19200460018020 | DN 10 | PN 10-40 | 46 x 18 mm | |
| 19200510022020 | DN 15 | PN 10-40 | 51 x 22 mm | |
| 19200610028020 | DN 20 | PN 10-40 | 61 x 28 mm | |
| 19200710034020 | DN 25 | PN 10-40 | 71 x 34 mm | |
| 19200820043020 | DN 32 | PN 10-40 | 82 x 43 mm | |
| 19200920049020 | DN 40 | PN 10-40 | 92 x 49 mm | |
| 19201070061020 | DN 50 | PN 10-40 | 107 x 61 mm | |
| 19201270077020 | DN 65 | PN 10-40 | 127 x 77 mm | |
| 19201420089020 | DN 80 | PN 10-40 | 142 x 89 mm | |
| 19201620115020 | DN 100 | PN 10-16 | 162 x 115 mm | |
| 19201680115020 | DN 100 | PN 25-40 | 168 x 115 mm | |
| 19201920141020 | DN 125 | PN 10-16 | 192 x 141 mm | |
| 19201940141020 | DN 125 | PN 25-40 | 194 x 141 mm | |
| 19202180169020 | DN 150 | PN 10-16 | 218 x 169 mm | |
| 19202240169020 | DN 150 | PN 25-40 | 224 x 169 mm | |
| 19202730220020 | DN 200 | PN 10-16 | 273 x 220 mm | |
| 19202840220020 | DN 200 | PN 25 | 284 x 220 mm | |
| 19202900220020 | DN 200 | PN 40 | 290 x 220 mm | |
| 19203280273020 | DN 250 | PN 10 | 328 x 273 mm | |
| 19203290273020 | DN 250 | PN 16 | 329 x 273 mm | |
| 19203400273020 | DN 250 | PN 25 | 340 x 273 mm | |
| 19203520273020 | DN 250 | PN 40 | 352 x 273 mm | |
| 19203780324020 | DN 300 | PN 10 | 378 x 324 mm | |
| 19203840324020 | DN 300 | PN 16 | 384 x 324 mm | |
| 19204000324020 | DN 300 | PN 25 | 400 x 324 mm | |
| 19204170324020 | DN 300 | PN 40 | 417 x 324 mm |
| Art.nr. | Maat | PN | Afmeting | Bestellen |
|---|---|---|---|---|
| 19200460018030 | DN 10 | PN 10-40 | 46 x 18 mm | |
| 19200510022030 | DN 15 | PN 10-40 | 51 x 22 mm | |
| 19200610028030 | DN 20 | PN 10-40 | 61 x 28 mm | |
| 19200710034030 | DN 25 | PN 10-40 | 71 x 34 mm | |
| 19200820043030 | DN 32 | PN 10-40 | 82 x 43 mm | |
| 19200920049030 | DN 40 | PN 10-40 | 92 x 49 mm | |
| 19201070061030 | DN 50 | PN 10-40 | 107 x 61 mm | |
| 19201270077030 | DN 65 | PN 10-40 | 127 x 77 mm | |
| 19201420089030 | DN 80 | PN 10-40 | 142 x 89 mm | |
| 19201620115030 | DN 100 | PN 10-16 | 162 x 115 mm | |
| 19201680115030 | DN 100 | PN 25-40 | 168 x 115 mm | |
| 19201920141030 | DN 125 | PN 10-16 | 192 x 141 mm | |
| 19201940141030 | DN 125 | PN 25-40 | 194 x 141 mm | |
| 19202180169030 | DN 150 | PN 10-16 | 218 x 169 mm | |
| 19202240169030 | DN 150 | PN 25-40 | 224 x 169 mm | |
| 19202730220030 | DN 200 | PN 10-16 | 273 x 220 mm | |
| 19202840220030 | DN 200 | PN 25 | 284 x 220 mm | |
| 19202900220030 | DN 200 | PN 40 | 290 x 220 mm | |
| 19203280273030 | DN 250 | PN 10 | 328 x 273 mm | |
| 19203290273030 | DN 250 | PN 16 | 329 x 273 mm | |
| 19203400273030 | DN 250 | PN 25 | 340 x 273 mm | |
| 19203520273030 | DN 250 | PN 40 | 352 x 273 mm | |
| 19203780324030 | DN 300 | PN 10 | 378 x 324 mm | |
| 19203840324030 | DN 300 | PN 16 | 384 x 324 mm | |
| 19204000324030 | DN 300 | PN 25 | 400 x 324 mm | |
| 19204170324030 | DN 300 | PN 40 | 417 x 324 mm |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 19200480021030 | 1/2" | 48 x 21 | |
| 19200570027030 | 3/4" | 57 x 27 | |
| 19200670033030 | 1 " | 67 x 33 | |
| 19200760042030 | 1.1/4" | 76 x 42 | |
| 19200860048030 | 1.1/2" | 86 x 48 | |
| 19201050060030 | 2 " | 105 x 60 | |
| 19201240073030 | 2.1/2" | 124 x 73 | |
| 19201370089030 | 3 " | 137 x 89 | |
| 19201750114030 | 4 " | 175 x 114 | |
| 19201970141030 | 5 " | 197 x 141 | |
| 19202220168030 | 6 " | 222 x 168 | |
| 19202790219030 | 8 " | 279 x 219 | |
| 19203400273030 | 10 " | 340 x 273 | |
| 19204100324030 | 12 " | 410 x 324 |
Specificaties
| Type | KLINGER®soft-chem |
| Materiaal | PTFE geexpandeerd |
| Kleur | aan beide zijden wit, |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 55% |
| Terugvering volgens ASTM F36A | 15% |
| Gasdoorlaatbaarheid volgens DIN 28090 | <0,01 mg/sm |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | conform FDA eisen |
| SVHC lijstverklaring | |
|
|
|
|
Afdichtingsfaktoren 1,5 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 5 MPa |
| ASTM m | 2 |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
