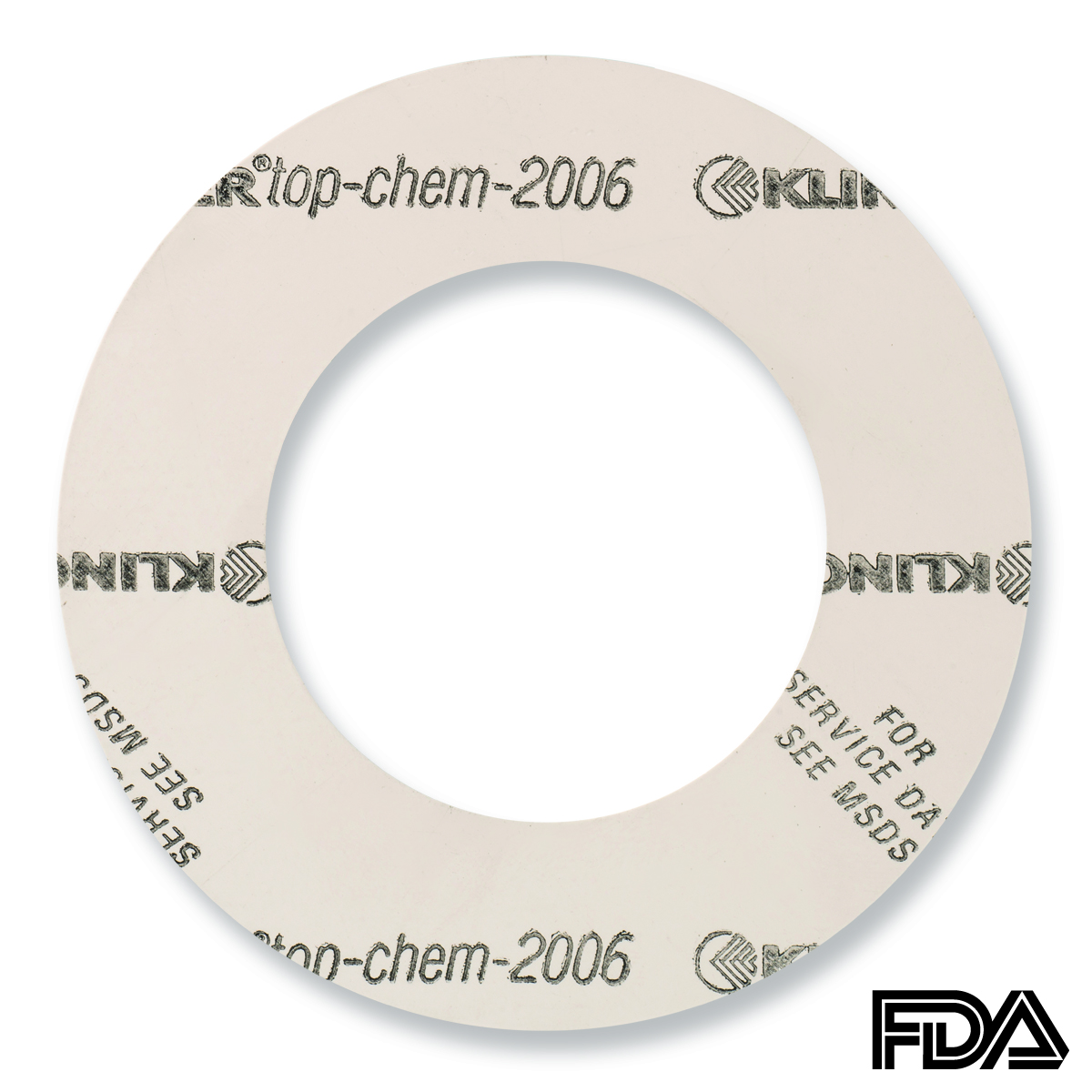

Food afdichtingen | KLINGER®top-chem-2006 FDA / EC 1935
Hoogwaardig afdichtingsmateriaal op basis van PTFE
Geschikt voor: chemicaliën, logen en zouten zoals NaOH, KOH
- Bevat geen enkele kleurstof.
- Deze PTFE pakking is bij uitstek universeel toepasbaar in de voedingsmiddelen- en pharmaceutische industrie, waar geen verkleuringen door het pakkingmateriaal mogen plaats vinden.
- Goed aanpassingsvermogen aan het flensoppervlak.
- Hecht niet aan de flens.
- Veroudert niet.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 18915001500416 | 1,5 | 1500 x 1500 | |
| 18915001500421 | 2 | 1500 x 1500 | |
| 18915001500431 | 3 | 1500 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18900460018016 | DN 10 | PN 10-40 | 46 x 18 | |
| 18900510022016 | DN 15 | PN 10-40 | 51 x 22 | |
| 18900610028016 | DN 20 | PN 10-40 | 61 x 28 | |
| 18900710034016 | DN 25 | PN 10-40 | 71 x 34 | |
| 18900820043016 | DN 32 | PN 10-40 | 82 x 43 | |
| 18900920049016 | DN 40 | PN 10-40 | 92 x 49 | |
| 18901070061016 | DN 50 | PN 10-40 | 107 x 61 | |
| 18901270077016 | DN 65 | PN 10-40 | 127 x 77 | |
| 18901420089016 | DN 80 | PN 10-40 | 142 x 89 | |
| 18901620115016 | DN 100 | PN 10-16 | 162 x 115 | |
| 18901680115016 | DN 100 | PN 25-40 | 168 x 115 | |
| 18901920141016 | DN 125 | PN 10-16 | 192 x 141 | |
| 18901940141016 | DN 125 | PN 25-40 | 194 x 141 | |
| 18902180169016 | DN 150 | PN 10-16 | 218 x 169 | |
| 18902240169016 | DN 150 | PN 25-40 | 224 x 169 | |
| 18902730220016 | DN 200 | PN 10-16 | 273 x 220 | |
| 18902840220016 | DN 200 | PN 25 | 284 x 220 | |
| 18902900220016 | DN 200 | PN 40 | 290 x 220 | |
| 18903280273016 | DN 250 | PN 10 | 328 x 273 | |
| 18903290273016 | DN 250 | PN 16 | 329 x 273 | |
| 18903400273018 | DN 250 | PN 25 | 340 x 273 | |
| 18903520273016 | DN 250 | PN 40 | 352 x 273 | |
| 18903780324016 | DN 300 | PN 10 | 378 x 324 | |
| 18903840324016 | DN 300 | PN 16 | 384 x 324 | |
| 18904000324016 | DN 300 | PN 25 | 400 x 326 | |
| 18904170324016 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18900460018021 | DN 10 | PN 10-40 | 46 x 18 | |
| 18900510022021 | DN 15 | PN 10-40 | 51 x 22 | |
| 18900610028021 | DN 20 | PN 10-40 | 61 x 28 | |
| 18900710034021 | DN 25 | PN 10-40 | 71 x 34 | |
| 18900820043021 | DN 32 | PN 10-40 | 82 x 43 | |
| 18900920049021 | DN 40 | PN 10-40 | 92 x 49 | |
| 18901070061021 | DN 50 | PN 10-40 | 107 x 61 | |
| 18901270077021 | DN 65 | PN 10-40 | 127 x 77 | |
| 18901420089021 | DN 80 | PN 10-40 | 142 x 89 | |
| 18901620115021 | DN 100 | PN 10-16 | 162 x 115 | |
| 18901680115021 | DN 100 | PN 25-40 | 168 x 115 | |
| 18901920141021 | DN 125 | PN 10-16 | 192 x 141 | |
| 18901940141021 | DN 125 | PN 25-40 | 194 x 141 | |
| 18902180169021 | DN 150 | PN 10-16 | 218 x 169 | |
| 18902240169021 | DN 150 | PN 25-40 | 224 x 169 | |
| 18902730220021 | DN 200 | PN 10-16 | 273 x 220 | |
| 18902840220021 | DN 200 | PN 25 | 284 x 220 | |
| 18902900220021 | DN 200 | PN 40 | 290 x 220 | |
| 18903280273021 | DN 250 | PN 10 | 328 x 273 | |
| 18903290273021 | DN 250 | PN 16 | 329 x 273 | |
| 18903400273023 | DN 250 | PN 25 | 340 x 273 | |
| 18903520273021 | DN 250 | PN 40 | 352 x 273 | |
| 18903780324021 | DN 300 | PN 10 | 378 x 324 | |
| 18903840324021 | DN 300 | PN 16 | 384 x 324 | |
| 18904000324021 | DN 300 | PN 25 | 400 x 324 | |
| 18904170324021 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18900460018031 | DN 10 | PN 10-40 | 46 x 18 | |
| 18900510022031 | DN 15 | PN 10-40 | 51 x 22 | |
| 18900610028031 | DN 20 | PN 10-40 | 61 x 28 | |
| 18900710034031 | DN 25 | PN 10-40 | 71 x 34 | |
| 18900820043031 | DN 32 | PN 10-40 | 82 x 43 | |
| 18900920049031 | DN 40 | PN 10-40 | 92 x 49 | |
| 18901070061031 | DN 50 | PN 10-40 | 107 x 61 | |
| 18901270077031 | DN 65 | PN 10-40 | 127 x 77 | |
| 18901420089031 | DN 80 | PN 10-40 | 142 x 89 | |
| 18901620115031 | DN 100 | PN 10-16 | 162 x 115 | |
| 18901680115031 | DN 100 | PN 25-40 | 168 x 115 | |
| 18901920141031 | DN 125 | PN 10-16 | 192 x 141 | |
| 18901940141031 | DN 125 | PN 25-40 | 194 x 141 | |
| 18902180169031 | DN 150 | PN 10-16 | 218 x 169 | |
| 18902240169031 | DN 150 | PN 25-40 | 224 x 169 | |
| 18902730220031 | DN 200 | PN 10-16 | 273 x 220 | |
| 18902840220031 | DN 200 | PN 25 | 284 x 220 | |
| 18902900220031 | DN 200 | PN 40 | 290 x 220 | |
| 18903280273031 | DN 250 | PN 10 | 328 x 273 | |
| 18903290273031 | DN 250 | PN 16 | 329 x 273 | |
| 18903400273033 | DN 250 | PN 25 | 340 x 273 | |
| 18903520273031 | DN 250 | PN 40 | 352 x 273 | |
| 18903780324031 | DN 300 | PN 10 | 378 x 324 | |
| 18903840324031 | DN 300 | PN 16 | 384 x 324 | |
| 18904000324031 | DN 300 | PN 25 | 400 x 324 | |
| 18904170324031 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900480021016 | 1/2" | 48 x 21 | |
| 18900570027016 | 3/4" | 57 x 27 | |
| 18900670033016 | 1 " | 67 x 33 | |
| 18900760042016 | 1.1/4" | 76 x 42 | |
| 18900860048016 | 1.1/2" | 86 x 48 | |
| 18901050060016 | 2 " | 105 x 60 | |
| 18901240073016 | 2.1/2" | 124 x 73 | |
| 18901370089016 | 3 " | 137 x 89 | |
| 18901620102016 | 3.1/2" | 162 x 102 | |
| 18901750114016 | 4 " | 175 x 114 | |
| 18901970141016 | 5 " | 197 x 141 | |
| 18902220168016 | 6 " | 222 x 168 | |
| 18902790219016 | 8 " | 279 x 219 | |
| 18903400273017 | 10 " | 340 x 273 | |
| 18904100324016 | 12 " | 410 x 324 | |
| 18904510356016 | 14 " | 451 x 356 | |
| 18905140406016 | 16 " | 514 x 406 | |
| 18905500457016 | 18 " | 550 x 457 | |
| 18906060508016 | 20 " | 606 x 508 | |
| 18907180610016 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900480021021 | 1/2" | 48 x 21 | |
| 18900570027021 | 3/4" | 57 x 27 | |
| 18900670033021 | 1 " | 67 x 33 | |
| 18900760042021 | 1.1/4" | 76 x 42 | |
| 18900860048021 | 1.1/2" | 86 x 48 | |
| 18901050060021 | 2 " | 105 x 60 | |
| 18901240073021 | 2.1/2" | 124 x 73 | |
| 18901370089021 | 3 " | 137 x 89 | |
| 18901620102021 | 3.1/2" | 162 x 102 | |
| 18901750114021 | 4 " | 175 x 114 | |
| 18901970141021 | 5 " | 197 x 141 | |
| 18902220168021 | 6 " | 222 x 168 | |
| 18902790219021 | 8 " | 279 x 219 | |
| 18903400273022 | 10 " | 340 x 273 | |
| 18904100324021 | 12 " | 410 x 324 | |
| 18904510356021 | 14 " | 451 x 356 | |
| 18905140406021 | 16 " | 514 x 406 | |
| 18905500457021 | 18 " | 550 x 457 | |
| 18906060508021 | 20 " | 606 x 508 | |
| 18907180610021 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900480021031 | 1/2" | 48 x 21 | |
| 18900570027031 | 3/4" | 57 x 27 | |
| 18900670033031 | 1 " | 67 x 33 | |
| 18900760042031 | 1.1/4" | 76 x 42 | |
| 18900860048031 | 1.1/2" | 86 x 48 | |
| 18901050060031 | 2 " | 105 x 60 | |
| 18901240073031 | 2.1/2" | 124 x 73 | |
| 18901370089031 | 3 " | 137 x 89 | |
| 18901620102031 | 3.1/2" | 162 x 102 | |
| 18901750114031 | 4 " | 175 x 114 | |
| 18901970141031 | 5 " | 197 x 141 | |
| 18902220168031 | 6 " | 222 x 168 | |
| 18902790219031 | 8 " | 279 x 219 | |
| 18903400273032 | 10 " | 340 x 273 | |
| 18904100324031 | 12 " | 410 x 324 | |
| 18904510356031 | 14 " | 451 x 356 | |
| 18905140406031 | 16 " | 514 x 406 | |
| 18905500457031 | 18 " | 550 x 457 | |
| 18906060508031 | 20 " | 606 x 508 | |
| 18907180610031 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900670027016 | 3/4" | 67 x 27 | |
| 18900730033016 | 1 " | 73 x 33 | |
| 18900830042016 | 1.1/4" | 83 x 42 | |
| 18900950048016 | 1.1/2" | 95 x 48 | |
| 18901110060016 | 2 " | 111 x 60 | |
| 18901300073016 | 2.1/2" | 130 x 73 | |
| 18901490089016 | 3 " | 149 x 89 | |
| 18901650102016 | 3.1/2" | 165 x 102 | |
| 18900540021016 | 1/2" | 54 x 21 | |
| 18901810114016 | 4 " | 181 x 114 | |
| 18902160141016 | 5 " | 216 x 141 | |
| 18902510168016 | 6 " | 251 x 168 | |
| 18903080219016 | 8 " | 308 x 219 | |
| 18903620273016 | 10 " | 362 x 273 | |
| 18904220324016 | 12 " | 422 x 324 | |
| 18904860356016 | 14 " | 486 x 356 | |
| 18905400406016 | 16 " | 540 x 406 | |
| 18905970457016 | 18 " | 597 x 457 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900540021021 | 1/2" | 54 x 21 | |
| 18900670027021 | 3/4" | 67 x 27 | |
| 18900730033021 | 1 " | 73 x 33 | |
| 18900830042021 | 1.1/4" | 83 x 42 | |
| 18900950048021 | 1.1/2" | 95 x 48 | |
| 18901110060021 | 2 " | 111 x 60 | |
| 18901300073021 | 2.1/2" | 130 x 73 | |
| 18901490089021 | 3 " | 149 x 89 | |
| 18901650102021 | 3.1/2" | 165 x 102 | |
| 18901810114021 | 4 " | 181 x 114 | |
| 18902160141021 | 5 " | 216 x 141 | |
| 18902510168021 | 6 " | 251 x 168 | |
| 18903080219021 | 8 " | 308 x 219 | |
| 18903620273021 | 10 " | 362 x 273 | |
| 18904220324021 | 12 " | 422 x 324 | |
| 18904860356021 | 14 " | 486 x 356 | |
| 18905400406021 | 16 " | 540 x 406 | |
| 18905970457021 | 18 " | 597 x 457 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900540021031 | 1/2" | 54 x 21 | |
| 18900670027031 | 3/4" | 67 x 27 | |
| 18900730033031 | 1 " | 73 x 33 | |
| 18900730042031 | 1.1/4" | 83 x 42 | |
| 18900950048031 | 1.1/2" | 95 x 48 | |
| 18901110060031 | 2 " | 111 x 60 | |
| 18901300073031 | 2.1/2" | 130 x 73 | |
| 18901490089031 | 3 " | 149 x 89 | |
| 18901650102031 | 3.1/2" | 165 x 102 | |
| 18901810114031 | 4 " | 181 x 114 | |
| 18902160141031 | 5 " | 216 x 141 | |
| 18902510168031 | 6 " | 251 x 168 | |
| 18903080219031 | 8 " | 308 x 219 | |
| 18903620273031 | 10 " | 362 x 273 | |
| 18904220324031 | 12 " | 422 x 324 | |
| 18904860356031 | 14 " | 486 x 356 | |
| 18905400406031 | 16 " | 540 x 406 | |
| 18905970457031 | 18 " | 597 x 457 |
Specificaties
| Type | KLINGER®top-chem-2006 FDA / EC 1935 |
| Materiaal | PTFE versterkend gevuld |
| Kleur | aan beide zijden melkwit |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 4% |
| Terugvering volgens ASTM F36A | 40% |
| Drukvastheid volgens DIN 52913 | 18 N/mm² (150ºC/30MPa) |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,01 mg/sm |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | conform FDA eisen |
| BAM cert. | |
| KTW cert. | |
| DIN DVGW | |
| TA Luft (clean air) acc VDI2440 | |
| Germanischer Lloyd | |
| PO en EO res. cert. | |
| RoHS cert. | |
| EG / EWG cert. | |
| Reach verklaring | |
| SVHC lijstverklaring | |
|
|
|
|
Afdichtingsfactoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 15 MPa |
| ASTM m | 5 |
|
|
|
|

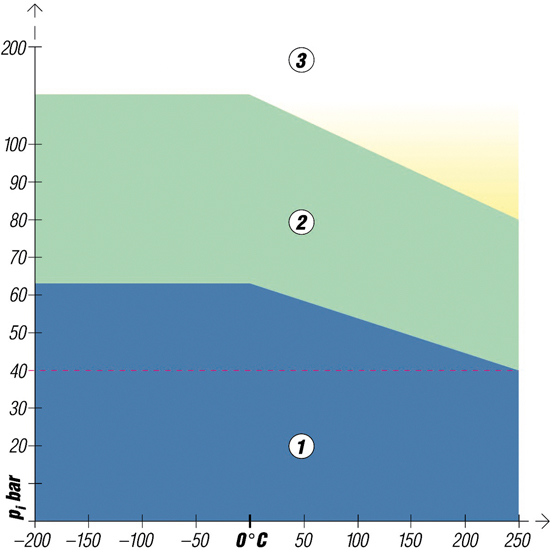

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
