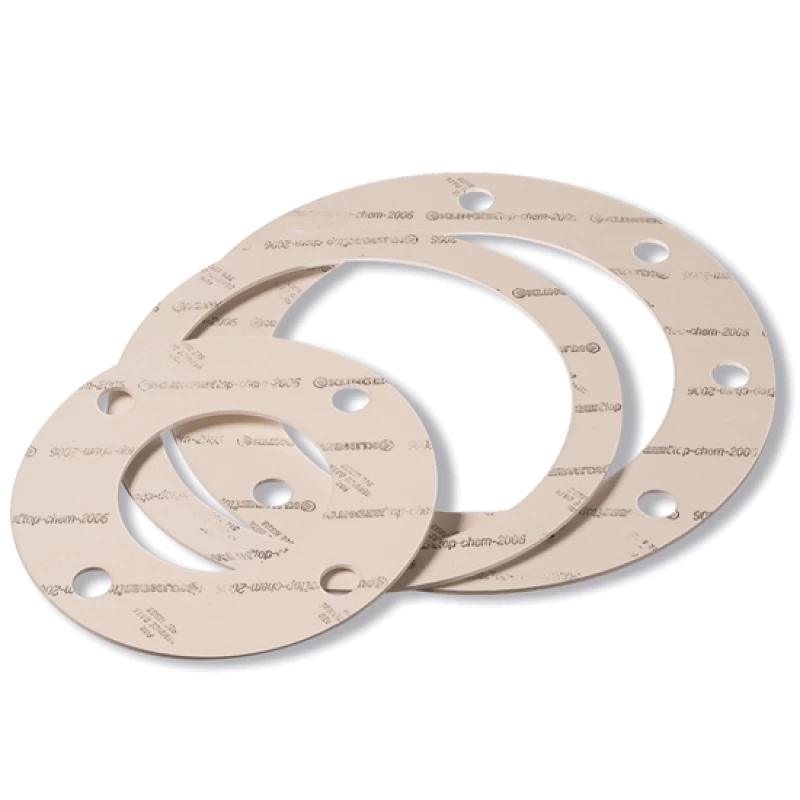

KLINGERtop-chem | KLINGER®top-chem-2006
Hoogwaardig afdichtingsmateriaal op basis van PTFE
Geschikt voor: chemicaliën, logen en zouten zoals NaOH, KOH. Ook geschikt voor voedingsmiddelen en farmaceutische industrie. Kijk voor de specificaties & bestellen met certificering onder food pakkingen".
- Bevat geen enkele kleurstof.
- Deze PTFE pakking is bij uitstek universeel toepasbaar in de voedingsmiddelen- en pharmaceutische industrie, waar geen verkleuringen door het pakkingmateriaal mogen plaats vinden.
- Goed aanpassingsvermogen aan het flensoppervlak.
- Hecht niet aan de flens.
- Veroudert niet.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 18915001500415 | 1,5 | 1500 x 1500 | |
| 18915001500420 | 2 | 1500 x 1500 | |
| 18915001500430 | 3 | 1500 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18900460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 18900510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 18900610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 18900710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 18900820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 18900920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 18901070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 18901270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 18901420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 18901620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 18901680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 18901920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 18901940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 18902180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 18902240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 18902730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 18902840220015 | DN 200 | PN 25 | 284 x 220 | |
| 18902900220015 | DN 200 | PN 40 | 290 x 220 | |
| 18903280273015 | DN 250 | PN 10 | 328 x 273 | |
| 18903290273015 | DN 250 | PN 16 | 329 x 273 | |
| 18903400273016 | DN 250 | PN 25 | 340 x 273 | |
| 18903520273015 | DN 250 | PN 40 | 352 x 273 | |
| 18903780324015 | DN 300 | PN 10 | 378 x 324 | |
| 18903840324015 | DN 300 | PN 16 | 384 x 324 | |
| 18904000324015 | DN 300 | PN 25 | 400 x 326 | |
| 18904170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18900460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 18900510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 18900610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 18900710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 18900820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 18900920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 18901070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 18901270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 18901420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 18901620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 18901680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 18901920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 18901940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 18902180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 18902240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 18902730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 18902840220020 | DN 200 | PN 25 | 284 x 220 | |
| 18902900220020 | DN 200 | PN 40 | 290 x 220 | |
| 18903280273020 | DN 250 | PN 10 | 328 x 273 | |
| 18903290273020 | DN 250 | PN 16 | 329 x 273 | |
| 18903400273021 | DN 250 | PN 25 | 340 x 273 | |
| 18903520273020 | DN 250 | PN 40 | 352 x 273 | |
| 18903780324020 | DN 300 | PN 10 | 378 x 324 | |
| 18903840324020 | DN 300 | PN 16 | 384 x 324 | |
| 18904000324020 | DN 300 | PN 25 | 400 x 324 | |
| 18904170324020 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18900460018030 | DN 10 | PN 10-40 | 46 x 18 | |
| 18900510022030 | DN 15 | PN 10-40 | 51 x 22 | |
| 18900610028030 | DN 20 | PN 10-40 | 61 x 28 | |
| 18900710034030 | DN 25 | PN 10-40 | 71 x 34 | |
| 18900820043030 | DN 32 | PN 10-40 | 82 x 43 | |
| 18900920049030 | DN 40 | PN 10-40 | 92 x 49 | |
| 18901070061030 | DN 50 | PN 10-40 | 107 x 61 | |
| 18901270077030 | DN 65 | PN 10-40 | 127 x 77 | |
| 18901420089030 | DN 80 | PN 10-40 | 142 x 89 | |
| 18901620115030 | DN 100 | PN 10-16 | 162 x 115 | |
| 18901680115030 | DN 100 | PN 25-40 | 168 x 115 | |
| 18901920141030 | DN 125 | PN 10-16 | 192 x 141 | |
| 18901940141030 | DN 125 | PN 25-40 | 194 x 141 | |
| 18902180169030 | DN 150 | PN 10-16 | 218 x 169 | |
| 18902240169030 | DN 150 | PN 25-40 | 224 x 169 | |
| 18902730220030 | DN 200 | PN 10-16 | 273 x 220 | |
| 18902840220030 | DN 200 | PN 25 | 284 x 220 | |
| 18902900220030 | DN 200 | PN 40 | 290 x 220 | |
| 18903280273030 | DN 250 | PN 10 | 328 x 273 | |
| 18903290273030 | DN 250 | PN 16 | 329 x 273 | |
| 18903400273031 | DN 250 | PN 25 | 340 x 273 | |
| 18903520273030 | DN 250 | PN 40 | 352 x 273 | |
| 18903780324030 | DN 300 | PN 10 | 378 x 324 | |
| 18903840324030 | DN 300 | PN 16 | 384 x 324 | |
| 18904000324030 | DN 300 | PN 25 | 400 x 324 | |
| 18904170324030 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900480021015 | 1/2" | 48 x 21 | |
| 18900570027015 | 3/4" | 57 x 27 | |
| 18900670033015 | 1 " | 67 x 33 | |
| 18900760042015 | 1.1/4" | 76 x 42 | |
| 18900860048015 | 1.1/2" | 86 x 48 | |
| 18901050060015 | 2 " | 105 x 60 | |
| 18901240073015 | 2.1/2" | 124 x 73 | |
| 18901370089015 | 3 " | 137 x 89 | |
| 18901620102015 | 3.1/2" | 162 x 102 | |
| 18901750114015 | 4 " | 175 x 114 | |
| 18901970141015 | 5 " | 197 x 141 | |
| 18902220168015 | 6 " | 222 x 168 | |
| 18902790219015 | 8 " | 279 x 219 | |
| 18903400273015 | 10 " | 340 x 273 | |
| 18904100324015 | 12 " | 410 x 324 | |
| 18904510356015 | 14 " | 451 x 356 | |
| 18905140406015 | 16 " | 514 x 406 | |
| 18905500457015 | 18 " | 550 x 457 | |
| 18906060508015 | 20 " | 606 x 508 | |
| 18907180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900480021020 | 1/2" | 48 x 21 | |
| 18900570027020 | 3/4" | 57 x 27 | |
| 18900670033020 | 1 " | 67 x 33 | |
| 18900760042020 | 1.1/4" | 76 x 42 | |
| 18900860048020 | 1.1/2" | 86 x 48 | |
| 18901050060020 | 2 " | 105 x 60 | |
| 18901240073020 | 2.1/2" | 124 x 73 | |
| 18901370089020 | 3 " | 137 x 89 | |
| 18901620102020 | 3.1/2" | 162 x 102 | |
| 18901750114020 | 4 " | 175 x 114 | |
| 18901970141020 | 5 " | 197 x 141 | |
| 18902220168020 | 6 " | 222 x 168 | |
| 18902790219020 | 8 " | 279 x 219 | |
| 18903400273020 | 10 " | 340 x 273 | |
| 18904100324020 | 12 " | 410 x 324 | |
| 18904510356020 | 14 " | 451 x 356 | |
| 18905140406020 | 16 " | 514 x 406 | |
| 18905500457020 | 18 " | 550 x 457 | |
| 18906060508020 | 20 " | 606 x 508 | |
| 18907180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900480021030 | 1/2" | 48 x 21 | |
| 18900570027030 | 3/4" | 57 x 27 | |
| 18900670033030 | 1 " | 67 x 33 | |
| 18900760042030 | 1.1/4" | 76 x 42 | |
| 18900860048030 | 1.1/2" | 86 x 48 | |
| 18901050060030 | 2 " | 105 x 60 | |
| 18901240073030 | 2.1/2" | 124 x 73 | |
| 18901370089030 | 3 " | 137 x 89 | |
| 18901620102030 | 3.1/2" | 162 x 102 | |
| 18901750114030 | 4 " | 175 x 114 | |
| 18901970141030 | 5 " | 197 x 141 | |
| 18902220168030 | 6 " | 222 x 168 | |
| 18902790219030 | 8 " | 279 x 219 | |
| 18903400273030 | 10 " | 340 x 273 | |
| 18904100324030 | 12 " | 410 x 324 | |
| 18904510356030 | 14 " | 451 x 356 | |
| 18905140406030 | 16 " | 514 x 406 | |
| 18905500457030 | 18 " | 550 x 457 | |
| 18906060508030 | 20 " | 606 x 508 | |
| 18907180610030 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900670027015 | 3/4" | 67 x 27 | |
| 18900730033015 | 1 " | 73 x 33 | |
| 18900830042015 | 1.1/4" | 83 x 42 | |
| 18900950048015 | 1.1/2" | 95 x 48 | |
| 18901110060015 | 2 " | 111 x 60 | |
| 18901300073015 | 2.1/2" | 130 x 73 | |
| 18901490089015 | 3 " | 149 x 89 | |
| 18901650102015 | 3.1/2" | 165 x 102 | |
| 18900540021015 | 1/2" | 54 x 21 | |
| 18901810114015 | 4 " | 181 x 114 | |
| 18902160141015 | 5 " | 216 x 141 | |
| 18902510168015 | 6 " | 251 x 168 | |
| 18903080219015 | 8 " | 308 x 219 | |
| 18903620273015 | 10 " | 362 x 273 | |
| 18904220324015 | 12 " | 422 x 324 | |
| 18904860356015 | 14 " | 486 x 356 | |
| 18905400406015 | 16 " | 540 x 406 | |
| 18905970457015 | 18 " | 597 x 457 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900540021020 | 1/2" | 54 x 21 | |
| 18900670027020 | 3/4" | 67 x 27 | |
| 18900730033020 | 1 " | 73 x 33 | |
| 18900830042020 | 1.1/4" | 83 x 42 | |
| 18900950048020 | 1.1/2" | 95 x 48 | |
| 18901110060020 | 2 " | 111 x 60 | |
| 18901300073020 | 2.1/2" | 130 x 73 | |
| 18901490089020 | 3 " | 149 x 89 | |
| 18901650102020 | 3.1/2" | 165 x 102 | |
| 18901810114020 | 4 " | 181 x 114 | |
| 18902160141020 | 5 " | 216 x 141 | |
| 18902510168020 | 6 " | 251 x 168 | |
| 18903080219020 | 8 " | 308 x 219 | |
| 18903620273020 | 10 " | 362 x 273 | |
| 18904220324020 | 12 " | 422 x 324 | |
| 18904860356020 | 14 " | 486 x 356 | |
| 18905400406020 | 16 " | 540 x 406 | |
| 18905970457020 | 18 " | 597 x 457 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18900540021030 | 1/2" | 54 x 21 | |
| 18900670027030 | 3/4" | 67 x 27 | |
| 18900730033030 | 1 " | 73 x 33 | |
| 18900730042030 | 1.1/4" | 83 x 42 | |
| 18900950048030 | 1.1/2" | 95 x 48 | |
| 18901110060030 | 2 " | 111 x 60 | |
| 18901300073030 | 2.1/2" | 130 x 73 | |
| 18901490089030 | 3 " | 149 x 89 | |
| 18901650102030 | 3.1/2" | 165 x 102 | |
| 18901810114030 | 4 " | 181 x 114 | |
| 18902160141030 | 5 " | 216 x 141 | |
| 18902510168030 | 6 " | 251 x 168 | |
| 18903080219030 | 8 " | 308 x 219 | |
| 18903620273030 | 10 " | 362 x 273 | |
| 18904220324030 | 12 " | 422 x 324 | |
| 18904860356030 | 14 " | 486 x 356 | |
| 18905400406030 | 16 " | 540 x 406 | |
| 18905970457030 | 18 " | 597 x 457 |
Specificaties
| Type | KLINGER®top-chem-2006 |
| Materiaal | PTFE versterkend gevuld |
| Kleur | aan beide zijden melkwit |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 4% |
| Terugvering volgens ASTM F36A | 40% |
| Drukvastheid volgens DIN 52913 | 18 N/mm² (150ºC/30MPa) |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,01 mg/sm |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | conform FDA eisen |
| BAM cert. | |
| KTW cert. | |
| DIN DVGW | |
| TA Luft (clean air) acc VDI2440 | |
| Germanischer Lloyd | |
| PO en EO res. cert. | |
| RoHS cert. | |
| EG / EWG cert. | |
| Reach verklaring | |
| SVHC lijstverklaring | |
|
|
|
|
Afdichtingsfaktoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 15 MPa |
| ASTM m | 5 |
|
|
|
|

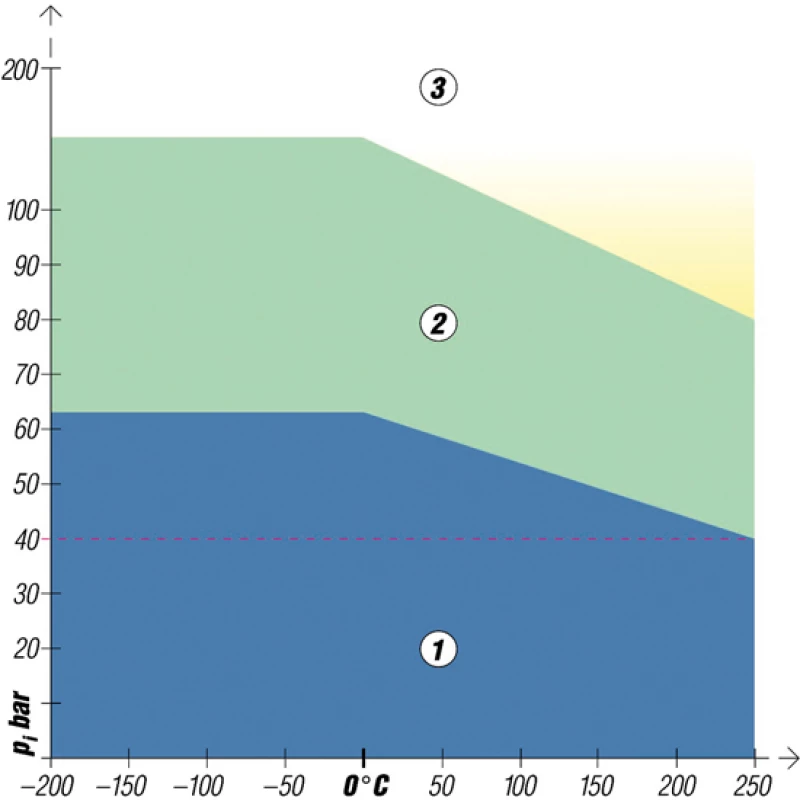

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
