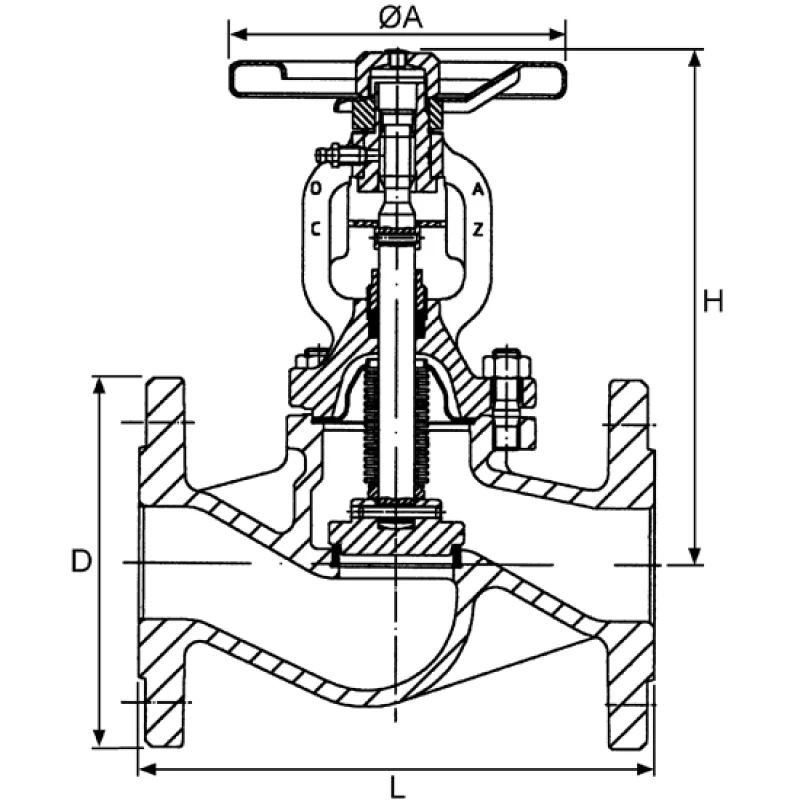

Afmetingen (mm) Aansluitmaten (mm)
Art.nr. DN L ØA H geopend D ØK Gewicht (kg) Bestellen
1482112200015 15 130 100 157 95 65 x  4 x 14 3,2
1482112200020 20 150 100 165 105 75 x  4 x 14 3,9
1482112200025 25 160 100 182 115 85 x  4 x 14 4,6
1482112200030 32 180 100 191 140 100 x  4 x 18 6,3
1482112200040 40 200 160 214 150 110 x  4 x 18 8,7
1482112200050 50 230 160 234 165 125 x  4 x 18 14,3
1482112200065 65 290 160 286 185 145 x  4 x 18 16,3
1482112200080 80 310 200 331 200 160 x  8 x 18 22,4
1482112200100 100 350 200 350 220 180 x  8 x 18 34,0
1482112200125 125 400 250 384 250 210 x  8 x 18 50,0
1482112200150 150 480 320 450 285 240 x  8 x 22 74,0
