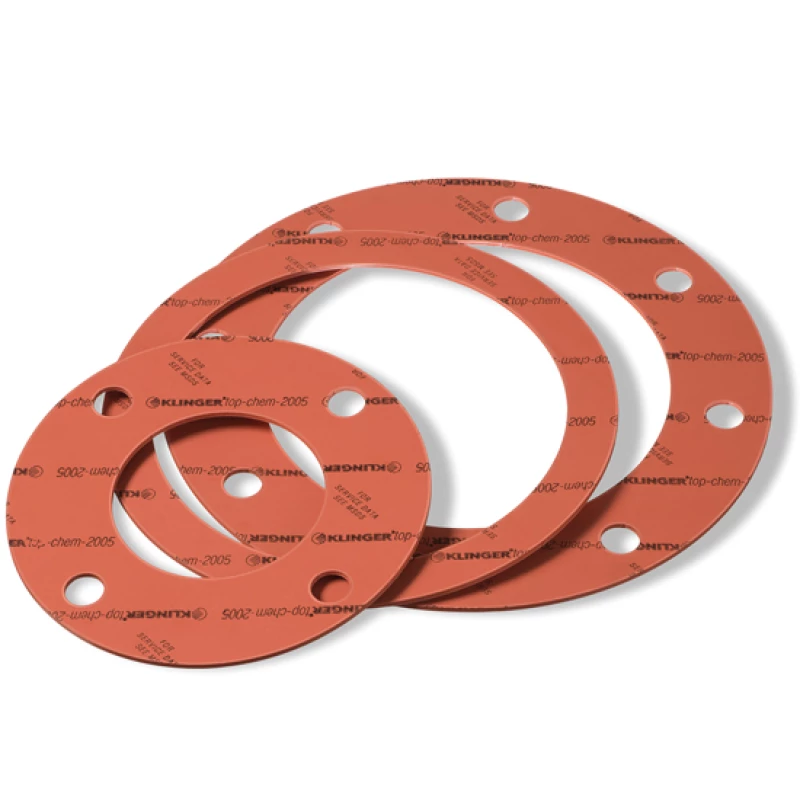

KLINGERtop-chem | KLINGER®top-chem-2005
Hoogwaardig afdichtingsmateriaal op basis van PTFE
Geschikt voor: vrijwel alle toepassingen, waaronder chemicaliën, zuren en stoom
- Economisch en universeel.
- Hoge chemische bestendigheid.
- Goed aanpassingsvermogen aan het flensoppervlak.
- Hecht niet aan de flens.
- Goede gasdichtheid.
- Goede weerstand tegen vloeien.
- Veroudert niet.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 18615001500415 | 1,5 | 1500 x 1500 | |
| 18615001500420 | 2 | 1500 x 1500 | |
| 18615001500430 | 3 | 1500 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18600460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 18600510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 18600610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 18600710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 18600820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 18600920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 18601070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 18601270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 18601420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 18601620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 18601680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 18601920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 18601940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 18602180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 18602240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 18602730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 18602840220015 | DN 200 | PN 25 | 284 x 220 | |
| 18602900220015 | DN 200 | PN 40 | 290 x 220 | |
| 18603280273015 | DN 250 | PN 10 | 328 x 273 | |
| 18603290273015 | DN 250 | PN 16 | 329 x 273 | |
| 18603400273016 | DN 250 | PN 25 | 340 x 273 | |
| 18603520273015 | DN 250 | PN 40 | 352 x 273 | |
| 18603780324015 | DN 300 | PN 10 | 378 x 324 | |
| 18603840324015 | DN 300 | PN 16 | 384 x 324 | |
| 18604000324015 | DN 300 | PN 25 | 400 x 324 | |
| 18604170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18600460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 18600510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 18600610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 18600710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 18600820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 18600920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 18601070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 18601270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 18601420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 18601620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 18601680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 18601920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 18601940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 18602180168020 | DN 150 | PN 10-16 | 218 x 169 | |
| 18602240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 18602730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 18602840220020 | DN 200 | PN 25 | 284 x 220 | |
| 18602900220020 | DN 200 | PN 40 | 290 x 220 | |
| 18603280273020 | DN 250 | PN 10 | 328 x 273 | |
| 18603290273020 | DN 250 | PN 16 | 329 x 273 | |
| 18603400273021 | DN 250 | PN 25 | 340 x 273 | |
| 18603520273020 | DN 250 | PN 40 | 352 x 273 | |
| 18603780324020 | DN 300 | PN 10 | 378 x 324 | |
| 18603840324020 | DN 300 | PN 16 | 384 x 324 | |
| 18604000324020 | DN 300 | PN 25 | 400 x 324 | |
| 18604170324020 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18600460018030 | DN 10 | PN 10-40 | 46 x 18 | |
| 18600510022030 | DN 15 | PN 10-40 | 51 x 22 | |
| 18600610028030 | DN 20 | PN 10-40 | 61 x 28 | |
| 18600710034030 | DN 25 | PN 10-40 | 71 x 34 | |
| 18600820043030 | DN 32 | PN 10-40 | 82 x 43 | |
| 18600920049030 | DN 40 | PN 10-40 | 92 x 49 | |
| 18601070061030 | DN 50 | PN 10-40 | 107 x 61 | |
| 18601270077030 | DN 65 | PN 10-40 | 127 x 77 | |
| 18601420089030 | DN 80 | PN 10-40 | 142 x 89 | |
| 18601620115030 | DN 100 | PN 10-16 | 162 x 115 | |
| 18601680115030 | DN 100 | PN 25-40 | 168 x 115 | |
| 18601920141030 | DN 125 | PN 10-16 | 192 x 141 | |
| 18601940141030 | DN 125 | PN 25-40 | 194 x 141 | |
| 18602180169030 | DN 150 | PN 10-16 | 218 x 169 | |
| 18602240169030 | DN 150 | PN 25-40 | 224 x 169 | |
| 18602730220030 | DN 200 | PN 10-16 | 273 x 220 | |
| 18602840220030 | DN 200 | PN 25 | 284 x 220 | |
| 18602900220030 | DN 200 | PN 40 | 290 x 220 | |
| 18603280273030 | DN 250 | PN 10 | 328 x 273 | |
| 18603290273030 | DN 250 | PN 16 | 329 x 273 | |
| 18603400273031 | DN 250 | PN 25 | 340 x 273 | |
| 18603520273030 | DN 250 | PN 40 | 352 x 273 | |
| 18603780324030 | DN 300 | PN 10 | 378 x 324 | |
| 18603840324030 | DN 300 | PN 16 | 384 x 324 | |
| 18604000324030 | DN 300 | PN 25 | 400 x 324 | |
| 18604170324030 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18600480021015 | 1/2" | 48 x 21 | |
| 18600570027015 | 3/4" | 57 x 27 | |
| 18600670033015 | 1 " | 67 x 33 | |
| 18600760042015 | 1.1/4" | 76 x 42 | |
| 18600860048015 | 1.1/2" | 86 x 48 | |
| 18601050060015 | 2 " | 105 x 60 | |
| 18601240073015 | 2.1/2" | 124 x 73 | |
| 18601370089015 | 3 " | 137 x 89 | |
| 18601620102015 | 3.1/2" | 162 x 102 | |
| 18601750114015 | 4 " | 175 x 114 | |
| 18601970141015 | 5 " | 197 x 141 | |
| 18602220168015 | 6 " | 222 x 168 | |
| 18602790219015 | 8 " | 279 x 219 | |
| 18603400273015 | 10 " | 340 x 273 | |
| 18604100324015 | 12 " | 410 x 324 | |
| 18604510356015 | 14 " | 451 x 356 | |
| 18605140406015 | 16 " | 514 x 406 | |
| 18605500457015 | 18 " | 550 x 457 | |
| 18606060508015 | 20 " | 606 x 508 | |
| 18607180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18600480021020 | 1/2" | 48 x 21 | |
| 18600570027020 | 3/4" | 57 x 27 | |
| 18600670033020 | 1 " | 67 x 33 | |
| 18600760042020 | 1.1/4" | 76 x 42 | |
| 18600860048020 | 1.1/2" | 86 x 48 | |
| 18601050060020 | 2 " | 105 x 60 | |
| 18601240073020 | 2.1/2" | 124 x 73 | |
| 18601370089020 | 3 " | 137 x 89 | |
| 18601620102020 | 3.1/2" | 162 x 102 | |
| 18601750114020 | 4 " | 175 x 114 | |
| 18601970141020 | 5 " | 197 x 141 | |
| 18602220168020 | 6 " | 222 x 168 | |
| 18602790219020 | 8 " | 279 x 219 | |
| 18603400273020 | 10 " | 340 x 273 | |
| 18604100324020 | 12 " | 410 x 324 | |
| 18604510356020 | 14 " | 451 x 356 | |
| 18605140406020 | 16 " | 514 x 406 | |
| 18605500457020 | 18 " | 550 x 457 | |
| 18606060508020 | 20 " | 606 x 508 | |
| 18607180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18600480021030 | 1/2" | 48 x 21 | |
| 18600570027030 | 3/4" | 57 x 27 | |
| 18600670033030 | 1 " | 67 x 33 | |
| 18600760042030 | 1.1/4" | 76 x 42 | |
| 18600860048030 | 1.1/2" | 86 x 48 | |
| 18601050060030 | 2 " | 105 x 60 | |
| 18601240073030 | 2.1/2" | 124 x 73 | |
| 18601370089030 | 3 " | 137 x 89 | |
| 18601620102030 | 3.1/2" | 162 x 102 | |
| 18601750114030 | 4 " | 175 x 114 | |
| 18601970141030 | 5 " | 197 x 141 | |
| 18602220168030 | 6 " | 222 x 168 | |
| 18602790219030 | 8 " | 279 x 219 | |
| 18603400273030 | 10 " | 340 x 273 | |
| 18604100324030 | 12 " | 410 x 324 | |
| 18604510356030 | 14 " | 451 x 356 | |
| 18605140406030 | 16 " | 514 x 406 | |
| 18605500457030 | 18 " | 550 x 457 | |
| 18606060508030 | 20 " | 606 x 508 | |
| 18607180610030 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18600540021015 | 1/2" | 54 x 21 | |
| 18600670027015 | 3/4" | 67 x 27 | |
| 18600730033015 | 1 " | 73 x 33 | |
| 18600830042015 | 1.1/4" | 83 x 42 | |
| 18600950048015 | 1.1/2" | 95 x 48 | |
| 18601110060015 | 2 " | 111 x 60 | |
| 18601300073015 | 2.1/2" | 130 x 73 | |
| 18601490089015 | 3 " | 149 x 89 | |
| 18601650102015 | 3.1/2" | 165 x 102 | |
| 18601810114015 | 4 " | 181 x 114 | |
| 18602160141015 | 5 " | 216 x 141 | |
| 18602510168015 | 6 " | 251 x 168 | |
| 18603080219015 | 8 " | 308 x 219 | |
| 18603620273015 | 10 " | 362 x 273 | |
| 18604220324015 | 12 " | 422 x 324 | |
| 18604860356015 | 14 " | 486 x 356 | |
| 18605400406015 | 16 " | 540 x 406 | |
| 18605970457015 | 18 " | 597 x 457 | |
| 18606540508015 | 20 " | 654 x 508 | |
| 18607750610015 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18600540021020 | 1/2" | 54 x 21 | |
| 18600670027020 | 3/4" | 67 x 27 | |
| 18600730033020 | 1 " | 73 x 33 | |
| 18600830042020 | 1.1/4" | 83 x 42 | |
| 18600950048020 | 1.1/2" | 95 x 48 | |
| 18601110060020 | 2 " | 111 x 60 | |
| 18601300073020 | 2.1/2" | 130 x 73 | |
| 18601490089020 | 3 " | 149 x 89 | |
| 18601650102020 | 3.1/2" | 165 x 102 | |
| 18601810114020 | 4 " | 181 x 114 | |
| 18602160141020 | 5 " | 216 x 141 | |
| 18602510168020 | 6 " | 251 x 168 | |
| 18603080219020 | 8 " | 308 x 219 | |
| 18603620273020 | 10 " | 362 x 273 | |
| 18604220324020 | 12 " | 422 x 324 | |
| 18604860356020 | 14 " | 486 x 356 | |
| 18605400406020 | 16 " | 540 x 406 | |
| 18605970457020 | 18 " | 597 x 457 | |
| 18606540508020 | 20 " | 654 x 508 | |
| 18607750610020 | 24 " | 775 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18600540021030 | 1/2" | 54 x 21 | |
| 18600670027030 | 3/4" | 67 x 27 | |
| 18600730033030 | 1 " | 73 x 33 | |
| 18600830042030 | 1.1/4" | 83 x 42 | |
| 18600950048030 | 1.1/2" | 95 x 48 | |
| 18601110060030 | 2 " | 111 x 60 | |
| 18601300073030 | 2.1/2" | 130 x 73 | |
| 18601490089030 | 3 " | 149 x 89 | |
| 18601650102030 | 3.1/2" | 165 x 102 | |
| 18601810114030 | 4 " | 181 x 114 | |
| 18602160141030 | 5 " | 216 x 141 | |
| 18602510168030 | 6 " | 251 x 168 | |
| 18603080219030 | 8 " | 308 x 219 | |
| 18603620273030 | 10 " | 362 x 273 | |
| 18604220324030 | 12 " | 422 x 324 | |
| 18604860356030 | 14 " | 486 x 356 | |
| 18605400406030 | 16 " | 540 x 406 | |
| 18605970457030 | 18 " | 597 x 457 | |
| 18606540508030 | 20 " | 654 x 508 | |
| 18607750610030 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGER®top-chem-2005 |
| Materiaal | PTFE versterkend gevuld |
| Kleur | aan beide zijden steenrood |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 3% |
| Terugvering volgens ASTM F36A | 40% |
| Drukvastheid volgens DIN 52913(2mm) | 25 N/mm² (150ºC/30MPa) |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,02 mg/sm |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | conform FDA eisen |
| BAM zuurstof | |
| KTW cert. drinkwater | |
| DIN DVGW aardgas | |
| TA Luft (clean air) acc VDI2440 | |
| Germanischer Lloyd | |
| PO en EO res. cert. | |
| RoHS cert. | |
| EG / EWG cert. | |
| Reach verklaring | |
| SVHC lijstverklaring | |
|
|
|
|
Afdichtingsfactoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 10 MPa |
| ASTM m | 3,5 |
| D0701 pgm;min 25ºC | 28 MPa |
| D0701 pgm;max 25ºC | >110 MPa |
| D0701 pgm;max 100ºC | 35 MPa |
| D0701 pgm;max 200ºC | 22 MPa |
| D0701 Cg | 1,3 |
|
|
|
|

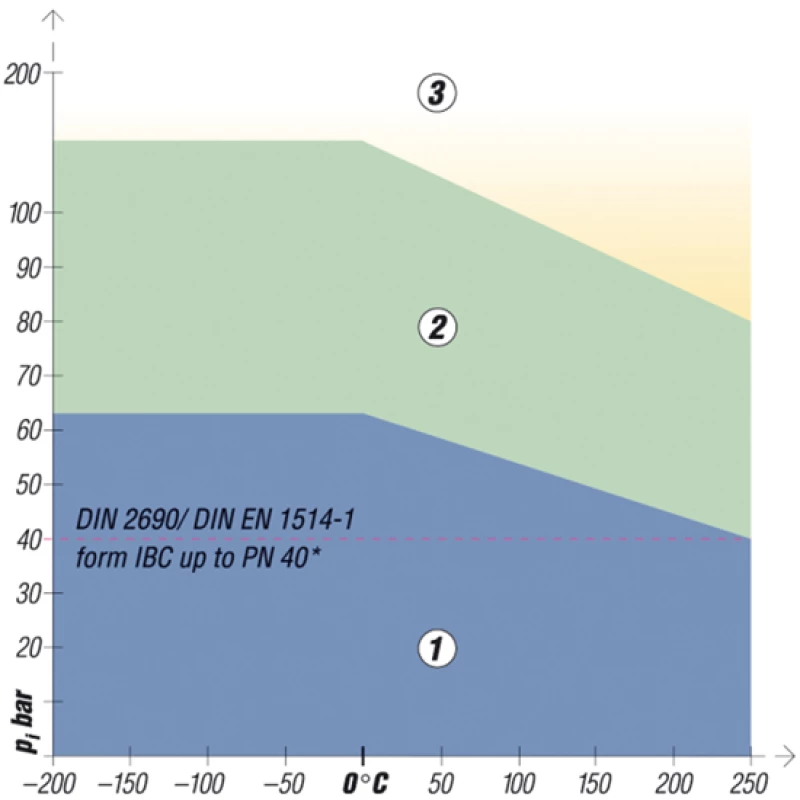

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
Contact
Voor meer informatie over onze PTFE pakkingen kunt u contact opnemen met:
Login
Vul onderstaand formulier in om in te loggen
Wachtwoord vergeten?
