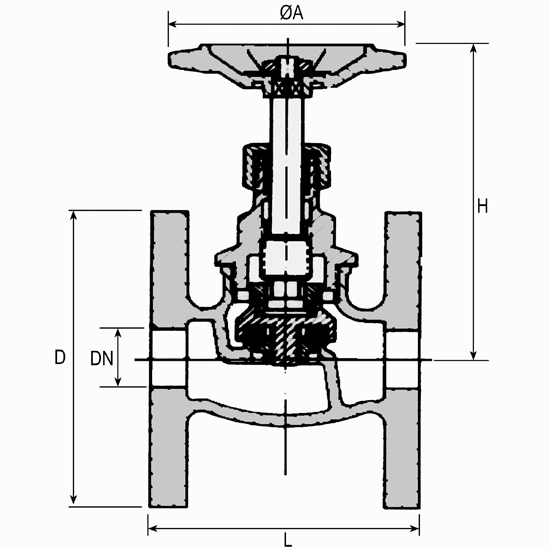

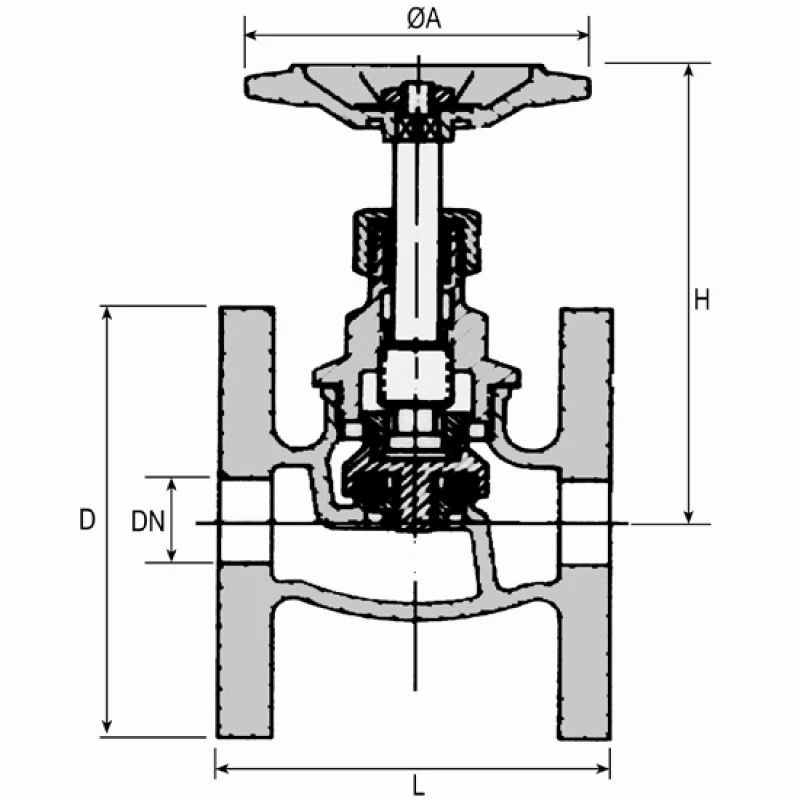

Afmetingen (mm) | Aansluitmaten (mm) | |||||||
---|---|---|---|---|---|---|---|---|
Art.nr. | DN | L | ØA | H geopend | D | ØK | Gewicht (kg) | Bestellen |
1451512100015 | 15 | 80 | 70 | 125 | 95 | 65 x 4 x 14 | 1,85 | |
1451512100020 | 20 | 80 | 70 | 125 | 105 | 75 x 4 x 14 | 1,90 | |
1451512100025 | 25 | 92 | 85 | 130 | 115 | 85 x 4 x 14 | 2,40 | |
1451512100030 | 32 | 102 | 95 | 160 | 140 | 100 x 4 x 18 | 2,95 | |
1451512100040 | 40 | 118 | 105 | 190 | 150 | 110 x 4 x 18 | 3,60 | |
1451512100050 | 50 | 140 | 120 | 215 | 165 | 125 x 4 x 18 | 6,30 |

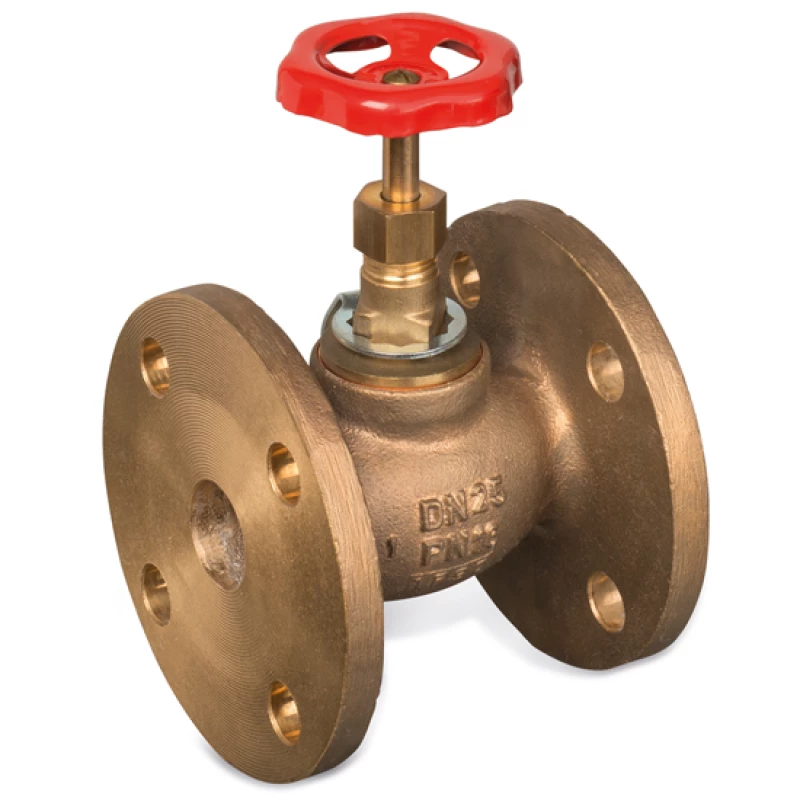

Type | KP-515 |
Materiaal | Brons CuSn5Zn5Pb5-C |
Drukklasse | PN16 |
Bovendeel | Brons Cu2n40Pb2 |
Handwiel | Aluminium |
Zitting | Brons CuSn5Zn5Pb5-C |
Klep | Brons met verwisselbare PTFE ring |
Spindel | Brons |
Stopbuspakking | PTFE >3/4"-> AF/15/MA |
|
|
Temperatuur | 7 bar tot +170°C |
16 bar tot +100°C |
