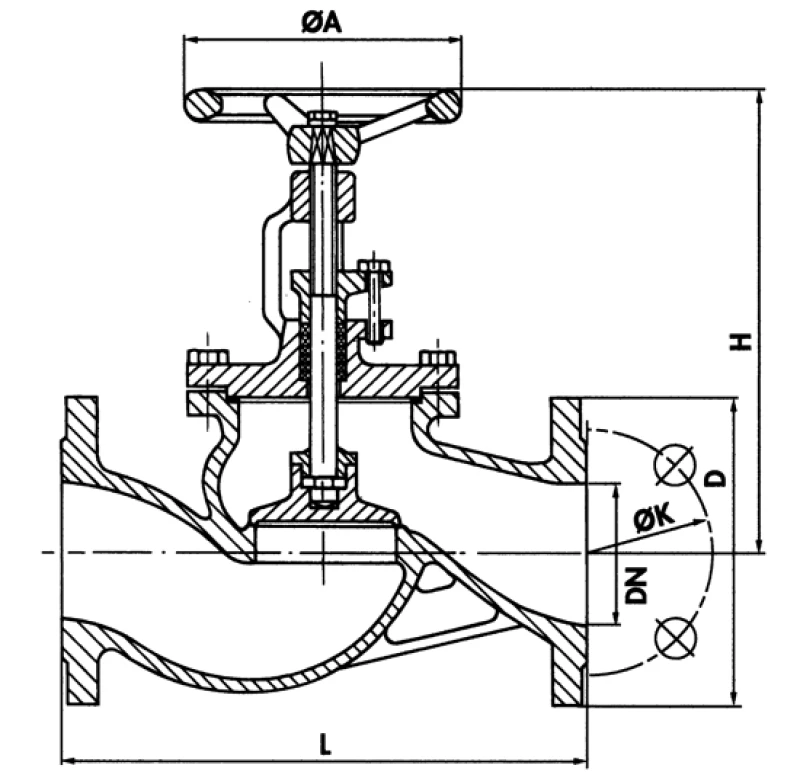

Afmetingen (mm) Aansluitmaten (mm)
Art.nr. DN L ØA H D ØK Gewicht (kg) Bestellen
1472112200015 15 130 100 188 95 65 x  4 x 14 4,0
1472112200020 20 150 100 188 105 75 x  4 x 14 4,8
1472112200025 25 160 125 205 115 85 x  4 x 14 5,0
1472112200030 32 180 125 210 140 100 x  4 x 18 7,5
1472112200040 40 200 160 232 150 110 x  4 x 18 9,5
1472112200050 50 230 160 246 165 125 x  4 x 18 12,0
1472112200065 65 290 160 281 185 145 x  4 x 18 20,0
1472112200080 80 310 200 350 200 160 x  8 x 18 24,0
1472112200100 100 350 200 400 220 180 x  8 x 18 38,0

Ook leverbaar

  • Type KP-821 met balgafdichting
