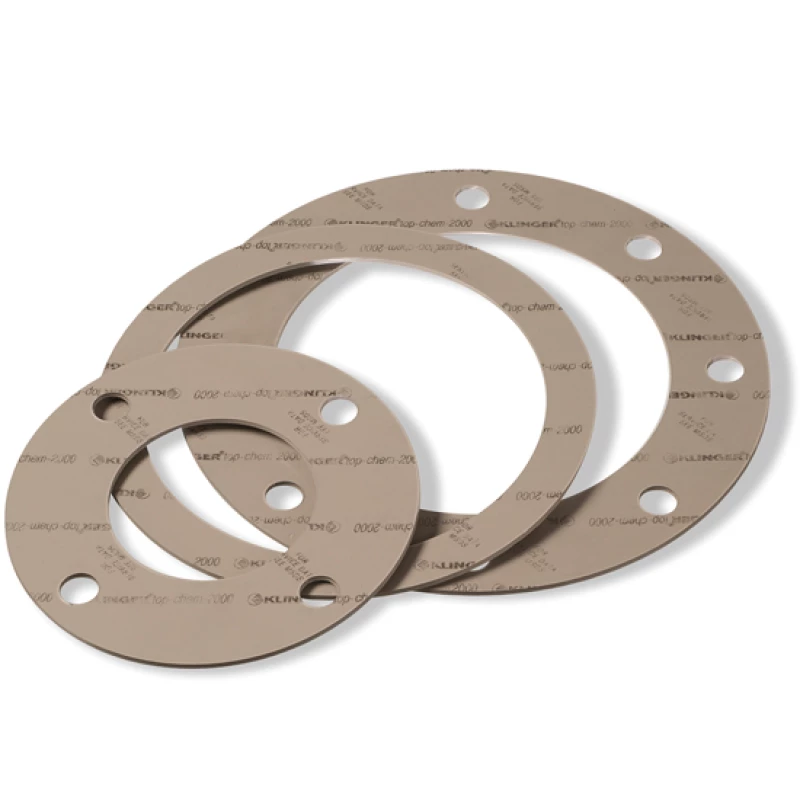

KLINGERtop-chem | KLINGER®top-chem-2000
Hoogwaardig afdichtingsmateriaal op basis van PTFE
Geschikt voor: vrijwel alle toepassingen tot 260ºC, waaronder zure en alkalische media en stoom
- Hoge vloei-bestendigheid.
- Breed inzetgebied.
- Zeer geschikt als plug of draad pakking door lage wrijving en hoge sterkte.
- Fire-safe.
- Hecht niet aan de flens.
- Veroudert niet.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 18015001500410 | 1 | 1500 x 1500 | |
| 18015001500415 | 1,5 | 1500 x 1500 | |
| 18015001500420 | 2 | 1500 x 1500 | |
| 18015001500430 | 3 | 1500 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18000460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 18000510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 18000610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 18000710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 18000820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 18000920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 18001070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 18001270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 18001420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 18001620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 18001680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 18001920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 18001940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 18002180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 18002240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 18002730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 18002840220015 | DN 200 | PN 25 | 284 x 220 | |
| 18002900220015 | DN 200 | PN 40 | 290 x 220 | |
| 18003280273015 | DN 250 | PN 10 | 328 x 273 | |
| 18003290273015 | DN 250 | PN 16 | 329 x 273 | |
| 18003400273016 | DN 250 | PN 25 | 340 x 273 | |
| 18003520273015 | DN 250 | PN 40 | 352 x 273 | |
| 18003780324015 | DN 300 | PN 10 | 378 x 324 | |
| 18003840324015 | DN 300 | PN 16 | 384 x 324 | |
| 18004000324015 | DN 300 | PN 25 | 400 x 320 | |
| 18004170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18000460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 18000510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 18000610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 18000710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 18000820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 18000920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 18001070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 18001270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 18001420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 18001620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 18001680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 18001920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 18001940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 18002180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 18002240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 18002730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 18002840220020 | DN 200 | PN 25 | 284 x 220 | |
| 18002900220020 | DN 200 | PN 40 | 290 x 220 | |
| 18003280273020 | DN 250 | PN 10 | 328 x 273 | |
| 18003290273020 | DN 250 | PN 16 | 329 x 273 | |
| 18003400273021 | DN 250 | PN 25 | 340 x 273 | |
| 18003520273020 | DN 250 | PN 40 | 352 x 273 | |
| 18003780324020 | DN 300 | PN 10 | 378 x 324 | |
| 18003840324020 | DN 300 | PN 16 | 384 x 324 | |
| 18004000324020 | DN 300 | PN 25 | 400 x 324 | |
| 18004170324020 | DN 300 | PN 40 | 417 x 324 | |
| 18004380356020 | DN 350 | PN 10 | 438 x 356 | |
| 18004440356020 | DN 350 | PN 16 | 444 x 356 | |
| 18004570356020 | DN 350 | PN 25 | 457 x 356 | |
| 18004890407020 | DN 400 | PN 10 | 489 x 407 | |
| 18004950407020 | DN 400 | PN 16 | 495 x 407 | |
| 18005140407020 | DN 400 | PN 25 | 514 x 407 | |
| 18005460407020 | DN 400 | PN 40 | 546 x 407 | |
| 18005390458020 | DN 450 | PN 10 | 539 x 458 | |
| 18005550458020 | DN 450 | PN 16 | 555 x 458 | |
| 18005640458020 | DN 450 | PN 25 | 564 x 458 | |
| 18005710458020 | DN 450 | PN 40 | 571 x 458 | |
| 18005940508020 | DN 500 | PN 10 | 594 x 508 | |
| 18006170508020 | DN 500 | PN 16 | 617 x 508 | |
| 18006240508020 | DN 500 | PN 25 | 624 x 508 | |
| 18006280508020 | DN 500 | PN 40 | 628 x 508 | |
| 18006950610020 | DN 600 | PN 10 | 695 x 610 | |
| 18007340610020 | DN 600 | PN 16 | 734 x 610 | |
| 18007310610020 | DN 600 | PN 25 | 731 x 610 | |
| 18007470610020 | DN 600 | PN 40 | 747 x 610 | |
| 18008100712020 | DN 700 | PN 10 | 810 x 712 | |
| 18008040712020 | DN 700 | PN 16 | 804 x 712 | |
| 18008330712020 | DN 700 | PN 25 | 833 x 712 | |
| 18009170813020 | DN 800 | PN 10 | 917 x 813 | |
| 18009110813020 | DN 800 | PN 16 | 911 x 813 | |
| 18009420813020 | DN 800 | PN 25 | 942 x 813 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 18000510022030 | DN 15 | PN 10-40 | 51 x 22 | |
| 18000610028030 | DN 20 | PN 10-40 | 61 x 28 | |
| 18000710034030 | DN 25 | PN 10-40 | 71 x 34 | |
| 18000820043030 | DN 32 | PN 10-40 | 82 x 43 | |
| 18000920049030 | DN 40 | PN 10-40 | 92 x 49 | |
| 18001070061030 | DN 50 | PN 10-40 | 107 x 61 | |
| 18001270077030 | DN 65 | PN 10-40 | 127 x 77 | |
| 18001420089030 | DN 80 | PN 10-40 | 142 x 89 | |
| 18001620115030 | DN 100 | PN 10-16 | 162 x 115 | |
| 18001680115030 | DN 100 | PN 25-40 | 168 x 115 | |
| 18001920141030 | DN 125 | PN 10-16 | 192 x 141 | |
| 18001940141030 | DN 125 | PN 25-40 | 194 x 141 | |
| 18002180169030 | DN 150 | PN 10-16 | 218 x 169 | |
| 18002240169030 | DN 150 | PN 25-40 | 224 x 169 | |
| 18002730220030 | DN 200 | PN 10-16 | 273 x 220 | |
| 18002840220030 | DN 200 | PN 25 | 284 x 220 | |
| 18002900220030 | DN 200 | PN 40 | 290 x 220 | |
| 18003280273030 | DN 250 | PN 10 | 328 x 273 | |
| 18003290273030 | DN 250 | PN 16 | 329 x 273 | |
| 18003400273031 | DN 250 | PN 25 | 340 x 273 | |
| 18003520273030 | DN 250 | PN 40 | 352 x 273 | |
| 18003780324030 | DN 300 | PN 10 | 378 x 324 | |
| 18003840324030 | DN 300 | PN 16 | 384 x 324 | |
| 18004000324030 | DN 300 | PN 25 | 400 x 323 | |
| 18004170324030 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18000480021015 | 1/2" | 48 x 21 | |
| 18000570027015 | 3/4" | 57 x 27 | |
| 18000670033015 | 1 " | 67 x 33 | |
| 18000760042015 | 1.1/4" | 76 x 42 | |
| 18000860048015 | 1.1/2" | 86 x 48 | |
| 18001050060015 | 2 " | 105 x 60 | |
| 18001240073015 | 2.1/2" | 124 x 73 | |
| 18001370089015 | 3 " | 137 x 89 | |
| 18001620102015 | 3.1/2" | 162 x 102 | |
| 18001750114015 | 4 " | 175 x 114 | |
| 18001970141015 | 5 " | 197 x 141 | |
| 18002220168015 | 6 " | 222 x 168 | |
| 18002790219015 | 8 " | 279 x 219 | |
| 18003400273015 | 10 " | 340 x 273 | |
| 18004100324015 | 12 " | 410 x 324 | |
| 18004510356015 | 14 " | 451 x 356 | |
| 18005140406015 | 16 " | 514 x 406 | |
| 18005500457015 | 18 " | 550 x 457 | |
| 18006060508015 | 20 " | 606 x 508 | |
| 18007180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18000480021020 | 1/2" | 48 x 21 | |
| 18000570027020 | 3/4" | 57 x 27 | |
| 18000670033020 | 1 " | 67 x 33 | |
| 18000760042020 | 1.1/4" | 76 x 42 | |
| 18000860048020 | 1.1/2" | 86 x 48 | |
| 18001050060020 | 2 " | 105 x 60 | |
| 18001240073020 | 2.1/2" | 124 x 73 | |
| 18001370089020 | 3 " | 137 x 89 | |
| 18001620102020 | 3.1/2" | 162 x 102 | |
| 18001750114020 | 4 " | 175 x 114 | |
| 18001970141020 | 5 " | 197 x 141 | |
| 18002220168020 | 6 " | 222 x 168 | |
| 18002790219020 | 8 " | 279 x 219 | |
| 18003400273020 | 10 " | 340 x 273 | |
| 18004100324020 | 12 " | 410 x 324 | |
| 18004510356020 | 14 " | 451 x 356 | |
| 18005140406020 | 16 " | 514 x 406 | |
| 18005500457020 | 18 " | 550 x 457 | |
| 18006060508020 | 20 " | 606 x 508 | |
| 18007180610020 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18000480021030 | 1/2" | 48 x 21 | |
| 18000570027030 | 3/4" | 57 x 27 | |
| 18000670033030 | 1 " | 67 x 33 | |
| 18000760042030 | 1.1/4" | 76 x 42 | |
| 18000860048030 | 1.1/2" | 86 x 48 | |
| 18001050060030 | 2 " | 105 x 60 | |
| 18001240073030 | 2.1/2" | 124 x 73 | |
| 18001370089030 | 3 " | 137 x 89 | |
| 18001620102030 | 3.1/2" | 162 x 102 | |
| 18001750114030 | 4 " | 175 x 114 | |
| 18001970141030 | 5 " | 197 x 141 | |
| 18002220168030 | 6 " | 222 x 168 | |
| 18002790219030 | 8 " | 279 x 219 | |
| 18003400273030 | 10 " | 340 x 273 | |
| 18004100324030 | 12 " | 410 x 324 | |
| 18004510356030 | 14 " | 451 x 356 | |
| 18005140406030 | 16 " | 514 x 406 | |
| 18005500457030 | 18 " | 550 x 457 | |
| 18006060508030 | 20 " | 606 x 508 | |
| 18007180610030 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18000540021015 | 1/2" | 54 x 21 | |
| 18000670027015 | 3/4" | 67 x 27 | |
| 18000730033015 | 1 " | 73 x 33 | |
| 18000830042015 | 1.1/4" | 83 x 42 | |
| 18000950048015 | 1.1/2" | 95 x 48 | |
| 18001110060015 | 2 " | 111 x 60 | |
| 18001300073015 | 2.1/2" | 130 x 73 | |
| 18001490089015 | 3 " | 149 x 89 | |
| 18001650102015 | 3.1/2" | 165 x 102 | |
| 18001810114015 | 4 " | 181 x 114 | |
| 18002160141015 | 5 " | 216 x 141 | |
| 18002510168015 | 6 " | 251 x 168 | |
| 18003080219015 | 8 " | 308 x 219 | |
| 18003620273015 | 10 " | 362 x 273 | |
| 18004220324015 | 12 " | 422 x 324 | |
| 18004860356015 | 14 " | 486 x 356 | |
| 18005400406015 | 16 " | 540 x 406 | |
| 18005970457015 | 18 " | 597 x 457 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18000540021020 | 1/2" | 54 x 21 | |
| 18000670027020 | 3/4" | 67 x 27 | |
| 18000730033020 | 1 " | 73 x 33 | |
| 18000830042020 | 1.1/4" | 83 x 42 | |
| 18000950048020 | 1.1/2" | 95 x 48 | |
| 18001110060020 | 2 " | 111 x 60 | |
| 18001300073020 | 2.1/2" | 130 x 73 | |
| 18001490089020 | 3 " | 149 x 89 | |
| 18001650102020 | 3.1/2" | 165 x 102 | |
| 18001810114020 | 4 " | 181 x 114 | |
| 18002160141020 | 5 " | 216 x 141 | |
| 18002510168020 | 6 " | 251 x 168 | |
| 18003080219020 | 8 " | 308 x 219 | |
| 18003620273020 | 10 " | 362 x 273 | |
| 18004220324020 | 12 " | 422 x 324 | |
| 18004860356020 | 14 " | 486 x 356 | |
| 18005400406020 | 16 " | 540 x 406 | |
| 18005970457020 | 18 " | 597 x 457 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 18000540021030 | 1/2" | 54 x 21 | |
| 18000670027030 | 3/4" | 67 x 27 | |
| 18000730033030 | 1 " | 73 x 33 | |
| 18000830042030 | 1.1/4" | 83 x 42 | |
| 18000950048030 | 1.1/2" | 95 x 48 | |
| 18001110060030 | 2 " | 111 x 60 | |
| 18001300073030 | 2.1/2" | 130 x 73 | |
| 18001490089030 | 3 " | 149 x 89 | |
| 18001650102030 | 3.1/2" | 165 x 102 | |
| 18001810114030 | 4 " | 181 x 114 | |
| 18002160141030 | 5 " | 216 x 141 | |
| 18002510168030 | 6 " | 251 x 168 | |
| 18003080219030 | 8 " | 308 x 219 | |
| 18003620273030 | 10 " | 362 x 273 | |
| 18004220324030 | 12 " | 422 x 324 | |
| 18004860356030 | 14 " | 486 x 356 | |
| 18005400406030 | 16 " | 540 x 406 | |
| 18005970457030 | 18 " | 597 x 457 |
Specificaties
| Type | KLINGER®top-chem-2000 |
| Materiaal | PTFE versterkend gevuld |
| Kleur | aan beide zijden grijs, |
|
|
|
| Samendrukbaarheid volgens ASTM F36J | 2% |
| Terugvering volgens ASTM F36J | 55% |
| Drukvastheid volgens DIN 52913(1,5mm, 300ºC) | 35 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,05 mg/sm |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | DIN DVGW keur |
| BAM II-2629/2004 IV | |
| DIN DVGW W270 | |
| TA Luft (clean air) acc VDI2440 | |
| "Fire safe" API 6FA en DIN EN ISO 10497 | |
| KTW, WRC cerificaat | |
| FDA conform verklaring | |
| Germanische Lloyd keur | |
| US Coast Guard | |
| Registro Italiano Navale | |
| Det Norske Veritas AS | |
| RoHS cert 2011/65/EG | |
| 2003/11/EG cert. | |
| 76/769/EWG cert. | |
| Reach verklaring | |
| SVHC lijstverklaring | |
|
|
|
|
Afdichtingsfaktoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 10 MPa |
| ASTM m | 3,5 |
| D0701 pgm;min 25ºC | 21 MPa |
| D0701 pgm;max 25ºC | 210 MPa |
| D0701 pgm;max 100ºC | 150 MPa |
| D0701 pgm;max 200ºC | 125 MPa |
| D0701 pgm;max 300ºC | 75 MPa |
| D0701 Cg | 1,3 |
|
|
|
|

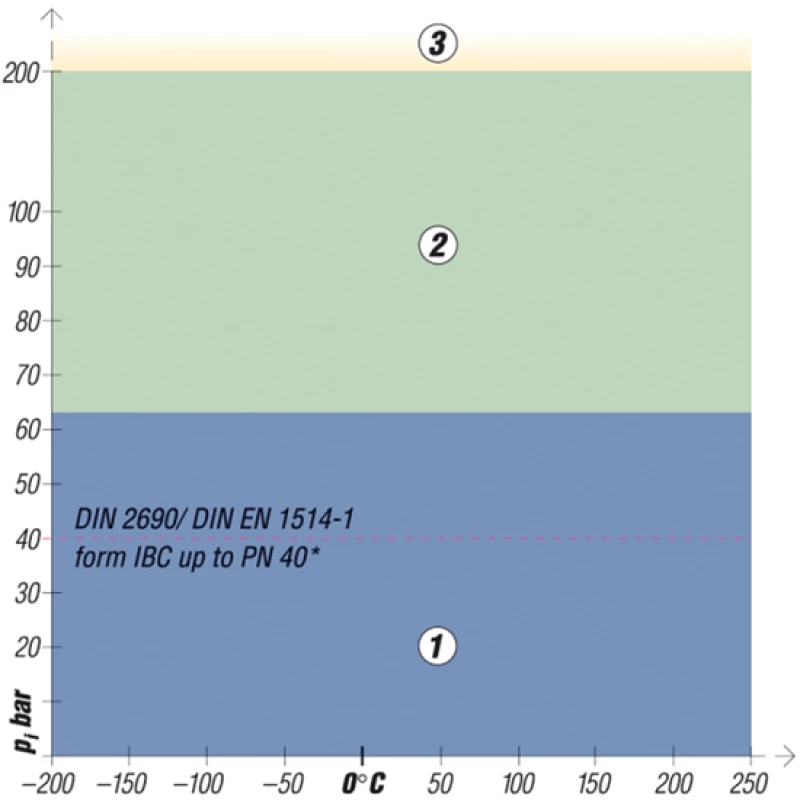

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
