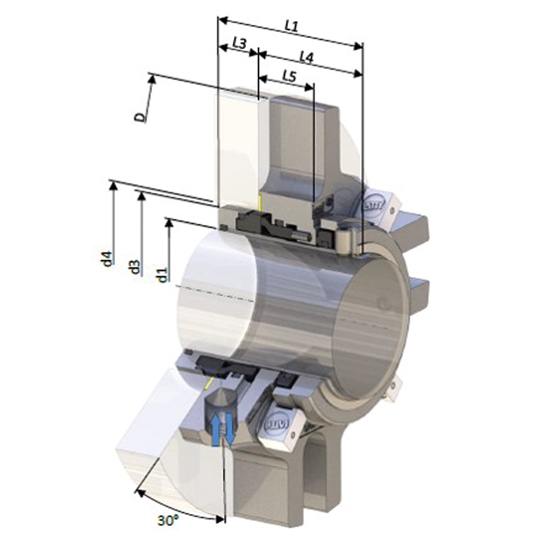

Art.nr. d1 (h6) d3/d4 min/max L1 L3/L4 L5 D S W Bestellen
59124610221310 25 40/41/51 61 17/44 23 105 12,5 58
59124610221312 28 43/44/52 61 17/44 23 105 12,5 59
59124610221313 30 45/46/56 61 17/44 23 105 12,5 63
59124610221314 32 47/48/57 61 17/44 23 110 12,5 64
59124610221315 33 48/49/57 61 17/44 23 110 12,5 64
59124610221316 35 50/51/61 61 17/44 23 115 12,5 68
59124610221317 38 55/58/66 61 17/44 23 125 12,5 73
59124610221318 40 57/60/68 61 17/44 23 125 14,7 75
59124610221320 43 60/63/70 61 17/44 23 133 14,7 77
59124610221321 45 62/65/73 61 17/44 23 141 14,7 80
59124610221322 48 65/68/75 61 17/44 23 141 14,7 82
59124610221323 50 67/70/78 61 17/44 23 150 14,7 85
59124610221325 53 70/73/81 61 17/44 23 150 14,7 88
59124610221326 55 72/75/83 61 17/44 23 150 18,0 90
59124610221328 60 80/85/91 61 17/44 23 157 18,0 98
59124610221330 65 85/90/98 61 17/44 23 165 18,0 105
59124610221332 70 90/95/108 61 17/44 23 180 18,0 115
59124610221333 75 100/104/118 73 27/46 31/11 190 18,0 129
59124610221334 80 105/109/124 73 27/46 31/11 195 18,0 135
59124610221335 85 110/114/128 73 27/46 31/11 200 20,0 139
59124610221336 90 115/119/135 73 27/46 31/11 205 20,0 146
59124610221337 95 120/124/138 73 27/46 31/11 210 20,0 149
59124610221338 100 126/129/144 73 27/46 31/11 215 20,0 155

Bij bestelling op te geven

  • O-ringen: FPM (V), EPDM (E)
