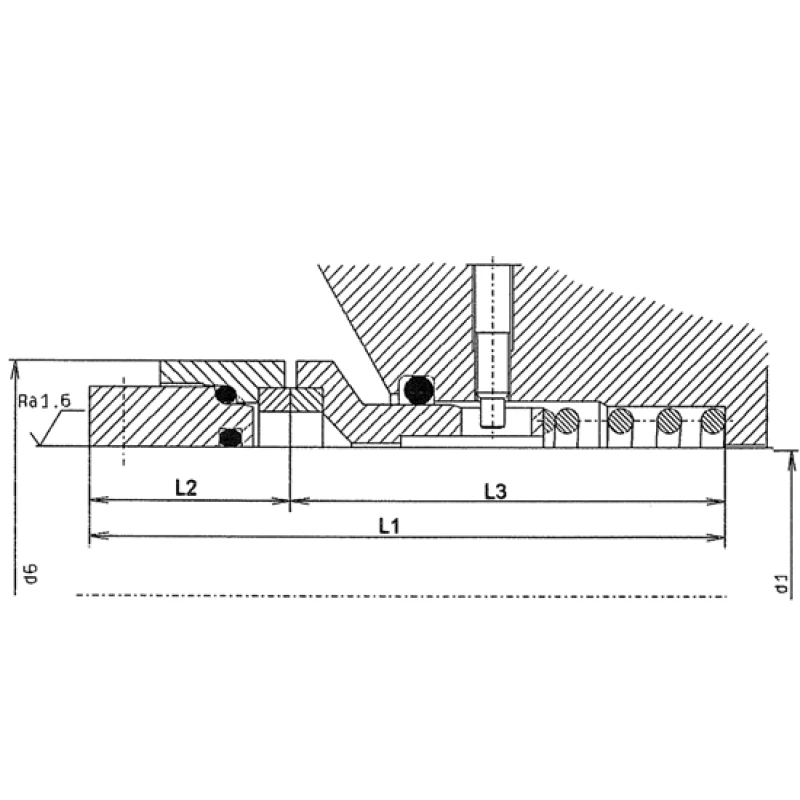

Art.nr. | d1 h11 | L1 ± 1,0 | d6 | Bestellen |
---|---|---|---|---|
9700018 | 40 | 99,0 | 68 | |
9700021 | 45 | 100,0 | 73 | |
9700023 | 50 | 106,0 | 78 | |
9700026 | 55 | 108,0 | 83 | |
9700028 | 60 | 112,0 | 88 | |
9700030 | 65 | 110,5 | 93 | |
9700032 | 70 | 114,5 | 98 | |
9700033 | 75 | 122,5 | 103 | |
9700034 | 80 | 124,5 | 108 | |
9700035 | 85 | 128,0 | 118 | |
9700036 | 90 | 146,5 | 127 | |
9700037 | 95 | 153,0 | 140 | |
9700038 | 100 | 163,0 | 145 | |
9700039 | 105 | 164,0 | 150 | |
9700040 | 110 | 163,0 | 160 | |
9700041 | 115 | 177,5 | 170 | |
9700042 | 120 | 170,5 | 175 | |
9700044 | 130 | 178,5 | 185 |

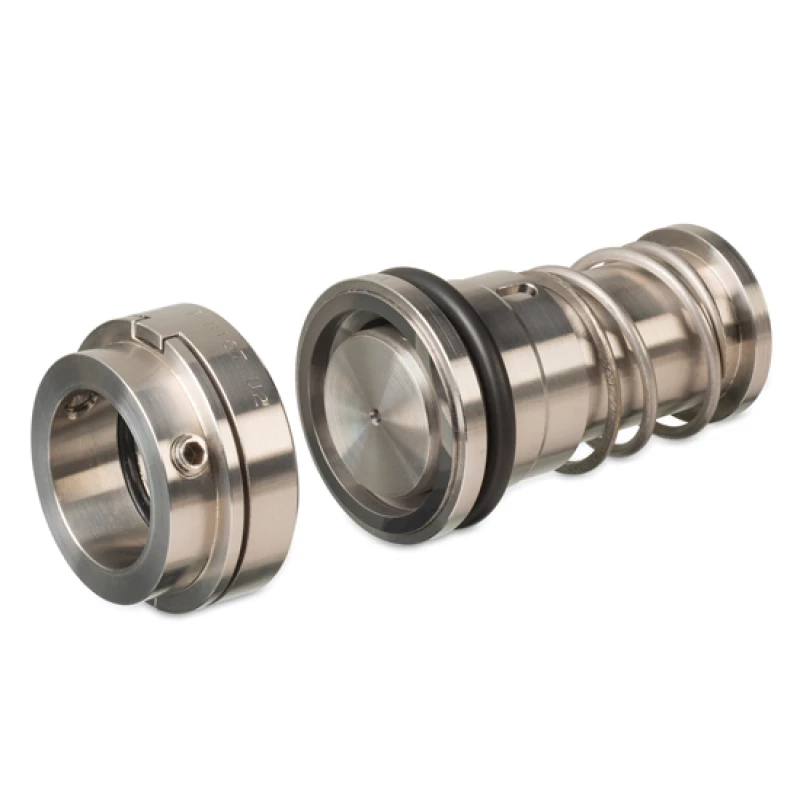

Type | B 10712 REV U2U2V |
Materiaal | AISI 316L |
Roterend deel | Wolframcarbide (U2) |
Stationair deel | Wolframcarbide (U2) |
O-ringen | FPM (V), optie EPDM (E) |
|
|
Max. druk | 10 bar |
Max. temperatuur | 180ºC |
Max. snelheid | 10 m/s |
|
|
Afmetingen | afhankelijk van uitvoering |
Voor meer informatie over onze mechanische asafdichtingen (mechanical seals) kunt u contact opnemen met:
