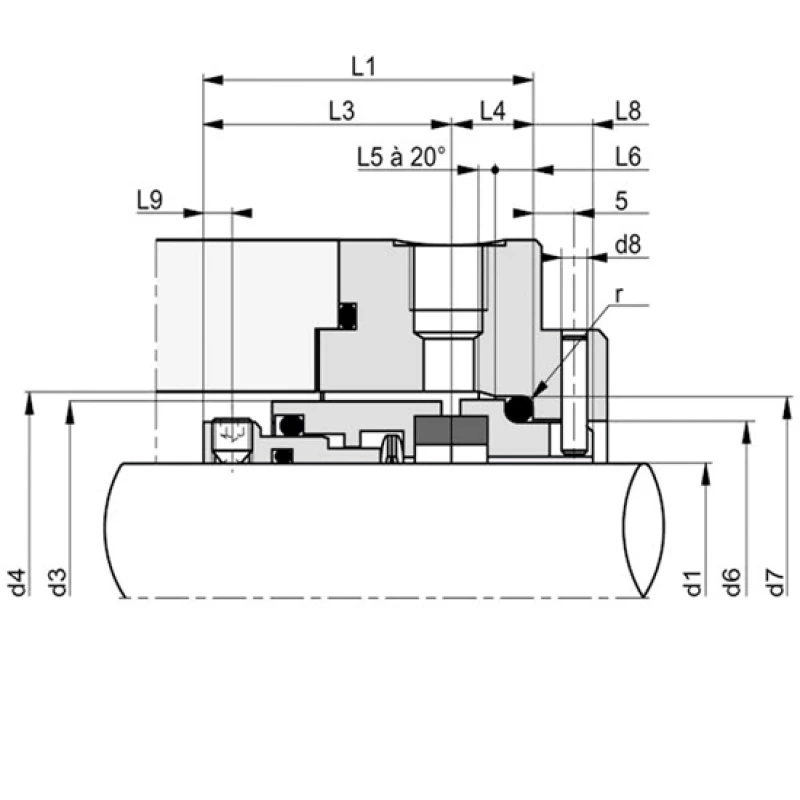

Art.nr. | d1 (h6) | d7 (H8) | L1 ± 0,5 | Bestellen |
---|---|---|---|---|
59123212221005 | 18 | 33 | 37,5 | |
59123212221007 | 20 | 35 | 37,5 | |
59123212221008 | 22 | 37 | 37,5 | |
59123212221009 | 24 | 39 | 40,0 | |
59123212221010 | 25 | 40 | 40,0 | |
59123212221012 | 28 | 43 | 42,5 | |
59123212221013 | 30 | 45 | 42,5 | |
59123212221014 | 32 | 48 | 42,5 | |
59123212221015 | 33 | 48 | 42,5 | |
59123212221016 | 35 | 50 | 42,5 | |
59123212221017 | 38 | 56 | 45,0 | |
59123212221018 | 40 | 58 | 45,0 | |
59123212221020 | 43 | 61 | 45,0 | |
59123212221021 | 45 | 63 | 45,0 | |
59123212221022 | 48 | 66 | 45,0 | |
59123212221023 | 50 | 70 | 47,5 | |
59123212221025 | 53 | 73 | 47,5 | |
59123212221026 | 55 | 75 | 47,5 | |
59123212221027 | 58 | 78 | 52,5 | |
59123212221028 | 60 | 80 | 52,5 | |
59123212221030 | 65 | 85 | 52,5 | |
59123212221032 | 70 | 92 | 60,0 | |
59123212221033 | 75 | 97 | 60,0 | |
59123212221034 | 80 | 105 | 60,0 | |
59123212221035 | 85 | 110 | 60,0 | |
59123212221036 | 90 | 115 | 65,0 |

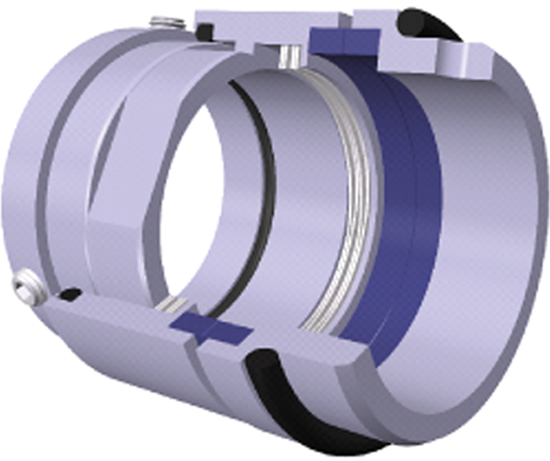

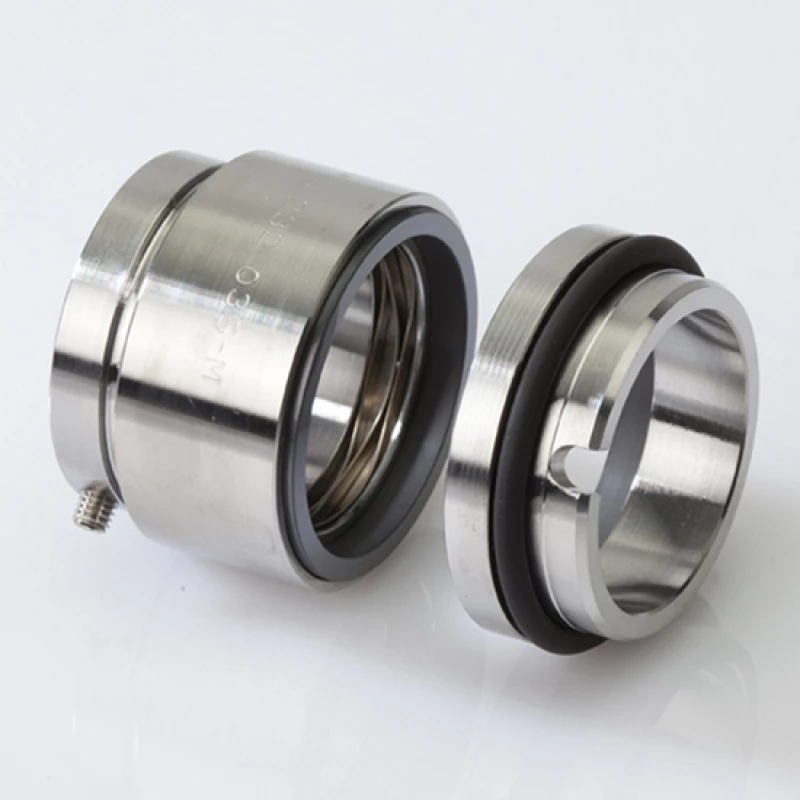

Type | B 23212 U6U6V |
Materiaal | Duplex 1.4462 |
Roterend deel | Siliciumcarbide (U6 = DIN Q1) |
Stationair deel | Siliciumcarbide (U6 = DIN Q1) |
O-ringen | FPM (V), optie EPDM (E) |
|
|
Max. druk | 25 bar |
Max. temperatuur | 160ºC |
Max. snelheid | 20 m/s |
P.V. factor | 400 |
|
|
Afmetingen | volgens DIN 24960 |
