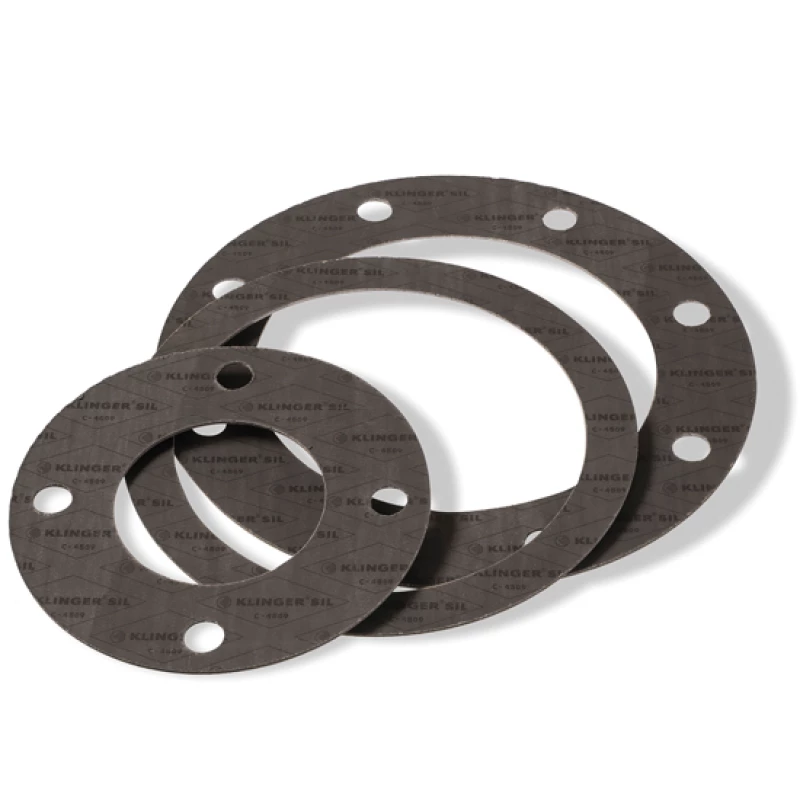

Vezel afdichting | KLINGERSIL®C-4509
Koolvezel met NBR v.z.v. strekmetaal-inlage
Geschikt voor: vloeistoffen onder hoge druk
- Deze pakking heeft een extra "body"door een uit één geheel geperforeerde en gerekte staalinlage.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 11520001500410 | 1 | 2000 x 1500 | |
| 11520001500415 | 1,5 | 2000 x 1500 | |
| 11520001500420 | 2 | 2000 x 1500 | |
| 11520001500430 | 3 | 2000 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 11500460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 11500510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 11500610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 11500710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 11500820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 11500920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 11501070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 11501270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 11501420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 11501620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 11501680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 11501920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 11501940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 11502180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 11502240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 11502730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 11502840220015 | DN 200 | PN 25 | 284 x 220 | |
| 11502900220015 | DN 200 | PN 40 | 290 x 220 | |
| 11503280273015 | DN 250 | PN 10 | 328 x 273 | |
| 11503290273015 | DN 250 | PN 16 | 329 x 273 | |
| 11503400273016 | DN 250 | PN 25 | 340 x 273 | |
| 11503520273015 | DN 250 | PN 40 | 352 x 273 | |
| 11503780324015 | DN 300 | PN 10 | 378 x 324 | |
| 11503840324015 | DN 300 | PN 16 | 384 x 324 | |
| 11504000324015 | DN 300 | PN 25 | 400 x 324 | |
| 11504170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 11500460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 11500510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 11500610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 11500710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 11500820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 11500920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 11501070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 11501270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 11501420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 11501620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 11501680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 11501920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 11501940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 11502180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 11502240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 11502730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 11502840220020 | DN 200 | PN 25 | 284 x 220 | |
| 11502900220020 | DN 200 | PN 40 | 290 x 220 | |
| 11503280273020 | DN 250 | PN 10 | 328 x 273 | |
| 11503290273020 | DN 250 | PN 16 | 329 x 274 | |
| 11503400273020 | DN 250 | PN 25 | 340 x 273 | |
| 11503520273020 | DN 250 | PN 40 | 352 x 273 | |
| 11503780324020 | DN 300 | PN 10 | 378 x 324 | |
| 11503840324020 | DN 300 | PN 16 | 384 x 320 | |
| 11504000324020 | DN 300 | PN 25 | 400 x 324 | |
| 11504170324020 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 11500480021015 | 1/2" | 48 x 21 | |
| 11500570027015 | 3/4" | 57 x 27 | |
| 11500670033015 | 1 " | 67 x 33 | |
| 11500760042015 | 1.1/4" | 76 x 42 | |
| 11500860048015 | 1.1/2" | 86 x 48 | |
| 11501050060015 | 2 " | 105 x 60 | |
| 11501240073015 | 2.1/2" | 124 x 73 | |
| 11501370089015 | 3 " | 137 x 89 | |
| 11501620102015 | 3.1/2" | 162 x 102 | |
| 11501750114015 | 4 " | 175 x 114 | |
| 11501970141015 | 5 " | 197 x 141 | |
| 11502220168015 | 6 " | 222 x 168 | |
| 11502790219015 | 8 " | 279 x 219 | |
| 11503400273015 | 10 " | 340 x 273 | |
| 11504100324015 | 12 " | 410 x 324 | |
| 11504510356015 | 14 " | 451 x 356 | |
| 11505140406015 | 16 " | 514 x 406 | |
| 11505500457015 | 18 " | 550 x 457 | |
| 11506060508015 | 20 " | 606 x 508 | |
| 11507180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 11500540021015 | 1/2" | 54 x 21 | |
| 11500670027015 | 3/4" | 67 x 27 | |
| 11500730033015 | 1 " | 73 x 33 | |
| 11500830042015 | 1.1/4" | 83 x 42 | |
| 11500950048015 | 1.1/2" | 95 x 48 | |
| 11501110060015 | 2 " | 111 x 60 | |
| 11501300073015 | 2.1/2" | 130 x 73 | |
| 11501490089015 | 3 " | 149 x 89 | |
| 11501650102015 | 3.1/2" | 165 x 102 | |
| 11501810114015 | 4 " | 181 x 114 | |
| 11502160141015 | 5 " | 216 x 141 | |
| 11502510168015 | 6 " | 251 x 168 | |
| 11503080219015 | 8 " | 308 x 219 | |
| 11503620273015 | 10 " | 362 x 273 | |
| 11504220324015 | 12 " | 422 x 324 | |
| 11504860356015 | 14 " | 486 x 356 | |
| 11505400406015 | 16 " | 540 x 406 | |
| 11505970457015 | 18 " | 597 x 457 | |
| 11506240508015 | 20 " | 654 x 508 | |
| 11506280508015 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGERSIL®C-4509 |
| Materiaal | Koolvezels met NBR, v.z.v. strekmetaal-inlage |
| Kleur | aan beide zijden grijs/zwart, eenzijdig bedrukt |
|
|
|
| Samendrukbaarheid volgens ASTM F36A | 12% |
| Terugvering volgens ASTM F36A | 70% |
| Drukvastheid volgens DIN 52913(2mm 300ºC) | 39 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,6 mg/s.m. |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | Germanischer Lloyd |
| RoHS 2011/65/EG cert. | |
| 2003/11/EG cert. | |
| 76/769/EWG cert. | |
| Reach verklaring | |
| SVHC lijstverklaring | |
| Germanischer Lloyd cert. | |
| Biobrandstoffen 2003/30/EG | |
|
|
|
|

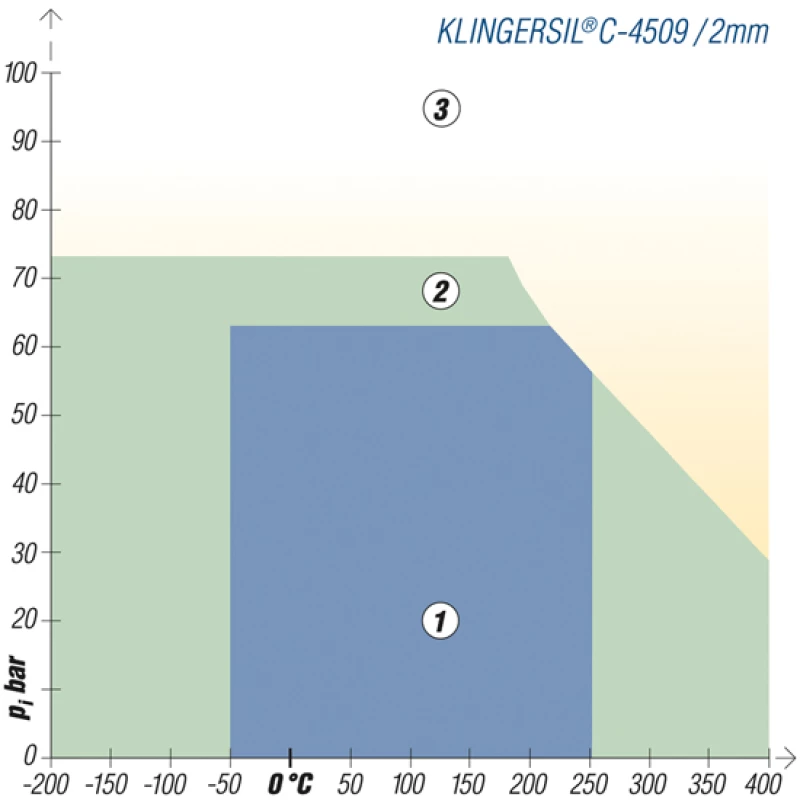

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
