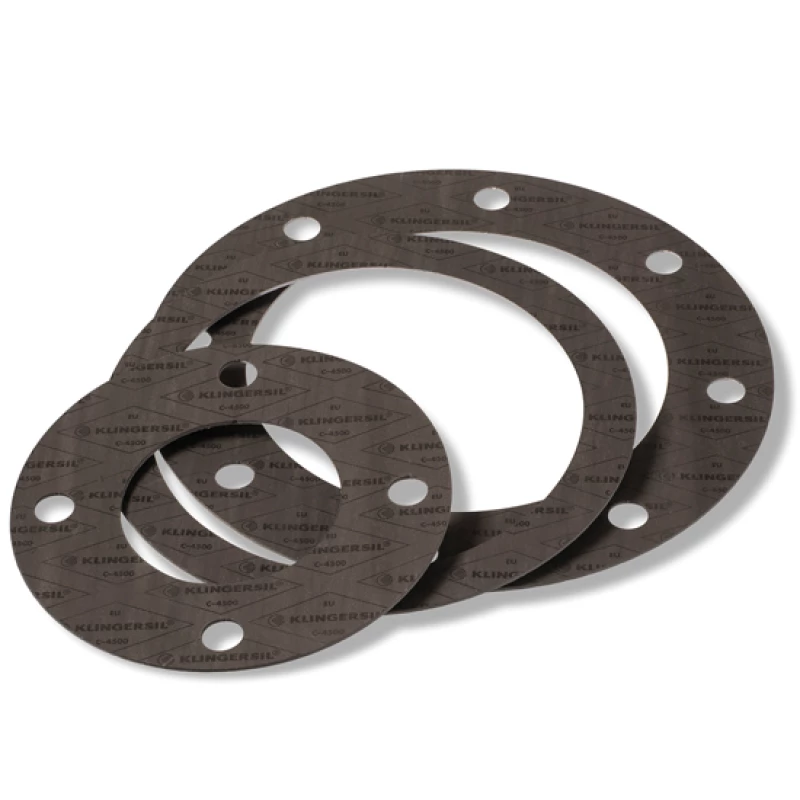

Vezel afdichting | KLINGERSIL®C-4500
Koolvezel met NBR
Geschikt voor: oliën, alkaliën, koolwaterstoffen en vele gassen
- Universeel inzetbaar.
- Goed bestand tegen loog.
- Vanuit eigen productie leverbaar in platen, ringen en ramen.
Selecteer een uitvoering:
Selecteer een uitvoering
| Art.nr. | Dikte (mm) | Plaatafmeting (mm) | Bestellen |
|---|---|---|---|
| 11220001500404 | 0,4 | 2000 x 1500 | |
| 11220001500405 | 0,5 | 2000 x 1500 | |
| 11220001500408 | 0,8 | 2000 x 1500 | |
| 11220001500410 | 1 | 2000 x 1500 | |
| 11220001500415 | 1,5 | 2000 x 1500 | |
| 11220001500420 | 2 | 2000 x 1500 | |
| 11220001500430 | 3 | 2000 x 1500 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 11200460018015 | DN 10 | PN 10-40 | 46 x 18 | |
| 11200510022015 | DN 15 | PN 10-40 | 51 x 22 | |
| 11200610028015 | DN 20 | PN 10-40 | 61 x 28 | |
| 11200710034015 | DN 25 | PN 10-40 | 71 x 34 | |
| 11200820043015 | DN 32 | PN 10-40 | 82 x 43 | |
| 11200920049015 | DN 40 | PN 10-40 | 92 x 49 | |
| 11201070061015 | DN 50 | PN 10-40 | 107 x 61 | |
| 11201270077015 | DN 65 | PN 10-40 | 127 x 77 | |
| 11201420089015 | DN 80 | PN 10-40 | 142 x 89 | |
| 11201620115015 | DN 100 | PN 10-16 | 162 x 115 | |
| 11201680115015 | DN 100 | PN 25-40 | 168 x 115 | |
| 11201920141015 | DN 125 | PN 10-16 | 192 x 141 | |
| 11201940141015 | DN 125 | PN 25-40 | 194 x 141 | |
| 11202180169015 | DN 150 | PN 10-16 | 218 x 169 | |
| 11202240169015 | DN 150 | PN 25-40 | 224 x 169 | |
| 11202730220015 | DN 200 | PN 10-16 | 273 x 220 | |
| 11202840220015 | DN 200 | PN 25 | 284 x 220 | |
| 11202900220015 | DN 200 | PN 40 | 290 x 220 | |
| 11203280273015 | DN 250 | PN 10 | 328 x 273 | |
| 11203290273015 | DN 250 | PN 16 | 329 x 273 | |
| 11203400273014 | DN 250 | PN 25 | 340 x 273 | |
| 11203520273015 | DN 250 | PN 40 | 352 x 273 | |
| 11203780324015 | DN 300 | PN 10 | 378 x 324 | |
| 11203840324015 | DN 300 | PN 16 | 384 x 324 | |
| 11204000324015 | DN 300 | PN 25 | 400 x 324 | |
| 11204170324015 | DN 300 | PN 40 | 417 x 324 |
| Art.nr. | Maat | PN | Afmeting (mm) | Bestellen |
|---|---|---|---|---|
| 11200460018020 | DN 10 | PN 10-40 | 46 x 18 | |
| 11200510022020 | DN 15 | PN 10-40 | 51 x 22 | |
| 11200610028020 | DN 20 | PN 10-40 | 61 x 28 | |
| 11200710034020 | DN 25 | PN 10-40 | 71 x 34 | |
| 11200820043020 | DN 32 | PN 10-40 | 82 x 43 | |
| 11200920049020 | DN 40 | PN 10-40 | 92 x 49 | |
| 11201070061020 | DN 50 | PN 10-40 | 107 x 61 | |
| 11201270077020 | DN 65 | PN 10-40 | 127 x 77 | |
| 11201420089020 | DN 80 | PN 10-40 | 142 x 89 | |
| 11201620115020 | DN 100 | PN 10-16 | 162 x 115 | |
| 11201680115020 | DN 100 | PN 25-40 | 168 x 115 | |
| 11201920141020 | DN 125 | PN 10-16 | 192 x 141 | |
| 11201940141020 | DN 125 | PN 25-40 | 194 x 141 | |
| 11202180169020 | DN 150 | PN 10-16 | 218 x 169 | |
| 11202240169020 | DN 150 | PN 25-40 | 224 x 169 | |
| 11202730220020 | DN 200 | PN 10-16 | 273 x 220 | |
| 11202840220020 | DN 200 | PN 25 | 284 x 220 | |
| 11202900220020 | DN 200 | PN 40 | 290 x 220 | |
| 11203280273020 | DN 250 | PN 10 | 328 x 273 | |
| 11203290273020 | DN 250 | PN 16 | 329 x 273 | |
| 11203400273020 | DN 250 | PN 25 | 340 x 273 | |
| 11203520273020 | DN 250 | PN 40 | 352 x 273 | |
| 11203780324020 | DN 300 | PN 10 | 378 x 324 | |
| 11203840324020 | DN 300 | PN 16 | 384 x 324 | |
| 11204000324020 | DN 300 | PN 25 | 400 x 324 | |
| 11204170324020 | DN 300 | PN 40 | 417 x 324 | |
| 11204380356020 | DN 350 | PN 10 | 438 x 356 | |
| 11204440356020 | DN 350 | PN 16 | 444 x 356 | |
| 11204570356020 | DN 350 | PN 25 | 457 x 356 | |
| 11204740356020 | DN 350 | PN 40 | 474 x 356 | |
| 11204890407020 | DN 400 | PN 10 | 489 x 407 | |
| 11204950407020 | DN 400 | PN 16 | 495 x 407 | |
| 11205140407020 | DN 400 | PN 25 | 514 x 407 | |
| 11205460407020 | DN 400 | PN 40 | 546 x 407 | |
| 11205390458020 | DN 450 | PN 10 | 539 x 458 | |
| 11205550458020 | DN 450 | PN 16 | 555 x 458 | |
| 11205640458020 | DN 450 | PN 25 | 564 x 458 | |
| 11205710458020 | DN 450 | PN 40 | 571 x 458 | |
| 11205940508020 | DN 500 | PN 10 | 594 x 508 | |
| 11206170508020 | DN 500 | PN 16 | 617 x 508 | |
| 11206240508020 | DN 500 | PN 25 | 624 x 508 | |
| 11206280508020 | DN 500 | PN 40 | 628 x 508 | |
| 11206950610020 | DN 600 | PN 10 | 695 x 610 | |
| 11207340610020 | DN 600 | PN 16 | 734 x 610 | |
| 11207310610020 | DN 600 | PN 25 | 731 x 610 | |
| 11207470610020 | DN 600 | PN 40 | 747 x 610 | |
| 11208040712020 | DN 700 | PN 16 | 804 x 712 | |
| 11208100712020 | DN 700 | PN 10 | 810 x 712 | |
| 11208330712020 | DN 700 | PN 25 | 833 x 712 | |
| 11208500720020 | DN 700 | PN 40 | 850 x 720 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 11200480021015 | 1/2" | 48 x 21 | |
| 11200570027015 | 3/4" | 57 x 27 | |
| 11200670033015 | 1 " | 67 x 33 | |
| 11200760042015 | 1.1/4" | 76 x 42 | |
| 11200860048015 | 1.1/2" | 86 x 48 | |
| 11201050060015 | 2 " | 105 x 60 | |
| 11201270073015 | 2.1/2" | 124 x 73 | |
| 11201370089015 | 3 " | 137 x 89 | |
| 11201620102015 | 3.1/2" | 162 x 102 | |
| 11201750114015 | 4 " | 175 x 114 | |
| 11201970141015 | 5 " | 197 x 141 | |
| 11202220168015 | 6 " | 222 x 168 | |
| 11202790219015 | 8 " | 279 x 219 | |
| 11203400273015 | 10 " | 340 x 273 | |
| 11204100324015 | 12 " | 410 x 324 | |
| 11204510356015 | 14 " | 451 x 356 | |
| 11205140406015 | 16 " | 514 x 406 | |
| 11205500457015 | 18 " | 550 x 457 | |
| 11206060508015 | 20 " | 606 x 508 | |
| 11207180610015 | 24 " | 718 x 610 |
| Art.nr. | Maat | Afmeting (mm) | Bestellen |
|---|---|---|---|
| 11200540021015 | 1/2" | 54 x 21 | |
| 11200670027015 | 3/4" | 67 x 27 | |
| 11200730033015 | 1 " | 73 x 33 | |
| 11200830042015 | 1.1/4" | 83 x 42 | |
| 11200950048015 | 1.1/2" | 95 x 48 | |
| 11201110060015 | 2 " | 111 x 60 | |
| 11201300073015 | 2.1/2" | 130 x 73 | |
| 11201490089015 | 3 " | 149 x 89 | |
| 11201650102015 | 3.1/2" | 165 x 102 | |
| 11201810114015 | 4 " | 181 x 114 | |
| 11202160141015 | 5 " | 216 x 141 | |
| 11202510168015 | 6 " | 251 x 168 | |
| 11203080219015 | 8 " | 308 x 219 | |
| 11203620273015 | 10 " | 362 x 273 | |
| 11204220324015 | 12 " | 422 x 324 | |
| 11204860356015 | 14 " | 486 x 356 | |
| 11205400406015 | 16 " | 540 x 406 | |
| 11205970457015 | 18 " | 597 x 457 | |
| 11206540508015 | 20 " | 654 x 508 | |
| 11207750610015 | 24 " | 775 x 610 |
Specificaties
| Type | KLINGERSIL®C-4500 |
| Materiaal | Koolvezels met NBR |
| Kleur | aan beide zijden grijs/zwart, eenzijdig bedrukt |
|
|
|
| Samendrukbaarheid volgens ASTM F36J | 11% |
| Terugvering volgens ASTM F36J | 60% |
| Drukvastheid volgens DIN 52913(2mm 300ºC) | 32 N/mm² |
| Gasdoorlaatbaarheid volgens DIN 28090-2 | <0,01 mg/s.m. |
| Doorslagspanning | <0,1 Kv/mm. |
| Warmtegeleiding | 0,2 W/mK. |
|
|
|
| Chemische bestendigheid | zie bestendigheidlijst |
|
|
|
| Goedgekeurd door | DIN DVGW |
| BAM II-1734/2004 | |
| TA-LUFT (clean air) acc VDI2440 | |
| Germanischer Lloyd cert. | |
| ÖVGW | |
| BS 7531 Grade AX | |
| "Fire safe" EN 10497 | |
| KTW drinkwater | |
| RoHS cert. 2011/65/EG | |
| 2003/11/EG cert. | |
| 76/769/EWG cert. | |
| Biobrandstoffen getest 2003/30/EG | |
| Reach verklaring | |
| SVHC lijstverklaring | |
| ÖVGW certifikaat | |
|
|
|
|
Afdichtingsfaktoren 2 mm dik lekkageklasse 0.1 mg/sxm
|
|
| ASTM Y | 25 MPa |
| ASTM m | 4 |
| D0701 pgm;min 25ºC | 26 MPa |
| D0701 pgm;max 25ºC | 180 MPa |
| D0701 pgm;max 100ºC | 110 MPa |
| D0701 pgm;max 200ºC | 59 MPa |
| D0701 pgm;max 300ºC | 43 MPa |
| D0701 Cg | 1,3 |
|
|
|
|

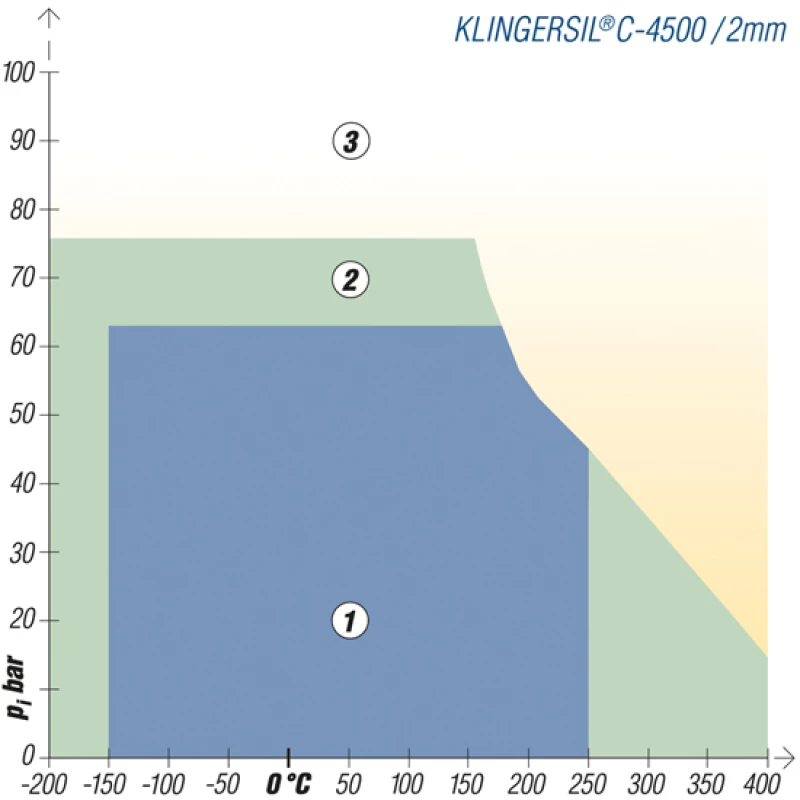

Druk/Temperatuur-Grafiek
|
|
| Gebied 1 | Normaliter bij afdoende vlaktedruk probleemloos toe te passen. |
| Gebied 2 | Vraag advies voor kritische toepassingen. |
| Gebied 3 | Vraag advies. |
|
|
|
|
DIN afmetingen volgens EN 1514-1
|
|
|
ANSI afmetingen volgens B16.21
|
|
